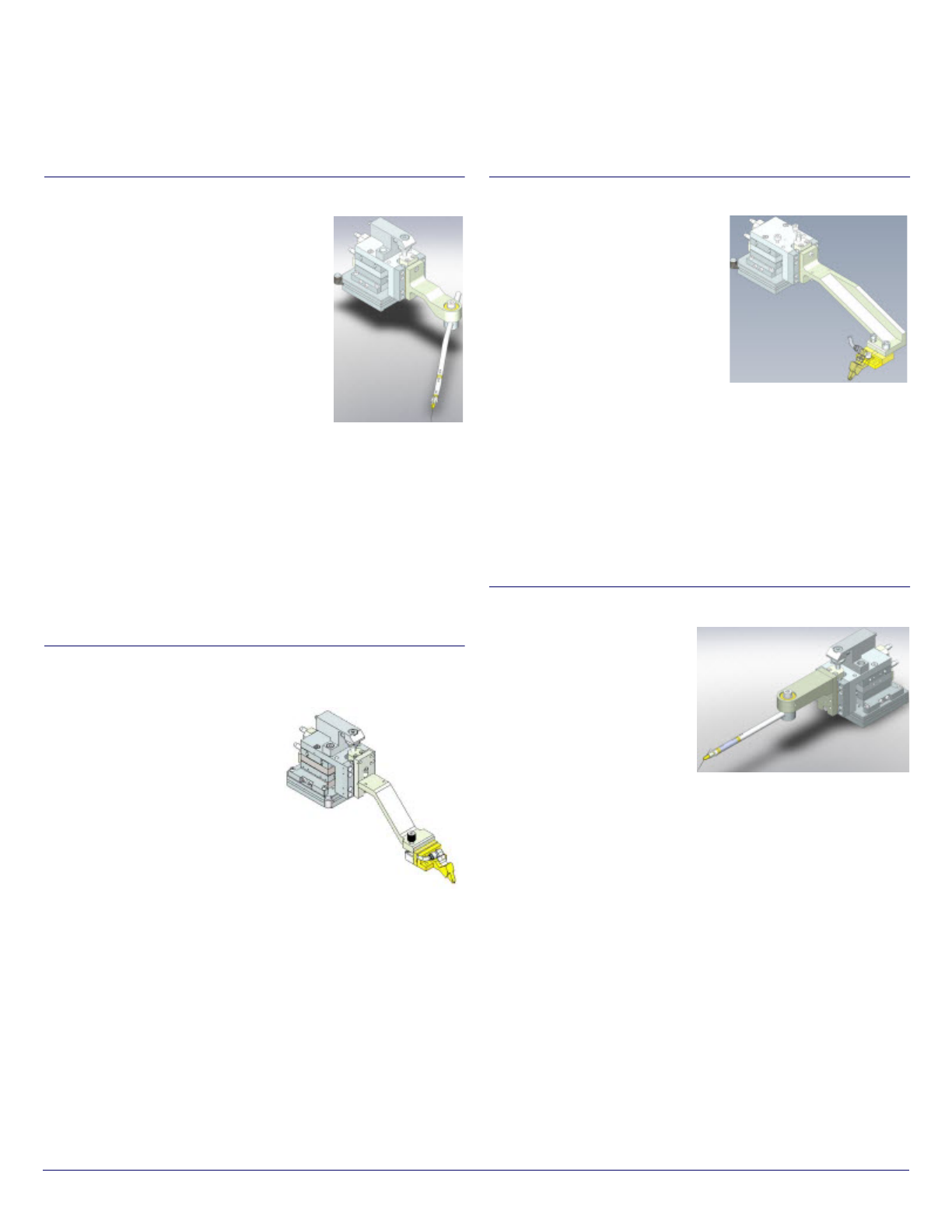

PN 141-400 www.formfactor.com Positioners and Positioner Accessories • 90
Revision 57, February, 2023 Probe Station Accessories
Cryogenic & Vacuum Positioners
137197 — VCP110, DC Triax, Cryo, PMC200/PAC200
Features
• Use d for IV/CV probing and failure
analysis in vacu um/cryogenic
environments
• Use d with PTT probes
• VCP110 high vacuum probe positioner
• Stainless steel main body
• Magnetic foot adapter
• 3 linear axes with 12 mm movement range
• Probe arm DC triax wit h vacuum proof
triax cable with connector to electrical
feedthrough flange
Specifications
• Feature resolution: 3 μm ( 0.12 mils)
• Travel range: 12 mm (0.5 in) in X, Y, and Z
• Mount: magnetic
• Footprint (WxD): 65 x 65 mm (0.24 x 0.24 in)
Compatibility
• PAC200, PMC200
137198 — VCP110, HF East-West, Cryo, PMC200/
PAC200
Features
• Use d for RF probing in vac uum/
cryogenic environments
• Use d with high performance RF
probes
• VCP110 high vacuum probe
positioner
• Stainless steel main body
• Magnetic foot adapter
• Probe arm HF straight
Specifications
• Feature resolution: 3 μm ( 0.12 mils)
• Travel range: 12 mm (0.5 in) in X, Y, and Z
• Mount: magnetic
• Footprint (WxD): 65 x 65 mm (0.24 x 0.24 in)
Compatibility
• PAC200, PMC200
137199 — VCP110, North-South, Cryo, PMC200/PAC200
Features
• Used for RF probing in vacuum/
cryogenic environments
• Used with high performance RF
probes
• VCP110 high vacuum positioner
• Stainless steel main body
• Magnetic foot adapter
• Probe arm HF right-angled
Specifications
• Feature resolution: 3 μm (0.12 mils)
• Travel range: 12 mm (0.5 in) in X, Y, and Z
• Mount: magnetic
• Footprint (WxD): 65 x 65 mm (0.24 x 0.24 in)
Compatibility
• PAC200, PMC200
140967 — VCP110, High Vacuum, DC Triax, PLV50
Features
• Used for IV/CV p robing and
failure analysis in vacuum/
cryogenic environments
• Used with PTT probes
• VCP110 high vacuum probe
positioner
• Stainless steel main body
• Magnetic foot adapter
• Probe arm DC triax with vacuum proof triax cable with connector to
electrical feedthrough flange
Specifications
• Feature resolution: 3 μm (0.12 mils)
• Travel range: 12 mm (0.5 in) in X, Y, and Z
• Mount: magnetic
• Footprint (WxD): 65 x 65 mm (0.24 x 0.24 in)
Compatibility
• PLV50

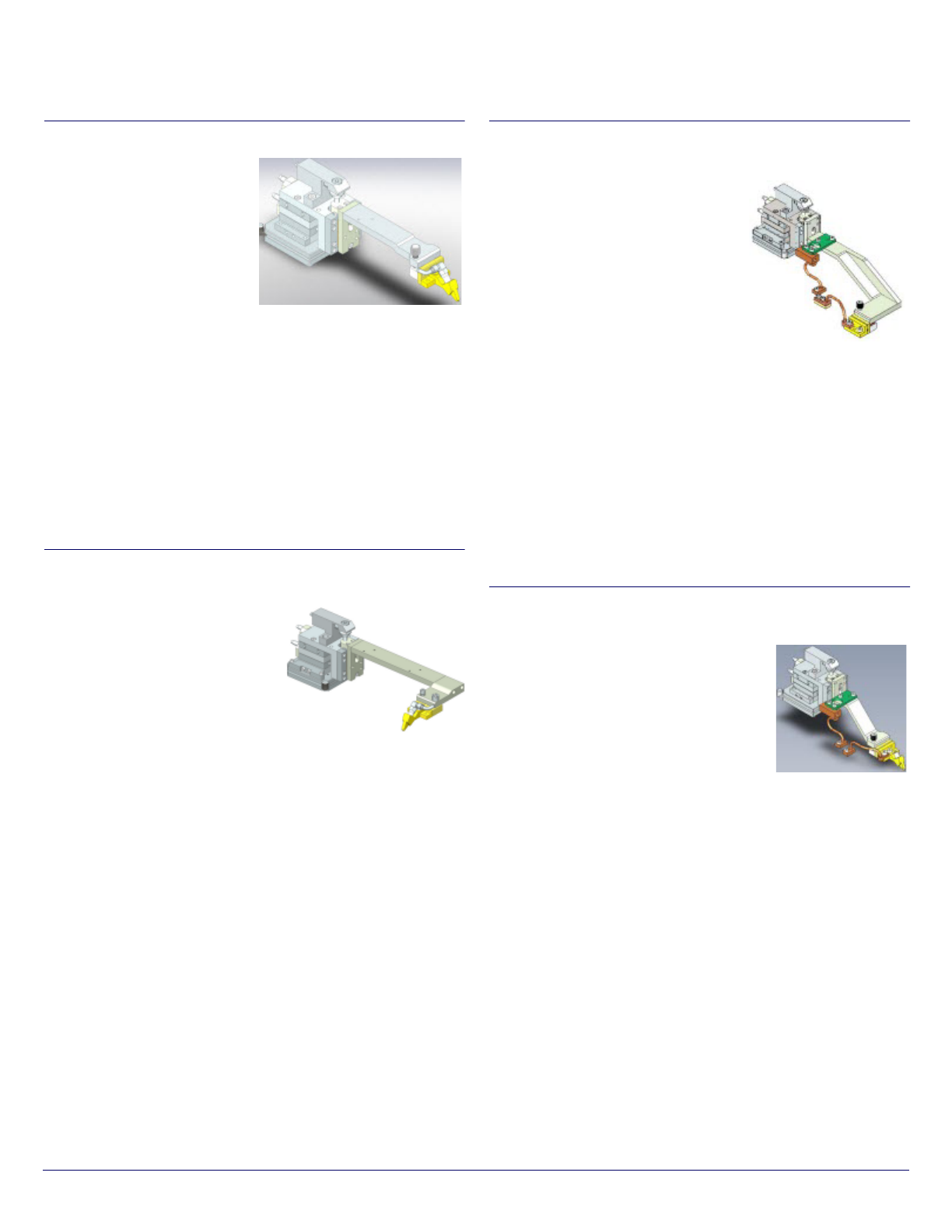

PN 141-400 www.formfactor.com Positioners and Positioner Accessories • 91
Revision 57, February, 2023 Probe Station Accessories
140968 — VCP110, High Vacuum, HF East-West, PLV50
Features
• Use d for RF probing in vacuum/
cryogenic environments
• Use d with high performance RF
probes
• VCP110 high vacuum probe
positioner
• Stainless steel main body
• Magnetic foot adapter
• Probe arm HF straight
Specifications
• Feature resolution: 3 μm ( 0.12 mils)
• Travel range: 12 mm (0.5 in) in X, Y, and Z
• Mount: magnetic
• Footprint (WxD): 65 x 65 mm (0.24 x 0.24 in)
Compatibility
• PLV50
140969 — VCP110, High Vacuum, HF Arm, North-South,
PLV50
Features
• Use d for RF probing in vac uum/
cryogenic environments
• Use d with high performance RF
probes
• VCP110 high vacuum probe
positioner
• Stainless steel main body
• Magnetic foot adapter
• Probe arm HF right-angled
Specifications
• Feature resolution: 3 μm ( 0.12 mils)
• Travel range: 12 mm (0.5 in) in X, Y, and Z
• Mount: magnetic
• Footprint (WxD): 65 x 65 mm (0.24 x 0.24 in)
Compatibility
• PLV50
147161 — VCP110, HF North-South, Cryo, PMC200/
PAC200
Features
• Used for RF probing in vacuum/
cryogenic environments
• Used with high performance RF
probes
• VCP110 high vacuum probe
positioner
• Stainless steel main body
• Magnetic foot adapter
• Right-angled HF arm includes thermal contacts for cooling Cryo
|Z|Probe
Specifications
• Feature resolution: 3 μm (0.12 mils)
• Travel range: 12 mm (0.5 in) in X, Y, and Z
• Mount: magnetic
• Footprint (WxD): 65 x 65 mm (0.24 x 0.24 in)
Compatibility
• PAC200, PMC200
147160 — VCP110, HF East-West, Cryo, PMC200/
PAC200
Features
• Used for RF probing in vacuum/cryogenic
environments
• Used with high performance RF probes
• VCP110 high vacuum probe positioner
• Stainless steel main body
• Magnetic foot adapter
• HF arm straight includes thermal contacts for cooling Cryo |Z|
probe
Specifications
• Feature resolution: 3 μm (0.12 mils)
• Travel range: 12 mm (0.5 in) in X, Y, and Z
• Mount: magnetic
• Footprint (WxD): 65 x 65 mm (0.24 x 0.24 in)
Compatibility
• PAC200, PMC200

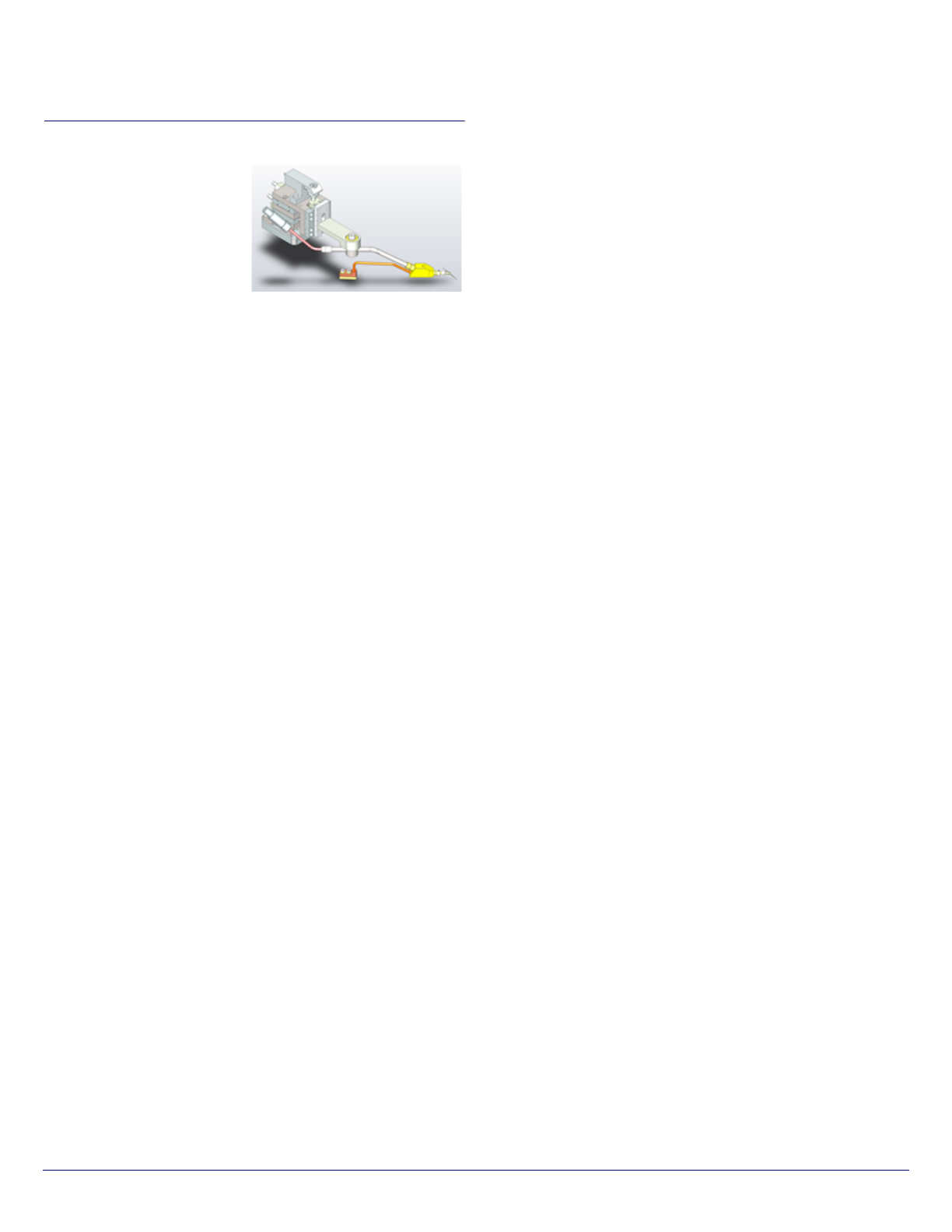

PN 141-400 www.formfactor.com Positioners and Positioner Accessories • 92
Revision 57, February, 2023 Probe Station Accessories
148722 — VCP110, DC Triax, Cryo, PMC200/PAC200
Features
• Use d for IV/CV/RF probing
and failure analysis in
vacuum/cryogenic
environments
• Use d with high performance
DC or RF p robes
• VCP110 high vacuum probe
positioner
• Stainless steel main body
• Magnetic foot adapter
• Probe arm DC triax with vacuum proof triax cable with connector to
electrical feedthrough flange
• Thermal contacts for probe co oling
Specifications
• Feature resolution: 3 μm ( 0.12 mils)
• Travel range: 12 mm (0.5 in) in X, Y, and Z
• Mount: magnetic
• Footprint (WxD): 65 x 65 mm (0.24 x 0.24 in)
Compatibility
• PAC200, PMC200
