PN 141-400 www.formfactor.com Probe Card Holders • 94
Revision 57, February, 2023 Probe Station Accessories
Probe Card Holders and Accessories
CM300XI

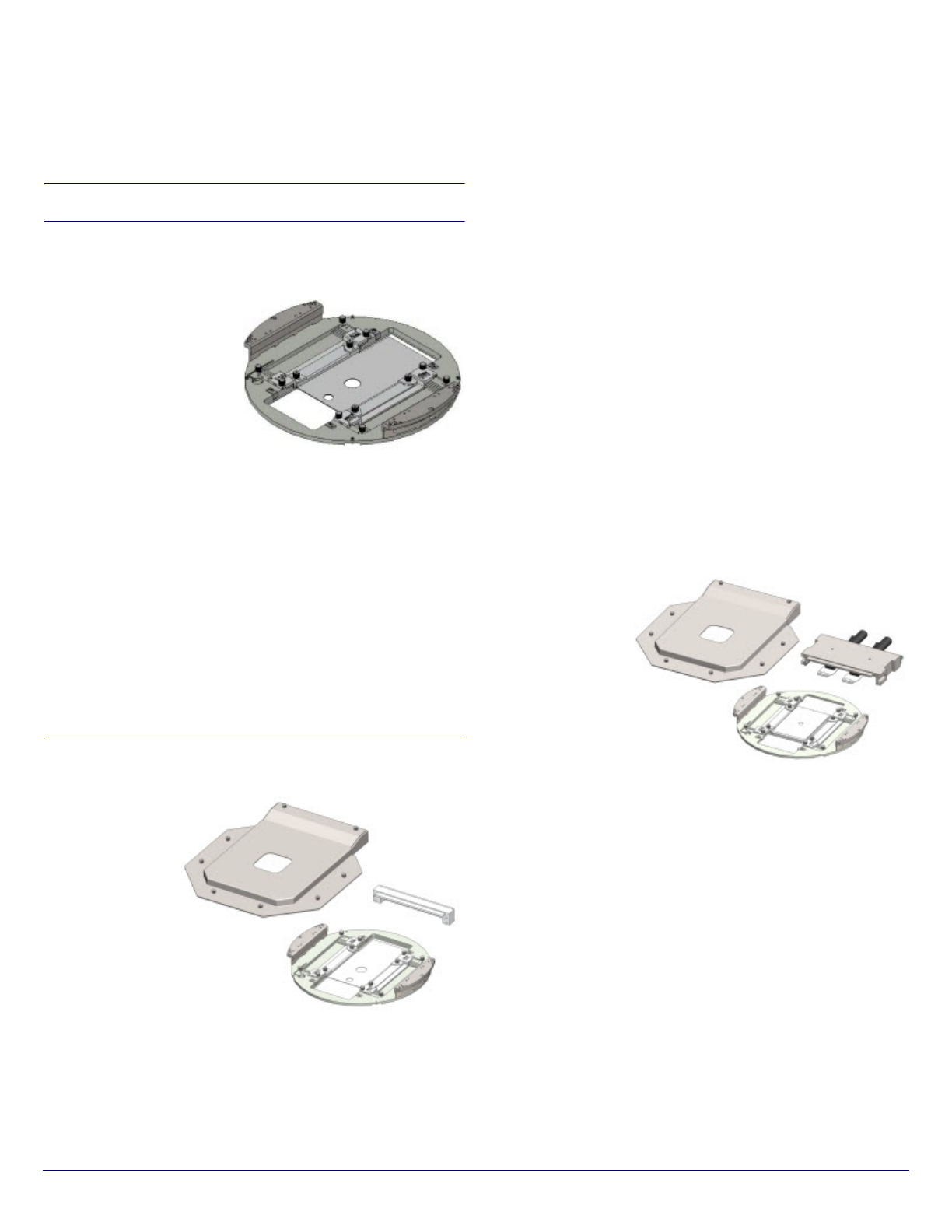

171-226 — Probe Card Holder 4.5 in for shielded
CM300xi with Top Chambers
Features
• Use d with 114 mm (4.5 in)
width probe cards with the
CM300xi Advanced and
probe card
• Integrated ProtecPlate for
optimal low-level accuracy
• Frost-free probing
• Simultaneous usage with positioners
• Simple and fast installation
• Easy compensation for different tip drop
• Check probe card for mechanical compatibility (electric
connectors, tip drop, wire harness, etc.)
Specifications
• Probe card support:
– Max. probe card length = 284 mm (11.2 in) (max. 142 mm [5.6
in] from probe center to front/rear)
– Tip drop adjustable for 3.0 to 5.0 mm (in 0.5 mm steps)
Compatibility
• CM300xi
171-976 — Probe Card Holder 4.5 in for shielded
CM300xi with Cover
Features
• Use d with114 mm
(4.5 in) width
probe cards
inside the EMI/
RFI shielded and
light-tight CM300xi environment
• Integrated AttoGuard for optimal low-level accuracy
• Frost-free probing
• Use positioners in conjunction with the probe ca rd by removing the
PCH cover (open environment)
• Simple and fast installation
• Easy compensation for different t ip drop
• Check probe card for mechanical compatibility ( electric
connectors, tip drop, wire harness, etc.)
Specifications
• Probe card su pport:
– Max. probe card length = 284 mm (11.2 in) (max. 1 42 mm [5.6
in] from probe center to front/rear)
– Tip drop adjus table for 3.0 to 5.0 mm (in 0.5 mm steps)
Compatibility
• CM300xi
171-977 — Probe Card Holder 4.5 in for shielded
CM300xi with Cover and Celadon Probe Cards
Features
• Used with 114 mm
(4.5 in) width probe
cards inside the
EMI/RFI shielded
and light-tight
CM300xi
environment
• Integrated
AttoGuard for
optimal low-level
accuracy
• Frost-free probing
• Use positioners in conjunction with the probe ca rd by removing the
PCH cover (open environment)
• Simple and fast installation
• Easy compensation of different tip drop
• Check probe card for mechanical compatibility ( electric
connectors, tip drop, wire harness, etc.)
Specifications
• Probe card su pport:
– Max. probe card length = 284 mm (11.2 in) (max. 1 42 mm
[5.6 in] from probe ce nter to front/rear)
– Tip drop adjus table for 3.0 to 5.0 mm (in 0.5 mm steps)
Compatibility
• CM300xi
PN 141-400 www.formfactor.com Probe Card Holders • 95
Revision 57, February, 2023 Probe Station Accessories

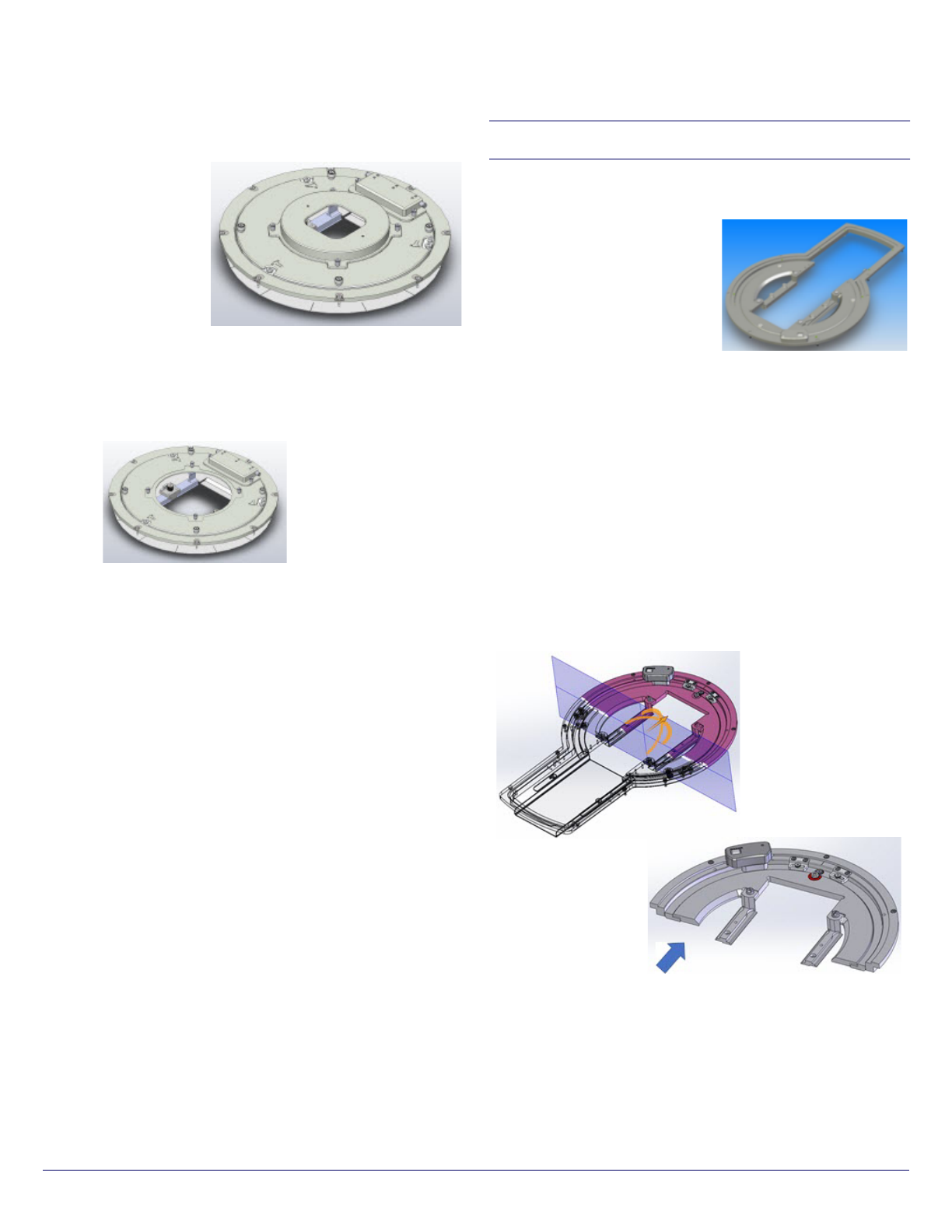

173-020 — 4.5 in Probe Card Holder, HTS, for Shielded
CM300xi
Features
• Probe card holder for
114 mm (4.5 in)
rectangular probe
cards
• Maintains dark, dry,
EMI/RFI shielded
environment (CM300xi
shielded an d fully-
shielded)
• Can be oriented E/W/ S/N for short cables to test equipment
• Easy 3-point probe card planari zation
• Simple and fast installation, quick changeover from positioners to
probe card
• High thermal stability design an d materials
• Check probe card for mechanical compatibility (electric
connectors, nominal tip drop 4.7 mm [0.185 in], e tc.)
Specifications
• Temperature range supported: -6 0°C (-76°F) to 300°C (572°F)
• For unattended testing of pads down to 3 0 x 30 µm (1.12 x
1.12 mils) at temperatures between -55°C to +175°C (-67°F to
+347°F)
• Probe card support:
– For Celadon T40 probe cards or compatible
– Max. probe card length = 160 mm (6.3 in) (max. 8 0 mm [3.1 in]
from probe center to front/rear)
• Height adjustability:
– For nominal tip drop of 4.7 mm (0. 185 in)
– ProbeHorizon tolerates +/-0.5 mm (0.02 in) of nominal tip drop
• Max planarization height range: up to 40 mils compression at each
planarization point (3)
• Max probe card force: 20 kg (44 lb)
Compatibility
• CM300xi
ELITE 300/SUMMIT200/TESLA200
177-600/X2-PIPCH — Probe Card Holder
Features
• Universal probe card h older for
114 mm (4.5 in) rectangu lar probe
cards
• PCH can be oriented E/W/S/N for
short cables run to test equipment
• Low profile de sign allows
simultaneous probe card and
internal node needle probes
• Quick changeover from positioners to probe card
• Supports multiple probe card needle drafts with height adjustment
• Easy 3 -point probe card planarization
Specifications
• Temperature range supported: -60°C to 300°C (-76°F to 572°F)
• Probe card su pport:
– 114 mm (4.5 in) wide rectangular cards
– Max. probe card length with edge co nnector: 11.375
– Nee dles for 216 mm (8.5 in) long cards can be up to 64 mm (2.5
in) off center
• Probe card draft (distance between bottom of probe card and
probe tip):
Shown with quick
access cover
removed
• Front view of this
section is shown in
Standard PCH rail
assembly (PN 162-
000) and Optional
deep PCH rail
assembly (PN 162-
001) images below
• All units are in mm
PN 141-400 www.formfactor.com Probe Card Holders • 96
Revision 57, February, 2023 Probe Station Accessories

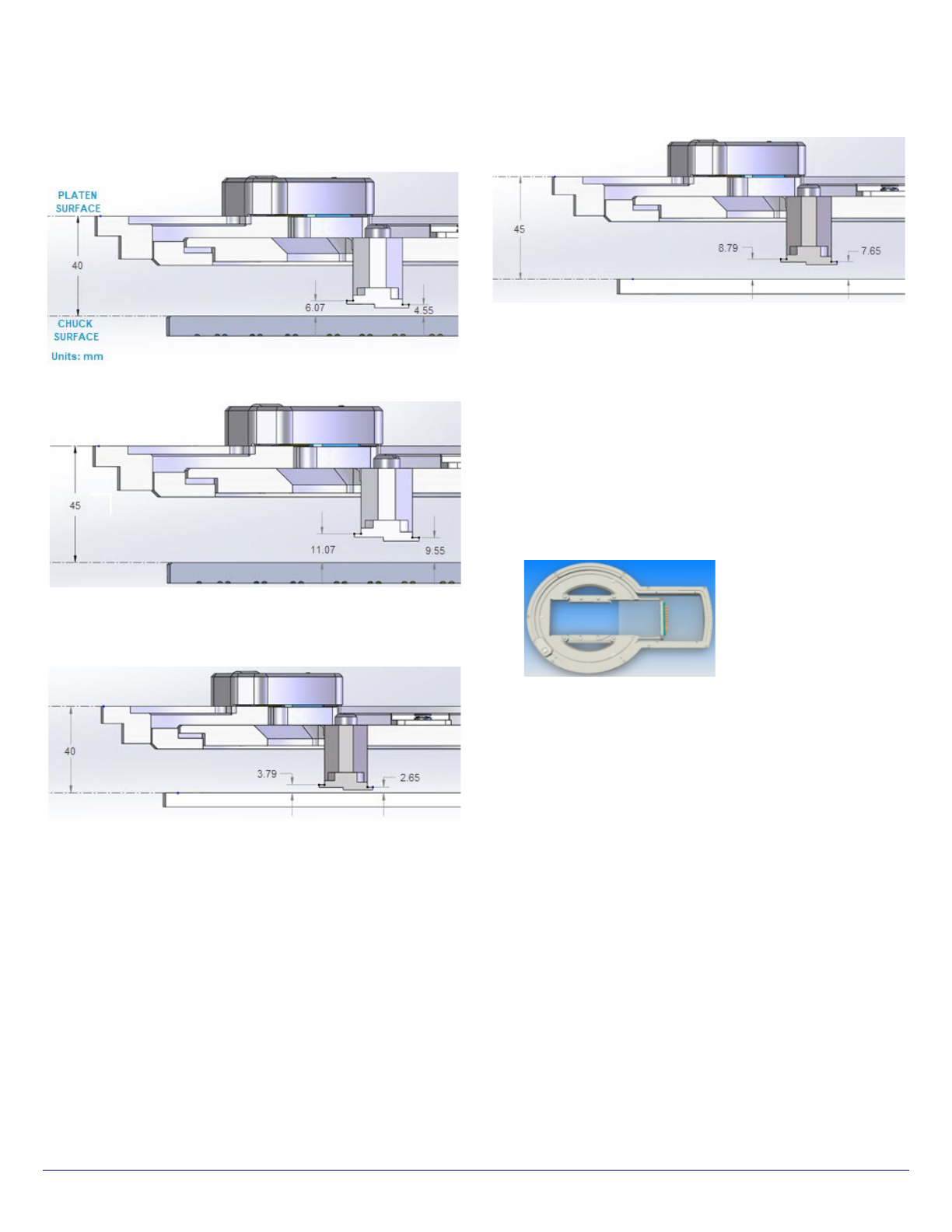

– Standard PCH rail assembly (PN 162-000)
– Optional deep PCH rail assembly (PN 162-001)
• Theta rotation: ± 7.5°
• Max planarization height range: up to 40 mils compression at each
planarization point (3)
• Max probe card force: 20 kg (44 lb)
Kit Contents
• Probe card holder
• Edge connector kit with 48 a nd 70 pin connectors (f)
• Rear cable heat shield/support
• Probe card height adjustment kit (4 h eight settings)
• Standard PCH rail assembly (PN 162-000)
Compatibility
• Elite 300/AP, Elite 300/M, SUMMI T200-S, SUMMIT200-AP,
SUMMIT200-M (with performance limitations)
Overall probe card draft = 4.55 mm – 11.07 mm
Overall probe card draft = 2.65 mm – 8.79 mm
Probe Card Holder (top
view) with edge
connector an d cable
heat shield installed
