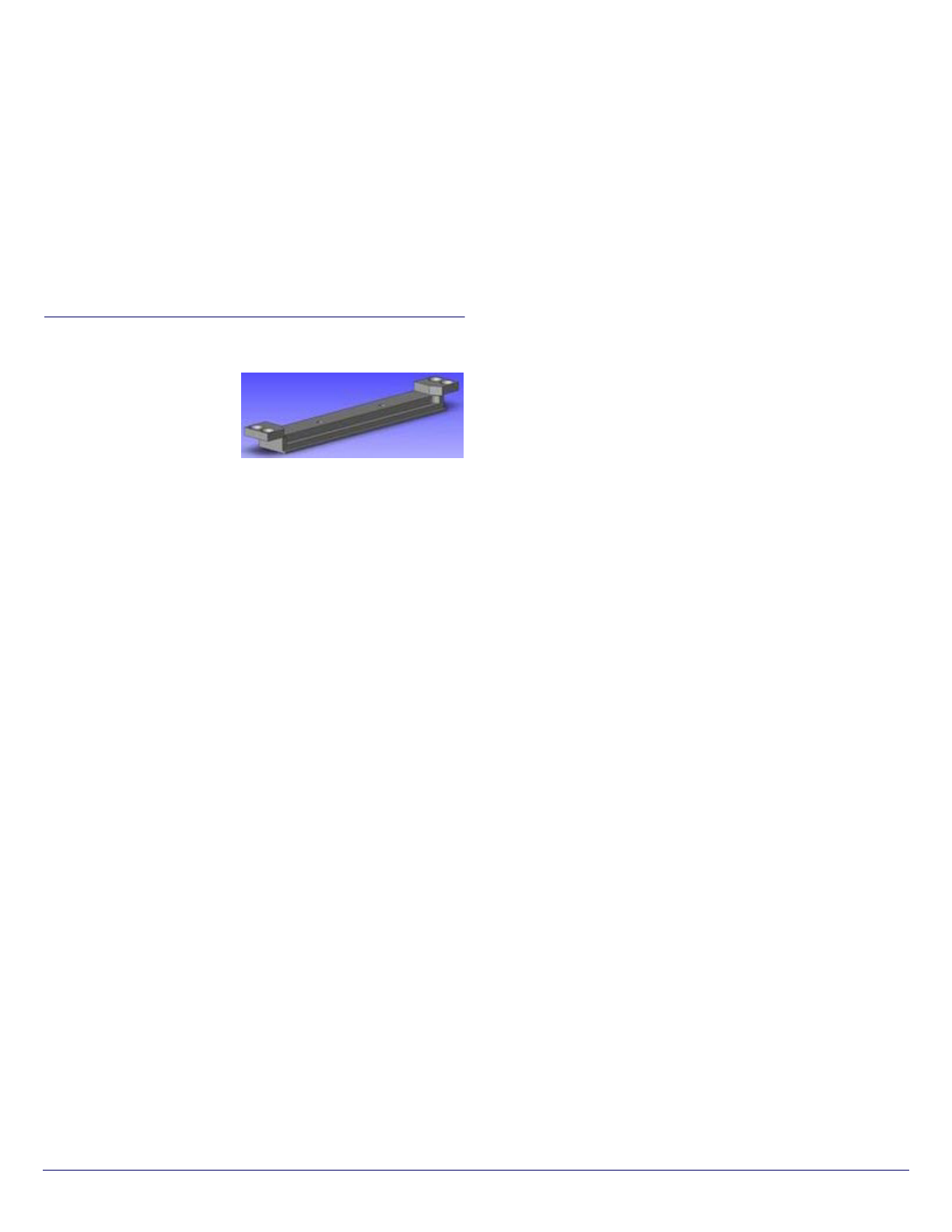

PN 141-400 www.formfactor.com Probe Card Holders • 102
Revision 57, February, 2023 Probe Station Accessories
– System without Micr oChamber ambient t o 200°C (392°F)
• Theta ran ge ±3°
• Maximum planarization height compensation: 0.762 mm (0.030 in)
• Probe card maximums:
– W = 11.4 cm ±3 mm (4.5 in ±.012 in)
– L = 15.25 cm 28.9 cm (6 in 11.375 in)
– Thickness = 0.15 cm 0 .32 cm (0.060 in 0.125 in)
Compatibility
• Summit
138-022 — Clamp Kit for LLPC, in Low Profile Card
Holder
Features
• Option to allow use of
shallow draft probe cards
• For use on Low Profile
Probe Card Holder (120-
935) and Low-Profile Probe
Card Holder for Summit Stations with MicroChamber (124-118)
Specifications
• Increases the draft from 2.03 to 4.57 mm (0.08 to 0.18 in)
Compatibility
• Summit

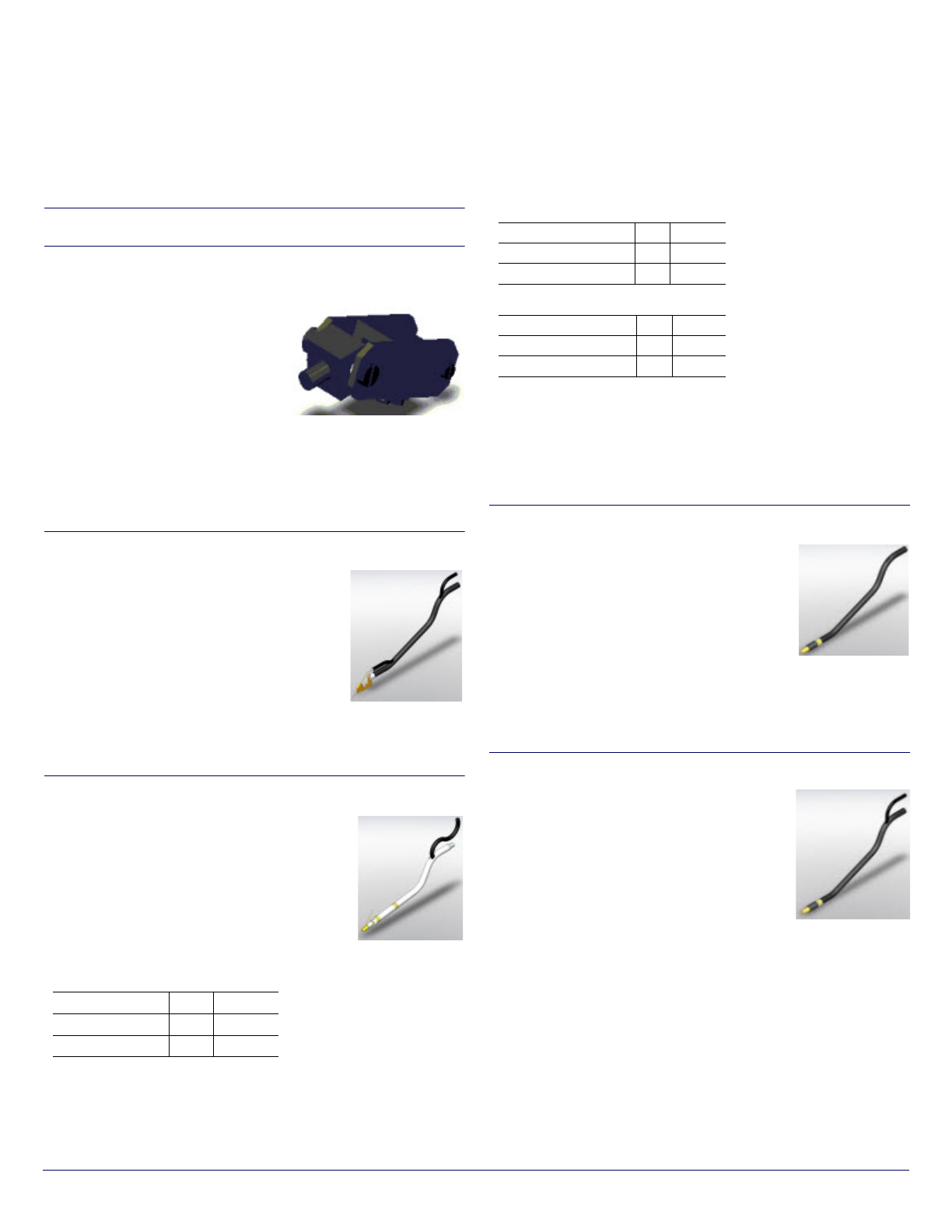

PN 141-400 www.formfactor.com Probe Mounts/Holders and Probes • 103
Revision 57, February, 2023 Probe Station Accessories
Probe Mount s/Holders and Probes
Probe Arms and Probes (S-Positioner Compatible)
DC PROBE ARMS, DPP2XX/DPP3XX
100489 — Ad apter Picoprobe 10-34A/DPP2xx/DPP3xx
Features
• Holding fixture for active picoprobes
from GGB picoprobe 10…34
(picoprobe not included)
• Integrates existing picoprobe with
DPP2XX or DPP3xx
• Ada pter is included with FormFactor
standard picoprobes
Compatibility
• MPS150, PM8, PM300, PA200, PA300
100524 — Probe Arm, DPP2xx/DPP3xx, Edge Sensor
Features
• Includes edge sensor tip
• With connector matching to all semiautomatic
standard probe stations (check compatibility to
all other probe stations)
Compatibility
• All PA/PM stations (except MicroAlign) +
DPP2xx-S, DPP3xx-S, DPP450-S (and former PH110, PH120,
PH150, PH400)
100525 — Probe Arm, DPP2xx/DPP3xx, Triax
Features
• 1.5 m (5 ft) 5 0 Ohm low n oise triax cable and
triax plug BNC
• Highly isolated and gold plated needle
clamping
Specifications
• Max. operation temperature: 300°C (572°F)
• Res istanc e*:
• Leakage*:
• Capacitance*:
* Spec test conditions for all cases: 25% humidity, shielded chamber, ambient
Compatibility
• MPS150, EPS150, all PA/PM stations (except MicroAlign) +
DPP2xx-S, DPP3xx-S, DPP450-S (and former PH110, PH120,
PH150, PH400)
100560 — Probe Arm, DPP3xx, Coax, BNC
Features
• Short 50 Ohm coaxial cable and female BNC
connector mounted in DPP3xx positioner base
• Requires additional coaxial cable (BNC male
connector)
• Isolated a nd gold plated needle clamping
Compatibility
• MPS150, EPS150, all PA/PM stations (except MicroAlign) +
DPP3xx-S, DPP450-S (and former PH150, PH400)
100561 — Probe Arm, DPP2xx/DPP3xx, Coax, BNC
Features
• 2 m (6.5 ft) 50 Ohm coaxial cable with BNC
connector
• Gold plated needle clamp
Specifications
• Resistance: >100 TOhm
• Leakage: < 120 fA
• Capacitance: <300 pF
Compatibility
• MPS150, EPS150, all PA/PM stations (except MicroAlign) +
DPP2xx-S, DPP3xx-S, DPP450-S (and former PH110, PH120,
PH150, PH400)
R_F-G @10V
T Ω
≥100
R_G-S @10V
T Ω
≥50
R_F-S @10V
T Ω
≥300
F-G @10V@1min
fA
≤500
G-S @10V@1min
fA
≤2000
F-S @10V@1min
fA
≤500
C_F-G @300pA
pF
≤300
C_G-S @300pA
pF
≤500
C_F-S @300pA
pF
≤200

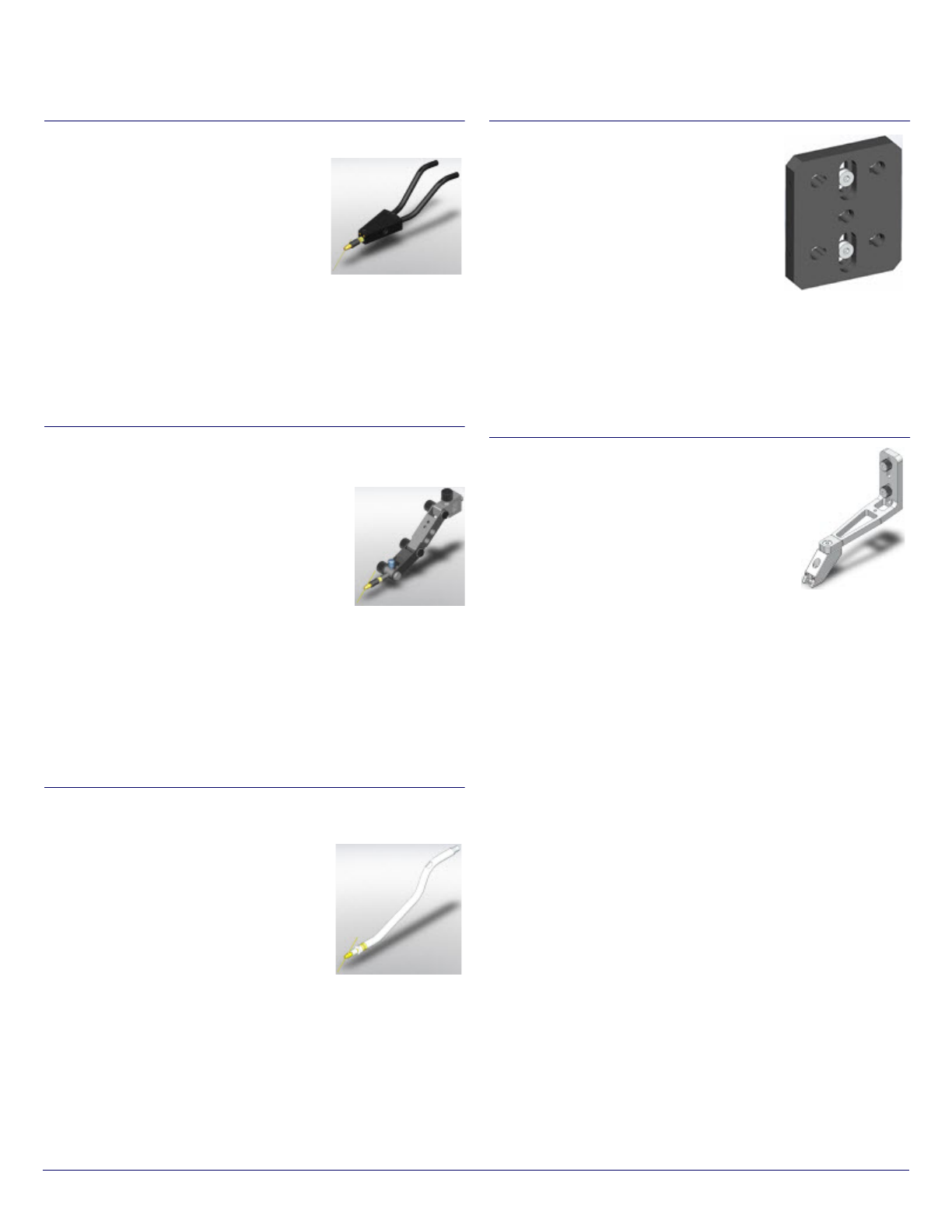

PN 141-400 www.formfactor.com Probe Mounts/Holders and Probes • 104
Revision 57, February, 2023 Probe Station Accessories
100696 — Probe Arm, DPP2xx/DPP3xx, Kelvin, 1 Tip
Features
• (2) 2 m (6.5 ft) coaxial cables, 50 Ohm and
BNC connector
• Double arm design for improved stiffness,
with s ingle tip clamping (gold plated)
• Shield connection can be changed
• Connected for LCR measurements as
standard
Compatibility
• MPS150, EPS150, all PA/PM stations (except MicroAlign) +
DPP2xx-S, DPP3xx-S, DPP450-S (and former PH110, PH120,
PH150, PH400)
100715 — Probe Arm, DPP2xx/DPP3xx, Adjustable,
Coax, BNC
Features
• 2 m (6.5 ft) 50 Ohm coaxial cable and BNC
plug
• Four hinges for individual arm profiling
• Gold p lated needle clamping
Specifications
• Res istanc e: >100TOhm
• Leakage: <120fA
• Capacitance: <300pF
Compatibility
• MPS150, EPS150, all PA/PM stations (except MicroAlign) +
DPP2xx-S, DPP3xx-S, DPP450-S (and former PH110, PH120,
PH150, PH400)
131844 — Probe Arm, DPP2xx/DPP3xx, Coax, High
Temperature
Features
• For long term tests at temperatures higher
than 100°C and always with temperature
chucks up to 300°C
Specifications
• 1.5 m (6 ft) 5 0 Ohm c able with coaxial plug
BNC
Compatibility
• MPS150, EPS150, all PA/PM stations (except MicroAlign) +
DPP2xx-S, DPP3xx-S, DPP450-S (and former PH110, PH120,
PH150, PH400)
133838 — Front Plate for DC Arms
on RPP2xx Positioners
Features
• Used for mounting DC Arms for ope n
systems on RPP2xx RF positioners
• RF arm must be disassembled from the
RPP2xx positioner
Specifications
• Used to moun t 1 (each) of 100489/100524/100525/100560/
100561/100696/100715/131844
• Not for use with 144139
Compatibility
• EPS150/200, PM8, PA200, PM300 + RPP2xx
144139 — Probe Arm, DPP2xx/DPP3xx,
Flex, DCP Probes
Features
• High rigidity
• Stainless steel design for high rigidity and
minimum thermal drift
• Requires adaptation unit 138697 for use with
DPP3xx/DPP450
• DCP probes, cables and conn ectors not included base
Compatibility
• MPS150, EPS150, all PA/PM open systems (exce pt MicroAlign) +
DPP2xx-S, DPP3xx-S, DPP450-S (and former PH110, PH150,
PH400)
Note: DPP3xx-S and DPP450-S (and former PH15 0, PH400) require
138697 in order to mount this arm.
