PN 141-400 www.formfactor.com Probe Mounts/Holders and Probes • 108
Revision 57, February, 2023 Probe Station Accessories
RFA-F67-E-TH
Features
• East probe arm enables mounting of
Focus Microwaves Delta Tuner
• 67 GHz, fundamental (C-672xx) /
harmonic (M-67100), load
• Compatible with RF MicroChamber
TopHat (includes boot/FlexShield) or
open (non-To pHat) configurations
• Non-Tophat plates (for closer
coupling) and TopHat adapter included
Compatibility
• RPP404, RPP404-W, RPP504 positioners
RFA-F67-W-TH
Features
• East probe arm enables mounting of
Focus Microwaves Delta Tuner
• 67 GHz, fundamental (C-672xx) /
harmonic (M-67100), source
• Compatible with RF MicroChamber
TopHat (includes boot/FlexShield) or
open (non-To pHat) configurations
• Non-Tophat plates (for closer coupling) and TopHat adapter
included
Compatibility
• RPP404, RPP404-W, RPP504 positioners
RFA-F110-EH
Features
• East probe arm enables mounting
of Focus Microwaves Delta Tuner
• 110 GHz, harmonic, (M-1102XX /
M-1105XX), load
• Compatible with open (non-
TopHat) configurations
• Requires one of the following:
– PN 188-768 Nikon Objective Kit for eVue, 10X (contains spacer
and lens)
– PN 188-769 Nikon Objective Kit for eVue, 20X (contains spacer
and lens)
Compatibility
• RPP404, RPP404-W, RPP504 positioners
RFA-F110-WH
Features
• West probe arm
enables mounting of
Focus Microwaves
Delta Tuner
• 110 GHz, harmonic,
(M-1102XX / M-
1105XX), source
• Compatible with open
(non-To pHat)
configurations
• Requires one of the following:
– PN 188-768 Nikon Objective Kit for eVue, 10X ( contains spacer
and lens)
– PN 188-769 Nikon Objective Kit for eVue, 20X ( contains spacer
and lens)
Compatibility
• RPP404, RPP404-W, RPP504 positioners

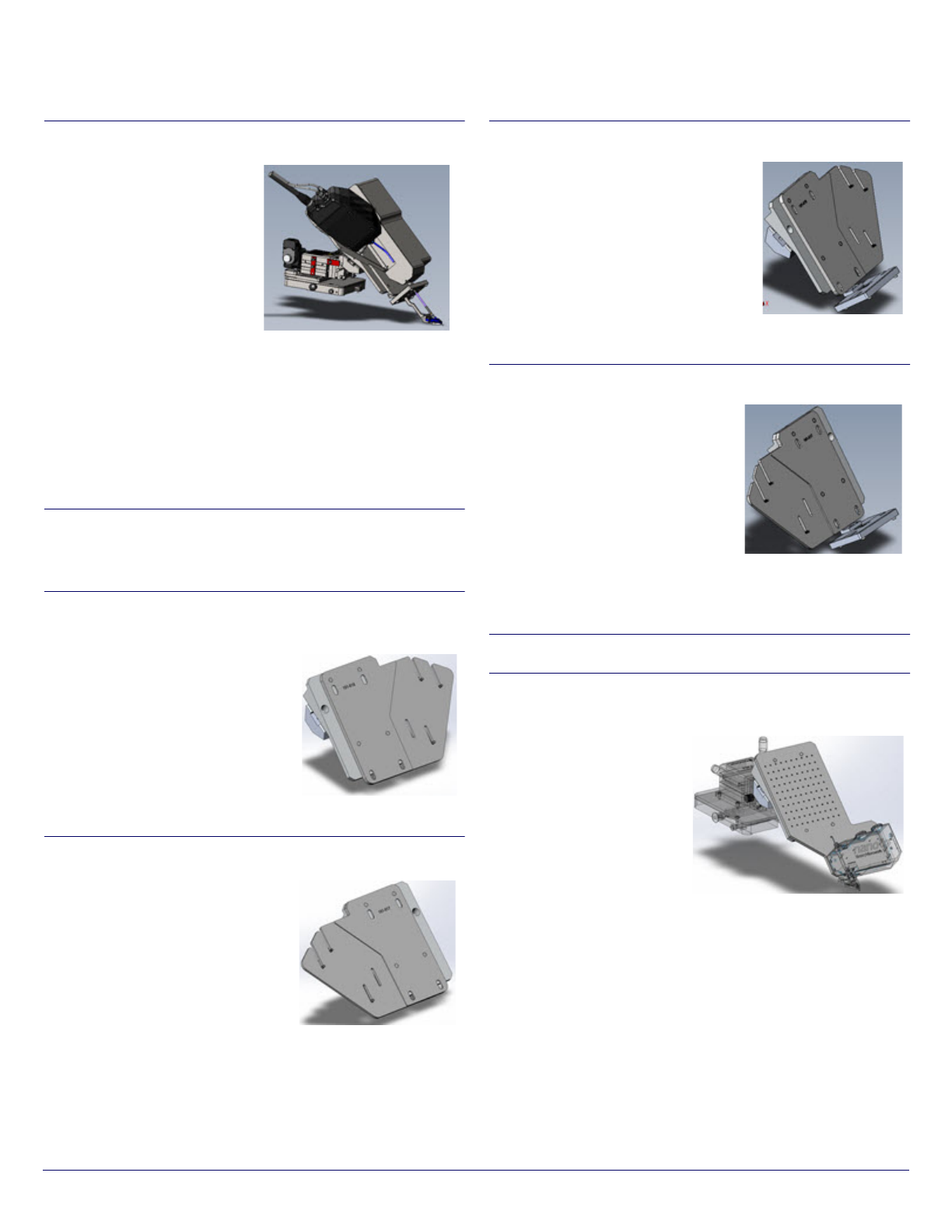

RFA-F110-EH-TH
Features
• East probe arm enables
mounting of Focus
Microwaves Delta Tuner
• 110 GHz, harmonic, (M-
1102XX / M-1105XX),
load
• Compatible with RF
MicroChamber TopHat
(includes boot/FlexShield)
or open (non-TopHat)
configurations
• Non-Tophat plates (for
closer coupling) an d
TopHat adapter included
Compatibility
• RPP404, RPP404-W,
RPP504 positioners
RFA-F110-WH with tuner
RFA-F110-EH-TH assembled on
system
RFA-F110-EH-TH with tuner
(positioner shown, not included)
PN 141-400 www.formfactor.com Probe Mounts/Holders and Probes • 109
Revision 57, February, 2023 Probe Station Accessories
RFA-F110-WH-TH
Features
• West probe arm enables
mounting of Focus
Microwaves Delta Tuner
• 110 GHz, harmonic, (M-
1102XX / M-1105XX), source
• Compatible with RF
MicroChamber TopHat
(includes boot/FlexShield) o r
open (non-To pHat)
configurations
• Non-Tophat plates (for closer
coupling) and TopHat adapter included
Compatibility
• RPP404, RPP404-W, RPP504 positioners

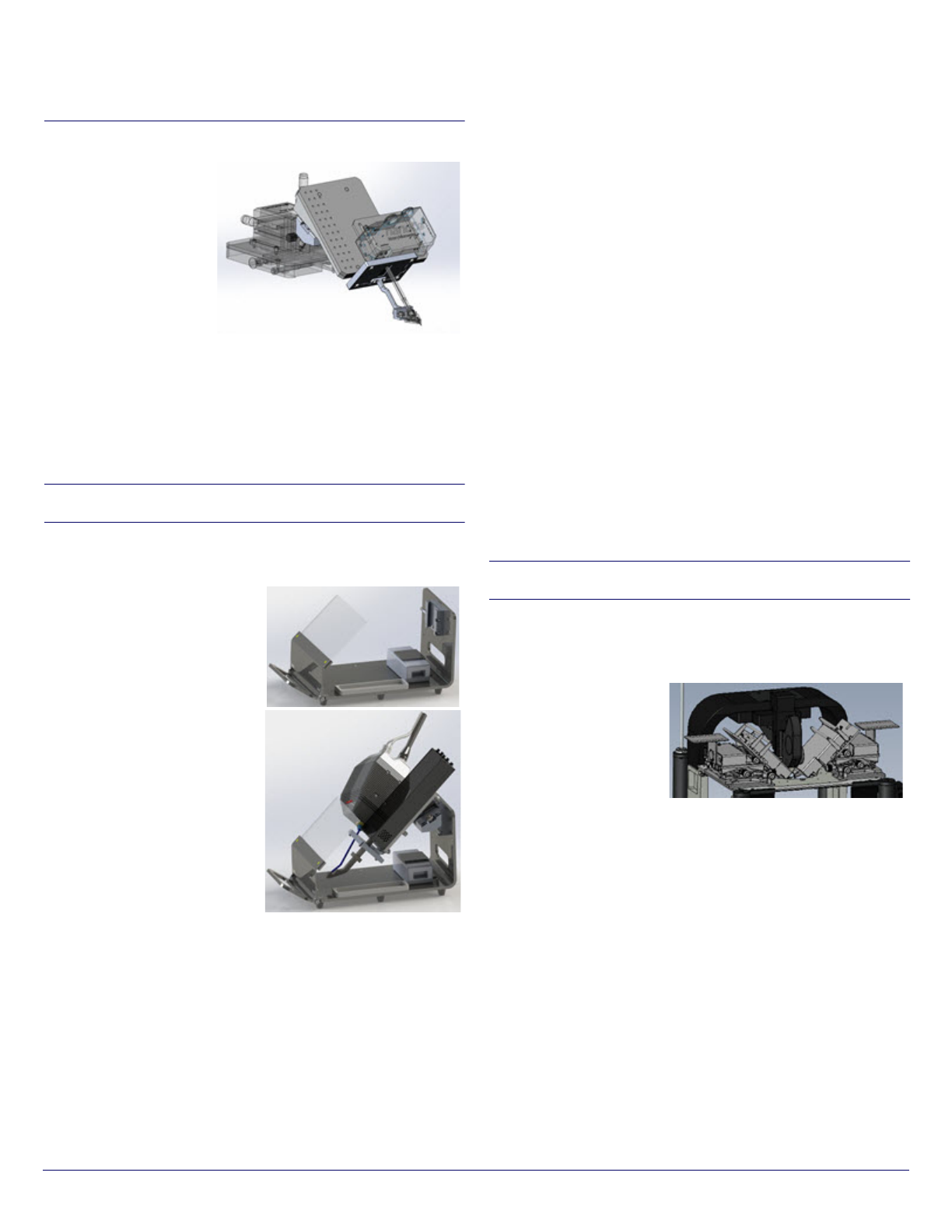

RFA PROBE ARMS, RPP404/RPP404-W /RPP504
(S
INGLE SWEEP BROADBAND MEASUREMENTS FROM DC
TO 220GHZ)
RFA-K220-E
Features
• East probe arm enables mounting of
N5291/VDI with T-Wave BB probe
• Compatible with open (non-TopHat)
configurations
Compatibility
• RPP404, RPP404-W, RPP504
positioners
RFA-K220-W
Features
• West p robe arm enables mounting of
N5291/VDI with T-Wave BB probe
• Compatible with open (non-TopHat)
configurations
Compatibility
• RPP404, RPP404-W, RPP504
positioners
RFA-K220-E-TH
Features
• East probe arm enables mounting of
N5291/VDI with T-Wave BB probe
• Compatible with RF MicroChamber
TopHat (includes boot/FlexShield) or
open (non-TopHat) configurations
Compatibility
• RPP404, RPP404-W, RPP504
positioners
RFA-K220-W-TH
Features
• West p robe arm enables mounting of
N5291/VDI with T-Wave BB probe
• Compatible with RF MicroChamber
TopHat (includes boot/FlexShield) or
open (non-TopHat) configurations
Compatibility
• RPP404, RPP404-W, RPP504
positioners
RFA PROBE ARMS, MAURY NANO5G
RFA-MN5G-EW
Features
• East/West arm enables
mounting of Maury Nano5G
frequency extender
• Compatible with open (non-
TopHat) configurations
Compatibility
• RPP404, RPP404-W,
RPP504 positioners
RFA-F110-WH-TH with tuner
(positioner shown, not included)
Arm, positioner, and probe
assembly shown
(transparent parts not included)
PN 141-400 www.formfactor.com Probe Mounts/Holders and Probes • 110
Revision 57, February, 2023 Probe Station Accessories
RFA-MN5G-EW-TH
Features
• East/West arm enables
mounting of Maury
Nano5G frequency
extender
• Compatible with RF
MicroChamber TopHat
(includes boot/
FlexShield) o r open
(non-To pHat)
configurations
Compatibility
• RPP404, RPP404-W,
RPP504 positioners
RFA PROBE ARMS STORAGE POD
780-00169 — RFA Series Probe Arms Storage Pod
Features
• Ena bles safe storage of
populated RFA arms
• Stores RFA probe arms while
configured with probes, VNA
frequency extenders and/or
tuners, and as sociated port
savers and flex-shields.
• Ena bles safe and efficient RFA
arm changes and band
swapping
• Reduces the risk of damage to
the probe d uring arm changes
• Fitting hardware enables
placement of the VDI Mini
VNAX power supply to keep the
extender warm between band
swaps, minimizing drift and
maximizing prober utilization
• Integrated trays enable storage of probing accessories
• Ena bles probe assembly from a sitting position, away from the
prober
• A hinged, an ti-static, cleanroom-safe window prot ects probes from
accidental damage and prevents accidental probe tip contact,
while allowing safe, ergonomic probe arm loading
• Ergonomic hand grips ensure safe and secure handling of valuable
test equipment
• Each pod stores o ne populated probe arm
• Storage pod can be placed on the prober platen during band
swaps on the CM300 and Summit 12k / Summit 200 probe stations
(depending on configuration)
Specifications
• Dimensions (L x W x H): 350 x 175 x175 mm (or larger, depending
on stored parts [e.g., RFA-K220])
Compatibility
(* Denotes all variants)
• Compatible with, but not limited to, TopHat and non-TopHat
configurations with the following arms:
– RFA-67* - Coaxial sub 67 GHz pr obes
– RFA-K120* - Keysight Coaxial N5295AX03, used as part of
N5291A extenders up to 130 GHz
– RFA-K220* - N5291/VDI with T- Wave BB probe
– RFA-VDI* - VDI Waveguide Mini models and S geometry
Waveguide probes to 500 GHz, for both Tophat and non-Top Hat
– RFA-F* - Focus delta tuner arms
• Compatible with both FM4910 and UL94-V0 industry standards for
safety against combustion and smoke generation
TUNER INTEGRATION KITS
780-00612 — Integration Kit for Focus Microwave Tuner
M-4030 or L-4030 on CM300
Features
• Enables integration of
the Focus Microwave
Tuner M-4030 and L-
4030 on the CM300
• Positioner and tuner are
supplied by Focus
Microwave
Specifications
• eVue cover is required and included
Configuration
• Qty o ne required for each side
• Configurable with both East and West tuners
Compatibility
• CM300, Non-TopHat solution only
Arm, positioner, and probe
assembly shown
(transparent parts not included)
