PN 141-400 www.formfactor.com Probe Mounts/Holders and Probes • 116
Revision 57, February, 2023 Probe Station Accessories

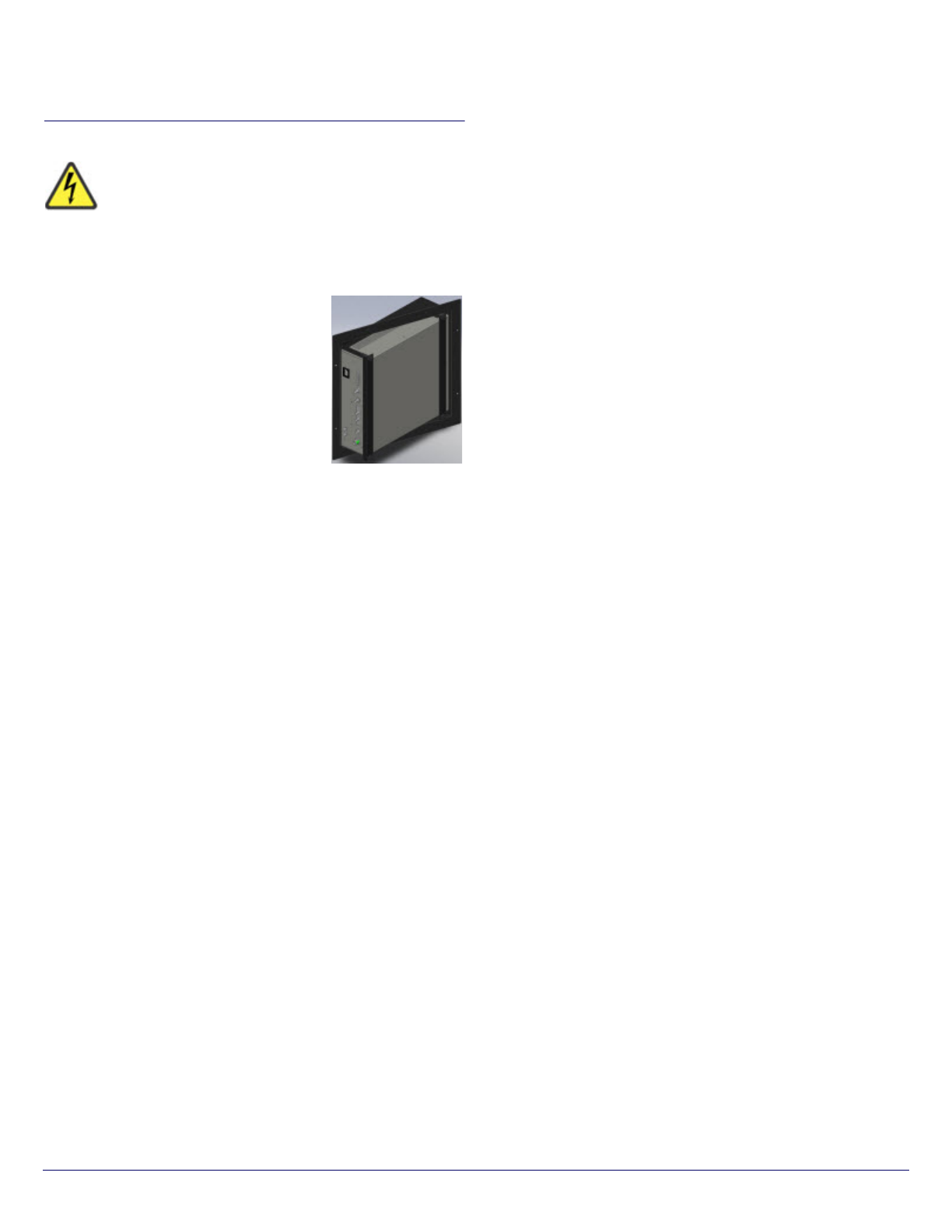

146151 — Mounting B1505A/Module Selector/SE
DANGER
To use this probe safely, your station must be configured with a
Tesla specific light curt ain or approved sa fety interlocks. Failure to
employ these safety measures can result in serious injury or death.
Features
• Feed-through for an Keysight N1258A
Module Selector into a ShieldEnclosure for
a Power probe system
• Minimum additional space outside the SE
required
• Mounting in the rear side o f the SE.
Compatibility
• PM5 Power System
PN 141-400 www.formfactor.com Probe Mounts/Holders and Probes • 117
Revision 57, February, 2023 Probe Station Accessories

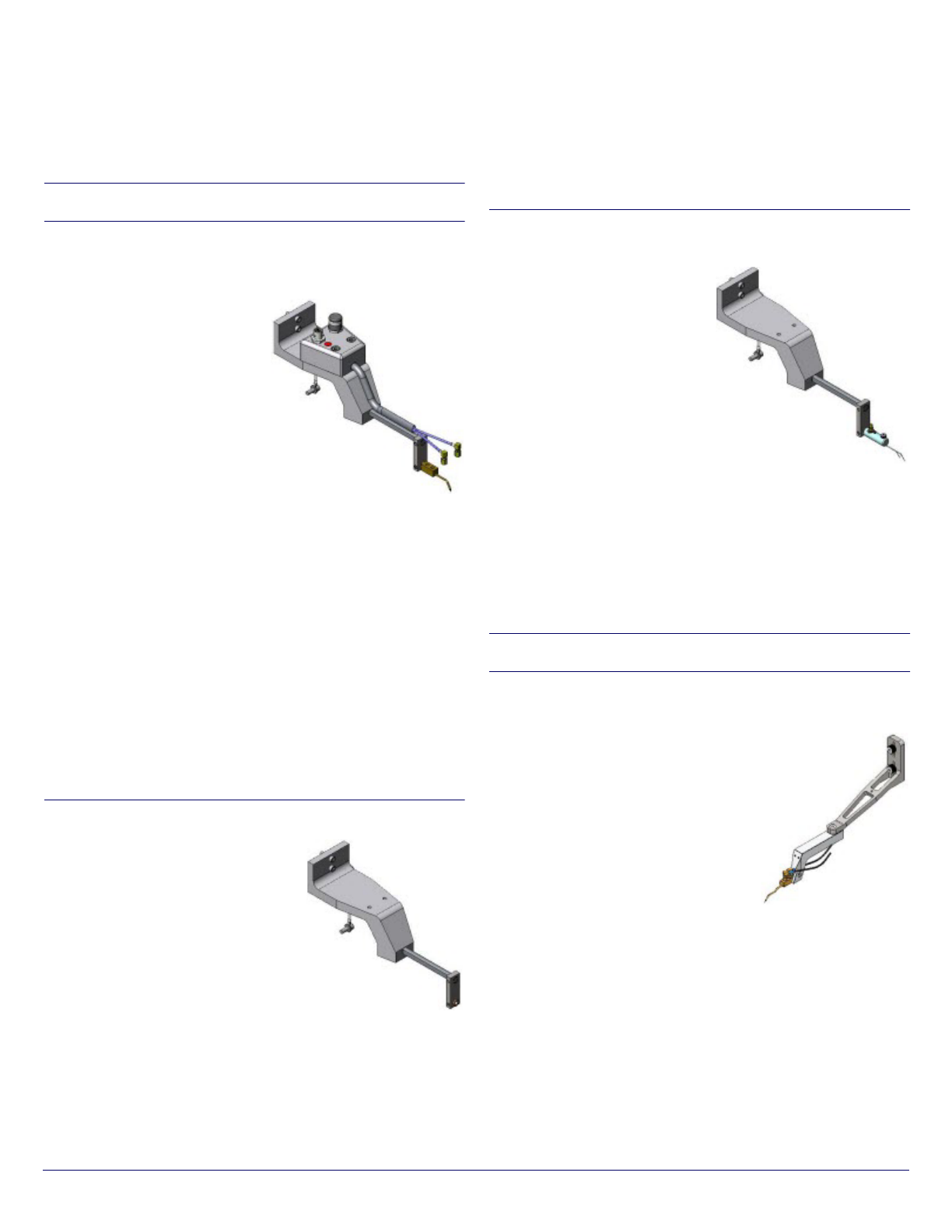

CM300xi DC Probe Mounts and Holders
TOPHAT CONFIGURATION
163-593 — DCP Probe Mount, 43mm, Dual Triax,
DPP2xx DPP2xx
Features
• Probe mount for DCP probes
(DCP-1xx, DCP-HTR)
• Compatible with DPP2xx
positioners and MicroChamber
TopHat
• Constructed with high stability
thermal materials
Specifications
• Usa ble from -60° to 300°C (-140°
to 572°F, a bove 250°C [482°F]: 8 hours max. operation)
• Precision industry standard SSMC connectors
• 50 Ohm characteristic impedance
• Breakdown voltage: >500Vo lts
• Max Current = 1Amp
Kit Contents
• Probe to positioner mount
• Dual triaxial adapter (Kelvin), mini triax (jack) to SSMC (m)
• EMI shielding cap
• EMI grounding strap
Compatibility
• CM300xi with TopHat, Elite 300
163-595 — DCP Probe Mount, 43 mm, HTS, DPP2xx
Features
• Probe mount for DCP probes (DCP-
1xx, DCP- HTR)
• Direct probe/cable connection (SSMC)
• Compatible with DPP2xx positioners
and MicroChamber TopHat
• Constructed with high stability thermal
materials
Kit Contents
• Probe to positioner mount
• EMI grounding strap
Compatibility
• CM300xi with TopHat, Elite 300
163-597 — Needle Probe Mount, 43mm, Enhanced Jack
Lock Holder, DPP2xx
Features
• Probe mount for DCP probes
(DCP-1xx, DCP-HTR)
• Direct probe/cable connection
(SSMC)
• Compatible with DPP2xx
positioners and MicroChamber
TopHat
• Constructed with high stability
thermal materials
Kit Contents
• Probe to positioner mount
• EMI grounding strap
Compatibility
• CM300xi with TopHat, Elite 300
TOP CHAMBER CONFIGURATION
163-307 — Probe Arm, DPP2xx/DPP3xx for DCP Probe
Features
• For CM300xi MicroAlign systems
• For triaxial I/V-, Kelvin-, C/V (with CX-
TRX adapter) and 1/f applications
• Holding fixture for advanced DC coaxial
probes like AP&T Probes, DCP and
DCP-HTR probes
• Stainless steel design for high rigidity
and minimum thermal drift
• Requires adaptation unit 13 8697 for u se
with DPP3xx-S/DPP450-S
• Includes two cables 0.7 m (2.3 ft) long 3-lug Triax-SSMC for IV and
Kelvin measurements
Specifications
• DC leakage <10 fA at ambient temperature
Compatibility
• CM300xi MicroAlign with top chambers + DPP2xx, DPP3xx-S,
DPP450-S (and former PH110, PH150, PH400)
PN 141-400 www.formfactor.com Probe Mounts/Holders and Probes • 118
Revision 57, February, 2023 Probe Station Accessories

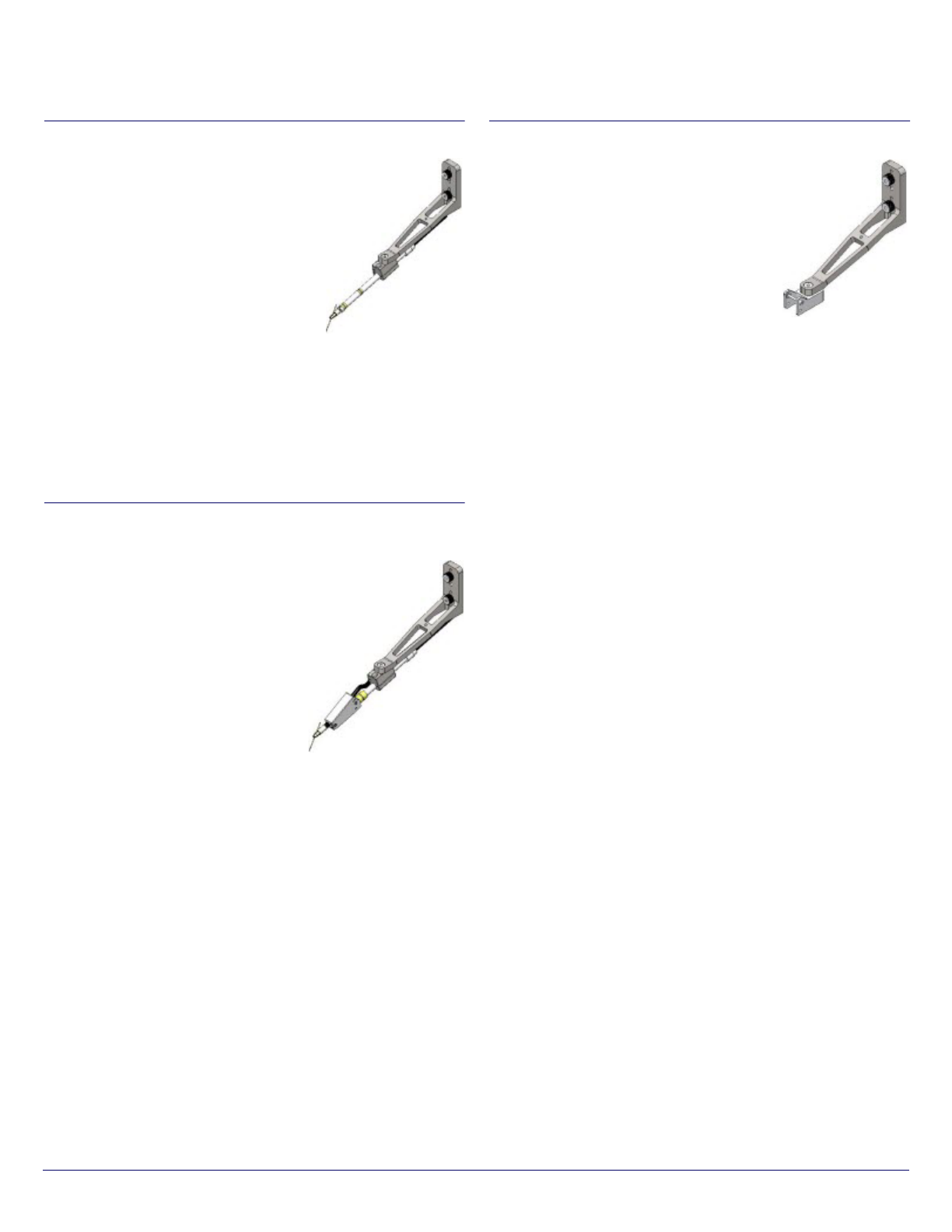

163-309 — Probe Arm, DPP2xx/DPP3xx, Triax
Features
• For use with CM300xi MicroAlign systems
• Highly isolated needle clamp for standard
single tips like PTT needles
• Stainless steel design for high rigidity and
minimum thermal drift
• Requires adaptation unit 138697 for use
with DPP3xx-S/DPP450-S
Specifications
• 0.75 m (2.3 ft) 50 Ohm low noise triax cable and 3 lug Triax plug
• DC leakage <10 fA at ambient temperature
• For use with temperature chucks up to 300°C (572°F)
Compatibility
• CM300xi MicroAlign with top chambers + DPP2xx, DPP3xx-S,
DPP450-S (and former PH110, PH150, PH400)
163-311 — Probe Arm, DPP2xx/DPP3xx, Triax, Kelvin
1Tip
Features
• For use with CM300xi MicroAlign
systems
• For tr iaxial I/V-, Kelvin- and C/V (with
CX-TRX a dapter) tests
• Stainless steel design for h igh rigidity
and minimum thermal drift
• Highly isolated needle clamp for single
tips like PTT needles (signal from force
and sense al ready connected inside
chassis)
• Connector sockets for CommonRing cables (C/V-Test, 1 cable
included), guard potentials from force and sense are connected to
these sockets
• Requires adaptation unit 138697 for use with DPP3xx-S/
DPP450-S
Specifications
• 2 x 0.75 m (2.3 ft) 50 Ohm low-noise triax cable and 3 lug Triax
plug
• For use with temperature chucks up to 300°C (572°F)
Compatibility
• CM300xi MicroAlign + DPP2xx, DPP3xx-S, DPP450-S (and former
PH110, PH150, PH400)
163-313 — Probe Arm, DPP2xx/DPP3xx, Pico Probe
Features
• For CM300xi MicroAlign systems
• Holding fixture for Active Pico probes from
GGB Pico probe 10…34 (Pico probe not
included)
• Stainless steel design for high rigidity and
minimum thermal drift
• Requires Test Equipment Interface 144987
for use at MicroAlign Adva nced systems
• Requires adaptation unit 138697 for use with DPP3xx-S/
DPP450-S
Compatibility
• CM300xi MicroAlign + DPP2xx, DPP3xx-S, DPP450-S (and former
PH110, PH150, PH400)
