PN 141-400 www.formfactor.com Probe Mounts/Holders and Pro bes • 1 21 Revision 57, February, 2023 Probe Station A ccessories 151 -2 90 — PTT Nee dle Prob e M ou n t, 40 mm , HTS , En han ce d J ac k Lock Holde r , MS1 Se…
PN 141-400 www.formfactor.com Probe Mounts/Holders and Probes • 120
Revision 57, February, 2023 Probe Station Accessories
151-286 — DCP Probe Mount, 40 mm, HTS, Triax, MS1
Series
Features
• Probe mount for DCP probes (DCP-
1xx, DCP- HTR)
• For use on Elite 300
• Compatible with MS1 programmable
positioners
• Compatible with MicroChamber
TopHat
• Constructed with high-stability thermal materials
Specifications
• Usa ble from -60°C to +300°C (-140° to +572°F, above +250°C
[+482°F]: 8 hours max. operation)
• Precision Industry Standard SSMC connectors
• 50 Ohm characteristic impedance
• Breakdown voltage: >500Vo lts
• Max Current = 1Amp
Kit Contents
• Probe to positioner mount
• Dual triaxial adapter (Kelvin), mini triax (jack) to SSMC (m)
• EMI shielding cap
• EMI grounding strap
Compatibility
• Elite 300/AP, Elite 300/M
151-287 — DCP Probe Mount, 40 mm, HTS, Triax,
DPP2xx
Features
• Probe mount for DCP probes (DCP-
1xx, DCP- HTR)
• For use on Elite 300
• Compatible with DPP2xx positioners
• Compatible with MicroChamber TopHat
• Constructed with high-stability thermal materials
Specifications
• Usa ble from -60°C to +300°C (-140° to +572°F, above +250°C
[+482°F]: 8 hours max. operation)
• Precision Industry Standard SSMC connectors
• 50 Ohm characteristic impedance
• Breakdown voltage: >500Vo lts
• Max Current = 1Amp
Kit Contents
• Probe to positioner mount
• Dual triaxial adapter (Kelv in), mini triax (jack) to SSMC (m)
• EMI shielding cap
• EMI grounding strap
Compatibility
• Elite 300/AP, Elite 300/M, Summit (with HTS platen upgrade),
SUMMIT200, TESLA2 00
151-288 — DCP Probe Mount, 40 mm, HTS, DPP2xx
Features
• Probe mount for DCP probes (DCP-1xx,
DCP-HTR)
• For use on Elite 300
• Direct probe/cable connection (SSMC)
• Compatible with DPP2xx positioners
• Compatible with MicroChamber TopHat
• Constructed with high-stability thermal materials
Kit Contents
• Probe to positioner mount
• EMI grounding strap
Compatibility
• Elite 300/AP, Elite 300/M, Summit (with HTS platen upgrade),
SUMMIT200, TESLA2 00
151-289 — Needle Probe Mount and Enhanced Jack
Lock Holder for DPP2xx Positioners
Features
• Enhanced probe mount for PTT needle
probes (45°)
• Easy p robe needle replacement without
tools
• Constructed with high-stability thermal
materials
• For use on Elite 300
• Compatible with MicroChamber TopHat
• Compatible with DPP2xx positioners
• Compatible with all 45° PTT se ries probe nee dles
Kit Contents
• Probe to positioner mount
• Jack lock holder with SSMC (f) and pin jack (f) connectors
• 1 m (3.3 ft) coax (m) to SSMC (m)
• 46 cm (18 in) cable with pin jack (m) to (m)
• EMI grounding strap
Compatibility
• Elite 300/AP, Elite 300/M, Summit (with HTS platen upgrade),
SUMMIT200, TESLA2 00
PN 141-400 www.formfactor.com Probe Mounts/Holders and Probes • 121
Revision 57, February, 2023 Probe Station Accessories

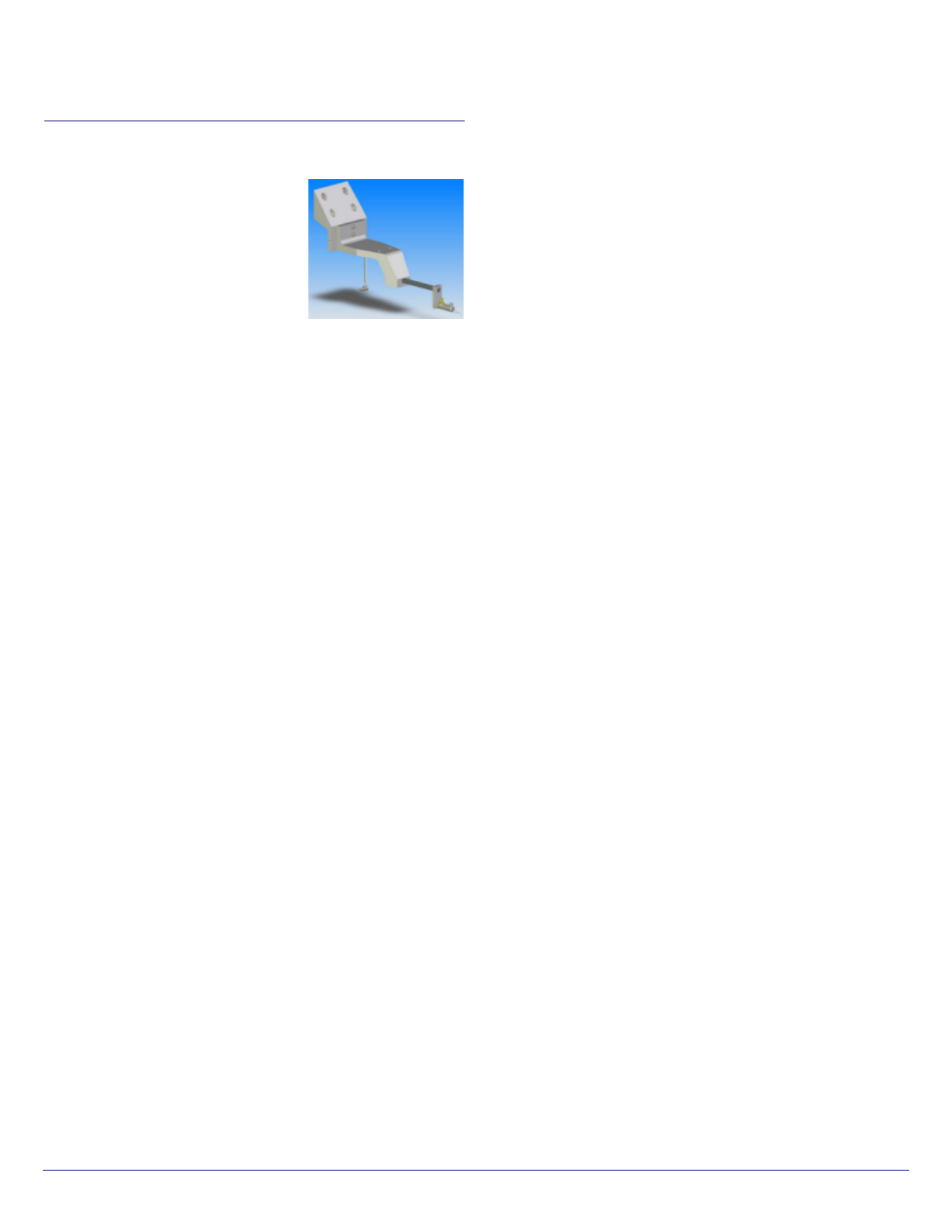

151-290 — PTT Needle Probe Mount, 40 mm, HTS,
Enhanced Jack Lock Holder, MS1 Series
Features
• Enh anced probe mount for PTT needle
probes (45°)
• For use on Elite 300
• Compatible with MicroChamber TopHat
• Easy probe needle replacement
without tools
• Compatible with all 45
o
PTT series
probe needles
• Compatible with MS1 programmable positioners
Kit Contents
• Probe to positioner mount
• Jack lock holder with SSMC (f) a nd pin jack (f) connectors
• 1 m (3.3 ft) coax (m) to SSMC (m)
• 46 cm (18 in) cable with pin jack (m) to (m)
• EMI grounding strap
Compatibility
• Elite 300/AP, Elite 300/M, Summit (with HTS platen upgrade)
PN 141-400 www.formfactor.com Probe Mounts/Holders and Probes • 122
Revision 57, February, 2023 Probe Station Accessories

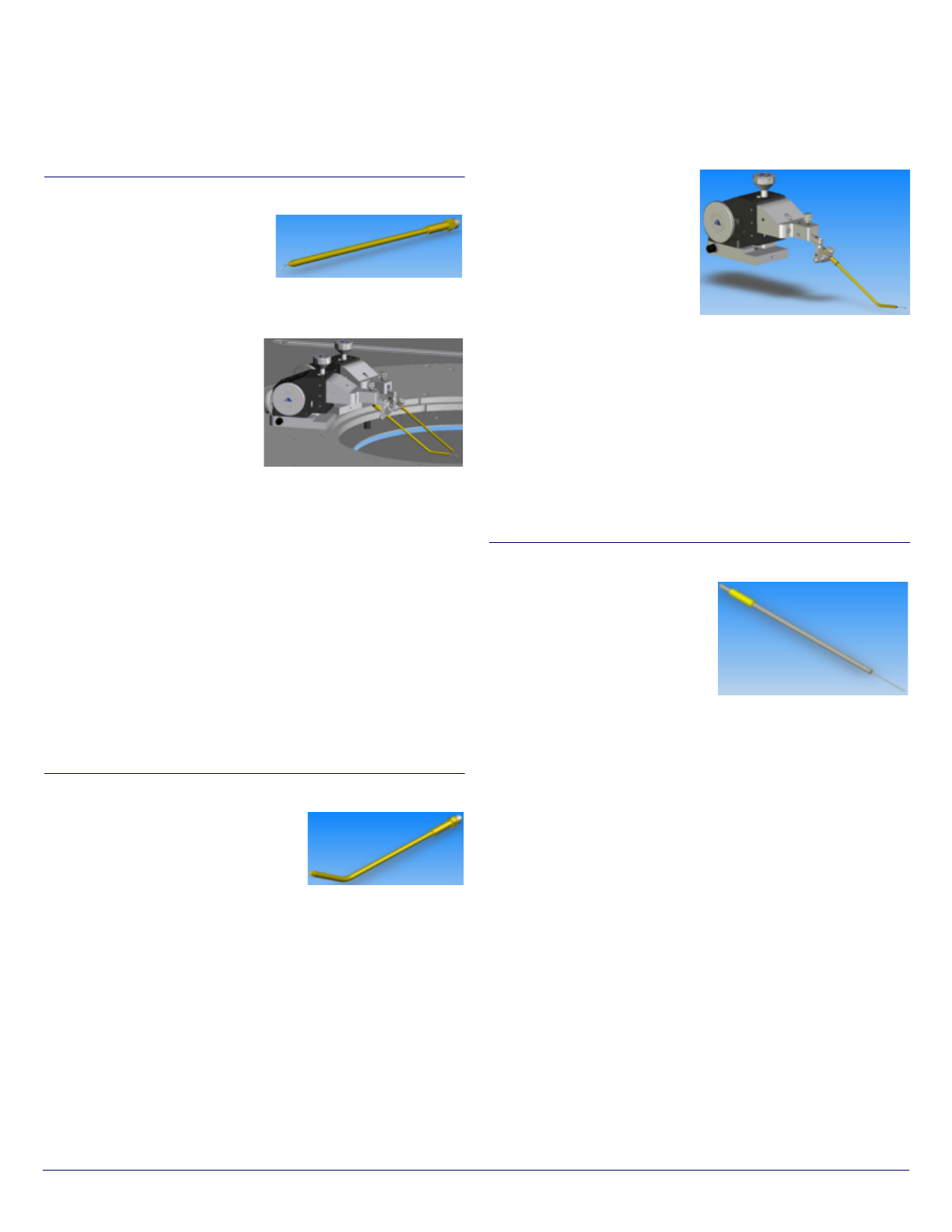

Elite 300 and Summit DC Probes
139-331 — Coaxial Probe (Straight)
Features
• Shielded DC measurements with
coaxial probe
• Straight configuration for multiple
probing applications when using straight o r 45° n eedles for steep
access
• Easy probe needle replacement
without tools
• Compatible with all PTT series
probe needles
• Replaceable SMA cable
• Easy connection to Elite 300
coax connection panel on
platen
• The temperature of the cable
containing arm mus t not e xceed
200°C. Usually this is suitable
for 300°C wafer temperature in
an op en setup with an a rm at
least 10mm above the wafer.
Kit Contents
• Straight shielded probe
• Integrated SMA (f) connector
• Shielded coaxial cable, 76 cm (30 in) with SMA (m) to BNC plug
Compatibility
• Elite 300, Summit, SUMMIT200
139-870 — Coaxial Probe (Bent)
Features
• Shielded DC measurements with
coaxial probe
• Ben t configuration for increased
microscope objective clearance with
high magnification/low working distance objective lenses
• Easy probe needle replacement without tools
• Compatible with all bent PTT series probe needles
• Replaceable SMA cable
• Easy connection to Elite 300
coax connection panel on
platen
• The temperature of the cable
containing arm must not
exceed 200°C. Usually this is
suitable for 300°C wafer
temperature in an open setup
with an arm at least 10mm
above the wafer.
Kit Contents
• Bent 35° shielded probe
• Integrated SMA (f) c onnector
• Shielded coaxial cable, 76 cm (30 in) with SMA (m) to BNC plug
Compatibility
• Elite 300, Summit, SUMMIT200
144-390 — Triaxial Probe (Straight)
Features
• Guarded DC measurements with
triaxial probe
• Integrated triaxial cable for low-
noise measurements
• Easy connection to Elite 300
triaxial connection panel o n
platen
• Straight configuration for multiple probing applications when using
straight or 45° needles f or steep access
• Easy p robe needle replacement without tools
• Compatible with all PTT series probe needles
• The temperature of the cable containing arm must not exceed
200°C. Usually this is suitable for 300°C wafer temperature in an
open setup with an arm at least 10mm above the wafer.
Kit Contents
• Straight triax probe
• Integrated triaxial low-noise cable, 76 cm (30 in) with triax (m)
connector
Compatibility
• Elite 300, Summit, SUMMIT200
Two (2) DPP2xx positioners
and u niversal probe mounts,
one u sing the straight coax
probe with straight needle, and
the other using a be nt coax
probe with 45° bent PTT needle
Coaxial pr obe (bent) with 45°
PTT ne edle, shown attached to
universal pr obe holder and
DPP2xx positioner.
