PN 141-400 www.formfactor.com Probe Mounts/Holders and Probes • 122
Revision 57, February, 2023 Probe Station Accessories
Elite 300 and Summit DC Probes
139-331 — Coaxial Probe (Straight)
Features
• Shielded DC measurements with
coaxial probe
• Straight configuration for multiple
probing applications when using straight o r 45° n eedles for steep
access
• Easy probe needle replacement
without tools
• Compatible with all PTT series
probe needles
• Replaceable SMA cable
• Easy connection to Elite 300
coax connection panel on
platen
• The temperature of the cable
containing arm mus t not e xceed
200°C. Usually this is suitable
for 300°C wafer temperature in
an op en setup with an a rm at
least 10mm above the wafer.
Kit Contents
• Straight shielded probe
• Integrated SMA (f) connector
• Shielded coaxial cable, 76 cm (30 in) with SMA (m) to BNC plug
Compatibility
• Elite 300, Summit, SUMMIT200
139-870 — Coaxial Probe (Bent)
Features
• Shielded DC measurements with
coaxial probe
• Ben t configuration for increased
microscope objective clearance with
high magnification/low working distance objective lenses
• Easy probe needle replacement without tools
• Compatible with all bent PTT series probe needles
• Replaceable SMA cable
• Easy connection to Elite 300
coax connection panel on
platen
• The temperature of the cable
containing arm must not
exceed 200°C. Usually this is
suitable for 300°C wafer
temperature in an open setup
with an arm at least 10mm
above the wafer.
Kit Contents
• Bent 35° shielded probe
• Integrated SMA (f) c onnector
• Shielded coaxial cable, 76 cm (30 in) with SMA (m) to BNC plug
Compatibility
• Elite 300, Summit, SUMMIT200
144-390 — Triaxial Probe (Straight)
Features
• Guarded DC measurements with
triaxial probe
• Integrated triaxial cable for low-
noise measurements
• Easy connection to Elite 300
triaxial connection panel o n
platen
• Straight configuration for multiple probing applications when using
straight or 45° needles f or steep access
• Easy p robe needle replacement without tools
• Compatible with all PTT series probe needles
• The temperature of the cable containing arm must not exceed
200°C. Usually this is suitable for 300°C wafer temperature in an
open setup with an arm at least 10mm above the wafer.
Kit Contents
• Straight triax probe
• Integrated triaxial low-noise cable, 76 cm (30 in) with triax (m)
connector
Compatibility
• Elite 300, Summit, SUMMIT200
Two (2) DPP2xx positioners
and u niversal probe mounts,
one u sing the straight coax
probe with straight needle, and
the other using a be nt coax
probe with 45° bent PTT needle
Coaxial pr obe (bent) with 45°
PTT ne edle, shown attached to
universal pr obe holder and
DPP2xx positioner.
PN 141-400 www.formfactor.com Probe Mounts/Holders and Probes • 123
Revision 57, February, 2023 Probe Station Accessories
144-391 — Triaxial Probe (Bent)
Features
• Guarded DC mea sure ments with
triaxial probe
• Integrated triaxial cable for low-noise measurements
• Easy connection to Elite 300 triaxial connection panel on p laten
• Ben t configuration for increased microscope objective clearance
with high magnification/low working distance objective lenses
• Easy probe needle replacement without tools
• Compatible with all 45° PTT serie s probe needles
• The temperature of the cable containing arm must not exceed
200°C. Usually this is suitable for 300°C wafer temperature in an
open setup with an arm at least 10mm above the wafer.
Kit Contents
• Ben t 35 ° triax probe
• Integrated triaxial low-noise cable, 76 cm (30 in) with triax (m)
connector
Compatibility
• Elite 300, Summit, SUMMIT200

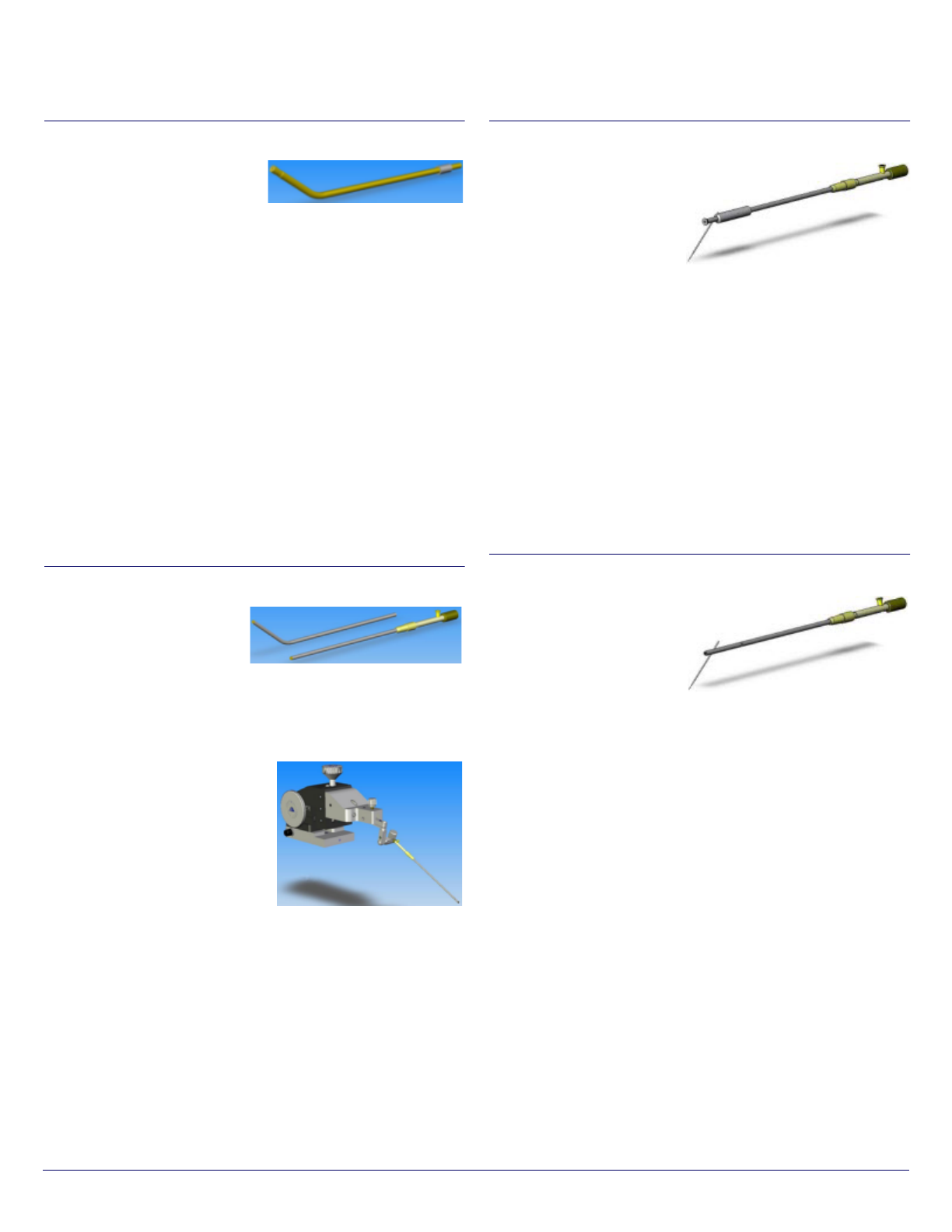

144-392 — Unshielded Probe Kit
Features
• Interchangeable probe arms
(unshielded)
• Easy probe needle
replacement without tools
• Pin jack for DC electrical connection
• Compatible with all PTT series probe needles
Kit Contents
• Collet adapter with pin lock
connector (f)
• Straight u nshielded probe arm
with jack lock
• 35° bent unshielded probe arm
with jack lock
• 46 cm (18 in) cable with pin jack
(m) to (m)
Compatibility
• Elite 300, Summit, SUMMIT200
PHQ — Quick Lock Probe Holder
Features
• Replacement probe ti p
holder for MMP probes
• Quick lock needle holding
mechanism (spring-loaded
Collette style)
• Constructed of nickel plated brass that can be user-formed as
needed
Specifications
• 114 mm (4.5 in) in length
• Nickel plated brass
• Quick lock mechanism
Kit Contents
• Probe tip holder
• MAE-44/18 cable 46 cm (18 in)
Compatibility
• Summit
PHW — Wrench Lock Probe Holder
Features
• Replacement probe ti p
holder for MMP probes
• Wrench lock needle holding
mechanism (set screw hold)
• Constructed of nickel plated
brass that can be user-formed as needed
Specifications
• 114 mm (4.5 in) in length
• Nickel plated brass
• Wrench lock mechanism
Kit Contents
• Probe tip holder
• MAE-44/18 cable 46 cm (18 in)
• Allen wrench
Compatibility
• Summit
Unshielded probe (straight)
and collet shown attached to
universal probe holder and
DPP2xx positioner
PN 141-400 www.formfactor.com Probe Mounts/Holders and Probes • 124
Revision 57, February, 2023 Probe Station Accessories
Summit DC Probe Arms and Mounts

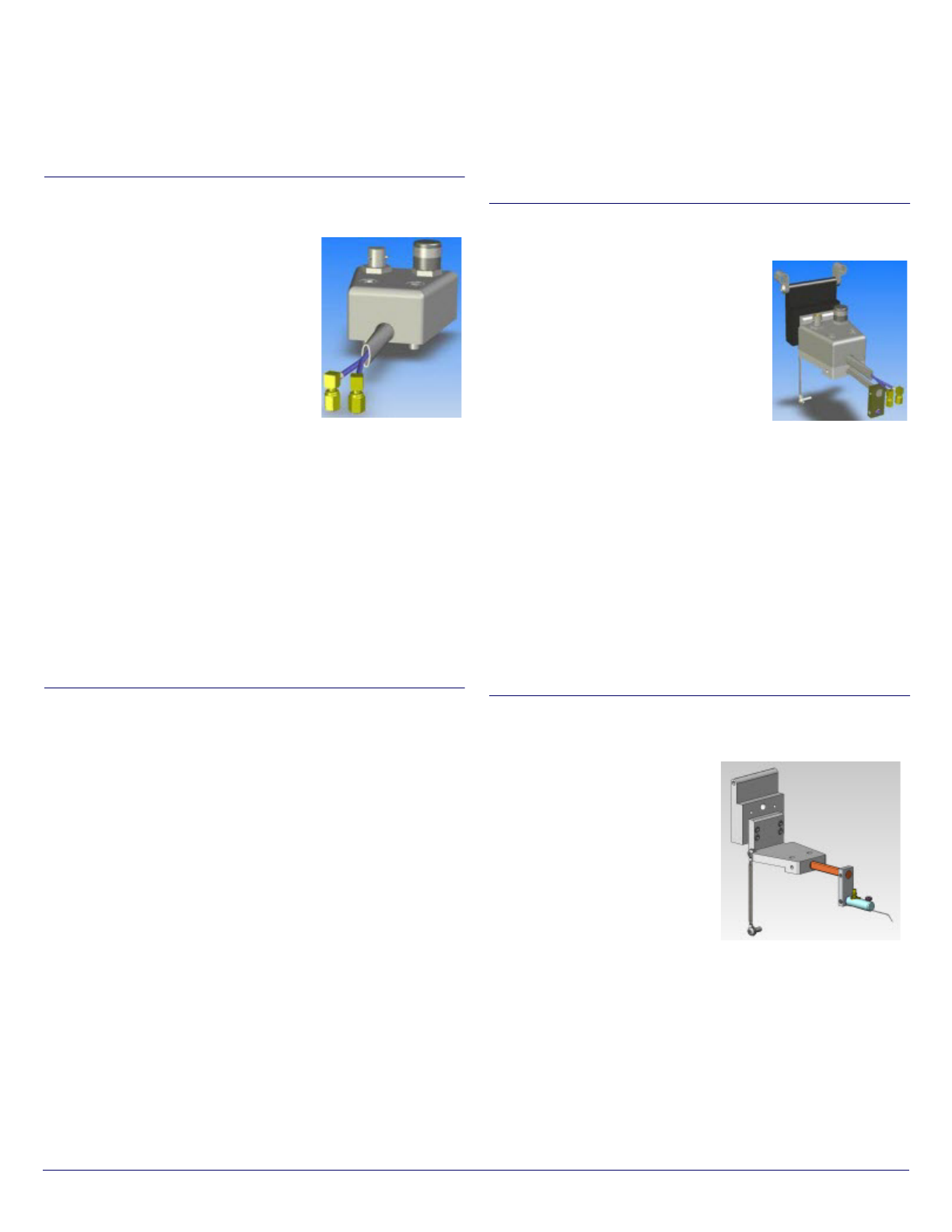

104-030K — DCP Probe Mount, Dual Triax Adapter
(Kelvin) for RPP305-EW-SU positioner
Features
• Ena bles Kelvin connection to DCP style
probes on East/West RPP305
positioners
• Sup ports Summit 11/12K and S300
systems
Specifications
• Instrument connections are female mini-
triax connectors
• Probe connections are ca bles with
SSMC male fo r use with DCP style probes
• Usa ble from -60°C to +300°C (-140° to +572°F, above +250°C
[+482°F]: 8 hours max. operation)
• 50 Ohm characteristic impedance
• Breakdown voltage: >500Vo lts
• Max curren t = 1Amp
Kit Contents
• Mounting hardware
Compatibility
• Summit, S300, Alessi
104-856K — DCP Probe Mount, Dual Triax Adapter
(Kelvin) for RPP305-NS-SU Positioner
Features
• Ena bles Kelvin connection to DCP style pr obes on North/South RF
positioners
• Sup ports Summit 11/12K and S300 systems
Specifications
• Instrument connections are female mini-triax c onnectors
• Probe connections are ca bles with SSMC male for use with DCP
style probes
• Usa ble from -60°C to +300°C (-140° to +572°F, above +250°C
[+482°F]: 8 hours max. operation)
• 50 Ohm characteristic impedance
• Breakdown voltage: >500Vo lts
• Max curren t = 1Amp
Kit Contents
• Mounting hardware
Compatibility
• Summit, S300, Alessi
114-818 — DCP Probe Mount, Dual Triax Adapter
(Kelvin) for DPP2xx
Features
• Enables Kelvin connection to DCP style
probes on DPP2xx positioners
• Supports Summit 11/12K and S300
systems
Specifications
• Instrument connections ar e female mini-
triax connectors
• Probe connections are cables with SSMC
male for use with DCP style probes
• Usable from -60°C to +300°C (-140° to +572°F, above +250°C
[+482°F]: 8 hours max. operation)
• 50 Ohm characteristic impedance
• Breakdown voltage: >500Volts
• Max current = 1Amp
Kit Contents
• Mounting hardware
Compatibility
• Summit, S300, Alessi
114-842 — Needle Probe Mount and Jack Lock Holder
for DPP2xx
Product Features
• Enhanced probe mount for PTT
needle probes (45°)
• Easy p robe needle replacement
without any tools
• Top hat compatible
• Will work on positioners
equipped for DCP probes
• Uses mini p in jack style or SSMC
cable connection
Kit Contents
• Includes arm and mounting hardware
• Recommended for use with PTT-XX/4-25 (45°) style needles (not
included)
Stat ion Compatibility
• Summit, S300, Alessi
