PN 141-400 www.formfactor.com Probe Mounts/Holders and Probes • 126

Revision 57, February, 2023 Probe Station Accessories

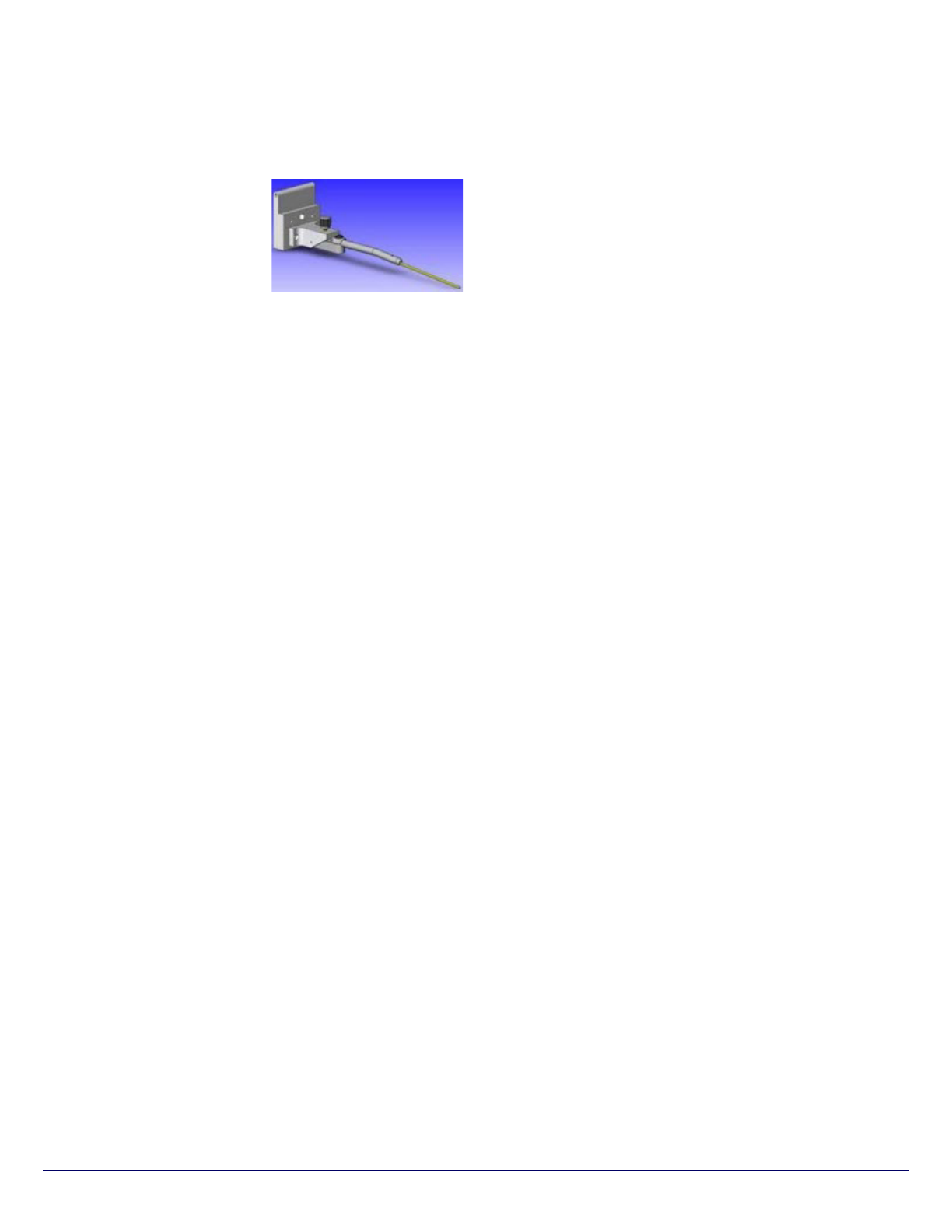

129-116 — PTT Probe Mount (MMP-01/J) and Adapter

Kit for DPP2xx

Features

• For use with DPP2xx positioners

• Brass needle holder can be user-

formed as nee ded

• Use s pin jack style connection

(e.g., MAE cables), one included

• Has gross Z adjustment v ia

thumb screw on holder arm

• Holder also pivots

• Not recommended for Top Hat use

Kit Contents

• Mounting hardware

• Mounting bracket

• Probe holder arm

• MAE-44/18 cable 46 cm (18 in)

Compatibility

• Summit, S300 (non TopHat), Alessi

PN 141-400 www.formfactor.com Probe Mounts/Holders and Probes • 127

Revision 57, February, 2023 Probe Station Accessories

DC Probes, Coax and Triax, DCP and PE5 Style Probe Holders

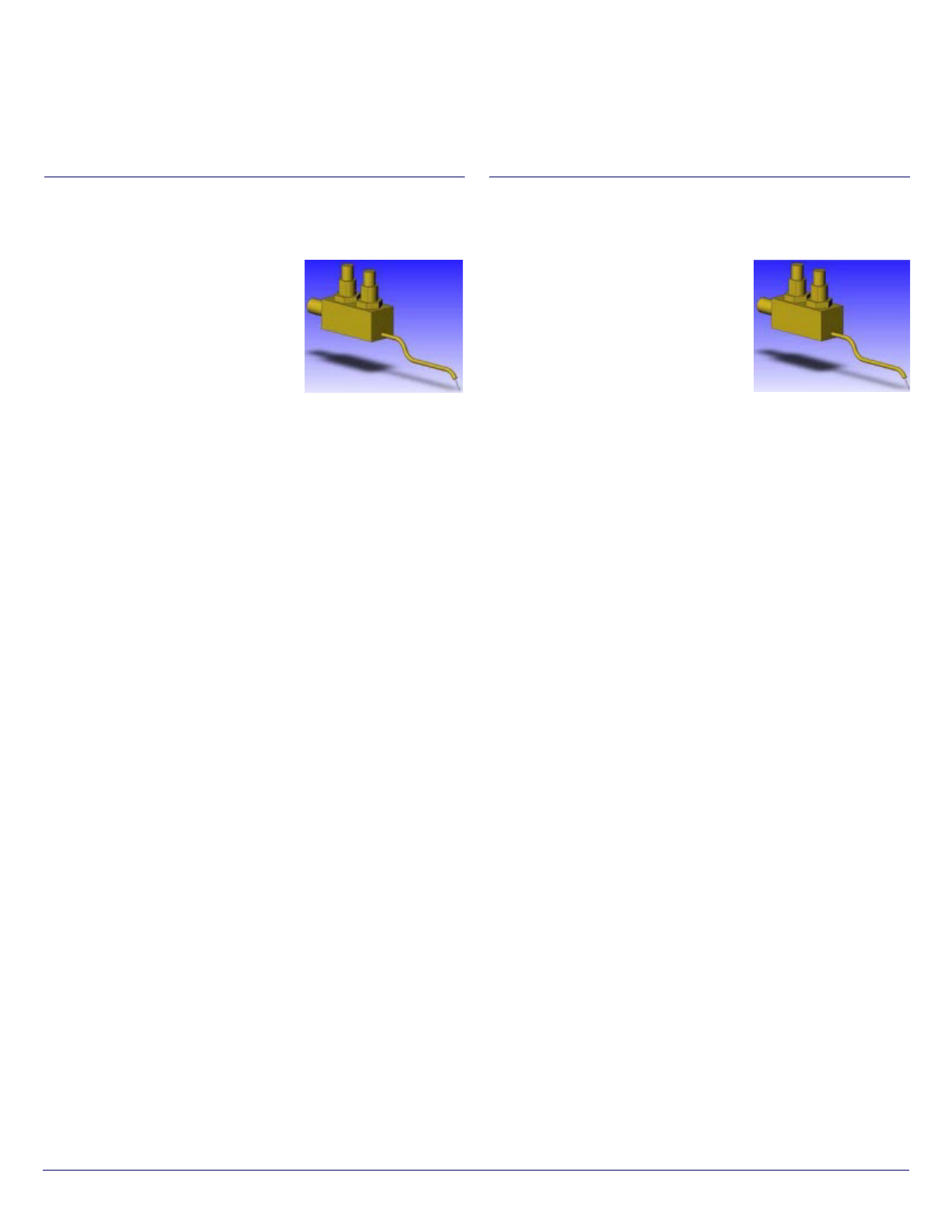

DCP-105R — DC Coaxial Probe, Single Line, 0.5 µm

Radius, Replaceable Tip

(Packages of 4 available by ordering DCP-105R-4)

Features

• High-quality construction with low-

noise electrical performance

• Ultra-low, fA and fF measurements

from -65º to 150ºC (-149º to 302ºF)

• Fully guarded measurements to fA

and fF levels

• Great fo r modeling and characterization work

• Dual Precision SSMC 50 ohm connections allow for Kelvin

configuration to the probe body

• Individual connectors for force sense connections

• Integrally designed as part o f FormFactor’s complete

measurement solution

• Configurable for triax usage

• Replaceable coax probe tips (Not included)

Specifications

• Breakdown voltage: >500 V

• Isolation resistance: > 1 x 10

ohms

• Frequency response (3 dB): 150 MHz

• Temperature range: -65° to +150°C (-149º to + 302ºF)

• Characteristic impedance: 50 ohms

• Tip material: Tungsten

• Bod y material: Gold plated

• Connector type: SSMC

• 0.5 µm (0.2 mils) radius probe tip

Compatibility

• CM300xi, PA/PM, MicroAlign, Elite 300, Summit, S300, M150,

Alessi

• See Replaceable Probe Tips on page 13 for compatible

replacement probes

DCP-115R — DC Coaxial Probe, Single Line, 1.5 µm

Radius, Replaceable Tip

(Packages of 4 available by ordering DCP-115R-4)

Features

• High-quality construction with low-noise

electrical performance

• Ultra-low, fA and fF measurements

from -65º to 150ºC (-149º to 302ºF)

• Fully guarded measurement to fA and

fF levels

• Great for modeling and characterization work

• Dual Precision SSMC 50 ohm connections allow for Kelvin

configuration to the probe body

• Individual c onnectors for force sense connections

• Integrally designed as part of FormFactor’s complete

measurement solution

• Configurable for triax usage

• Replaceable coax probe tips (Not included)

Specifications

• Breakdown voltage: >500 V

• Isolation resistance: > 1 x 10

ohms

• Frequency response (3 dB): 150 MHz

• Temperature range: -65° to +150°C (-149º to +302ºF)

• Characteristic impedance: 50 ohms

• Tip material: Tungsten

• Body material: Gold plated

• Connector type: SSMC

• 1.5 µm (0.06 mi ls) radius probe tip

Compatibility

• CM300xi, PA/PM, MicroAlign, Elite 300, Summit, S300, M150,

Alessi

• See Replaceable Probe Tips on page 13 for compatible

replacement probes

PN 141-400 www.formfactor.com Probe Mounts/Holders and Probes • 128

Revision 57, February, 2023 Probe Station Accessories

DCP-150R — DC Coaxial Probe, Single Line, 5.0 µm,

Replaceable Tip

(Packages of 4 available by ordering DCP-150R-4)

Features

• High-quality construction with low-noise

electrical performance

• Ultra-low, fA and fF measurements

from -65° to +150°C (-149º to +302ºF)

• Fully guarded measurements to fA and

fF levels

• Great fo r modeling and characterization work

• Dual Precision SSMC 50 ohm connections allow for Kelvin

configuration to the probe body

• Individual connectors for force sense connections

• Integrally designed as part o f FormFactor’s complete

measurement solution

• Configurable for triax usage

• Replaceable coax probe tips (Not included)

Specifications

• Breakdown voltage: >500 V

• Isolation resistance: > 1 x 10

ohms

• Frequency response (3 dB): 150 MHz

• Temperature range: -65° to +150°C (-149º to + 302ºF)

• Characteristic impedance: 50 ohms

• Tip material: Tungsten

• Bod y material: Gold plated

• Connector type: SSMC

• 5 µm (0.2 mils) radius probe tip

Compatibility

• CM300xi, PA/PM, MicroAlign, Elite 300, Summit, S300, M150,

Alessi

• See Replaceable Probe Tips on page 13 for compatible

replacement probes

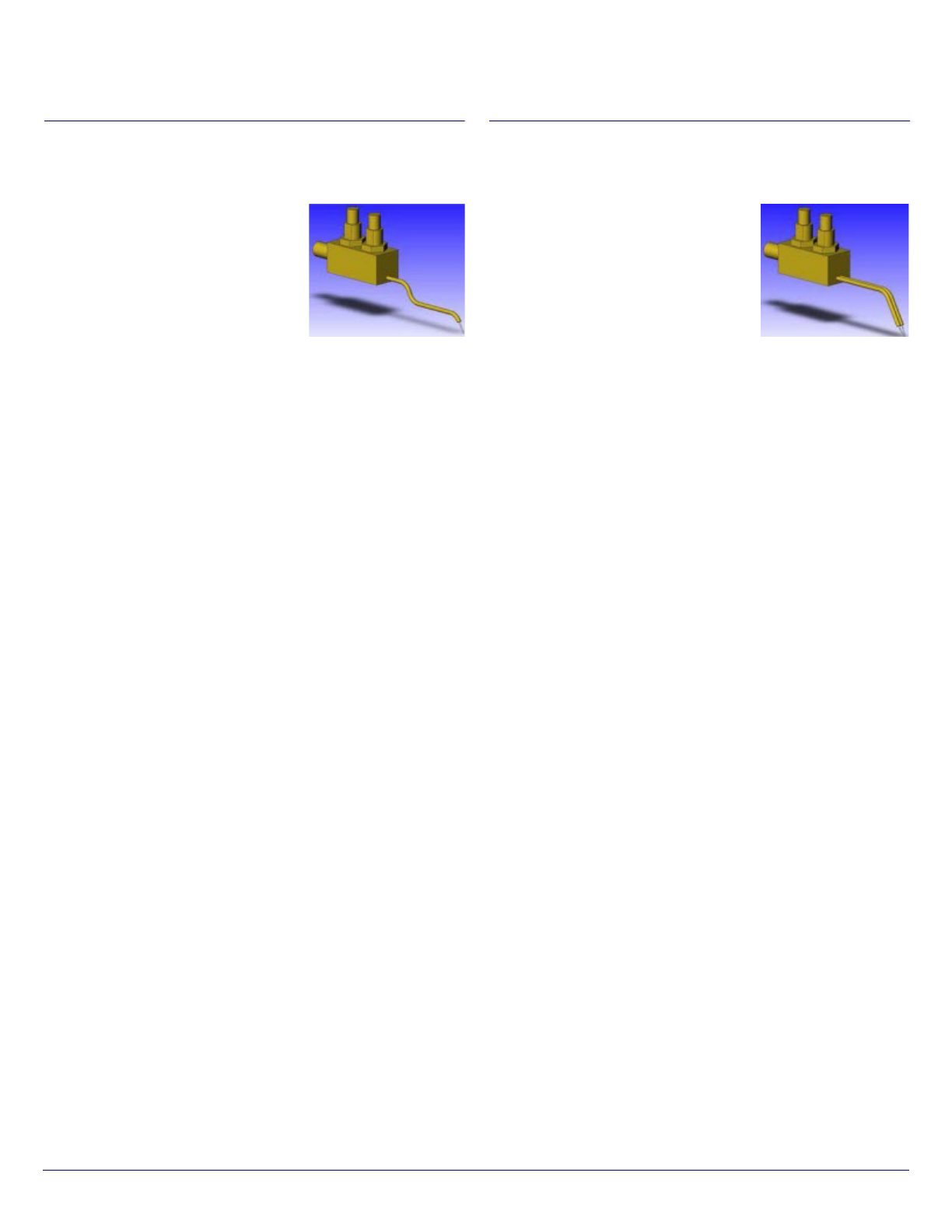

DCP-150K-25 — DC Coaxial Probe, Kelvin, 25 µm Pitch,

5.0 µm Tip Radius

(Packages of 4 available by ordering DCP-150K-25-4)

Features

• True Kelvin Probe, two 5 µm (0.2 mils)

radius tips separated by 25 µm (0.98

mils)

• High-quality construction wi th low-noise

electrical performance

• Ultra-low, fA and fF measurements from

-65° to +150°C (-149º to +302ºF)

• Fully guarded measurements to fA and fF levels

• Great for modeling and characterization work

• Dual Precision SSMC 50 ohm connections, one for each tip

• Individual c onnectors for each tip

• Integrally designed as part of FormFactor’s complete

measurement solution

• Configurable for triax usage

Specifications

• Breakdown voltage: >500 V

• Isolation resistance: > 1 x 10

ohms

• Frequency response (3 dB): 150 MHz

• Temperature range: -65° to +150°C (-149º to +302ºF)

• Characteristic impedance: 50 ohms

• Probe Tip s eparation: 25 Microns

• Tip material: Tungsten

• Body material: Gold plated

• Connector type: SSMC

• 5 µm (0.2 mils) radius probe tip

Compatibility

• CM300xi, PA/PM, MicroAlign, Elite 300, Summit, S300, M150,

Alessi
