Revision 57, February, 2023 Probe Station Accessories
Connection Panels (Coax, Triax, Pin jack, Banana Vacuum)

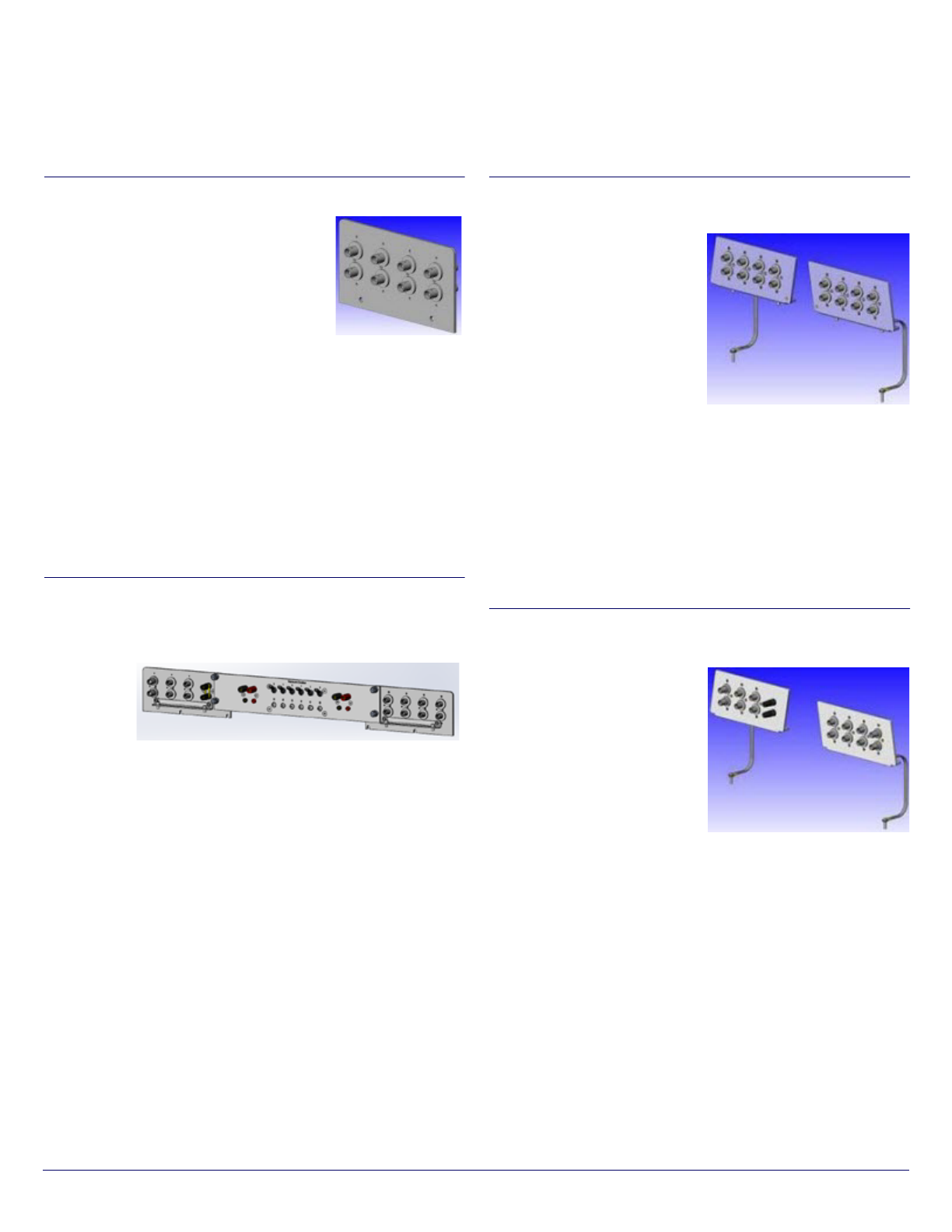

105-626 — Triax Connection Panel, Side Mount
Features
• Optional Triax connection panel for
convenient cable management
• Des igned to mount to the side of the
Summit series platen
• 8 Triax (3-lug) feed through connectors
(female)
• Pan el connections support single triax cables and Keysight dual
triax SMU cable assemblies. For Keysight Quadrax SMU
connections, p lease contact the factory.
Kit Contents
• Pan el with triax feed-throughs mounted
• Mounting hardware
• Cables are not included
Compatibility
• Summit
106-171 — Triax Connection Panel, Large Area Optical
Bridge/Boom Stand Config
Features
• Connection/
vacuum
panel
• 6 vacuum
ports with
on/off
toggle switches
• Sup ports triax, BNC, pin-to-banana style connects
• Triax connections support single triax cables and Keysight dual
triax SMU cable assemblies. Contact the factory for Keysight
quadrax SMU connections.
Specifications
• 12 Triax (3-lug) feed through connectors (f)
• 2 BNC (2-lug) feed through connectors (f)
• 4 BNC to pin jack feed through connections
• Sho rting bar to set the plane float or grounding setting
• Six 1/8 in barb output vacuum manifold for vacuum base positioner
support
Compatibility
• Summit
118-640 — Triax Connection Panel, High Stability Bridge
Config, S300
Features
• Set of Triax connection panels
for convenient cable
management
• Designed to mount to the high
stability optical bridge mount
• Panel connections su pport
single triax cables and Keysight
dual triax SMU cable
assemblies. Contact the factory
for Keysight quadrax SMU connections.
Specifications
• 16 total Triax (3-lug) feed through connectors (female), 8 on each
side
• Ground straps f or each panel
Compatibility
• S300
134-710 — Triax Connection Panel, High Stability Bridge
Config, Summit
Features
• Set of Triax connection panels
for convenient cable
management
• Designed to mount to the high
stability optical bridge mount
• Panel connections su pport
single triax cables and Keysight
dual triax SMU cable
assemblies. For Keysight quadrax SMU connections, please
contact the factory.
Specifications
• 10 Triax (3-lug) feed through connectors (female)
• 4 BNC connectors
• 2 banana connectors
• Ground strap on each side
Compatibility
• Summit
PN 141-400 www.formfactor.com Summit • 133
Revision 57, February, 2023 Probe Station Accessories

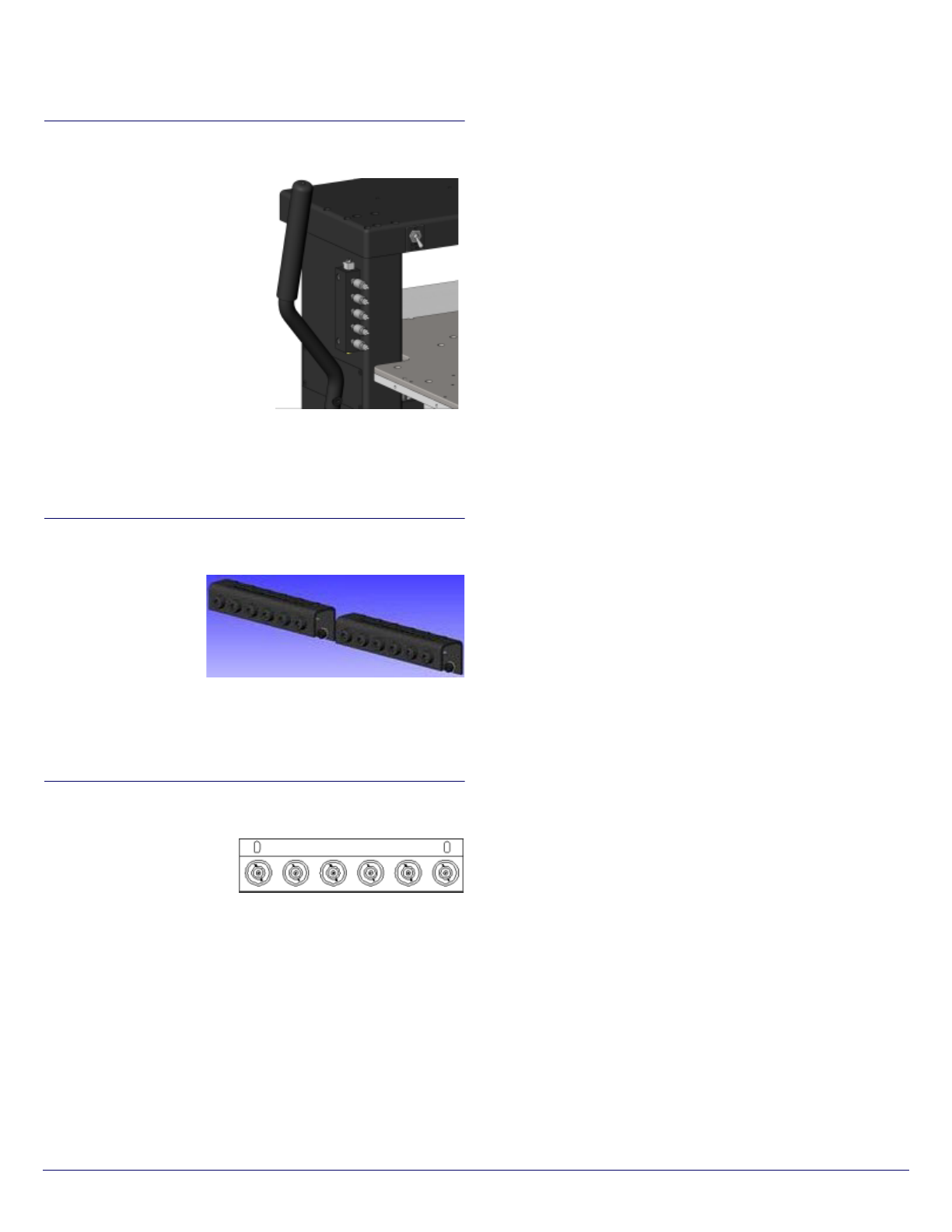

162-200 — Vacuum Manifold Kit, High Stability Optics
Bridge
Features
• One set of 5 port vacuum
manifolds (10 total output ports)
mounted on each side of the high
stability microscope bridge
• Easy pu sh on hose c onnection
• Easy pu sh/pull, on and off flow
toggle
Specifications
• 5 ports per manifold
• 2 manifolds
• Outputs s upports 3 mm (1/8 in)
vacuum hose
Compatibility
• Summit, S300
RAC-92 — Pin Jack to Banana Interface Panel, High
Stability Optical Bridge
Features
• Includes t wo brackets,
with s ix each Pin Jack
to Banana conn ection
interfaces
• Mounts at rear of
station onto the high stability bridge mount
Compatibility
• Summit, S300
RAC-96 — Pin Jack to Coax Interface Panel, High
Stability Optical
Features
• Includes t wo brackets, with
six each pin jack to coax
interface connections
• Mounts at rear of station onto the high stability bridge mount
Compatibility
• Summit, S300
PN 141-400 www.formfactor.com Summit • 134
Revision 57, February, 2023 Probe Station Accessories
Mounting Kits and Miscellaneous Accessories
105-588 — T hermal Flow Meter Kit
Features
• Provide dry air/nitrogen flow control to Summit
MicroChamber
• Allow for optimization of the air flow to achieve
stable measurement conditions at various set
temperatures
Specifications
• Input/output ports are 13 mm (0.5 in) OD q uick connect style
• Scale resolution is 14 l/min (0.5 SCFM)
Compatibility
• Summit
106-889 — Dust Cover for Summit Systems
Features
• Semi-transparent vinyl dust cover for Summit 11000/12000 system
• Provides protection for periods when the system is not in use
Compatibility
• Summit
116-441 — Enhanced RF Shielded MicroChamber
TopHat Kit
Features
• Provides for an additional 20db of RF
shielding
• Upgrades older Summit systems to
the current style and size of TopHat
• Ena bles compatibility with newer accessories and system options
• Provides for compatibility with Current Wave Guide and Unity-MW
probes
Compatibility
• Summit, S300
116-511 — MicroChamber Large TopHat Upgrade Kit
Features
• Upgrades older Summit systems to
the current style and size of TopHat
• Enables compatibility with newer
accessories and system options
• Provides for compatibility with Current Wave Guide and Unity-MW
probes
Compatibility
• Summit
116-512 — MicroChamber Large TopHat Objective
Ring/Cover
Features
• Provides for objective light/
environmental seal when used with
Summit TopHat
• Collapsible s eal prevent damage to microscope or objective
Compatibility
• Summit
133-492 — High Stability Bridge Mounting Bracket for
Keysight E5288A Atto Sense Unit
Features
• Mounts Keysight B1500 Atto sense
unit in a thermally isolated position
close to the probing environment
• Keeps cables lengths short for
optimal performance
• Triax feed through direct
connection paths support single
triax cables and Keysight dual triax SMU cable assemblies. For
Keysight Quadrax SMU connections, please contact the factory.
Specifications
• Mount for two Keysight B1500 Atto Sense units
• 4 Triax (3-lug) feed through connectors (female)
Compatibility
• Summit, S300
