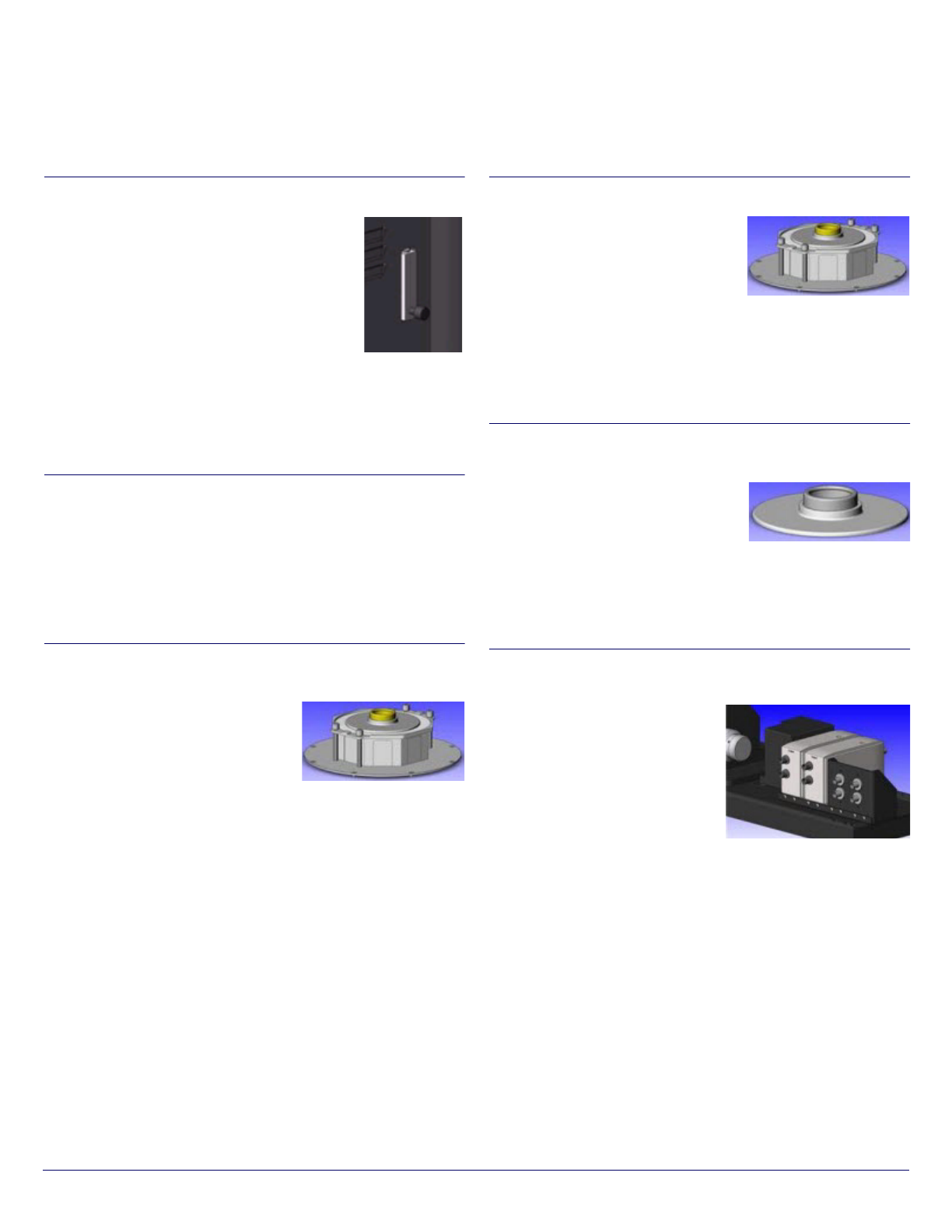

PN 141-400 www.formfactor.com Summit • 134
Revision 57, February, 2023 Probe Station Accessories
Mounting Kits and Miscellaneous Accessories
105-588 — T hermal Flow Meter Kit
Features
• Provide dry air/nitrogen flow control to Summit
MicroChamber
• Allow for optimization of the air flow to achieve
stable measurement conditions at various set
temperatures
Specifications
• Input/output ports are 13 mm (0.5 in) OD q uick connect style
• Scale resolution is 14 l/min (0.5 SCFM)
Compatibility
• Summit
106-889 — Dust Cover for Summit Systems
Features
• Semi-transparent vinyl dust cover for Summit 11000/12000 system
• Provides protection for periods when the system is not in use
Compatibility
• Summit
116-441 — Enhanced RF Shielded MicroChamber
TopHat Kit
Features
• Provides for an additional 20db of RF
shielding
• Upgrades older Summit systems to
the current style and size of TopHat
• Ena bles compatibility with newer accessories and system options
• Provides for compatibility with Current Wave Guide and Unity-MW
probes
Compatibility
• Summit, S300
116-511 — MicroChamber Large TopHat Upgrade Kit
Features
• Upgrades older Summit systems to
the current style and size of TopHat
• Enables compatibility with newer
accessories and system options
• Provides for compatibility with Current Wave Guide and Unity-MW
probes
Compatibility
• Summit
116-512 — MicroChamber Large TopHat Objective
Ring/Cover
Features
• Provides for objective light/
environmental seal when used with
Summit TopHat
• Collapsible s eal prevent damage to microscope or objective
Compatibility
• Summit
133-492 — High Stability Bridge Mounting Bracket for
Keysight E5288A Atto Sense Unit
Features
• Mounts Keysight B1500 Atto sense
unit in a thermally isolated position
close to the probing environment
• Keeps cables lengths short for
optimal performance
• Triax feed through direct
connection paths support single
triax cables and Keysight dual triax SMU cable assemblies. For
Keysight Quadrax SMU connections, please contact the factory.
Specifications
• Mount for two Keysight B1500 Atto Sense units
• 4 Triax (3-lug) feed through connectors (female)
Compatibility
• Summit, S300

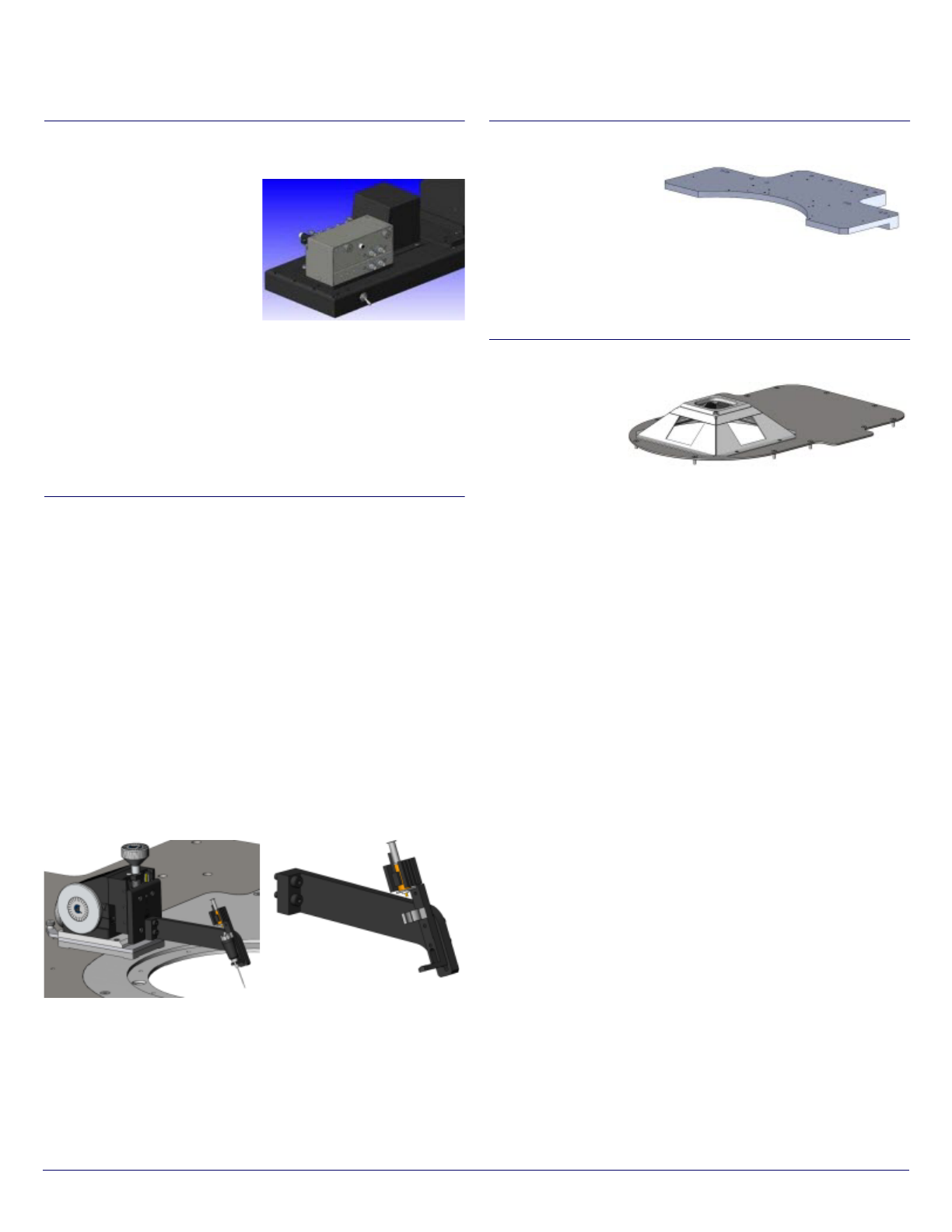

PN 141-400 www.formfactor.com Summit • 135
Revision 57, February, 2023 Probe Station Accessories
135-038 — Mounting plate for B1500A SCUU
(SMU-CMU Unit), High Stability Bridge Config
Features
• Mounts Keysight B1500 SCUU
(SMU-CMU un ify unit) in a
thermally isolat ed position close
to the probing environment
• Kee ps cables lengths short for
optimal performance
• For use on Summit 11 000/
12000 and S300 systems with high stability optics bridge
Kit Contents
• Mounting bracket
• Mounting hardware
Compatibility
• Summit, S300
165-210 — Xandex Inker, 12V, with Ink Cartrid ges and
DPP2XX Positioner Mount
Features
• Inker kit for DPP2XX positioner
• Ena bles marking/binning of selected dies
• Contr olled by FormFactor’s probe station control software or
external software
• Solenoid controlled inker
Specifications
• 12 volt Xandex inker system
Kit Contents
• Cartridge, Xandex die mark ink, 32 mm (1.25 in) needle
• Cartridge, Xandex die mark ink, S-bend needle
Compatibility
• Summit, S300
174-889 — Summit Platen Adapter
Features
• Adapter plate enables
the use of E300/CM300
positioners (e.g.,
RPP404-EW-120,
RPP404-W-120, RPP304-NS-67)
Compatibility
• Summit
177-561— Top Hat Assembly, 4 Port, Summit
Features
• Enables the use
of single or dual
Keysight N5291
modules with
Infinity and ACP
probes on Summit stations with MicroChamber
• Enables full thermal ca pability
Configuration
• Intended for use with positioner assemblies RPP404-EW-120,
RPP404-W-120, RPP304-NS-67
Compatibility
• Summit

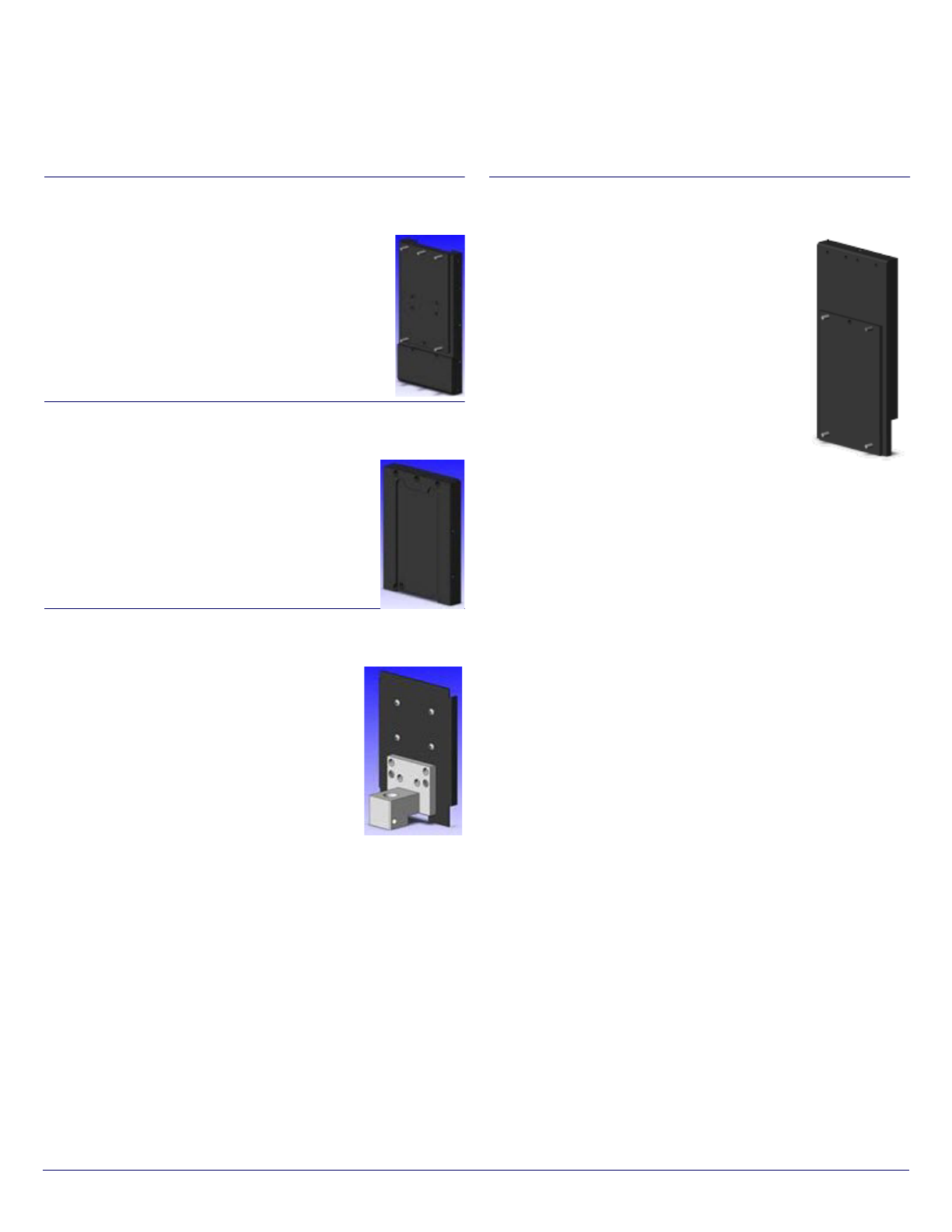

PN 141-400 www.formfactor.com Summit • 136
Revision 57, February, 2023 Probe Station Accessories
Microscope Mounting Plates
122-246 — Microscope Mounting Kit, Manual
Transport, Large Area
Features
• Dov etail mounting block for Seiwa VMSS-888 family
and Mitutoyo VMSS-70
• Select wh en ordering a manual large area
microscope transport system
Compatibility
• Summit, S300, Alessi, MTS
122-248 — Microscope Mounting Kit, eVue/A-Zoom2,
Manual Transport, Large Area
Features
• Dov etail mounting block for eVue and A-Zoom2
• Select wh en ordering a manual, large area
microscope transport system
Compatibility
• Summit, S300
158-064 — Microscope Mounting Kit,
Leica, Manual Transport
Features
• Dov etail mounting block for Leica S6 and S8
• Ada pts standard dovetail to bonder pin common
to stereo zoom microscopes
• Universal d esign for Summit 11000B, 12000B,
S300 a nd legacy probe stations
Compatibility
• Summit, S300, Alessi, MTS
162-150 — Microscope Mounting Kit, eVue/A-Zoom2/
Seiwa/Mitutoyo/Manual Transport, HS
Features
• Dovetail mounting block for eVue, A-Zoom2,
Seiwa and Mitutoyo
• Select when ordering a manual, high stability
microscope transport system
Compatibility
• Summit, S300
