PN 141-400 www.formfactor.com S ummit • 136 Revision 57, February, 2023 Probe Station A ccessories M ic r o s co pe Mo un t in g Pla t es 122 -2 46 — M i cr os cop e Mou n tin g Kit, Manu a l T r ansp ort , Larg e Ar ea …
PN 141-400 www.formfactor.com Summit • 135
Revision 57, February, 2023 Probe Station Accessories
135-038 — Mounting plate for B1500A SCUU
(SMU-CMU Unit), High Stability Bridge Config
Features
• Mounts Keysight B1500 SCUU
(SMU-CMU un ify unit) in a
thermally isolat ed position close
to the probing environment
• Kee ps cables lengths short for
optimal performance
• For use on Summit 11 000/
12000 and S300 systems with high stability optics bridge
Kit Contents
• Mounting bracket
• Mounting hardware
Compatibility
• Summit, S300
165-210 — Xandex Inker, 12V, with Ink Cartrid ges and
DPP2XX Positioner Mount
Features
• Inker kit for DPP2XX positioner
• Ena bles marking/binning of selected dies
• Contr olled by FormFactor’s probe station control software or
external software
• Solenoid controlled inker
Specifications
• 12 volt Xandex inker system
Kit Contents
• Cartridge, Xandex die mark ink, 32 mm (1.25 in) needle
• Cartridge, Xandex die mark ink, S-bend needle
Compatibility
• Summit, S300
174-889 — Summit Platen Adapter
Features
• Adapter plate enables
the use of E300/CM300
positioners (e.g.,
RPP404-EW-120,
RPP404-W-120, RPP304-NS-67)
Compatibility
• Summit
177-561— Top Hat Assembly, 4 Port, Summit
Features
• Enables the use
of single or dual
Keysight N5291
modules with
Infinity and ACP
probes on Summit stations with MicroChamber
• Enables full thermal ca pability
Configuration
• Intended for use with positioner assemblies RPP404-EW-120,
RPP404-W-120, RPP304-NS-67
Compatibility
• Summit
PN 141-400 www.formfactor.com Summit • 136
Revision 57, February, 2023 Probe Station Accessories
Microscope Mounting Plates
122-246 — Microscope Mounting Kit, Manual
Transport, Large Area
Features
• Dov etail mounting block for Seiwa VMSS-888 family
and Mitutoyo VMSS-70
• Select wh en ordering a manual large area
microscope transport system
Compatibility
• Summit, S300, Alessi, MTS
122-248 — Microscope Mounting Kit, eVue/A-Zoom2,
Manual Transport, Large Area
Features
• Dov etail mounting block for eVue and A-Zoom2
• Select wh en ordering a manual, large area
microscope transport system
Compatibility
• Summit, S300
158-064 — Microscope Mounting Kit,
Leica, Manual Transport
Features
• Dov etail mounting block for Leica S6 and S8
• Ada pts standard dovetail to bonder pin common
to stereo zoom microscopes
• Universal d esign for Summit 11000B, 12000B,
S300 a nd legacy probe stations
Compatibility
• Summit, S300, Alessi, MTS
162-150 — Microscope Mounting Kit, eVue/A-Zoom2/
Seiwa/Mitutoyo/Manual Transport, HS
Features
• Dovetail mounting block for eVue, A-Zoom2,
Seiwa and Mitutoyo
• Select when ordering a manual, high stability
microscope transport system
Compatibility
• Summit, S300
PN 141-400 www.formfactor.com Tesla • 137
Revision 57, February, 2023 Probe Station Accessories
Tesla
Keysight Configuration
KEYSIGHT ACCESSORIES

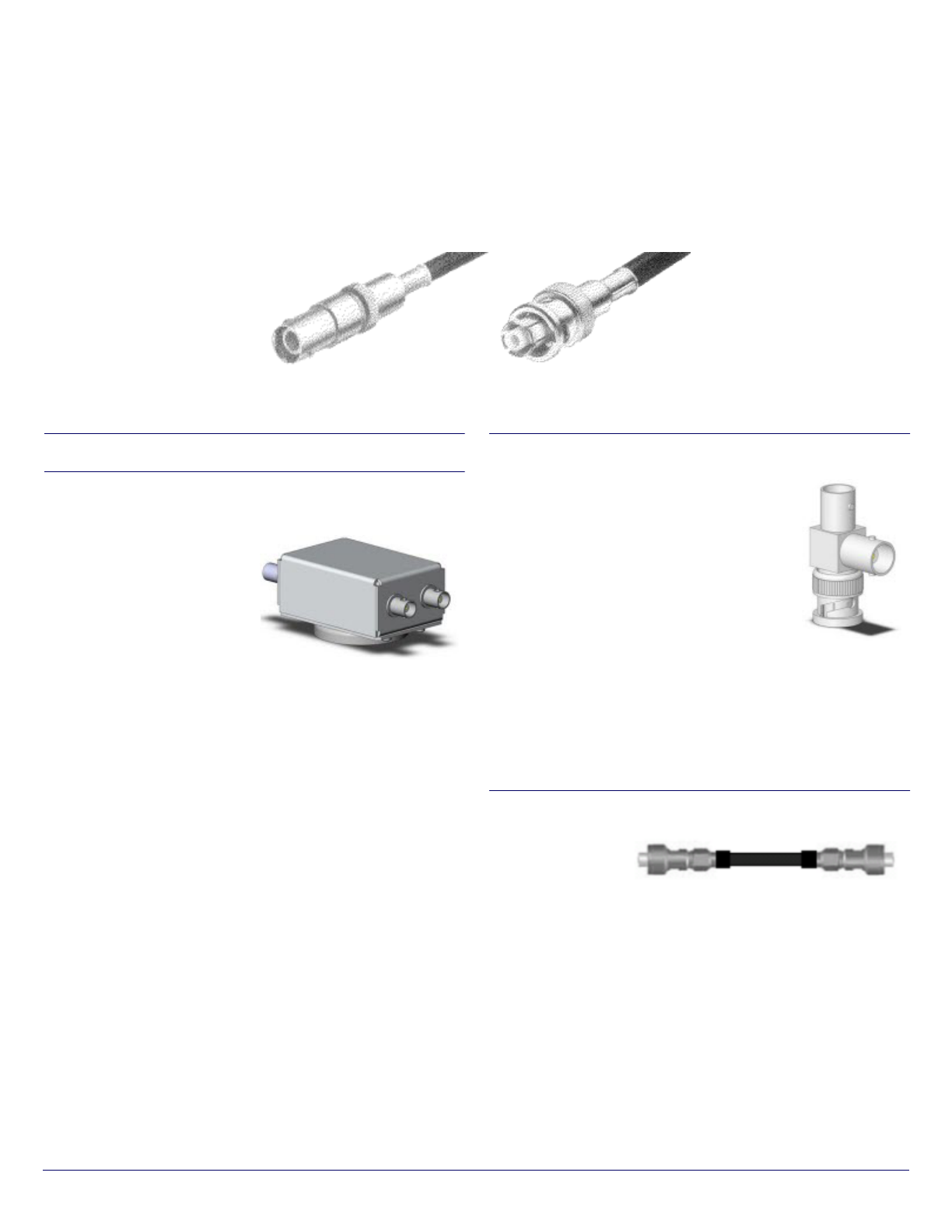

148-651 — HV Adapter Box, 2 SHV (Jack) to 2 BNC (Jack)
Features
• Provides connection between
Keysight B1505A modu le
selector and HVP-5C probes
(and older HVP-3 C models)
• Ada pts SHV to BNC
connection
• Magnetic base mounts on
platen
Specifications
• Maximum voltage: 500V DC
• Maximum current (DC): 3A
• Maximum current (Pulse): 40A, (PW
1ms, Duty ratio 1%)
• Connector type: 2 SHV (jack), 2 BNC (jack)
Compatibility
• Tesla
148-657 — BNC Tee, 1 BNC (Plug) to 2 BNC (Jack)
Features
• Provides the co nnection between Keysight
B1505A HCSMU adapter and HCP-BNC or
DCP-HTR probes
• Adapts single BNC connection to dual
Specifications
• Maximum voltage: 500V DC
• Maximum current (DC): 5A
• Maximum current (Pulse): 40A, (PW
1ms,
Duty ratio
1%)
• Connector type: 1 BNC (plug), 2 BNC (jack)
Compatibility
• Tesla
148-658 — Keysight HV Triax Cable, (Plug - Plug)
Features
• Provides triax HV
connection
between Keysight
B1505A and Tesla pro be station
Specifications
• Maximum voltage (triax connection): 3000V DC
• Connector type: Keysight HV triax (plug-plug)
• Cable length: 1.5 m (5 ft)
Compatibility
• Tesla
SHV (jack)
SHV (p lug)
