PN 141-400 www.formfactor.com Tesla • 138
Revision 57, February, 2023 Probe Station Accessories

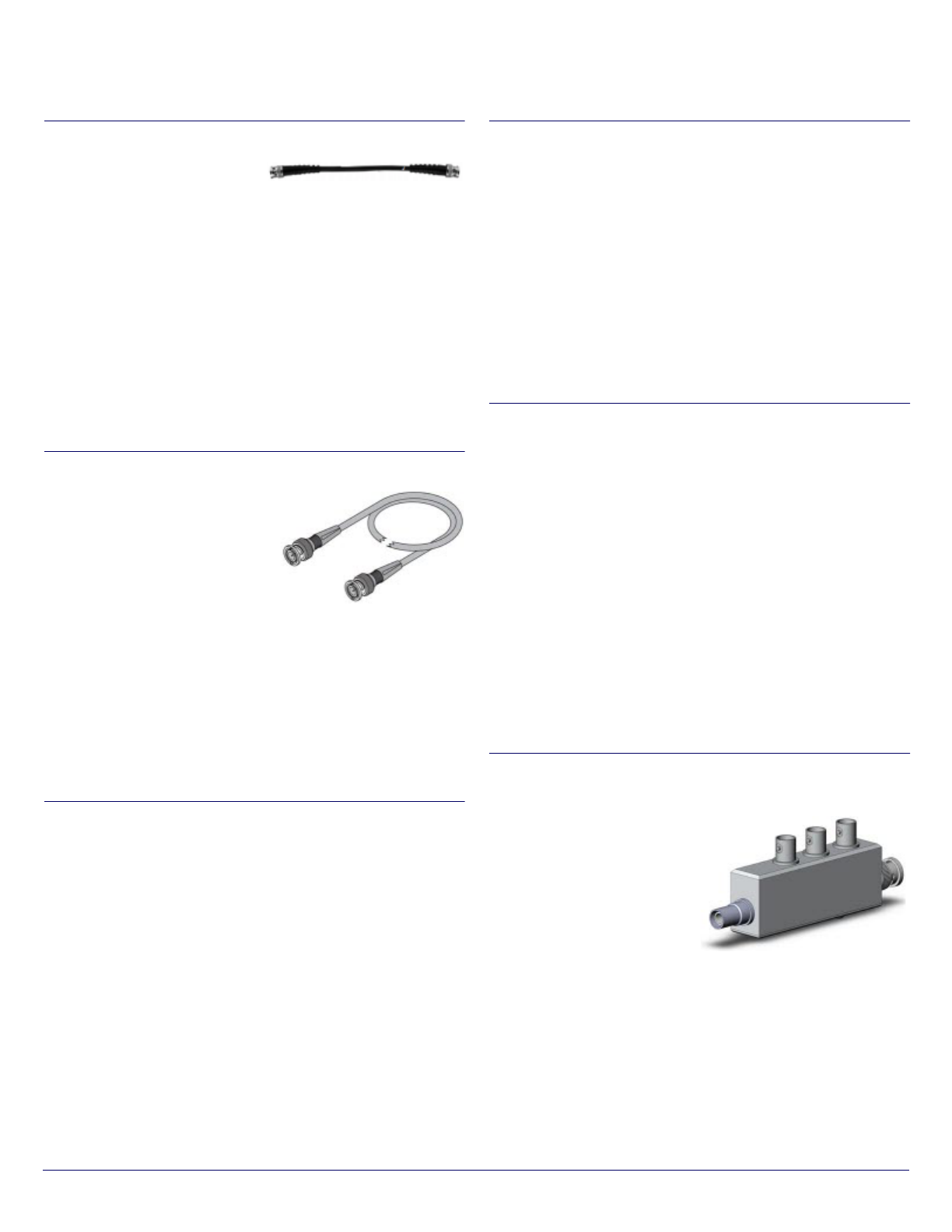

148-659 — BNC Cable, 61 cm, (Plug - Plug)
Features
• Provides the connection
between Keysight B1505A HCSMU accessories and HCP-BNC
probes
Specifications
• Maximum voltage: 500V DC
• Maximum current (DC): 5A
• Maximum current (Pulse): 40A, (PW
1ms, Duty ratio 1%)
• Connector type: BNC (plug - plug)
• Cable le ngth: 61 c m (24 in)
Compatibility
• Tesla
148-665 — HC BNC Cable, 61 cm (Plug - Plug)
Features
• Provides the high current, low-
resistance connection between
Keysight B1505A HCSMU
accessories and HCP-BNC probes
Specifications
• Maximum voltage: 500V DC
• Maximum current (DC): 5A
• Maximum current (Pulse): 40A, (PW
1ms, Duty ratio 1%)
• Connector type: BNC (plug - plug)
• Cable le ngth: 61 c m (24 in)
Compatibility
• Tesla
148-668 — Mini Triax (Plug) to BNC (Plug) Cable, 60 cm
Features
• Provides the connection between Keysight B1505A HCSMU
adapter and DCP-HTR probes
Specifications
• Maximum voltage: 500V DC
• Maximum current (DC): 1A
• Connector type: Mini triax (plug), BNC (plug)
• Cable le ngth: 60 c m (23.5 in)
Compatibility
• Tesla
148-669 — Keysight HV Triax (Plug) – SHV (Plug), 60 cm
Features
• Provides the HV triax to coaxial adaptation between Keysight
B1505A and Tesla pro be station
Specifications
• Maximum voltage: 3000V DC
• Connector type: Keysight HV triax (plug), SHV (plug)
• Cable length: 60 cm (23.5 in)
• Guard of Keysight HV triax connects to cable shield
Compatibility
• Tesla
148-670 — HC BNC Cable,1.5 m (Plug - Plug)
Features
• Provides the high current, low-resistance connection between
Keysight B1505A HCSMU modu le selector and HVP-5C pro bes
(and older HVP-3C models) through the SHV t o BNC adapter
(148-651)
Specifications
• Maximum voltage: 500V DC
• Max current (DC): 5A
• Maximum current (Pulse): 40A, (PW
1ms, Duty ratio 1%)
• Connector type: BNC (plug - plug)
• Cable length: 1.5 m (5 ft)
Compatibility
• Tesla
148-724 — SHV to 4-BNC Adapter Box 1 SHV (Jack), 1
BNC (Plug), 3 BNC (Jack)
Features
• Provides the interconnections
between the Keysight
B1505A HCSMU adapter,
GNDU protection adap ter and
HVP-5C probes (and older
HVP-3C models)
Specifications
• Maximum voltage: 500V DC
• Maximum current (DC): 5A
• Connector type: SHV (ja ck), BNC (plug), 3 BNC (j ack)
Compatibility
• Tesla
PN 141-400 www.formfactor.com Tesla • 139
Revision 57, February, 2023 Probe Station Accessories

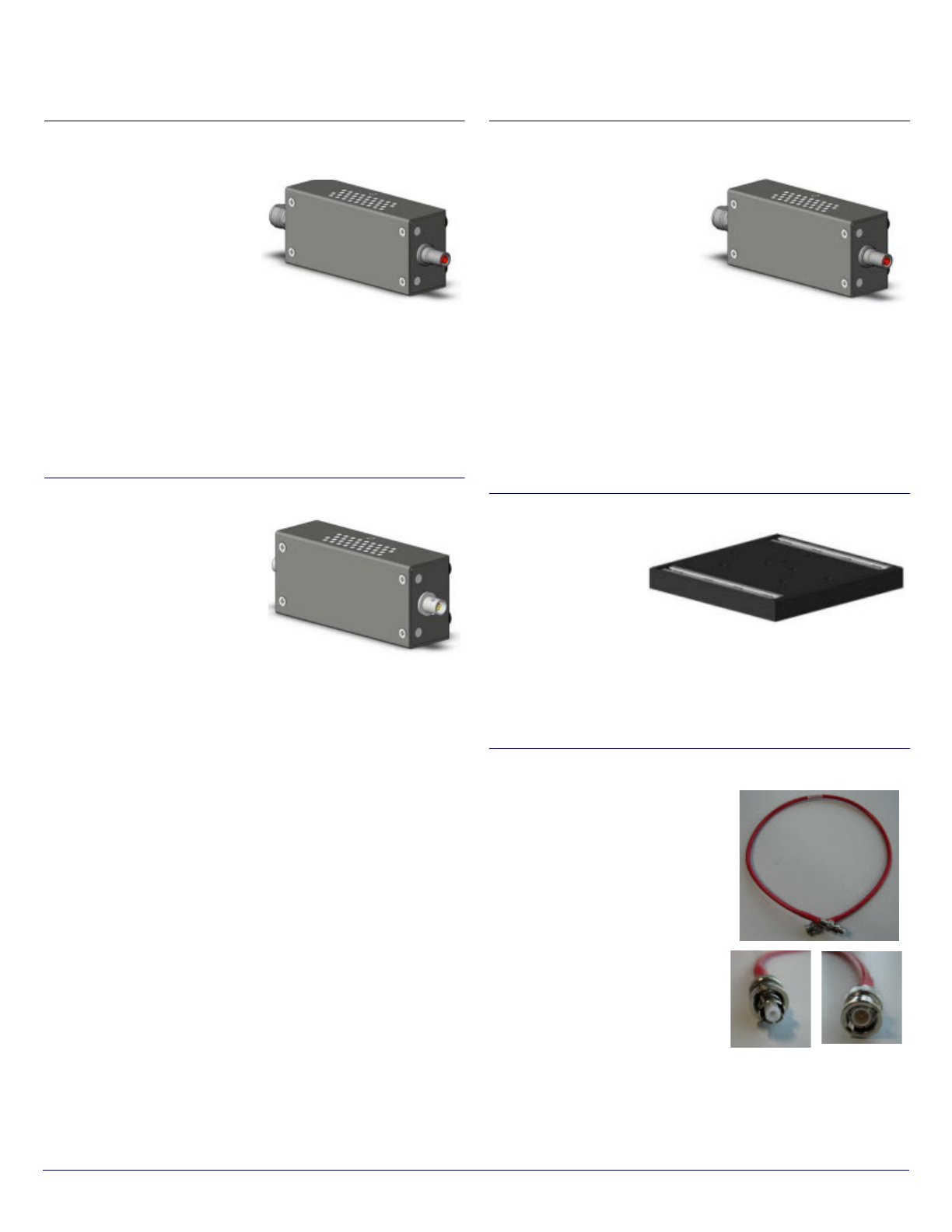

149-396 — Resistor Box, HV, 100 K – HV Triax (Jack),
SHV (Jack)
Features
• 100K Keysight resistor box
• Provides connection between
Keysight B1505A HVSMU and
HVP-5C probes (and older
HVP-3C models)
Specifications
• Res istanc e: 100K
• Maximum voltage: 3000V DC
• Connector type: Keysight HV tri ax (jack), SHV (jack)
Compatibility
• Tesla
149-397 — Resistor Box, HV, 1 K – Triax (Jack-Jack)
Features
• 1K Keysight resistor bot
• Provides connection between
Keysight B1505A HPSMU
protection ad apter and DCP-
HTR probes
Specifications
• Res istanc e: 1K
• Maximum voltage: 500V DC
• Connector type: Standard triax (plug - plug)
Compatibility
• Tesla
149-398 — Resistor Box, HV, 1 KW – HV Triax (Jack), SHV
(Jack)
Features
• 1K Keysight resistor bot
• Provides connection between
Keysight B1505A HPSMU
protection adapter box and
HVP-5C probes (and older
HVP-3C models)
Specifications
• Resistance: 1K
• Maximum voltage: 3000V DC
• Connector type: Keysight HV triax (jack), SHV (jack)
Compatibility
• Tesla
149-445 — Test Head Plate Assembly
Features
• Adapter plate for
mounting instrument
accessories on the
Tesla station bridge
Specifications
• Dimensions (WxDxH): 21.59 x 21.28 x 2.54 cm (8.5 x 8.38 x 1.0 in)
Compatibility
• Tesla
149-947 — SHV (Plug) to BNC (Plug) Cable, 60 cm
Features
• Provides SHV to BNC connection
Specifications
• Maximum voltage: 500V DC
• Maximum current (DC): 5A
• Maximum current (Pulse): 40A,
(PW
1ms, Duty ratio 1%)
• Connector type: BNC (plug), SHV
(plug)
• Cable length: 60 cm (23.5 in)
Compatibility
• Tesla
PN 141-400 www.formfactor.com Tesla • 140
Revision 57, February, 2023 Probe Station Accessories
149-958 — Keysight HV Triax (Plug) to Std Triax Cable
(Plug),1.5 m
Features
• Provides the HV triax to standard triax c onnection for Keysight
B1505A
Specifications
• Maximum voltage: 500V DC
• Connector type: Keysight HV tri ax (plug), standard (plug)
• Cable le ngth: 1.5 m (5 ft)
Compatibility
• EPS15 0TESLA, T200, T300

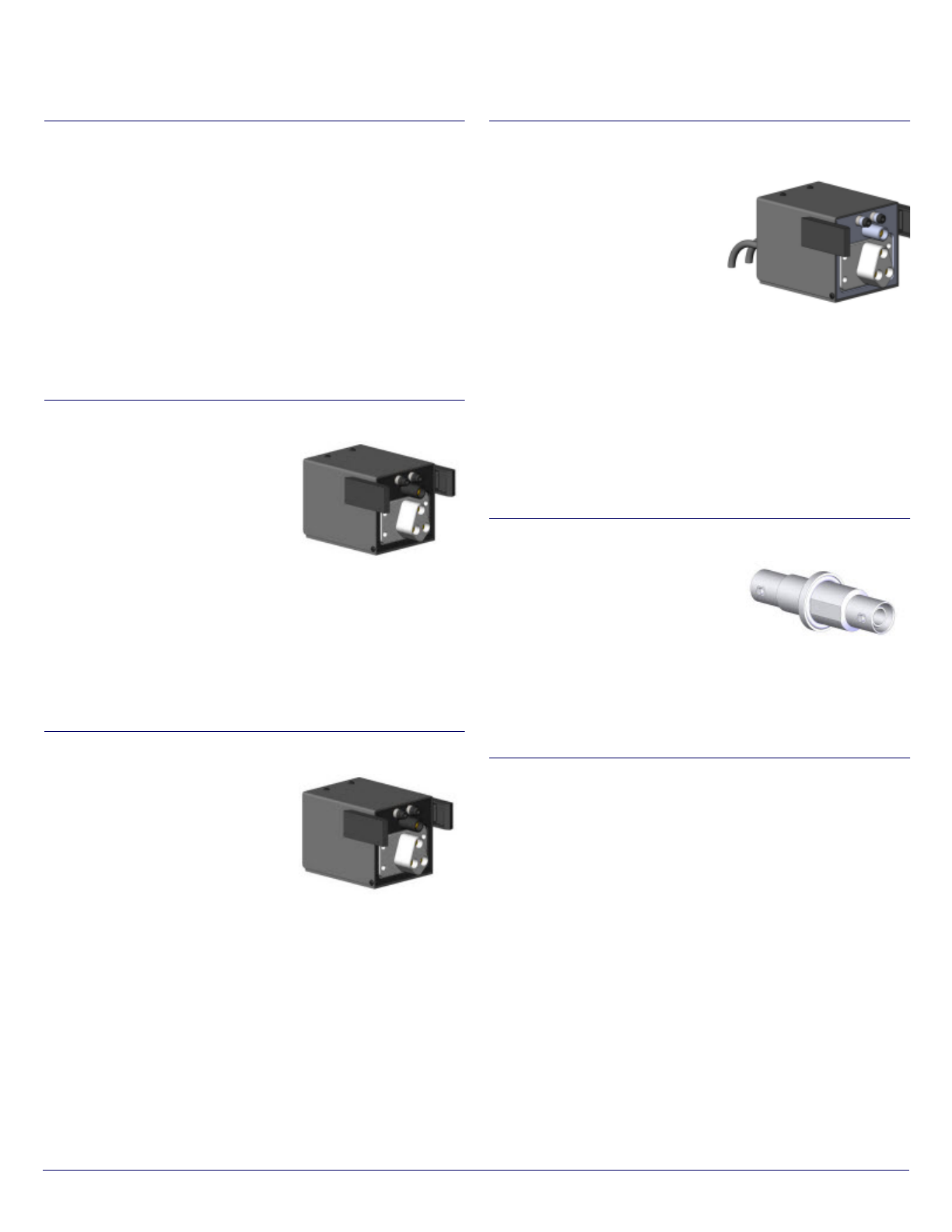

149-976 — High Voltage Chuck Floating Plug
Product Features
• Provides the floating chuck
connection for the Tesla high-power
chuck
• Safety interlock connection
Specifications
• Dual triax connection
• Maximum voltage: 10,000V
Station Compatibility
• EPS15 0TESLA, T200, T300
Ordering Information
• Chuck Guard terminal connects to Chuck Shield terminal.
149-977 — High Voltage Chuck Shorting Plug
Product Features
• Provides the shorting chuck
connection for the Tesla high-power
chuck
• Safety interlock connection
Specifications
• Dual triax connection
• Maximum current (DC): 10A
• Maximum current (Pulse): 100A, (PW<=1ms, Duty ratio <=1%)
Station Compatibility
• EPS15 0TESLA, T200, T300
149-978 — Chuck Cable, HV Chuck to Agilent HV (Plug),
1.5 m
Product Features
• Provides dual triax con nection
between the high voltage Tesla
chuck and Agilent B1505A
HVSMU
• Low-leakage
• Low resistance, high voltage,
high-curent cable
Specifications
• Maximum voltage: 3000V DC
• Connector type: Cascade Microtech HV chuck, Agilent high
voltage (plug)
• Cable length: 1.5 m (4.92 ft)
Stat ion Compatibility
• EPS150TESLA, T200, T300
151-196 — SHV (Jack) to SHV (Jack) Adapter
Features
• Adapts SHV to SHV connection
Specifications
• Maximum voltage: 5000V
• Connector type: SHV (ja ck) to SHV
(jack)
Compatibility
• Tesla
151-207 — SHV (Plug) to SHV (Plug) Cable, 60 cm
Features
• Provides the high voltage SHV to SHV coaxial connection for
Keysight B1505A and Tesla probe station
Specifications
• Maximum voltage: 5000V DC
• Connector type: SHV (pl ug)
• Cable length: ~0.75m (30 in)
Compatibility
• Tesla
