PN 141-400 www.formfactor.com Tesla • 143
Revision 57, February, 2023 Probe Station Accessories

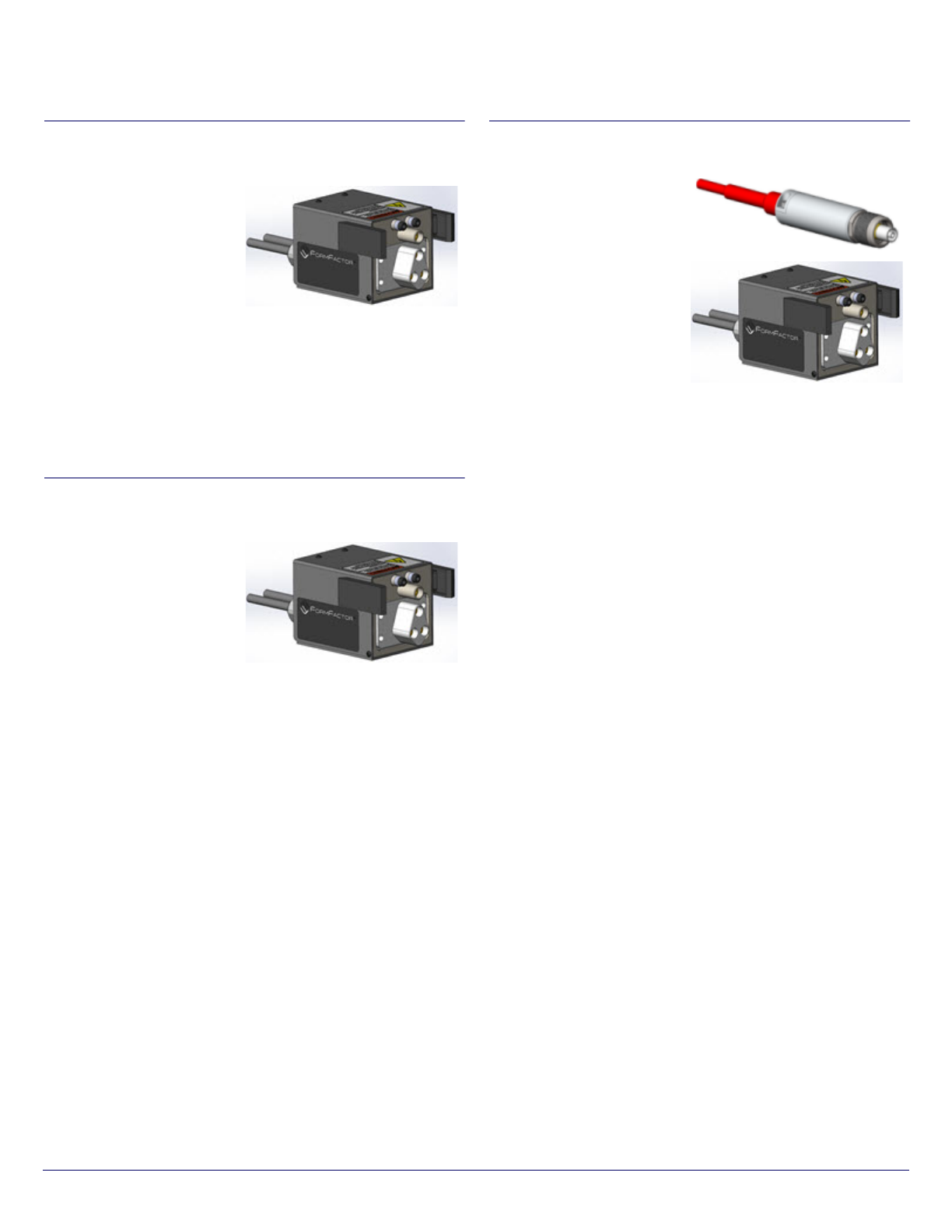

780-01338 — Chuck Cable, HV Chuck to SHV (Jack),
1.0 m
Product Features
• Provides force and sense
connection between the
high voltage Tesla chuck
and Agilent B1505A
• Low re sistance, high
voltage, high-curent cable
Specifications
• Maximum voltage: 5000V DC
• Connector type: Cascade Microtech HV chuck, SHV (jack)
• Cable le ngth: 1.0 m (3.5 ft)
Station Compatibility
• EPS15 0TESLA, T200, T300
780-01339 — Chuck Cable, HV Chuck Connector to BNC
(Plug), 1.0 m
Product Features
• Provides force and sense
connection between the
high voltage Tesla chuck
and Agilent B1505A
• Low re sistance, high
voltage, high-curent cable
Specifications
• Maximum voltage: 500V DC
• Maximum current (DC): 5A
• Maximum current (Pulse): 50 A, (PW<=1ms, Duty ratio <=1%)
• Connector type: Cascade Microtech HV chuck, BNC (plug)
• Cable le ngth: 1.0 m (3.5 ft)
Station Compatibility
• EPS15 0TESLA, T200, T300
780-01341 — Chuck Cable, HV Chuck to Keysight HV
(Plug) for 40A High Current Test, 1.5m
Features
• Provides dual triax
connection between the HV
Tesla chuck and Keysight
B1505A HVSMU
• Low-leakage
• Very low resistance, HV, HC
cable for dual HCSMU 40A
configuration
Specifications
• Maximum voltage: 3000V
• Maximum current (DC): 3A
• Maximum current (Pulse): 40A, (PW ≤ 1ms, Duty ratio ≤ 1%)
• Connector type: FormFactor HV chuck, Keysight HV (plug)
• Cable length: 1.5 m (5 ft)
Compatibility
• EPS150TESLA, T200, T300
PN 141-400 www.formfactor.com Tesla • 144
Revision 57, February, 2023 Probe Station Accessories
Keithley Configuration
KEITHLEY ACCESSORIES

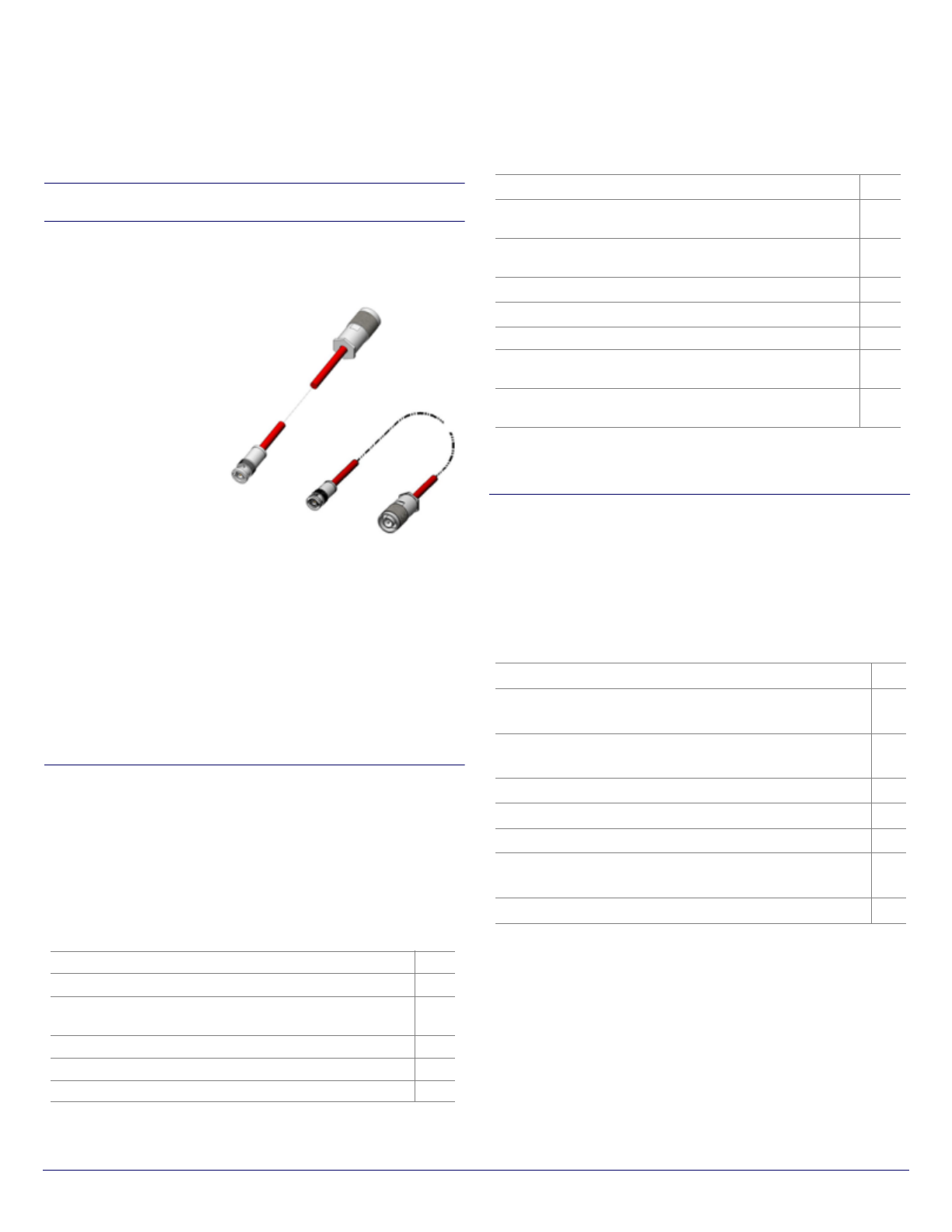

144-527 — HV Triax Connector Cable, Interface Panel to
Keith ley 237/238
Features
• Provides connection
between HV triax interface
panel and:
– High Voltage SMUs
(Keithley)
– Standard triax
connectors
Specifications
• Maximum voltage: 1100V
(triax)
• Maximum current (DC): 5A
• Cable le ngth: 1m (3.3 ft)
• Cable characteristics:
– Withstand voltage: 1,100V (F-G), (G-S)
– Isolation resistance: 1T @ 1,100V (F-G), 1 00G @ 1,100V
(G-S)
• Terminating connector types:
– Amphenol triax threaded, 11/16-24 (plug)
– Standard triax (plug) (HV version)
Compatibility
• Tesla
151-468 — Tesla Probes and Interconnect Kit for
Keith ley instruments
Features
• Tesla high-power probing kit for use with Keithley instruments
• The kit includes the HVP and HCP probes, positioners, necessary
brackets, cables and adapters to connect the Keithley instruments
for typical measurement setup
Kit Contents
Compatibility
• T200
151-469 — Tesla Interconnect Kit for Keithley
Instruments (Excluding Probes and Positioners)
Features
• Tesla high-power probeless kit for use with Keithley instruments
• The kit includes brackets, c ables and adapters to connect Keithley
instruments for typical measurement setup
Kit Contents
Compatibility
• T200
RPP305 Positioners
2
DPP210-M Positioners
3
HCP-1-B — HC Probe Holder with Banana Jack
Connections (no HCP tip)
2
HCP-TIP-3-350 — HC Replaceable Probe Tips, 5-pack
1
HVP-13 — HV Triax Probe with CMI HV Triax Connection
3
PTT Needle,12u
1 box
151-472 — Safety interlock Cable, 3 m
1
162-085 — HV Triax Connector Cable, Interface Panel to
HV Coax
1
144-527 — HV Triax Connector Cable, Interface Panel to
Keithley 237/238
3
149-976 — High Voltage Chuck Floating Plug
1
149-977 — High Voltage Chuck Shorting Plug
1
High Power Chuck Connection Cables
1
780-01337 — Tesla Chuck Cable, HV Chuck to Banana
Plug Connector, 1.2 m
1
780-01338 — Chuck Cable, HV Chuck to SHV (Jack),
1.0 m
1
151-472 — Safety interlock Cable, 3 m
1
162-085 — HV Triax Connector Cable, Interface Panel to HV
Coax
1
144-527 — HV Triax Connector Cable, Interface Panel to
Keithley 237/238
3
149-976 — High Voltage Chuck Floating Plug
1
149-977 — High Voltage Chuck Shorting Plug
1
High Power Chuck Connection Cables
1
780-01337 — Tesla Chuck Cable, HV Chuck to Banana Plug
Connector, 1.2 m
1
780-01338 — Chuck Cable, HV Chuck to SHV (Jack), 1.0 m
1
PN 141-400 www.formfactor.com Tesla • 145
Revision 57, February, 2023 Probe Station Accessories

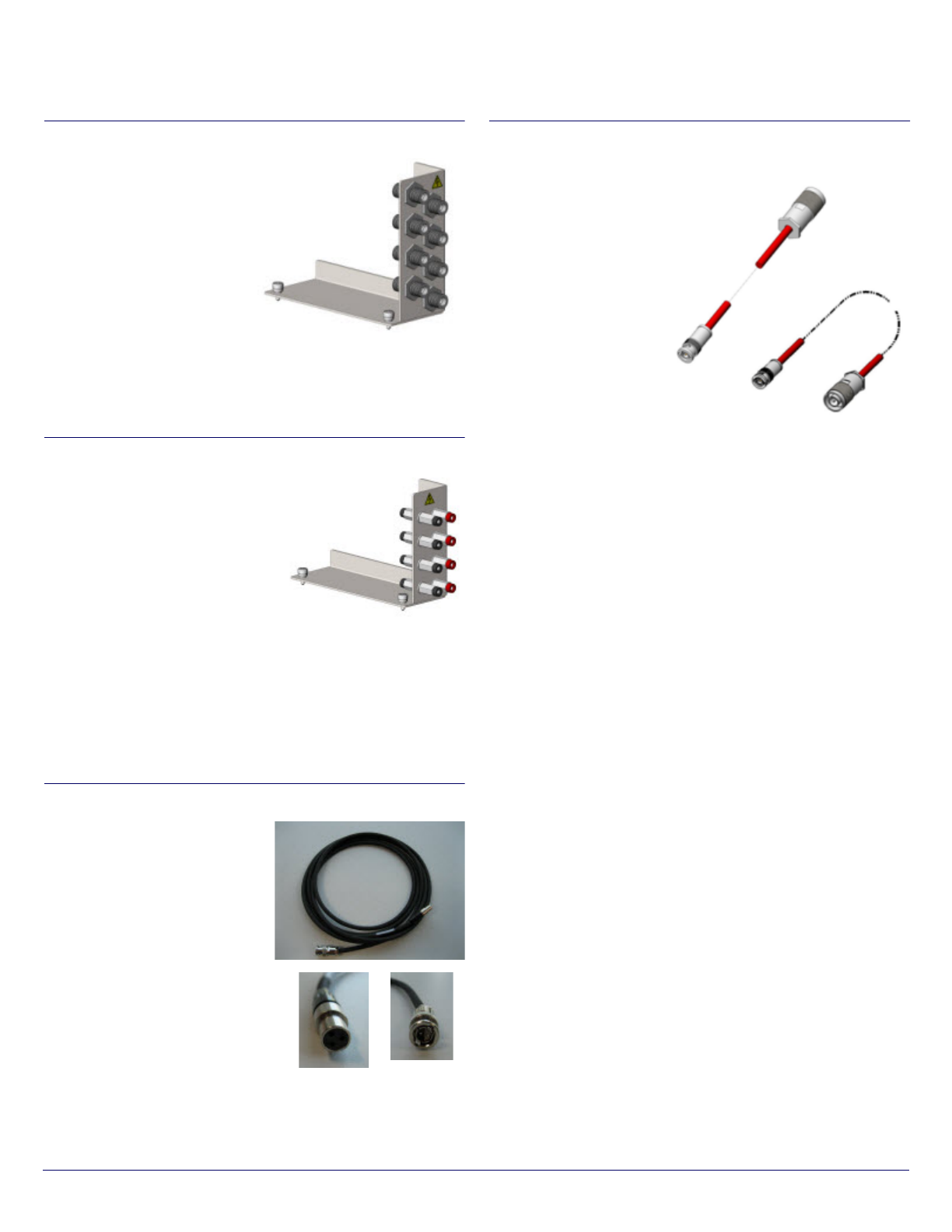

151-470 — HV Triax Interface Panel
Features
• Eight HV triax connections:
– Four force
– Four sense
• Includes grounding strap
Specifications
• Max Voltage: 3000V (coax)/
1500V (triax)
• Connector type: Amphenol
triax threaded 11/16-24 (jack)
Compatibility
• Tesla
151-471 — HC Banana & STD Triax Interface Panel
Features
• Four pairs standard red and black
banana jacks
– Four force
– Four ground
• Includes grounding strap
Specifications
• Maximum current (Pulse): 100A,
(PW
1ms, Duty ratio 1%)
• Max Voltage: 500V
• Connector type: Banana jack
Compatibility
• Tesla
151-472 — Safety interlock Cable, 3 m
Features
• Provides the interlock connection
between the test instrument and
the Tesla station safety light
curtain
Specifications
• Cable le ngth: 3 m (9.8 ft)
Compatibility
• Tesla
162-085 — HV Triax Connector Cable, Interface Panel to
HV Coax
Features
• Provides connection
between HV triax
interface panel and
coaxial instruments
Specifications
• Maximum voltage:
3,000V (coax guard-
shield connected),
1500V (triax)
• Maximum current (DC):
5A
• Cable length: 3m (9.8 ft)
• Cable characteristics
– Impedance F-S: 40
– Withstand voltage F-S: 3,000V
– Insulati on resistance F-S: > 1T ohm @3000V
• Terminating connector types
– Amphe nol triax threaded, 11/16-24 (plug)
– SHV coaxial (plug)
• Guard of HV triax connects cable shield
Compatibility
• Tesla
