PN 141-400 www.formfactor.com Tesla • 146
Revision 57, February, 2023 Probe Station Accessories
Common Probes

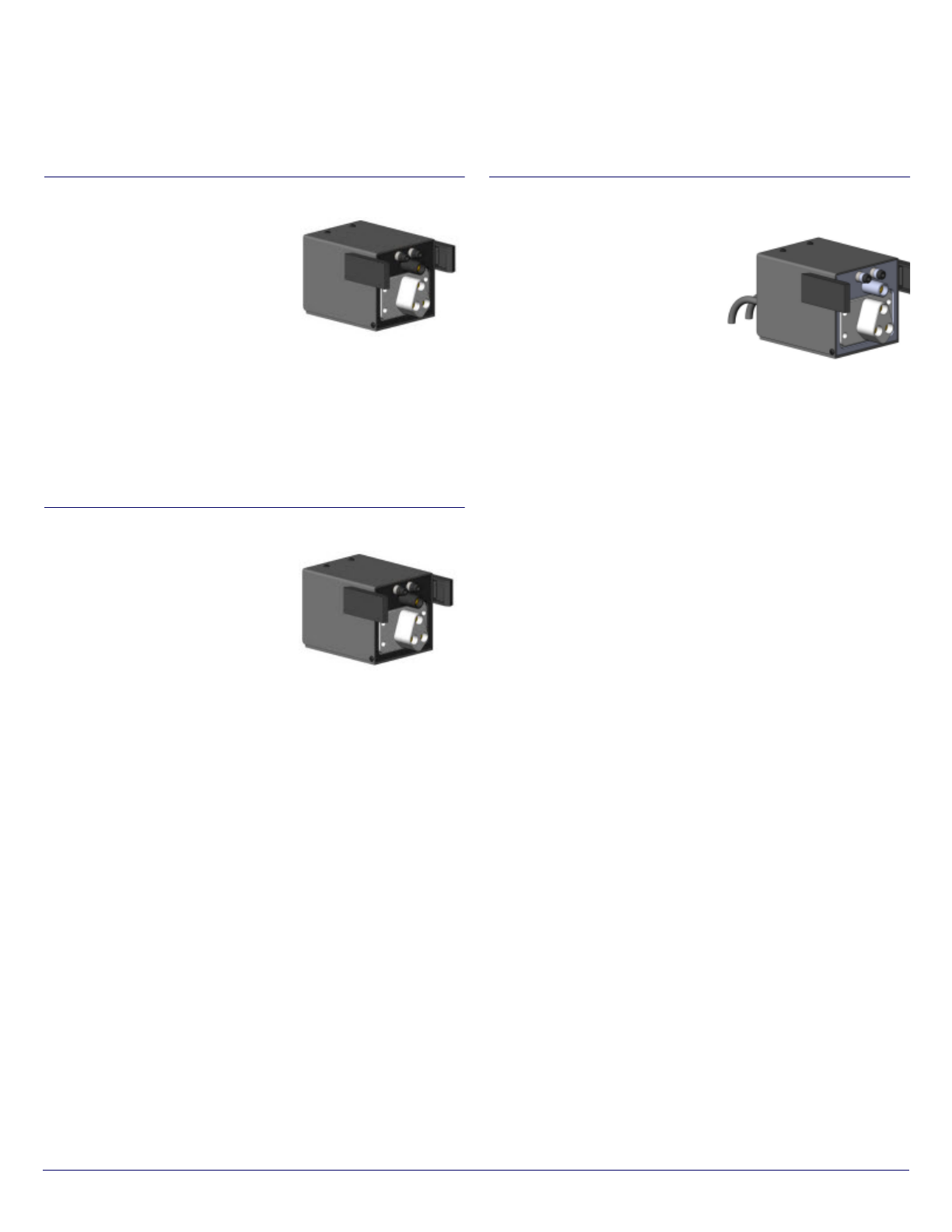

149-976 — High Voltage Chuck Floating Plug
Product Features
• Provides the floating chuck
connection for the Tesla high-power
chuck
• Safety interlock connection
Specifications
• Dual triax connection
• Maximum voltage: 10,000V
Station Compatibility
• EPS15 0TESLA, T200, T300
Ordering Information
• Chuck Guard terminal connects to Chuck Shield terminal.
149-977 — High Voltage Chuck Shorting Plug
Product Features
• Provides the shorting chuck
connection for the Tesla high-power
chuck
• Safety interlock connection
Specifications
• Dual triax connection
• Maximum current (DC): 10A
• Maximum current (Pulse): 100A, (PW<=1ms, Duty ratio <=1%)
Station Compatibility
• EPS15 0TESLA, T200, T300
149-978 — Chuck Cable, HV Chuck to Agilent HV (Plug),
1.5 m
Product Features
• Provides dual triax con nection
between the high voltage Tesla
chuck and Agilent B1505A
HVSMU
• Low-leakage
• Low resistance, high voltage,
high-curent cable
Specifications
• Maximum voltage: 3000V DC
• Connector type: Cascade Microtech HV chuck, Agilent high
voltage (plug)
• Cable length: 1.5 m (4.92 ft)
Stat ion Compatibility
• EPS150TESLA, T200, T300
PN 141-400 www.formfactor.com Tesla • 147
Revision 57, February, 2023 Probe Station Accessories

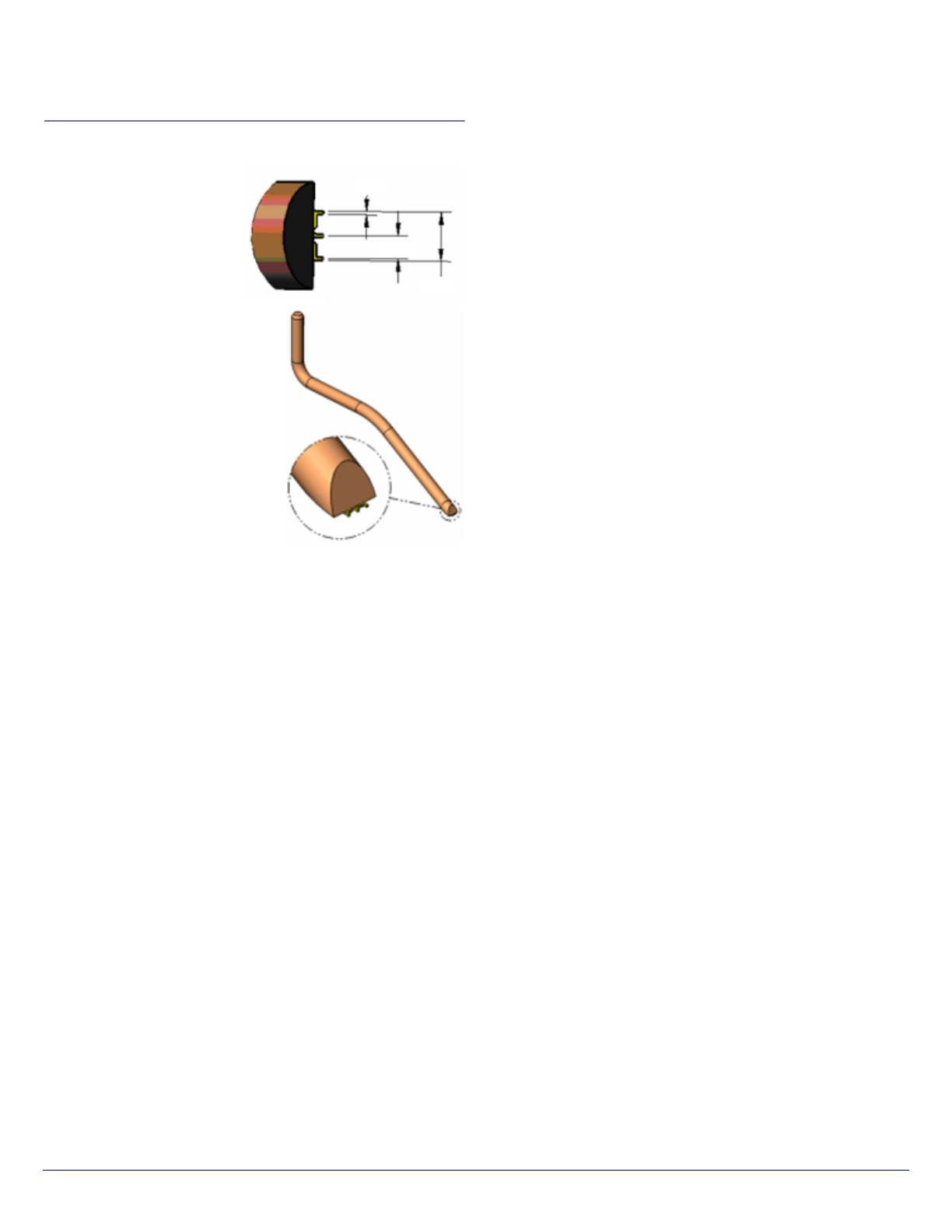

HCP-TIP-3-350 — HC Replaceable Probe Tips, 5-pack
Features
• Includes five tips for use with
the HCP-1-B, high current
parametric coax
• Patented tip design provides
low contact resistance and
superior current dissipation
Specifications
• Maximum voltage: 500V DC
• Maximum current: 100A
(PW
1ms, Duty ratio 1%)
• Tip material: Tungsten
• Number of tips: 3
• Tip pitch: 350 µm (13.8 mils)
• Total footprint: 750 µm (29.5
mils)
• Typical contact resistance on
Al: 20m
• Rec ommended range of
overtravel: 150 to 200 µm (5.9 to 7.9 mils)
• Contact force: 20 gms per tip (60 grams total) @ 100 µm (3.9 mils)
overtravel
• Scrub: 60 to 80 µm (2.4 to 3.1 mils)
Compatibility
• Tesla, TESLA200
50 µ
350 µ
750 µ
PN 141-400 www.formfactor.com Tesla • 148
Revision 57, February, 2023 Probe Station Accessories
High Power Chuck Connection Cables
780-00622 — HV Tesla Chuck Cable, HV Chuck
Connector- Std Triax (Plug), 1.5m
Features
• Provides connection between
the HV Tesla chuck and test
instruments
• Low re sistance, HV, HC cable
Specifications
• Maximum voltage: 500V DC
• Maximum current: 5A (pulse)
• Connector type: FormFactor HV chuck, standard triax (plug)
• Cable le ngth: 1.5 m (5 ft)
Compatibility
• TESLA200, TESLA300
780-00623 — Tesla Chuck Cable, HV Chuck to Banana
Plug Connector, 1.2 m
Features
• Provides connection between
the HV Tesla chuck and test
instruments
• Low re sistance, HV, HC cable
Specifications
• Maximum voltage: 10000V DC
• Maximum current: 100A (pulse)
• Connector type: FormFactor HV chuck connector, banana jack
• Cable le ngth: 1.2 m (4 ft)
Compatibility
• TESLA200, TESLA300
780-00624 — Chuck Cable, HV Chuck to SHV (Jack),
1.0 m
Product Features
• Provides force and sense
connection between the high
voltage Tesla chuck and Agilent
B1505A
• Low resistance, high voltage,
high-curent cable
Specifications
• Maximum voltage: 5000V DC
• Connector type: Cascade Microtech HV chuck, SHV (jack)
• Cable length: 1.0 m (3.5 ft)
Stat ion Compatibility
• TESLA200, TESLA300
780-00625 — Chuck Cable, HV Chuck Connector to BNC
(Plug), 1.0 m
Product Features
• Provides force and sense
connection between the high
voltage Tesla chuck and Agilent
B1505A
• Low resistance, high voltage,
high-curent cable
Specifications
• Maximum voltage: 500V DC
• Maximum current (DC): 5A
• Maximum current (Pulse): 50 A, (PW<=1ms, Duty ratio < =1%)
• Connector type: Cascade Microtech HV chuck, BNC (plug)
• Cable length: 1.0 m (3.5 ft)
Stat ion Compatibility
• TESLA200, TESLA300
