PN 141-400 www.formfactor.com Replaceable Probe Tips, D C Cables, an d Adapters • 19 Revision 57, February, 2023 Probe Station A ccessories DC/ CV Ad ap t er s 104 -3 41 — T riax to BNC Ad apt er , Guar d Shor ted Feat u…
PN 141-400 www.formfactor.com Replaceable Probe Tips, DC Cables, and Adapters • 18
Revision 57, February, 2023 Probe Station Accessories

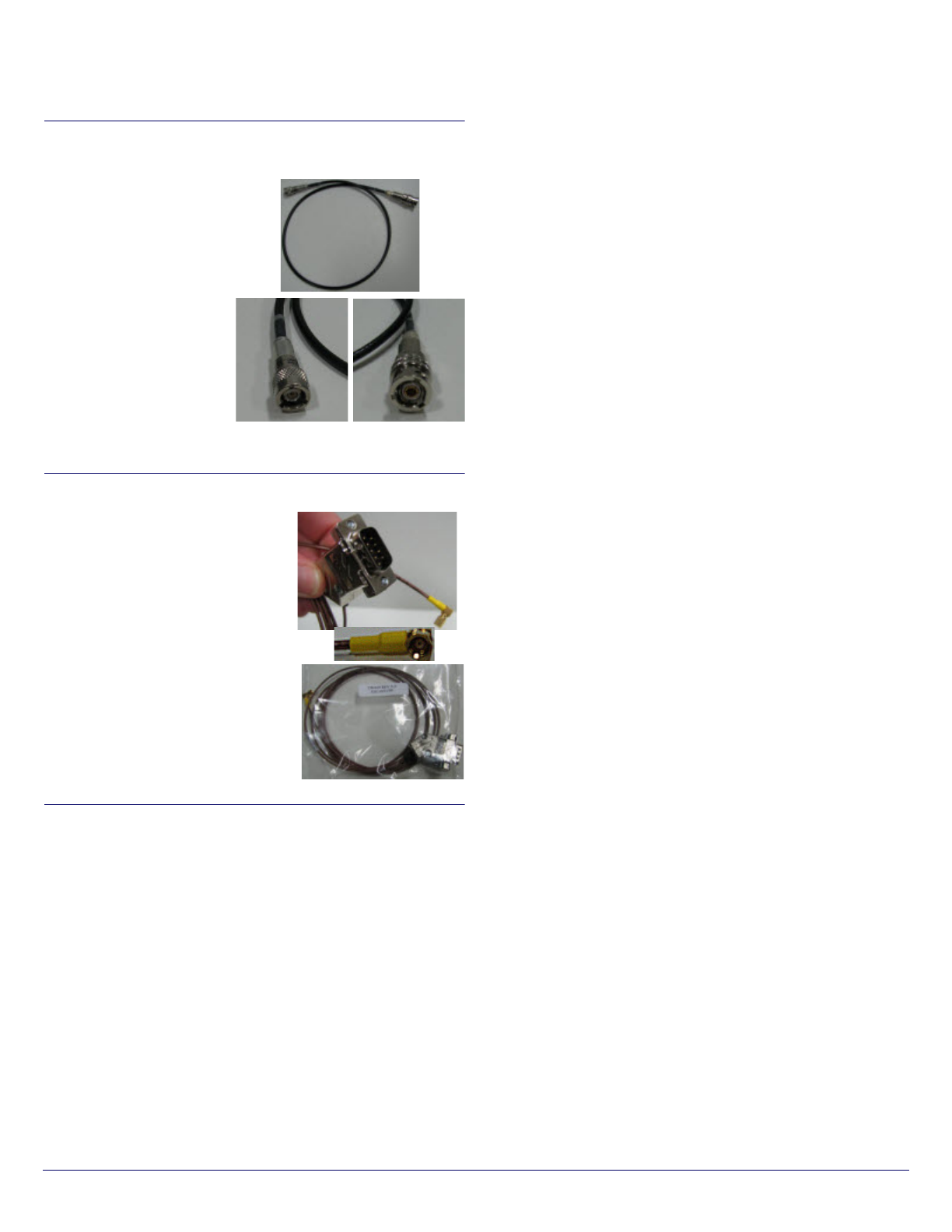

132-909 — Triax Cable, large to Small Connector,
PureLine, 60 cm
Features
• Connects large and small
triax connectors
Specifications
• Cable le ngth: 60 c m (23.5
in)
• Large to small triax ( male to
male)
Compatibility
• CM300xi, Elite 300,
Summit, M150, S300,
Alessi
138-019 — Cable, Edge Sense, SSMC to DCP-HTR, 2 m
Features
• Connects the SSMC and DCP-HTR
probe
Specifications
• Cable le ngth: 2 m (6.5-feet)
• SSMC to DCP-HTR probe (male to
male)
Compatibility
• CM300xi, Elite 300, Summit, M150,
S300, Alessi
146-214 — Coax Cable, SMA to BNC, 61 cm
Features
• Connects the SMA and BNC connector
Specifications
• Cable le ngth: 61 c m (24 in)
• SMA to BNC (male to male)
Compatibility
• CM300xi, Elite 300, Summit, M150, S300, Alessi
PN 141-400 www.formfactor.com Replaceable Probe Tips, DC Cables, and Adapters • 19
Revision 57, February, 2023 Probe Station Accessories

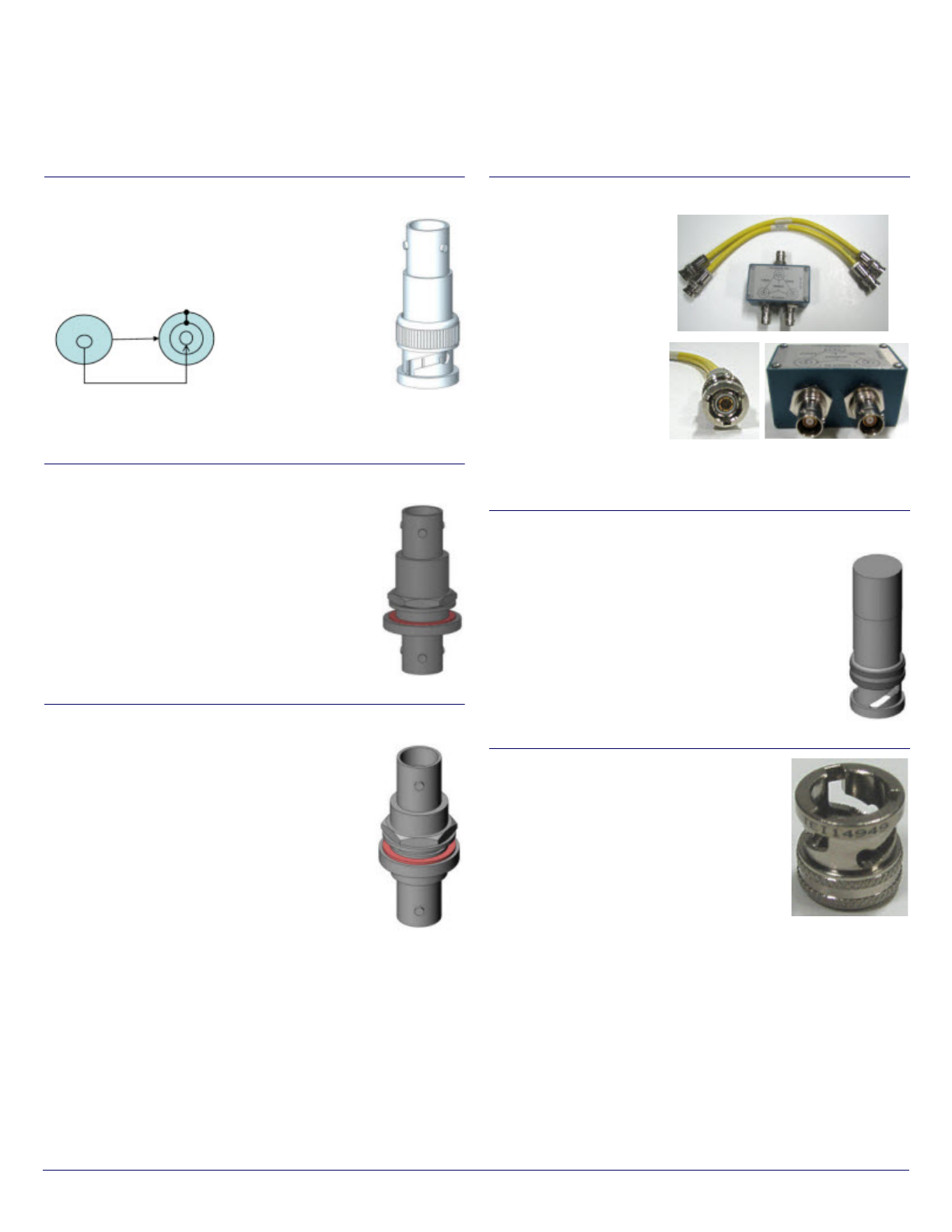

DC/CV Adapters
104-341 — Triax to BNC Adapter, Guard Shorted
Features
• Ada pts triax to BNC connection
Specifications
• Guard shorted (male to female)
Compatibility
• CM300xi, Elite 300, Summit, M150, S300, Alessi
104-342 — Triax Feed-Thru for Summit Triax Panel
Features
• Bulkhead adapter for triax connector
• For use with Summit triax panel
Specifications
• Triax to triax (female to female)
Compatibility
• CM300xi, Elite 300, Summit, M150, S300, Alessi
104-357 — BNC Feed-Thru for Summit Triax Panel
Features
• Bulkhead adapter for BNC connector
• For use with Summit triax panel
Specifications
• BNC (female) to BNC (female)
Compatibility
• CM300xi, Elite 300, Summit, M150, S300, Alessi
104-372 — Ground Unit Adapter Kit
Features
• For use with the SMU
ground unit
Kit Contents
• Two triax to triax cables,
25 cm (9.8 in)
• Ground unit bulkhead
adapter
Compatibility
• CM300xi, Elite 300,
Summit, M150, S300,
Alessi
104-740 — Triax Shorting Plug
Features
• Used to terminate the triax chuck
Specifications
• Triax connector (male) with shorted end
Compatibility
• CM300xi, PA/PM, MicroAlign, Elite 300, Summit,
M150, S300, Alessi
104-743 — Triax EMI Cap
Features
• Used to cap the end of the triax connector t o
reduce EMI
Compatibility
• CM300xi, Elite 300, Summit, M150, S300,
Alessi
PN 141-400 www.formfactor.com Replaceable Probe Tips, DC Cables, and Adapters • 20
Revision 57, February, 2023 Probe Station Accessories

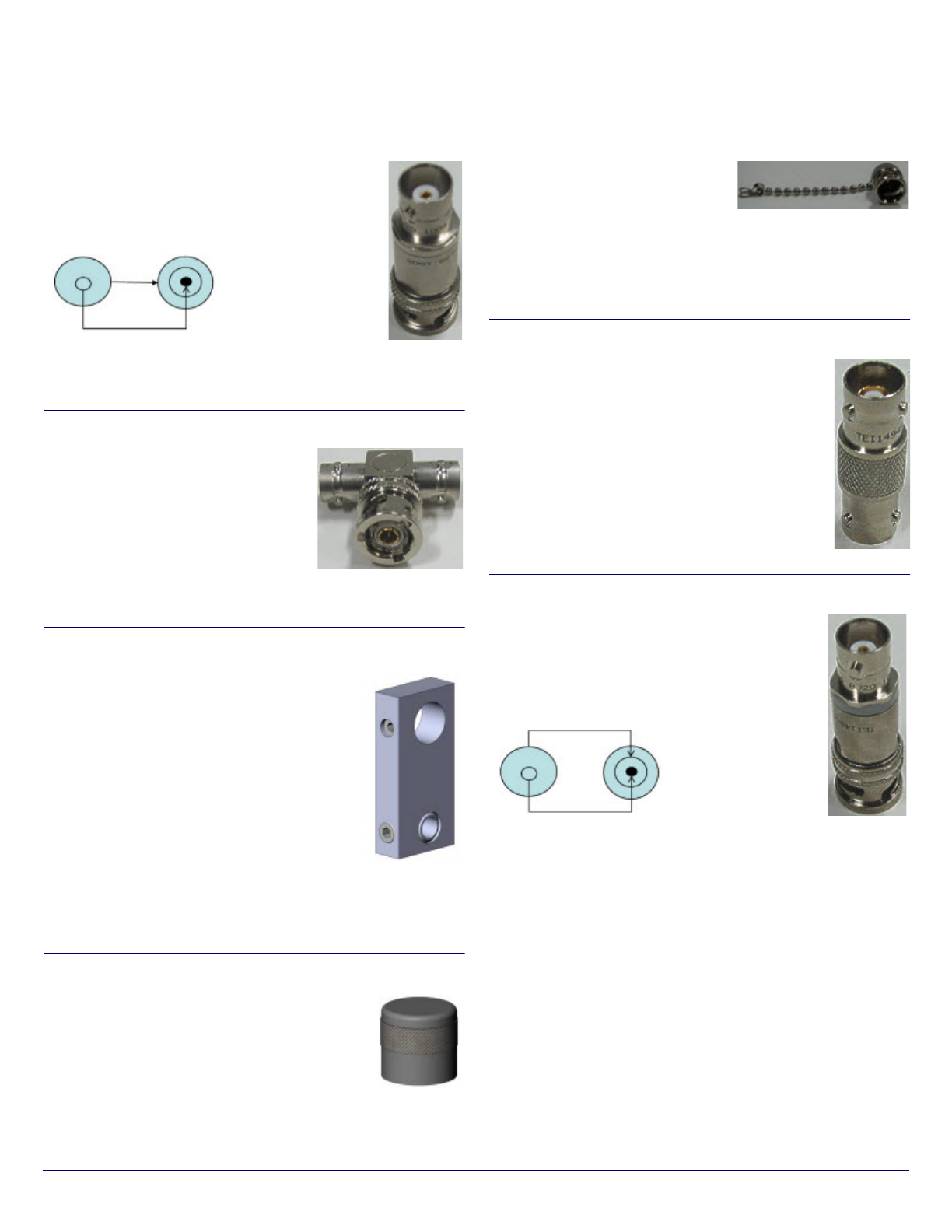

104-803 — Triax to BNC Adapter, Guard Floated
Features
• Ada pts triax to BNC connection
Specifications
• Guard floated (male to female)
Compatibility
• CM300xi, Elite 300, Summit, M150, S300, Alessi
104-806 — Triax Tee, Single Male to Dual Female
Features
• Splits a single triax input to a dual triax
output
Specifications
• Triax (male) to dual triax (female)
Compatibility
• CM300xi, Elite 300, Summit, M150, S300, Alessi
104-810 — DCP Mounting Block Kit
Features
• Drop down part
• Ada pts RPP positioner for use with use DCP
probes
• Mounts onto RPP305 positioner
• For use with DCP/SSCM cable
Kit Contents
• Four DCP mounting blocks
Compatibility
• CM300xi, Elite 300, Summit, M150, S300, Alessi
• All arms for RPP positioners
105-931 — EMI Cover for Triax Adapter Block
Features
• Use d to cap the end of the triax adapter block to
reduce EMI
Compatibility
• CM300xi, Elite 300, Summit, M150, S300, Alessi
106-510 — BNC Shorting Plug
Features
• Used to terminate the coax chuck
Specifications
• Coax connector (male) with shorted end
Compatibility
• CM300xi, Elite 300, Summit, M150, S300, Alessi
106-560 — Triax Adapter, Female to Female
Features
• Used to adapt cable end gender or connect triax
cables
Specifications
• Triax to triax (female to female)
Compatibility
• CM300xi, Elite 300, Summit, M150, S300, Alessi
106-837 — Triax to BNC Adapter, Guard Thru, No Shield
Features
• Adapts triax to BNC connector
Specifications
• Guard thru, no shield
• Triax (male) to BNC (female)
Compatibility
• CM300xi, Elite 300, Summit, M150, S300, Alessi
