PN 141-400 www.formfactor.com Replaceable Probe Tips, DC Cables, and Adapters • 20
Revision 57, February, 2023 Probe Station Accessories
104-803 — Triax to BNC Adapter, Guard Floated
Features
• Ada pts triax to BNC connection
Specifications
• Guard floated (male to female)
Compatibility
• CM300xi, Elite 300, Summit, M150, S300, Alessi
104-806 — Triax Tee, Single Male to Dual Female
Features
• Splits a single triax input to a dual triax
output
Specifications
• Triax (male) to dual triax (female)
Compatibility
• CM300xi, Elite 300, Summit, M150, S300, Alessi
104-810 — DCP Mounting Block Kit
Features
• Drop down part
• Ada pts RPP positioner for use with use DCP
probes
• Mounts onto RPP305 positioner
• For use with DCP/SSCM cable
Kit Contents
• Four DCP mounting blocks
Compatibility
• CM300xi, Elite 300, Summit, M150, S300, Alessi
• All arms for RPP positioners
105-931 — EMI Cover for Triax Adapter Block
Features
• Use d to cap the end of the triax adapter block to
reduce EMI
Compatibility
• CM300xi, Elite 300, Summit, M150, S300, Alessi
106-510 — BNC Shorting Plug
Features
• Used to terminate the coax chuck
Specifications
• Coax connector (male) with shorted end
Compatibility
• CM300xi, Elite 300, Summit, M150, S300, Alessi
106-560 — Triax Adapter, Female to Female
Features
• Used to adapt cable end gender or connect triax
cables
Specifications
• Triax to triax (female to female)
Compatibility
• CM300xi, Elite 300, Summit, M150, S300, Alessi
106-837 — Triax to BNC Adapter, Guard Thru, No Shield
Features
• Adapts triax to BNC connector
Specifications
• Guard thru, no shield
• Triax (male) to BNC (female)
Compatibility
• CM300xi, Elite 300, Summit, M150, S300, Alessi

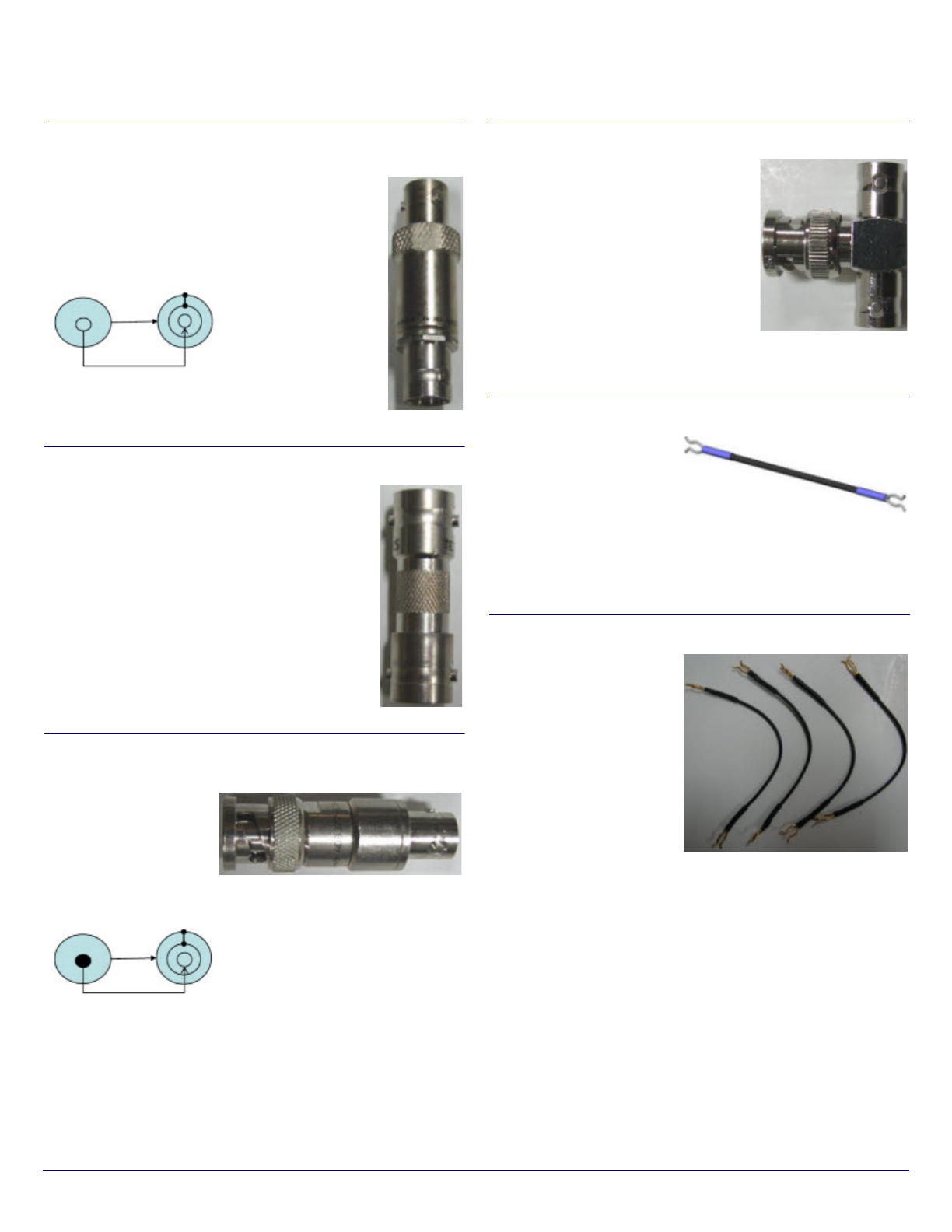

PN 141-400 www.formfactor.com Replaceable Probe Tips, DC Cables, and Adapters • 21
Revision 57, February, 2023 Probe Station Accessories
108-714 — Adapter BNC Female to Triax Female, Guard
Short
Features
Adapts triax to BNC connector
Specifications
• Guard short
• Triax (female) to BNC (female)
Compatibility
• CM300xi, Elite 300, Summit, M150, S300, Alessi
108-715 — Adapter, BNC to BNC Coupler
Features
• Ada pts BNC to BNC connectors
Specifications
• BNC to BNC (female to female)
Compatibility
• CM300xi, Elite 300, Summit, M150, S300, Alessi
108-716 — Adapter, BNC Male to Triax Female, Guard
Short
Features
• Ada pts triax to BNC
connector
Specifications
• Guard short
• Triax (female) to BNC (male)
Compatibility
• CM300xi, Elite 300, Summit, M150, S300, Alessi
108-718 — Adapter, BNC Tee, Female-Male-Female
Features
• Adapts BNC to BNC connectors
Specifications
• BNC tee
• BNC (female-male-female)
Compatibility
• CM300xi, Elite 300, Summit, M150,
S300, Aless i
123-625 — DCP to DCP Guard Connection Strap
Features
• DCP to DCP connection
wire for LCR meter
Specifications
• Cable length: 7.6 cm (3 in), with DCP/DCP clip
Compatibility
• CM300xi, Elite 300, Summit, M150, S300, Alessi
126-985 — Kit, DCP to DCP Connection Strap
Features
• DCP to DCP connection
wire kit for LCR meter
Kit Contents
• 4 straps (PN 123-625)
• DCP strap tech no te
Compatibility
• CM300xi, Elite 300,
Summit, M150, S300,
Alessi
PN 141-400 www.formfactor.com Replaceable Probe Tips, DC Cables, and Adapters • 22
Revision 57, February, 2023 Probe Station Accessories
Cable/Pin Jack Wires for MMP and MPC Probe Holders/Mounts
Cable/Pin Jack Wires for MMP and MPC Probe Holders/
Mounts
Features
• Electrical jumper wire for MMP
and MPC Probe Holders/Mounts
• Pin jack style connection
Specifications
Compatibility
• CM300xi, Elite 300, Summit, M150, S300, Alessi
Ordering Information
• Part Number: See s pecifications table for cable length selection
PN Cable length
MAE-44/6 152 mm (6 in)
MAE-44/12 305 mm (12 in)
MAE-44/18 457 mm (18 in)
MAE-44/24 610 mm (24 in)
