PN 141-400 www.formfactor.com Elite 300 • 23
Revision 57, February, 2023 Probe Station Accessories
Elite 300
Station Accessories

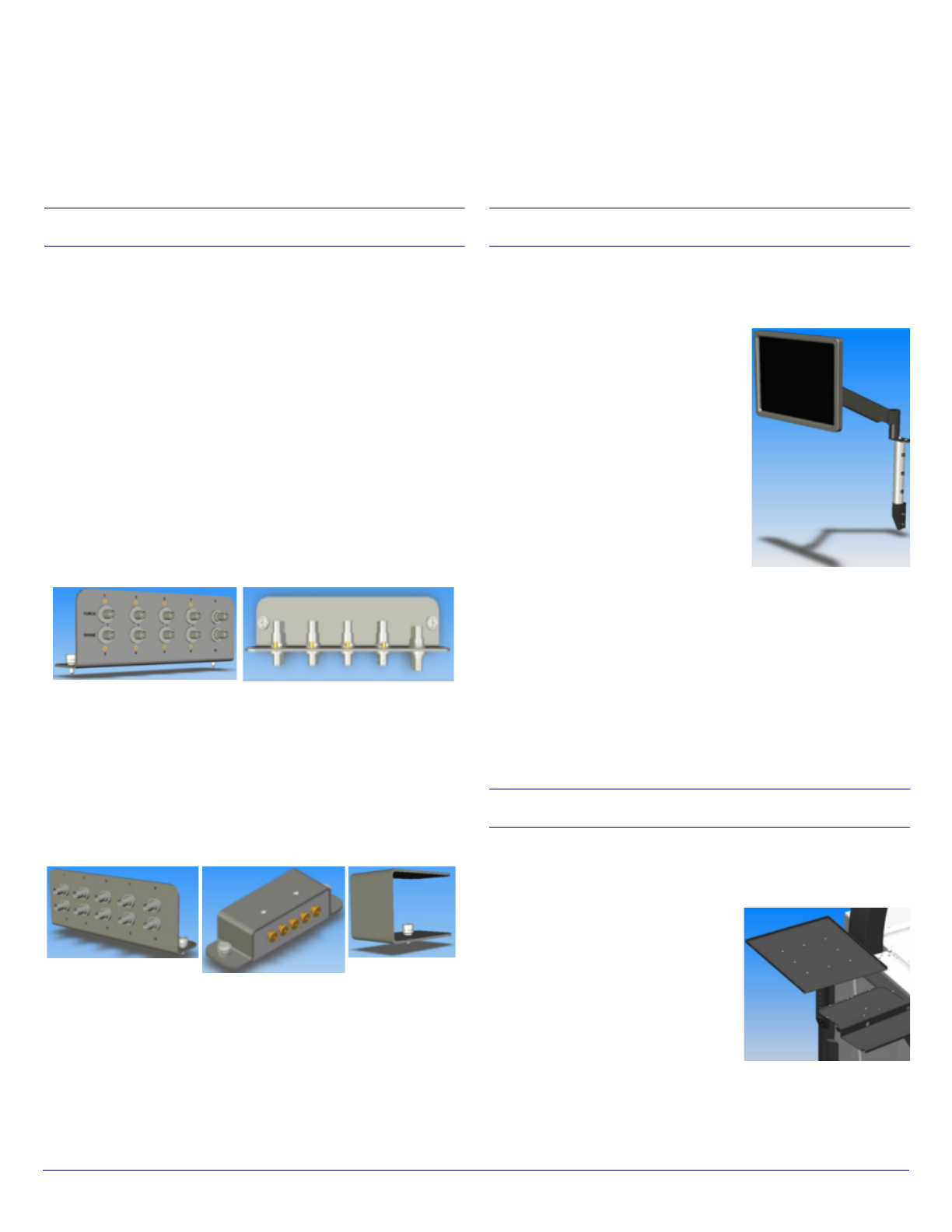

CONNECTION PANELS
141-790 — Connection Panel
Features
• Complete kit of c able con nection panels and accessories
• Optimized for CM300xi and Elite 300 universal accessory
mounting rail system
• All accessories can b e mounted on the platen simultaneously, in
any location (lef t, right and back sides of the probe st ation platen).
Kit Contents
• 2 Triax connection panels
– Each panel features 8 Triax (3-lug) feed through connectors (f),
and 2 BNC (2-lug) connectors (f).
– Panel connections support single triax cables and Keysight dual
triax SMU cable assemblies
– (For Keysight Quadrax SMU connections, please contact the
factory).
• 1 coaxial connection panel – each panel features 10 BNC (2-lug)
connectors (f).
• 2 vacuum manifolds – each manifold features 5 vacuum inlets with
integrated on/off pull switches
• 2 positioner mounts – used for holding DPP2xx/DPP3xx
positioners above the platen while changing probe tips
Compatibility
• Elite 300
MONITORS
177-398 — Dual LCD Monitor
Features
• Adds second LCD screen (20 in) for
dual monitor configuration with Elite 300.
• Includes ergonomic d ual LCD VESA
monitor mounting kit
• Articulated arm for free floating
placement of second LCD monitor
• Universal design can mount in multiple
different configurations
Specifications
• Supports LCD monitor with VESA
mount (weight range 5-13 kg [12-29 lb])
• Monitor arm has 406 mm (16 in) height
range and tilt/swivel a djustment
• VESA mounting plates (70/100 mm [2.8/3.9 in])
• Second LCD monitor can be mounted in two locations:
– To the existing Elite 300 LCD monitor mount (both on one sid e)
– Alone on the Elite 300 system frame (opposite side to existing
LCD monitor)
Compatibility
• Elite 300
ACCESSORY SHELVES
144-340 — Side Accessory Shelf Kit
Features
• Side accessory shelf kit easily
attaches to the Elite 300 system f rame
• Instruments and accessories can be
conveniently placed at the side of the
Elite 300
• Keyboard/mouse accessory tray
allows easy front panel control of test
instruments
• Height adjustable
• Adjustable instrument tray can be positioned over the Elite 300
Triax c onnection panel
(front view)
Triax connection panel
(top view)
Positioner
mount
Vacuum manifold
Coaxial connection
panel
PN 141-400 www.formfactor.com Elite 300 • 24
Revision 57, February, 2023 Probe Station Accessories
platen surface, allowing test instruments to be located close to
probes for short cable interconnects
• Seismic restraint straps and attachment points on swiveling
platform
Specifications
• Maximum load supported by platform: 68 kg (150 lb )
• Dimensions
– Platform (W x D): 43 x 53 cm (21 x 17 in), Adjustment height:
30.5 cm (12 in)
– Keyboard/mouse tray (W x D): 50.8 x 44.45 cm (20 x 17.5 in)
– Adjustment height: None
• Weight
– Platform and mounting arm: 13.166 kg (29 lb)
– Keyboard/mouse tray: 9.988 kg (22 lb)
Kit Contents
• Swiveling instrument/accessory platform
• Mounting hardware
• Keyboard/mouse tray
• Removable/adjustable lower shelf instrument tray
• Removable/adjustable upper sh elf
• Seismic restraint straps
Compatibility
• Elite 300
143-420 — Rear Instrument Shelf System
Features
• She lf syst em
easily attaches to
the Elite 300
system frame
• Instruments and
accessories can
be conveniently
placed at the rear
of the Elite 300
• Seismic restraint straps and attachment points on shelving
• Height adjustable upper shelf
• Adjustable instrument tray can be positioned forward over the Elite
300 platen surface, allowing test instruments to be located c lose to
probes for short cable interconnects
Specifications
• Maximum supported instrument load
– Lower shelf and tray: 90.8 kg (200 lb)
– Upper shelf: 45.4 kg (100 lb)
• Dimensions
– Lower shelf (WxDxH): 120 x 46 x 76.8 cm (47.24 x 18.11 x 30.23
in)
– Lower tray (WxD): 75 x 75 cm ( 29.52 x 29.52 in), Adjustm ent
forward: 29 cm (11.41 in)
– Upp er shelf (WxD): 120.6 x 47.9 cm (47.48 x18 .86 in),
Adjustment height: 24.4 cm (9.60 in)
• Weight
– Lower shelf and tray: 14.98 kg (33 lb)
– Upp er shelf: 12.26 kg (27 lb)
Kit Contents
• Lower shelf and mounting hardware
• Removable/adjustable lower shelf instrument tray
• Removable/adjustable upper shelf
• Seismic restraint straps
Compatibility
• Elite 300
SEISMIC RESTRAINTS
143-418 — Seismic Restraints
Features
• Provides seismic restraint
for Eli te 300 station platform
• Installation at time of station
facilities setup
• Compatible with Elite
standard and low profile
height kits
Kit Contents
• 4 restraint brackets
• Installation guide and bolt mounting
recommendations
Compatibility
• Elite 300
Complete rear
instrument shelf
system
Bottom shelf and adjustable
instrument tray (forward position)
Bottom shelf
Floor restraint
bracket
PN 141-400 www.formfactor.com Elite 300 • 25
Revision 57, February, 2023 Probe Station Accessories

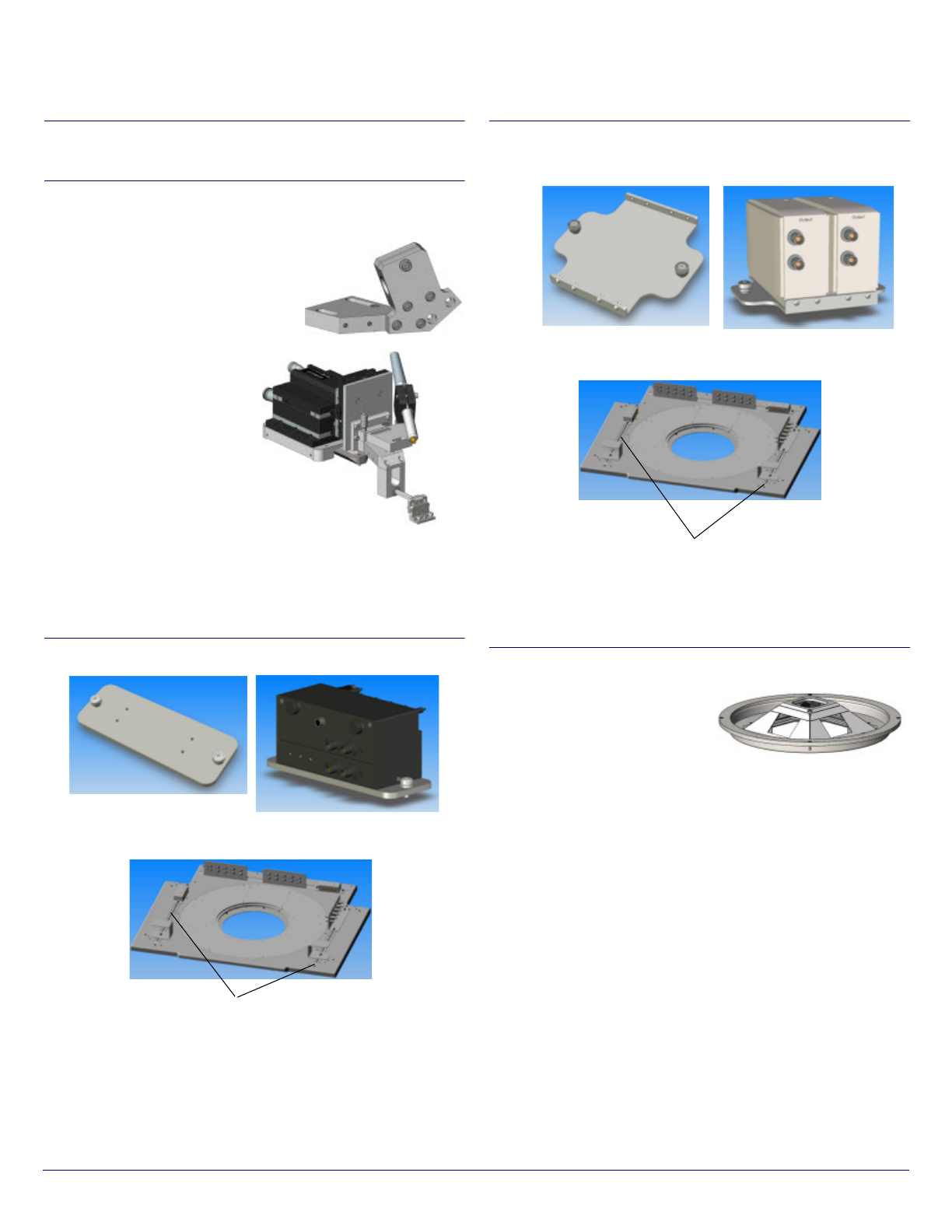

MOUNTING KITS, PLATES, AND MISCELLANEOUS
ACCESSORIES
143-428 — Keysight 42941A Mounting Kit
Features
• Mounting bracket to hold Keysight
42941A probe
• Compatible with CM300xi and Elite
300 RPP305 positioners
Kit Contents
• 2 cables:
– SMA (m) to SMA (m)
– 120 mm (4.7 in)
• Mounting bracket for
RPP305-EL positioner
Compatibility
• CM300xi, Elite 300
143-429 — Mounting Plate for B1500A SCUU
Compatibility
• CM300xi, Elite 300
144-422 — Mounting Plate for B1500A ASU, E5288A
Atto Sense Unit
Compatibility
• CM300xi, Elite 300
177-560 — Top Hat Assembly, 4 Port, 300 mm
Features
• Enables the use of single or dual
Keysight N5291 modules with
Infinity and ACP probes on
CM300xi and Elite 300 stations
with MicroChamber
• Enables full thermal ca pability
Configuration
• Intended for use with positioner assemblies RPP404-EW-120 and
RPP404-W-120, RPP304-NS-67
Compatibility
• CM300xi, Elite300
Mounting bracket shown on
RPP305 positioner with Keysight
high impedance probe
Mounted plate
Plate mou nts on universal
accessory mounting rails
Keysight SCUU
mounted to plate
Mounted plate
Keysight ASU
mounted to plate
Plate mou nts on universal
accessory mounting rails
