PN 141-400 www.formfactor.com Lab Accessories and Miscellaneous • 28
Revision 57, February, 2023 Probe Station Accessories

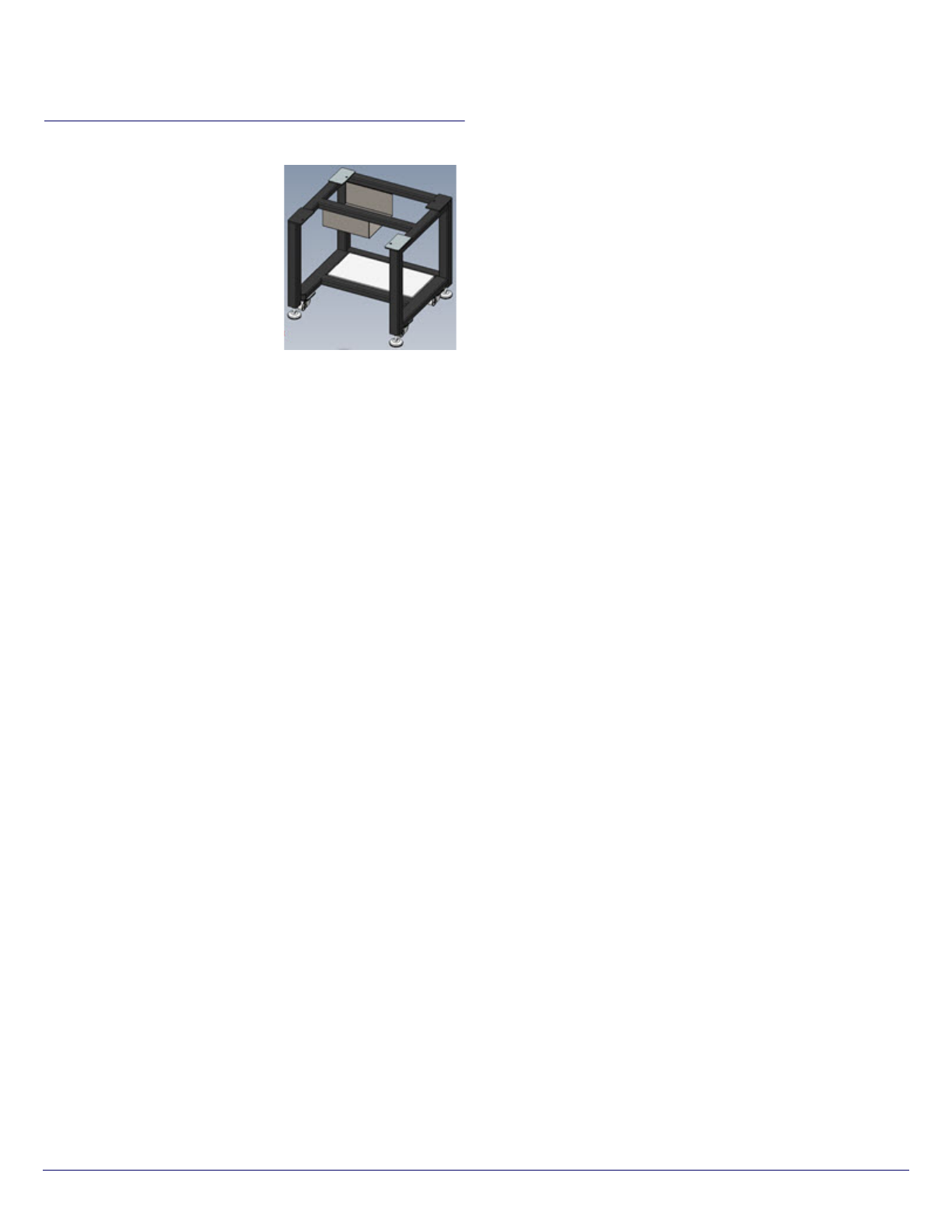

146117 — Table for SE750
Features
• Table f or SE750 Shield Enclosure
• Heavy duty frame
• Integrated rolling casters
Specifications
• Dimensions (WxDxH): 720 x 668 x
653 mm (28.3 x 26.3 x 25 .7 in)
Compatibility
• Shield En closure SE750 is
required
• Configuration with VIP601 requires SE750
• Configuration with station requires SE750
PN 141-400 www.formfactor.com Lab Accessories and Miscellaneous • 29
Revision 57, February, 2023 Probe Station Accessories
Shield Enclosures/Dark Boxes
111650 — Shield Enclosure, SE1200 EMC
Features
• For standard probe systems PM300 and
PA300 (others on request).
• Light-tight, electrically grounded and
optimized design for EMC shielding
• Vizor opening
• Requires additional feed-throughs and
table adaptation
• Requires EMO option in combination with (semiautomatic) PA300.
• Inside light and interlock switch optional
• Clean room compliant field upgrades a re not possible
• Four people a re required to complete field upgrade installation
Specifications
Required floor s pace:
• Width = 1.5 m (59 in)
• Depth = 1.3 m (51.2 in)
• Height (with table): 2.1 m (82.7 in)
Compatibility
• PA300, PM300
138121 — Shield Enclosure, SE1000 EMC with Interlock
and Illumination
Features
• For standard probe systems PM5
(with laser cutter), PM8 and PA200
(others on request).
• Light-tight, electrically grounded and
optimized design for EMC shielding
• With lamps inside and interlock switch
at front doo r
• Requires additional feed-throughs
and table adaptation
• Requires EMO option in combination with (semiautomatic) PA200
• Clean room compliant field upgrades a re not possible
• Four people a re required to complete field upgrade installation
Specifications
Required floor s pace:
• Width = 1.3 m (51.2 i n)
• Depth (with front lid opened) = 2 m (78.7 in)
• Height (with table and front lid opened): 2 .5 m (98.4 in)
• Requires:
– Adaptation to VIT70x (PN 138 390)
– VIT700 (PN 138815) or VIT701 (PN 135100) for BlueRay
– Adaptation SE1000EMC to VIT801 (PN 119585)
– Vibration isolation table VIT801 (PN 115405)
Options:
• 100689 EMC light-tight feed-through
• 112392 EMC test equipment interface, standard
• 112391 EMC test equipment interface, Kelvin
Compatibility
• PA200, PA200 BlueRay, PM8, MPS150, EPS150
100689 — EMC Light-Tight Feedthrough
Features
• For SE750EMC, SE1000EMC and SE1200EMC.
• Electromagnetically shielded
• For probe station, thermal chuck and video wiring
Compatibility
• Shield enclosures: SE750, SE1000, SE1200
112391 — EMC Test Equipment
Interface, Kelvin
Features
• For test equipment adaptation (e.g.,
HP4142/4156B)
• 4 triax-triax-dual (Kelvin) and 8 coax-coax
feedthroughs
Compatibility
• Shield enclosures: SE750, SE1000, SE1200
112392 — EMC Test Equipment
Interface, Standard
Features
• For adapting test equipment
• One plate with 8 triax-triax and 8
coax-coax feedthroughs
Compatibility
• Shield enclosures: SE750, SE1000,
SE1200
PN 141-400 www.formfactor.com Lab Accessories and Miscellaneous • 30
Revision 57, February, 2023 Probe Station Accessories

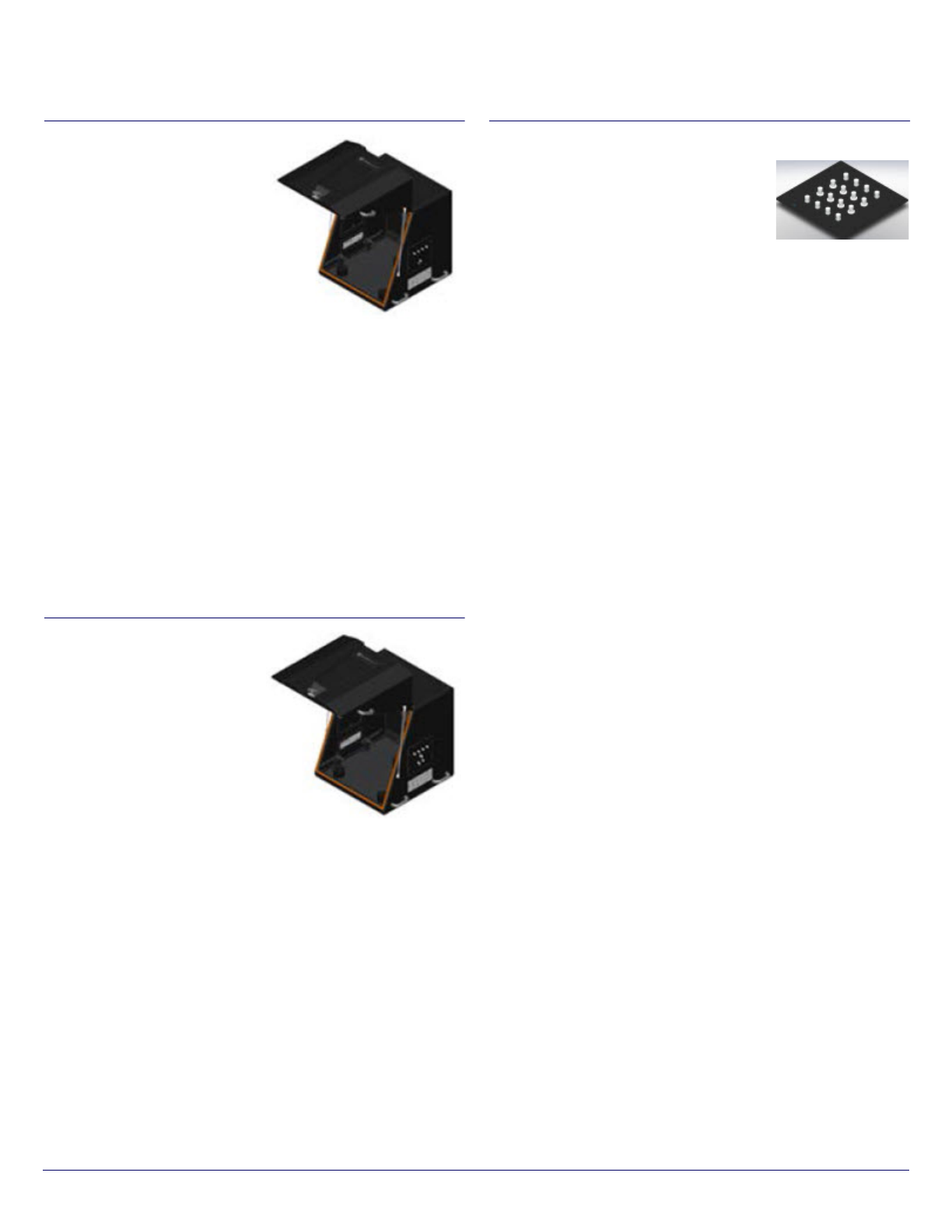

EPS-ACC-SE750-COAX —
Shield Enclosure
Features
• Light-tight and EMI-shielded
environment
• Stable table required as base
• Includes media feedthrough,
test equipment interface with 5
coax-coax measurement
feedthroughs, and opening for
one a dditional test equipment interface
Specifications
• Width: 750 mm (29.5 in)
• Depth: 750 mm (29.5 in)
• Height: 820 mm (32.3 in) (door closed), 1620 mm (63.8 in) (door
open)
• DC-noise reduction (1 Sigma) between -20dB a nd -40dB
depending on measurement environment
• Depending on measurement environment up to 100 femtoampere
(fA) will be possible
Compatibility
• EPS15 0, MPS150 (without laser cutter)
EPS-ACC-SE750-TRX —
Shield Enclosure
Features
• Light-tight and EMI-shielded
environment
• Stable table required as base
• Includes media feedthrough,
test equipment interface with
1x12 mm RF and 6x triax-triax
measurement feedthroughs,
and o pening for one additional test equipment interface
Specifications
• Width: 750 mm (29.5 in)
• Depth: 750 mm (29.5 in)
• Height: 820 mm (32.3 in) (door closed), 1620 mm (63.8 in) (door
open)
• Depending on measurement environment up to 100 femtoampere
(fA) will be possible
Compatibility
• EPS15 0, MPS150 (without laser cutter)
112392 — EMC Test Equipment Interface, Standard
Features
• For test equipment adaptation
• Includes 8 triax-triax and 8 coax-coax
feedthroughs
Compatibility
• Shield Enclosures
