PN 141-400 www.formfactor.com Lab Accessories and Miscellaneous • 32
Revision 57, February, 2023 Probe Station Accessories
Miscellaneous Accessories
100422 — Textool Socket Adapter
Features
• For holding of PC boards with 50-130
mm width
• Ada pter is vacuum clamped onto chuck
Compatibility
• Vacuum chucks
100539 — Vacuum Switches for HF Chuck
Features
• Block with two vacuum switches for HF chucks
• Contr ols vacuum for calibration substrates and
burnishing pads
Specifications
• Contained in HF Kit for PA200, PM8 III, PA300
and PM300
Compatibility
• PA300, PM300, PA200, PM8, PM300PS
100605 — Inker, DPP2xx/DPP3xx
Features
• Fits positioners DPP2xx-S, DPP3xx-S.
• Can be used in combination with probe cards
• Can be used with software inker output, or a
driver unit when used with manual systems
• Includes cartridge holder
Compatibility
• DPP2x x-S, DPP3xx-S
145530 — Inker Cartridge, Markem 6990
Features
• Markem ink type 6990, color: black
• Alcohol soluble, relatively thin, flows very consistently, requires
heat curing
• After opening, the cartridge can be used for about 5 days
Specifications
• Order requires one of the fol lowing configurations to be specified:
– DM-1 5,8,10,15,20,25,30 mil
– DM-1.25 10,15,20,25 mil
– DM-S 10,15 mi l
• She lf li fe: 4 months
• Pack o f 10
157-842 — Universal DUT Board Holder
Features
• For isolated holding of PC boards
with up to 150 mm ( 6 in) width
• Adapter is vacuum clamped onto
chuck
Specifications
• Max. board thickness up to 2.5 mm (0.09 in)
• DUT will be located 20 mm above chuck top surface
• Height of DUT holder mi ght restrict chuck movement range due to
mechanical platen conflict
Compatibility
• MPS150, PM8, PA200, PM300
161-096 — Analogue Separation Drive Display for
MPS150 Universal Platen
Features
• Displays positioner platen z-height
• For use with MPS150/EPS150 universal platen
• Enables exact overtravel adjustment
Specification
• 10 µm (0.39 mils) division marks
• 1 turn = 1 mm (0.04 in)
• Adjustable 0 position
Compatibility
• MPS150 / EPS150 (universal platen)
164-486 — Analogue Separation Drive Display for
MPS150 MMWPlaten
Features
• Displays positioner platen z-height
• For use with MPS150 MMW platen
• Enables exact overtravel adjustment
Specification
• 10 µm (0.39 mils) division marks
• 1 turn = 1 mm (0.04 in)
• Adjustable 0 position
Compatibility
• MPS150 (MMW platen)
PN 141-400 www.formfactor.com Lab Accessories and Miscellaneous • 33
Revision 57, February, 2023 Probe Station Accessories
164-917— Air Drying Unit
Features
• Membr ane air dryer (internal purge air
consumption 120 l/min [4.2 CFM])
• Integrated nano filter
• No electric power required
• Des igned for wall mounting
Specifications
• Dimensions (HxWxD): 805 x 100 x 81 mm (31.7 x
3.9 x 3.2 i n.)
• Input CDA requirements
– Minimum inlet pressure 7 bar/0.7 MPa/101.5 psi
– Oil-free, particle-free (<1 μm), pressure de w point < +3°C
(37.4°F)
• Outlet pressure dew point depe nding on inlet pressure, inlet
pressure dew point and flow rate
• Purge air 120 l/min (4.2 CFM)
• Requires yearly exchange of filter unit
Application Example
• Inlet pre ssure 7 bar/0.7 MPa/101.5 psi, inlet pressure dew point
+3°C (37.4°F), inlet air flow 570 l/ min (20.1 CFM)
• Outlet pressure dew point < -20°C (-4°F)
• Outlet air flow 450 l/min (15.9 CFM)
183-000 — Portable Vacuum System
Features
• Medium capacity portable vacuum
system for manual and semiautomatic
probe stations and vacuum ba sed
accessories
• Intended for facilities without house
vacuum system
Specifications
• Oil-less design, noise level typ. 45dBA
• Rated power 40W, safety class IP40, 5 kg (11 pounds)
• Air flow 11.3/14.2 l/min (0.4/0.5 CFM) (50/60Hz) @ vacuum 75 torr
• Air flow 11.7/14.2 l/min (0.4/0.5 CFM) (50/60Hz) @ vacuum 100
mbar
• Rated for 100% continuous duty
• Switchable 100-120V or 20 0-230V @ 5 0&60Hz (IEC 60320/C15
socket)
• Connector cable purchased separately
• Includes silencer
• Includes 3 m (9.8 ft) connection tube with 8 mm ( 0.3 in ) diameter
• Pump di mensions (L x W x H): 247 x 121 x 145 mm
System Compatibility
• BTS 1000, BTS 2000 , BTS-VERT
• PM5/EPS150, PM8/EPS200, PM300, Summit, PA200/PA200BR,
SUMMIT200-SA, T200/TESLA200
183-838 — Vacuum Pump Kit Including Vacuum Buffer
Reservoir
Features
• Portable vacuum system for semi- and fully-automated probe
stations (e.g., one CM300 with one MHU301)
• Intended for facilities without house vacuum system
• For standard use cas es only. In case of non-standard use cases,
an ad ditional pump kit (PN 183-000) can be added in parallel
Specifications
• Oil-less design, noise level typ. 4 5 dBA
• Rated power 40 W, safety class IP40, 5 kg
• Air flow 11.3/14.2 l/min (0.4/0.5 CFM) (50/60Hz) @ vacuum 75 torr
• Air flow 11.7/14.2 l/min (0.41/0.5 CFM) (50/60Hz) @ vacuum 100
mbar
• Rated for 100% continuous duty
• Switchable 1 00-120 V or 200-230 V @ 50&60 Hz (IEC 60320/C15
socket)
• Connector cable purchased separately
• Includes silencer
• Includes 3 m (10 ft) connection tube with 8 mm (0.3 in) diameter
• Includes 10 l vac uum buffer reservoir
• Dimensions (L x W x H):
– Pump = 247 x 121 x 145 mm
– Buffer reservoir = 558 x 162 x 195 mm
Compatibility
• CM300, T ESLA300, SUMMIT200-FA, TESLA200-FA
192-085 — Air Drying Unit
Features
• Membrane air dryer (internal purge air
consumption 150 l/min [5.3 CFM])
• Integrated nano filter
• No electric power required
• Designed for wall mounting
Specifications
• Dimensions (HxWxD): 805 x 100 x 81 mm (31.7 x
3.9 x 3.2 in.)
• Input CDA requirements:
– Minimum inlet pressure 7 bar/0.7 MPa/101.5 psi
– Oil-free, particle-free (<1 μm), pressure dew point < +3°C
(37.4°F)
PN 141-400 www.formfactor.com Lab Accessories and Miscellaneous • 34
Revision 57, February, 2023 Probe Station Accessories
• Purge air 150 l/min (5.3 CFM)
• Outlet pressure dew point depe nding on inlet pressure, inlet
pressure dew point and flow rate
• Requires yearly exchange of filter unit
Application Example
• Inlet pre ssure 7 bar/0.7 MPa/101.5 psi, inlet pressure dew point
+3°C (37.4°F), inlet air flow 390 l/ min (13.8 CFM)
• Outlet pressure dew point -45 °C (-49 °F)
• Outlet air flow 240 l/min (8.5 CFM)

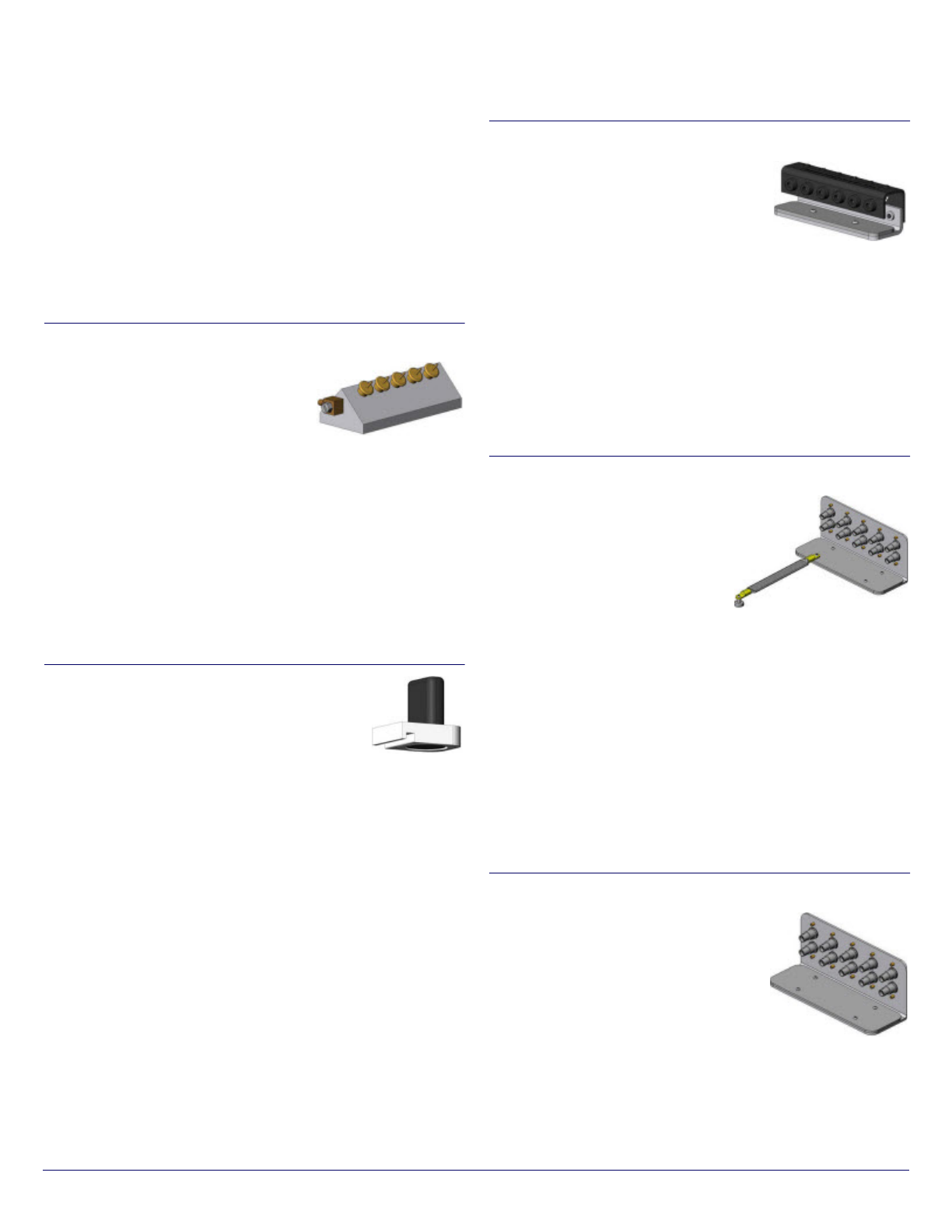

M150-ACC-13 — Vacuum Manifold, Magnetic Base
Features
• 5 port vacuum manifold
• Magnet base mounts at the most
convenient location (e.g., on platen)
• For use with vacuum based positioners
or other vacuum based accessories
• Easy pu sh-pull on/off controls
Specifications
• Input connection: 3 mm (1/8 in) ID push on connector
• Output connections:1.5 mm (1/16 in) ID
Compatibility
• CM300xi, TESLA300, Elite 300, SUMMIT200, TESLA200, Summit,
T200, M150, Ales si
M150-ACC-16 — Magnetic Cable Clamp
Kit
Features
• Magnetic base cable clamp
• Ena bles easy cable routing
• Helps to minimize cable vibration that can affect measurements
• Groove in base holds cable securely
Kit Contents
• Each kit includes the necessary hardware for one cable
• Maximum cable diameter = 3 mm (1/8-inch)
• Must be used with steel base
Compatibility
CM300xi, TESLA300, Elite 300, PM300, SUMMIT200, TESLA200,
Summit, T200, M150, Ales si
M150-ACC-18 — Pin to Banana Interface Kit
Features
• Six port pin jack to banana jack interface
with magnetic base
• Used with unshielded probes (e.g., MMP-
01 or 139-332) to convert to a banana
style output
• Magnet base enables convenient placement b ased on your
positioner locations
Kit Contents
• One 6 port interface
Compatibility
• CM300xi, T ESLA300, Elite 300, PM300, SUMMIT200, TESLA200,
Summit, T200, M150, Alessi
M150-ACC-19 — Triax Panel, Magnetic Base
Features
• Triax connection panel for
convenient cable management
• Magnet base enables convenient
placement based on your positioner
location
• 10 Triax (3-lug) feed through
connectors (female)
• Panel connections su pport single triax cables and Keysight dua l
triax SMU cable assemblies. For Keysight Quadrax SMU
connections, please contact the factory.
Kit Contents
• Magnet base connection panel
• Ground strap
Compatibility
• CM300xi, T ESLA300, Elite 300, PM300, SUMMIT200, TESLA200,
Summit, T200, M150, Alessi
M150-ACC-28 — Coax Panel, Magnetic Base
Features
• Coxial connection panel for convenient
cable management
• Magnet base allows for convenient
placement based on you r positioner
location
• 10 Coaxial feed through connectors
(female)
Kit Contents
• Magnet base connection panel
