PN 141-400 www.formfactor.com Microscopes • 42
Revision 57, February, 2023 Probe Station Accessories
• 0.5 - 20.0X zoom range
Kit Contents
• Integrated LED Illumination sy stem
• USB remote control box
• Digital video PC interface card
• Video processing software
• Probe station software integration module
Compatibility
• SUMMIT200, TESLA200, Summit 12000
Requirements
• Velox Probe station control software
• Velox 2.4 or later

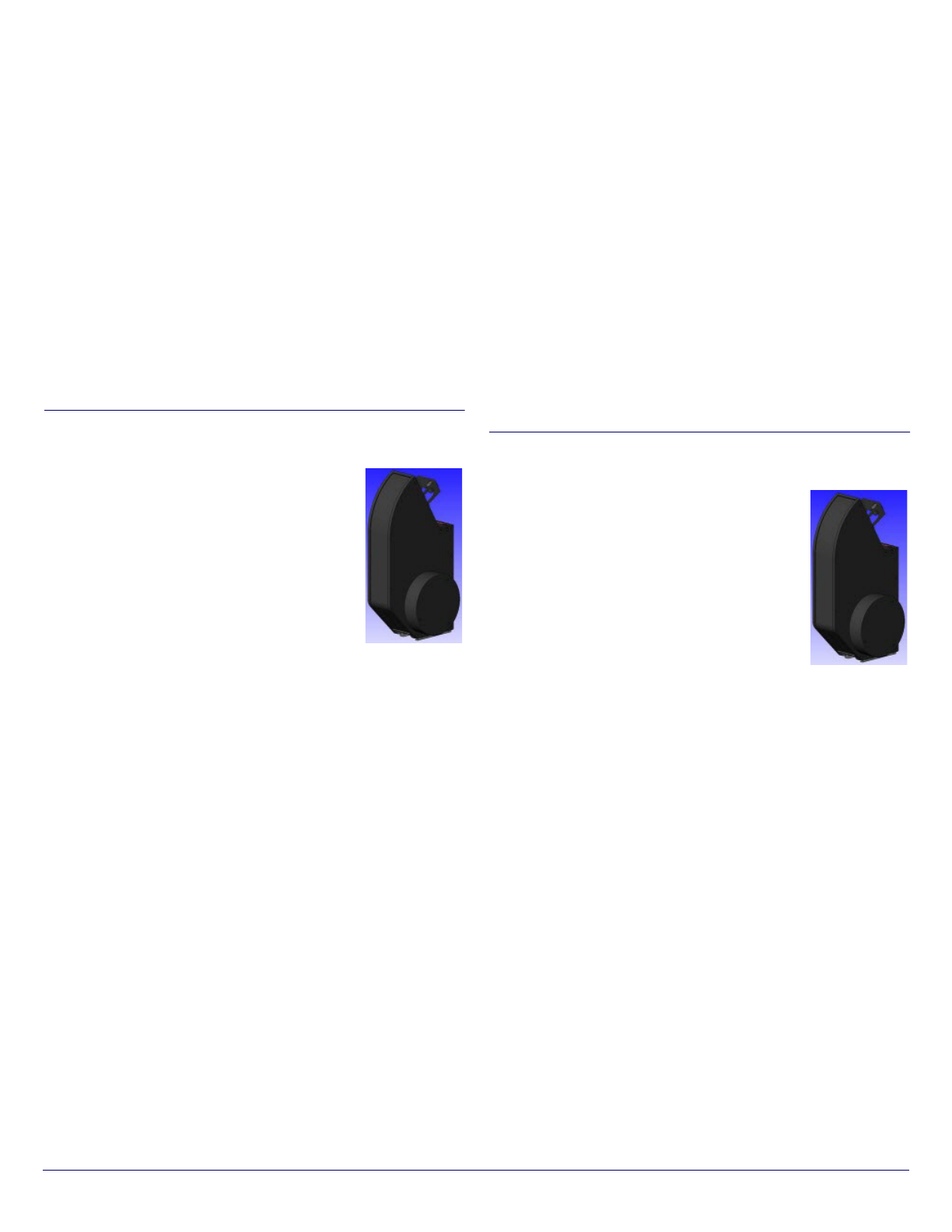

181-126 — eVue IV Digital Imaging System, 10X, Remote
Focus, Pro Package
Features
• Multi lens design
– Quick and easy probe tip navigation
– Maximizes field-of-view
– High magnification
• Longer focus range
– Z drive can work in the same range as the
chuck
– Shadow-free view of the corresponding
features
• Intelligent objective lens mount
– Automatically configure and optimize performance
– Easy lens exchange
• Advanced design
– cTUVus certified and CE
– Compatible with TopHa t for perfect shielding
– Compatible with high-voltage measurements
• Extended lifetime
– 24/7 operating, increased MTBF
– No internal maint enance required
• Intelligent collision detection system
– Protects the measurement setup
– Prevents involuntary mechanical contact between lens and
probes
– Stops all system motion a nd warns of unobserved contact
Specifications
• 2 optical paths
• 4 mm fine focus Z drive range
• 0.2 µm (0.008 mils) Z drive resolution
• Auto focus
• Multi view with two screens
• 45.5 fps video fra me rates (1024 x 768)
• 13.1 fps video f rame rates (2048 x 1536)
• 0.5 - 5.0X zoom range
Kit Contents
• Integrated LED Illumination system
• USB remote control box
• Digital video PC interface card
• Video processing software
• Probe station software integration module
Compatibility
• SUMMIT200, TESLA200, Summit 1200 0
Requirements
• Velox Probe station control software
• Velox 2.4 or later
181-136 — eVue IV Digital Imaging System, 40X, Remote
Focus, Pro Package
Features
• Multi lens design
– Quick and easy probe tip navigation
– Maximizes field-of-view
– High magnification
• Longer focus range
– Z dr ive can work in the same r ange as the
chuck
– Shadow-free view of the corresponding
features
• Intelligent objective lens mount
– Automatically configure and optimize performance
– Easy lens exchange
• Advanced design
– cTUVus certified and CE
– Compatible with TopHat for perfect shielding
– Compatible with high-voltage measurements
• Extended lifetime
– 24/7 operating, increased MTBF
– No i nternal maintenance r equired
• Intelligent collision detection system
– Protects the measurement setup
– Preven ts involuntary mechanical contact between lens and
probes
– Stops all system motion and warns of unobserved contact
Specifications
• 3 optical paths
• 4 mm fine focus Z drive range
• 0.2 µm (0.008 mils) Z drive resolution
• Auto focus
• Multi view with three screens
PN 141-400 www.formfactor.com Microscopes • 43
Revision 57, February, 2023 Probe Station Accessories
• 45.5 fps video fra me rates (1024 x 768)
• 13.1 fps video fra me rates (2048 x 1536)
• 0.5 - 20.0X zoom range
Kit Contents
• Integrated LED Illumination sy stem
• USB remote control box
• Digital video PC interface card
• Video processing software
• Probe station software integration module
Compatibility
• SUMMIT200, TESLA200, Summit 12000
Requirements
• Velox Probe station control software
• Velox 2.4 or later
181-127 — eVue IV Digital Imaging System, 10X, R-focus
for manual stations (Velox, Ctrl, LCD), Standalone
Complete eVue IV Di gital Imaging System for standalone use with
manual probe stations and package/board test systems
(upgradeable t o Pro version)
Features
• Multi lens design
– Quick and easy probe tip navigation
– Maximizes field-of-view
– High magnification
• Longer focus range
– Z drive can work in the same range as the
chuck
– Shadow-free view of the corresponding
features
• Intelligent objective lens mount
– Automatically configure and optimize performance
– Easy lens exchange
• Advanced design
– cTUVus certified and CE
– Compatible with TopHa t for perfect shielding
– Compatible with high-voltage measurements
• Extended lifetime
– 24/7 operating, increased MTBF
– No internal maint enance required
• Intelligent collision detection system
– Protects the measurement setup
– Prevents involuntary mechanical contact between lens and
probes
– Stops all system motion a nd warns of unobserved contact
Specifications
• 2 optical paths
• 0.2 µm (0.008 mils) Z drive resolution
• 45.5 fps video f rame rates (1024 x 768)
• 0.5 - 5.0X zoom range
Kit Contents
• Integrated LED Illumination system
• USB remote control box
• Digital video PC interface card
• Video processing software
• Probe station software integration module
• Windows 10 - High performance computer
• Latest Velox Probe station control software
• 24 inch LCD monito r
• 2 inch Heavy duty focus block
Compatibility
• Manual probe stations and package/board test systems
Requirements
• Velox Probe station control software
181-128 — eVue IV Digital Imaging System, 10X, R-focus,
Pro package for manual stations (Velox, Ctrl, LCD)
Complete eVue IV Digital Imaging System for standalone use with
manual probe stations and package/board test systems
(upgradeable to Pro version)
Features
• Multi lens design
– Quick and easy probe tip navigation
– Maximizes field-of-view
– High magnification
• Longer focus range
– Z dr ive can work in the same r ange as the
chuck
– Shadow-free view of the corresponding
features
• Intelligent objective lens mount
– Automatically configure and optimize performance
– Easy lens exchange
• Advanced design
– cTUVus certified and CE
– Compatible with TopHat for perfect shielding
– Compatible with high-voltage measurements
• Extended lifetime
– 24/7 operating, increased MTBF
– No i nternal maintenance r equired
• Intelligent collision detection system
– Protects the measurement setup
– Preven ts involuntary mechanical contact between lens and
probes
PN 141-400 www.formfactor.com Microscopes • 44
Revision 57, February, 2023 Probe Station Accessories
– Stops all system motion a nd warns of unobserved contact
Specifications
• 2 optical paths
• 4 mm fine focus Z drive range
• 0.2 µm (0.008 mils) Z drive resolution
• Auto focus
• Multi view with two screens
• 45.5 fps video fra me rates (1024 x 768)
• 13.1 fps video fra me rates (2048 x 1536)
• 0.5 - 5.0X zoom range
Kit Contents
• Integrated LED Illumination sy stem
• USB remote control box
• Digital video PC interface card
• Video processing software
• Probe station software integration module
• Windows 10 - High performance computer
• Latest Velox Probe station control software
• 24 inch LCD monitor
• 2 inch Heavy duty focus block
Compatibility
• Manual probe stations a nd package/board test systems
Requirements
• Velox Probe station control software
181-137 — eVue IV Digital Imaging System, 40X, R-focus
for manual stations (Velox, Ctrl, LCD)
Complete eVue IV Di gital Imaging System for standalone use with
manual probe stations and package/board test systems
(upgradeable t o Pro version)
Features
• Multi lens design
– Quick and easy probe tip navigation
– Maximizes field-of-view
– High magnification
• Longer focus range
– Z drive can work in the same range as the
chuck
– Shadow-free view of the corresponding
features
• Intelligent objective lens mount
– Automatically configure and optimize performance
– Easy lens exchange
• Advanced design
– cTUVus certified and CE
– Compatible with TopHa t for perfect shielding
– Compatible with high-voltage measurements
• Extended lifetime
– 24/7 operating, increased MTBF
– No i nternal maintenance r equired
• Intelligent collision detection system
– Protects the measurement setup
– Preven ts involuntary mechanical contact between lens and
probes
– Stops all system motion and warns of unobserved contact
Specifications
• 3 optical paths
• 0.2 µm (0.008 mils) Z drive resolution
• 45.5 fps video f rame rates (1024 x 768)
• 0.5 - 20.0X zoom range
Kit Contents
• Integrated LED Illumination system
• USB remote control box
• Digital video PC interface card
• Video processing software
• Probe station software integration module
• Windows 10 - High performance computer
• Latest Velox Probe station control software
• 24 inch LCD monito r
• 2 inch Heavy duty focus block
Compatibility
• Manual probe stations and package/board test systems
Requirements
• Velox probe station control software
181-138 — eVue IV Digital Imaging System, 40X, R-focus,
Pro package for manual stations (Velox, Ctrl, LCD)
Complete eVue IV Digital Imaging System for standalone use with
manual probe stations and package/board test systems
(upgradeable to Pro version)
Features
• Multi lens design
– Quick and easy probe tip navigation
– Maximizes field-of-view
– High magnification
• Longer focus range
– Z dr ive can work in the same r ange as the
chuck
– Shadow-free view of the corresponding
features
• Intelligent objective lens mount
– Automatically configure and optimize performance
– Easy lens exchange
• Advanced design
