PN 141-400 www.formfactor.com Microscopes • 52 Revision 57, February, 2023 Probe Station A ccessories Le i ca 132 -7 70 — Leica S8 APO Ste r eoZ m Micr oscop e Kit, Wid e FO V , MTS St ati ons, Vid eo Re ady Feat ur es •…
PN 141-400 www.formfactor.com Microscopes • 51
Revision 57, February, 2023 Probe Station Accessories
SMZ-171

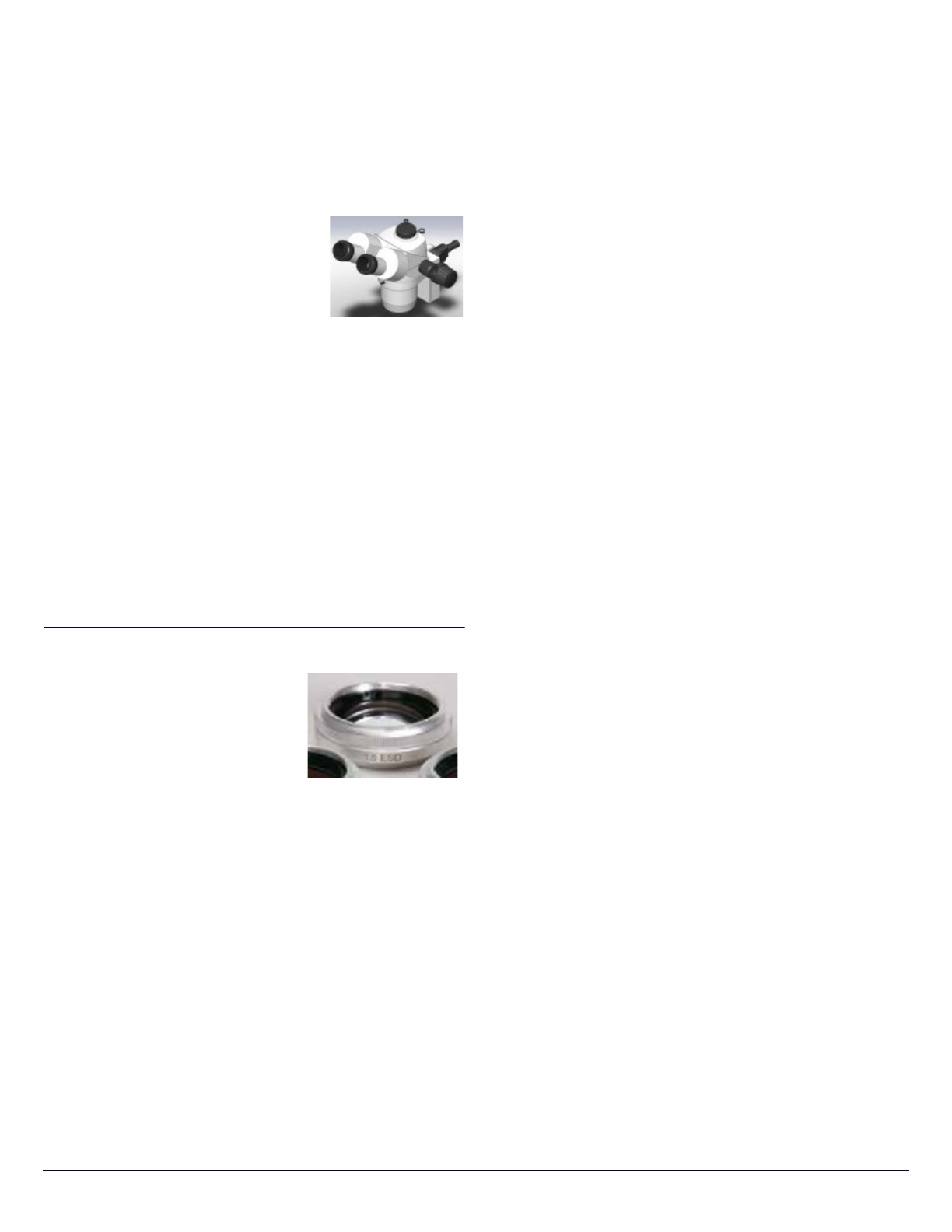

780-00602 — Motic Stereozoom Microscope, SMZ-171
Features
• Light source for optical f iber with control
unit (100-240 V/50-60 Hz)
• Ring light with 1m optical fi ber
• 2x widefield eyepieces 30x
• Trinocular - TV option possible
• Microscope fixation ring with manual focus drive
Specifications
• Zoom Range 6.7:1
• Working distance 110 mm (4.3 in)
• Magnification 0.75x - 5.0x
• Eyepiece magnification 22.5x-150x
• FOV (diameter) 10.7- 1.6 mm
• Option: 775-00197, C-mount adapter for Mot ic SMZ-171 (Remark:
0.65x)
Compatibility
• SUMMIT200, PA200 BlueRay, PA200, PA300, PM300, PM8, PM5,
DSP, BEP
775-00865 — 1.5x Objective for M otic SMZ-171-TH
Feature
Auxiliary objective (body lens) for higher
magnification.
Specifications
• Increases magnification by 1 .5X
• Res ults in magnification 1.125x - 7.5x.
30x eyepiece results in magnification 33.75x - 225x
• Reduces working distance to 56.3mm
• Not recommended for RF ap plications
• Reduced light intensity
• Affects C-mount camera magnification
Compatibility
• For SMZ-171 in combination with open station
PN 141-400 www.formfactor.com Microscopes • 52
Revision 57, February, 2023 Probe Station Accessories
Leica

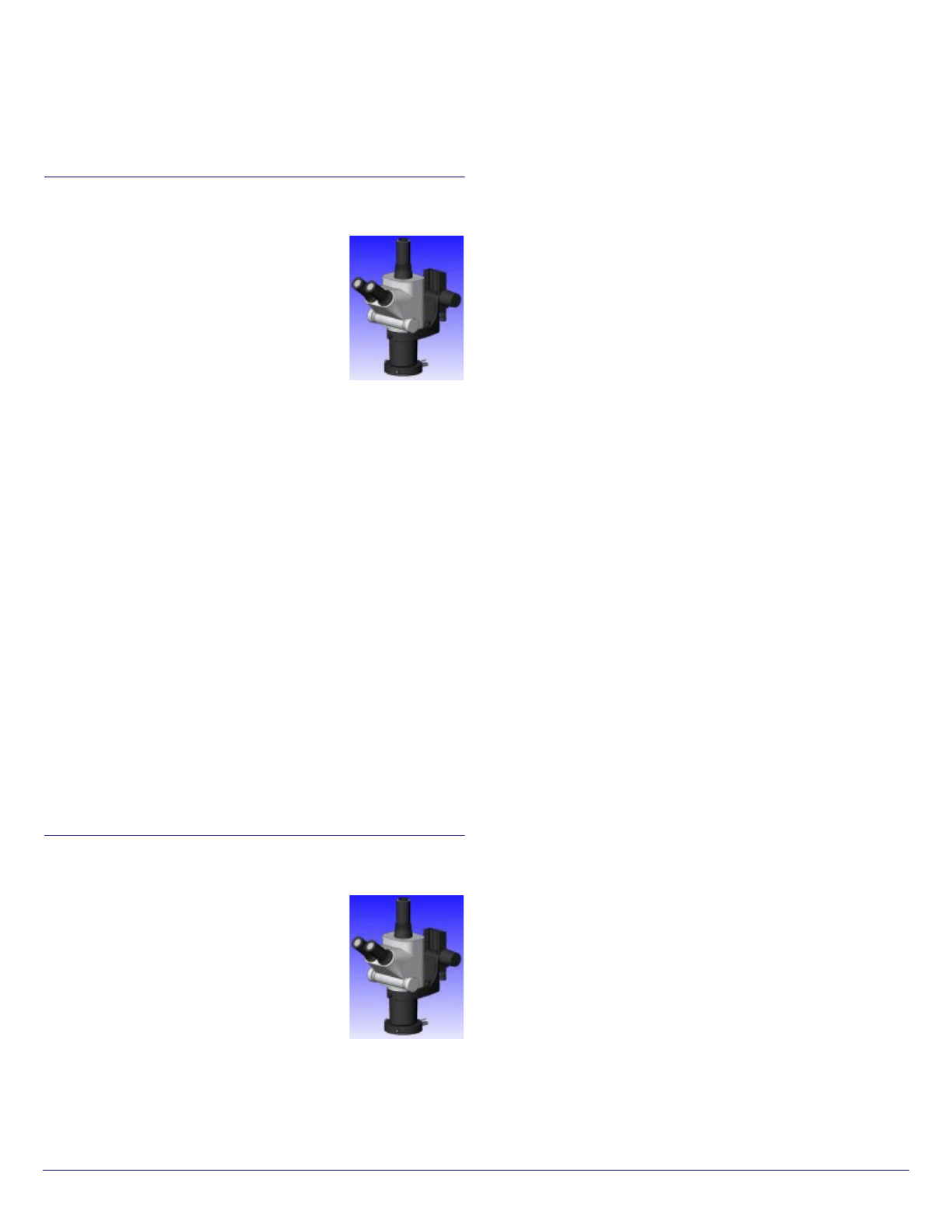

132-770 — Leica S8 APO StereoZm Microscope Kit,
Wide FOV, MTS Stations, Video Ready
Features
• Wide field of view for probing larger features
• Excellent resolution for low power microscopy
• Continuously variable zoom
• Video ready optical port
• Long li fe LED ring light
• High val ue choice for many probing needs
Specifications
• 8:1 zoom
• 600 line pairs/mm resolution
• Apo chromatic optical design
• 100 mm (3.9 in) working distance with 0.63X objective installed
• 75 mm (3.0 in) working distance without 0.63X objective installed
• Variable illuminator o utput with auxiliary control
Kit Contents
• Leica S8 APO StereoZoom microscope, with 1.0 to 8.0 zoom
• 10X eye pieces (pair)
• Wide FOV objective (0.63X)
• Mounting arm with focus control
• Video adapter 1.0X
• Long working distance solid state LED ring illuminator
• Illumination control box and cables
• Universal p ower supply (100-240 VAC, 50/60 Hz)
Compatibility
• MTS
131-780 — Leica S8 Stereo Zoom Microscope Kit, 1.0 -
8.0 X Zoom, Video-Ready
Features
• Wide field of view for probing larger features
• Excellent resolution for low power microscopy
• Continuously variable zoom
• Video ready optical port
• Long li fe LED ring light
• High val ue choice for many probing needs
Specifications
• 8:1 zoom
• 600 line pairs/mm resolution
• Apochromatic optical design
• 75 mm (3.0 in) working distance
• Variable illuminator output with auxiliary control
Kit Contents
• Leica S8 APO StereoZoom microscope, with 1.0 to 8.0 zoom
• 20X eyepieces (pair)
• Mounting arm with focus control
• Video adapter 0.63X
• Long working distance s olid state LED ring illuminator
• Illumination control box and cables
• Universal power supply (100-240 VAC, 50/60 Hz)
Compatibility
• Summit, M150, Alessi
• T200 High Voltage testing
PN 141-400 www.formfactor.com Microscopes • 53
Revision 57, February, 2023 Probe Station Accessories

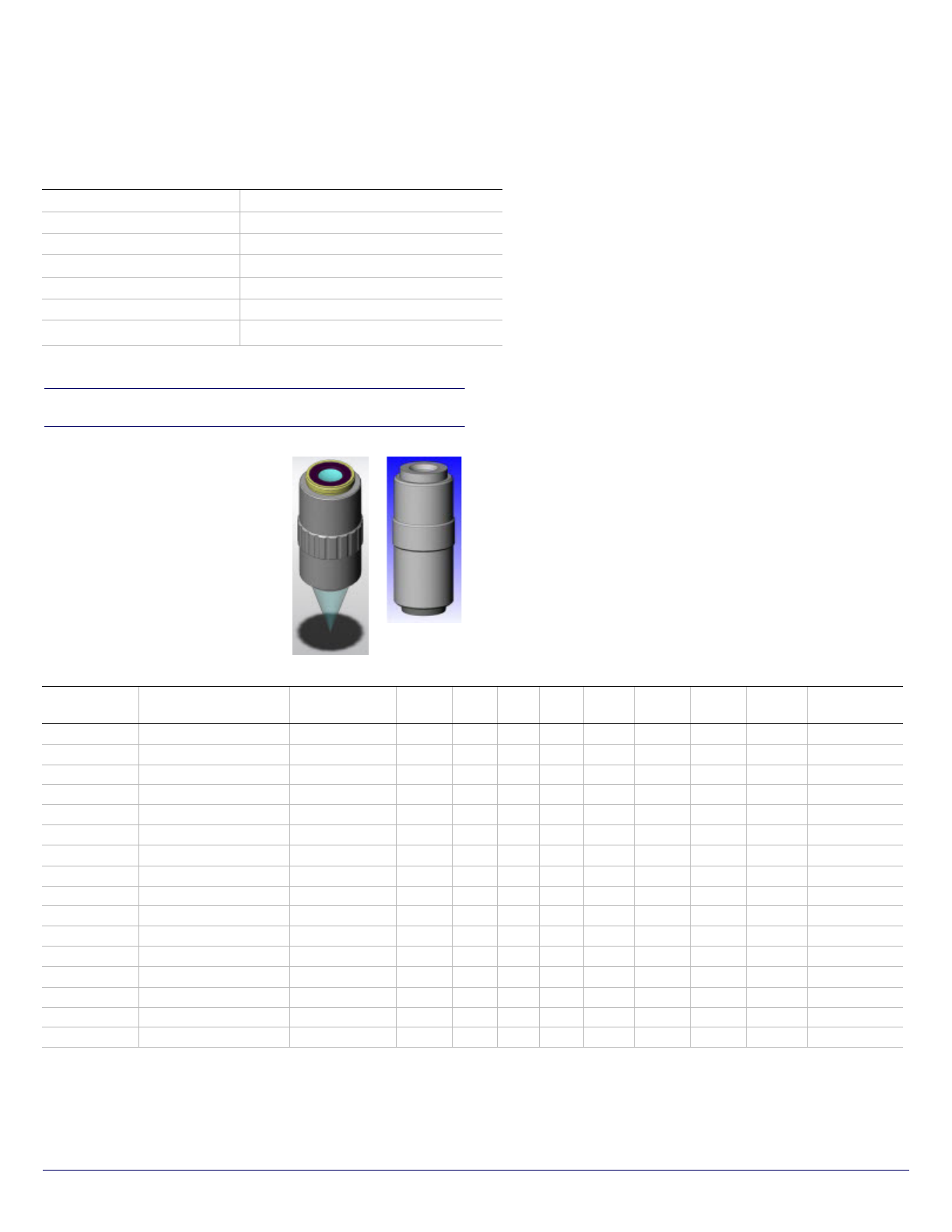

Objectives/Eye Pieces
MITUTOYO OBJECTIVES
• Compatible with FS70, eVue, iVista,
Seiwa, A-Zoom microscopes
Key to Terms
Mag = magnification BF = bright field
WD = working distance LWD = long working distanc e
N.A. = numerical aperture SLWD = super-long working distance
f = focal length Laser = laser cutting
R = resolving power HR = high resolution
DOF = depth of field NUV = near-ultraviolet
FOV = field of view
using Ø = 24 mm eyepiece
1
Part # Description Application Mag (x) N.A.
WD
(mm)
f
(mm)
R (µm)
± DOF
(µm)
FOV
(mm)
Mass
(g)
λ Correction
102-516 M Plan Apo 2x BF, LWD 2 0.055 34 100 5 91 12 220 436-656 nm
106-762 M Plan Apo 5x BF, LWD 5 0.14 34 40 2 14 4.8 230 436-656 nm
102-517 M Plan Apo 10x BF, LWD 10 0.28 34 20 1 3.5 2.4 240 436-656 nm
102-518 M Plan Apo 20x BF, LWD 20 0.42 20 10 0.7 1.6 1.2 270 436-656 nm
VMA-60-50 M Plan Apo 50x BF, LWD 50 0.55 13 4 0.5 0.9 0.48 290 436-656 nm
VMA-60-99 M Plan Apo 100x BF, LWD 100 0.7 6 2 0.4 0.6 0.24 320 436-656 nm
VMA-60-96 M Plan Apo HR 100x BF, LWD, HR 100 0.9 1.3 2 0.3 0.34 0.24 410 436-656 nm
17980 M Plan Apo SL20x BF, SLWD 20 0.28 30.5 10 1 3.5 1.2 2 40 436-656 nm
102-293 M Plan Apo SL50x BF, SLWD 50 0.42 20.5 4 0.7 1.6 0.48 280 436-656 nm
VMA-60-80 M Plan Apo SL80x BF, SLWD 80 0.5 15 2.5 0.6 1.1 0.3 280 436-656 nm
VMA-60-98 M Plan Apo SL100x BF, SLW D 100 0.55 13 2 0.5 0.9 0.24 290 436-656 nm
115-246 M Plan Apo SL200x BF, SLW D 200 0.62 13 1 0.4 0.7 0.12 490 436-656 nm
VMA-60-52 M Plan Apo NIR 50x BF, Laser 50 0.42 17 4 0.7 1.6 0.48 315 480-1800 nm
VMA-60-97 M Plan Apo NIR 100x BF, Laser 100 0.5 12 2 0.6 1.1 0.24 335 480-1800 nm
VMA-60-54 M Plan Apo NUV 50x BF, Laser, NUV 50 0.42 15 4 0.7 1.6 0.48 350 355-620 nm
VMA-60-95 M Plan Apo NUV 100x BF, Laser, NUV 100 0.5 11 2 0.6 1.1 0.24 380 355-620 nm
1
