PN 141-400 www.formfactor.com Microscopes • 58
Revision 57, February, 2023 Probe Station Accessories
Cameras and Video Packages

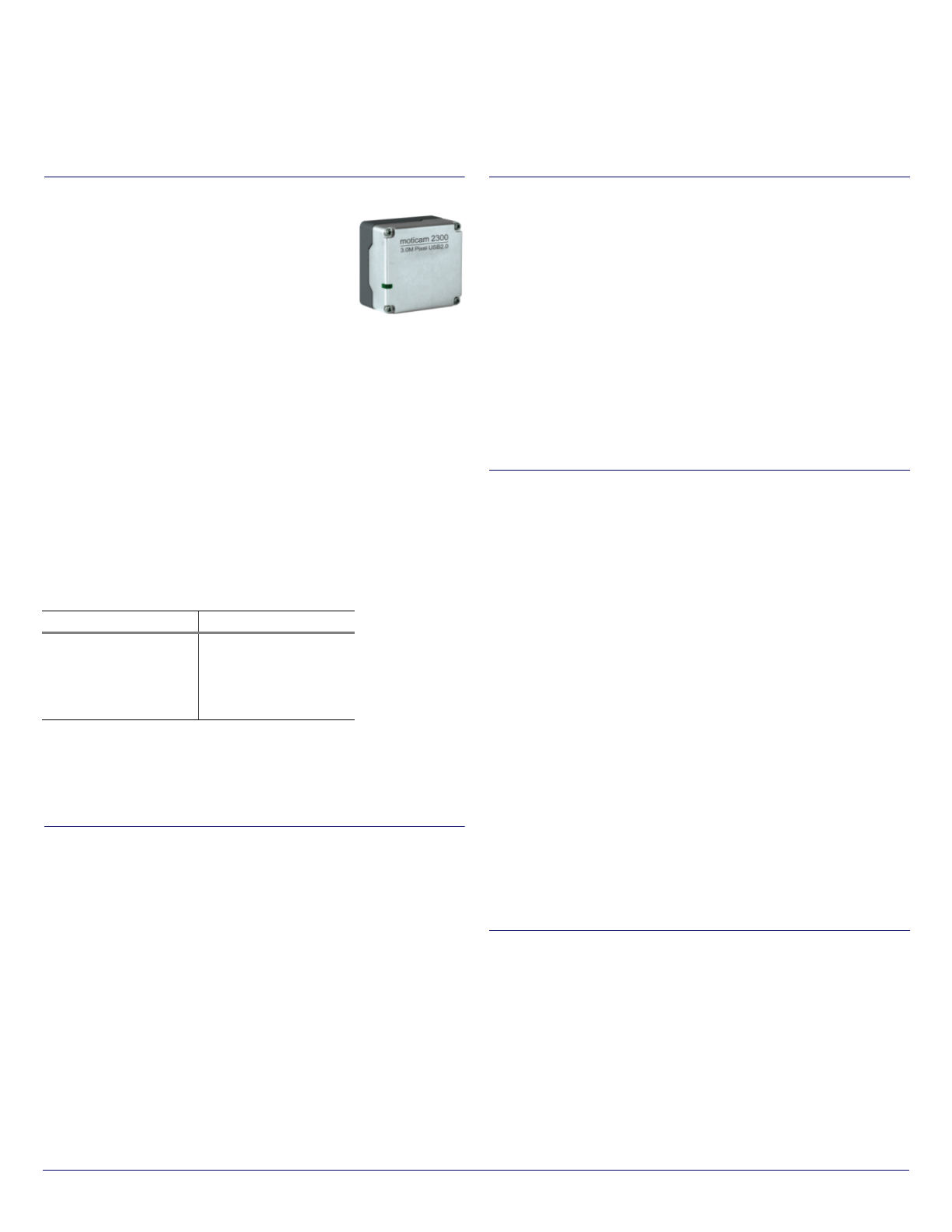

67120 — Moticam 2300 CMOS Camera
Features
• Compatible with CS-mount camera ports and
C-mount ca mera ports (by using included CS
mount adapter)
• Three megapixel live resolution
• Soft ware image enhancements inc lude noise-
reduction, live filtering, and settings memory
• Soft ware included:
– Motic Images Plus 2.0ML for Windows
– Motic Images Plus 2.0 for Macintosh OSX
• Accessories included:
– 16 mm (0.6 in) f ocusable lens
– 28, 30, 34, an d 35 mm (1.1, 1.2, 1.3, and 1.4 in) eyepiece
couplers
– B&S adapter for microscope's eyetube
– Macro tube
– Calibration slide for accurate measurements
– CS mount adapter
Specifications
• Minimum specifications:
• Chip configuration: 12.7 mm (0.5 in) live 3.0 megapixels imaging
chip in portable casing
• Data o utput: USB2.0
• Power supply: USB cable from computer
155-499 — 3M Pixel 1/2 in CMOS Camera C Mount USB
Features
• 13 mm (1/2 in) CMOS camera with C-mount and mounting thread
• 3.0 Megapixels (2048x1536) with USB 2.0
• Pixel size 3.2um x 3.2um
• Includes image processing software "TSView" for Windows XP/
Vista/7
Specifications
• Windows XP/Vista/7
169-080 — Velox Digital Camera Kit
Features
Velox digital camera package for FormFactor probe stations using C-
mount microscopes. This camera is supported with SPECTRUM
Vision System. Velox Pr obe Station Control Software is required.
Specifications
• Digital video camera, 780x582 pixel, 1/2 inch CCD sensor,
IEEE1394A connector
• IEEE1394A (firewire) interface board and cable
• White light LED f itting into microscope illumination port
Compatibility
• PA200, PA200 BlueRay, Su mmit12000, SUMMIT200
780-01191 — Moticam 4000 Sales Package, 8M, 1/1.8 in,
USB/HDMI/SD, 32GB SD-card, USB Mouse
Features
• 1/1.8 in CMOS with C-mount and mounting thread
• Capture resolution on SD-card:
– Still image: 8.0 MP (3840 x 2160)
– Video: 4K 384 0 x 2160
• Live display mode thr ough output:
– USB: 3840 x 2160 @ 20 frames per s econd
or
– HDMI : 3840 x 2160 (4K) @ 30 frames per second
• Pixel size: 2.0 x 2.0 microns
• Data transfer: HDMI and USB 2.0
• SD card slot (maximal: 32 GB)
Kit Contents
• CS Ring Adapter
• HDMI and USB ca ble
• Computer mouse (USB)
• SD card 32 GB SDHC
• Motic Images Plus 3.0 application software for PC and Mac
190-956 — Velox Digital Camera Kit USB3 5MP
Features
Velox digital camera package for FormFactor probe stations
configured with C-mount microscopes. The camera is supported by
the SPECTRUM Vision System. Velox probe station control software
is re quired.
Specifications
• Digital video camera, 2592 x1944 pixel, 1/2.5-inch sensor
Windows 2000 or XP Macintosh
• 256 MB RAM
• P4
• Built-in USB2.0
• OS X o r higher
• 25 6 MB RAM
• G4
• Built-in USB2.0
PN 141-400 www.formfactor.com Microscopes • 59
Revision 57, February, 2023 Probe Station Accessories
• USB3 cable
• White light LED for microscope illumination port
Compatibility
• PA210 Bl ueRay, Summit 12000, EPS150, PM8, PM300
Requirements
• Velox 3.1 and above
780-00536 — Velox for Manual Stations Kit, Velox, USB
Camera
Features

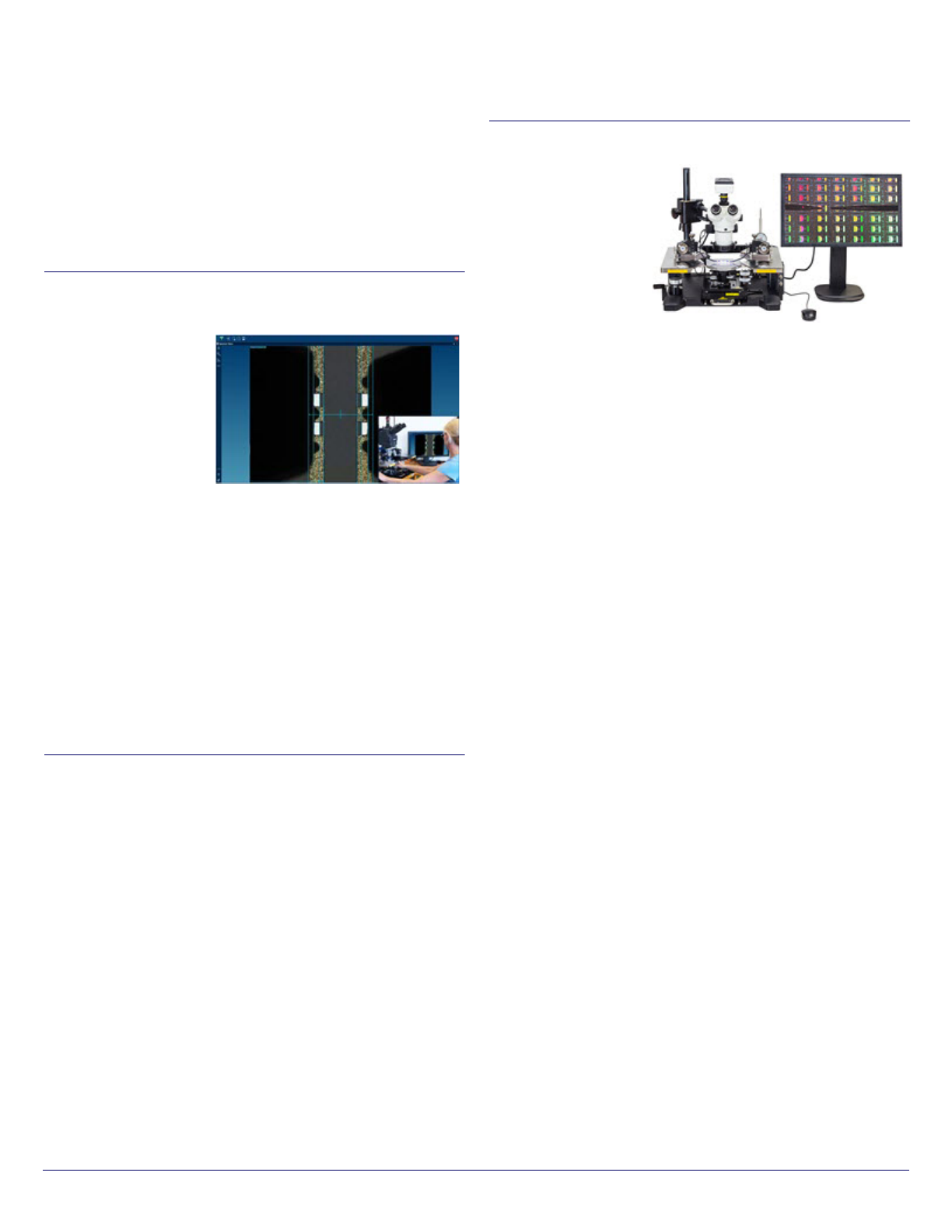

Velox for manual probe
stations. The ex clusive
AugmentedAlign tool
provides on-screen
markers that impr ove
measurement accuracy
and simplify RF probe
positioning. The kit
contains a digital camera,
connection cable, and Velox for man ual probe stations.
Specifications
• Digital video camera, 2592 x1944 pixel, 1/2.5-inch sensor
• USB3 cable
• Velox for manual probe stations
Compatibility
• EPS15 0, PM8, PM300
Requirements
• Cus tomer PC or laptop, o r 782-00081 high performance controller
for manual probe stations
782-00119 — Velox Digital Camera Kit USB3 w/o light
5MP
Features
Velox digital camera package for FormFactor probe stations
configured with C-mount microscopes. The camera is supported by
the SPECTRUM Vision System. Velox probe station control software
is required.
Specifications
• Digital video camera, 2592 x1944 pixel, 1/2.5-inch sensor
• USB3 cable
Compatibility
• Summit 12000, EPS150, PM8, PM300
Requirements
• Velox 3.1 and above
EPS-ACC-HDTV+ — Digital TV Package
Features
• Video recording and
live view, without a
computer
• Integrated menu
system driven by a
mouse for low
overhead
• Saves stills and video
direct to a memory card and outputs to an HDMI monitor
Specifications
• Moticam 4000
• 1/1.8-inch CMOS with C-mount a nd mounting thread
• Capture resolution on SD-card:
– Still image: 8.0MP (7.68 x 4.32 mm)
– Video: 4K 384 0 x 2160
• Live display mode thr ough output
– USB: 3840 x 2160 @ 20 frames per s econd
or
– HDMI : 3840 x 2160 (4K) @ 30 frames per second
• Pixel size: 2.0 x 2.0 microns
• Data transfer: HDMI and USB 2.0
• SD card slot (maximal: 32 GB)
• Motic Images Plus 3.0 application software for PC and Mac
• Still and live image capture function
• 24 in wide screen monitor
– HDMI , DisplayPort and VGA inputs
– 178° wide-angle v iewing
• SD-Card
– RAM size 32 GB
– Data rate 80 MB/s
– Form factor SDHC
• USB computer
– USB pl ug for connection to MOTICAM 4000
– 1.80 m (6 ft) c able for convenient and ergonomic operation
Compatibility
• MPS150, EPS150 (excluding EPS150TESLA, EPS150TESLA-
EDU and SE750), PM8, EPS200
PN 141-400 www.formfactor.com Optical • 60
Revision 57, February, 2023 Probe Station Accessories
Optical
Integrating Sphere and Mounts

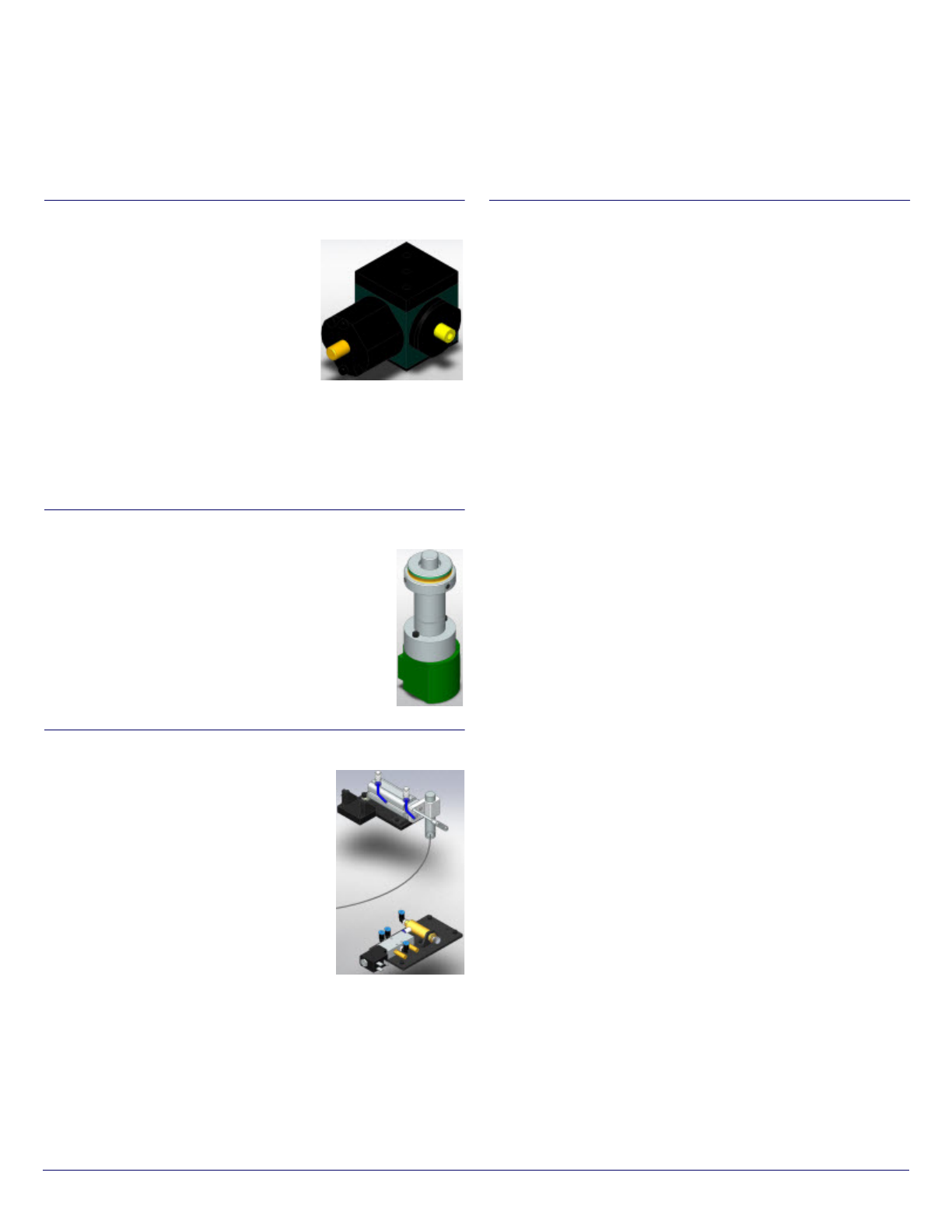

53541 — Integrating S phere, Zenith
Features
• Diffuse, high reflective coating,
recommended for UV-VIS-NIR
wavelength
• Maximum temperature: 150°C (302°F)
• Input port 6 mm (1/4 in) (cutting edge in
design)
• One detector port 6 mm (1/4 in) with
baffles and blind plug
• SMA connector fiber optic cable
Compatibility
• Required for 134826, 139086
134826 — Integrating Sphere Mount, Mitutoyo FS70
Features
• Mounting of 1 in integrating sphere into man ual
objective t urret
Compatibility
• FS70
139085 — Optical Fiber Mount, RPP305
Features
• Mounting for Instrument Systems EKT-fiber
Specifications
• Positioner arm with pneumatic cylinder,
40 mm (1.5 in) stroke, for mov ing optical
fiber out of microscope field of view
Compatibility
• PA200, PA200 BlueRay, PM8, PM5 +
RPP305-S (and former PH250)
139086 — Integrating Sphere Mount, RPP305
Features
• Positioner arm with pneumatic cylinder, 40 mm (1.5 in) stroke, for
moving sphere out of microscope field of view
• Mounting for Integrating Sphere 1 in, OptoWhite/Zenith
Compatibility
• PA200, PA200 BlueRay, PM8, PM5 + RPP305-S (and former
PH250)
