PN 141-400 www.formfactor.com Positioners and Posit ioner Accesso ries • 74 Revision 57, February, 2023 Probe Station A ccessories • New o ne-click positioner quick release contr ol allows fast setup and effortless g ros…
PN 141-400 www.formfactor.com Positioners and Positioner Accessories • 73
Revision 57, February, 2023 Probe Station Accessories
• Micrometer set planarity ad justment
• EMI grounding strap
• Industry standard RF probe mount
Specifications
• Feature resolution: <1 μm (0.04 mils)
• Travel range:
– X/Y: 25 mm (1 in),
– Z: 10 mm (0.4 in) (z-axis control: cw=down, ccw=up)
• Micrometer set planarity ad just: ±5°
• Micrometer screws: 500μm pitch (50 TPI)
• 2-port probe tip separation
– With TopHat: 40 mm (1.6 in)
– Without TopHat: 93 mm (3.7 in)
• Mount: bolt-down
• Footprint (W x D): 1 24 x 124 mm (4.9 x 4.9 in)
Configurations
• Use on platen right/left location as East/West positioner (4-port)
• Use on platen top/bottom loca tion as North/South positioners
(4-port)
Compatibility
Ordering Information
RPP305-EW/NS-CM-AI
Features
• Use d for high-performance
RF, multi-contact/mixed signal
probing, high-performance
wafer-level reliability probing,
and single-ended broadband/
mm-Wave, THz, s ource/load-
pull, RF noise probing
• Use d with Infinity / ACP / |Z|
Probe / T-Wave high
performance RF probes
• Precision 4 axis probe positioner for RF/microwave probes
• Optimized for CM300xi station platform
• Ultra rigid design for best probe placement
• New one-click positioner quick release control enables fast setup
and e ffortless gross positioning of RF probes
• Smooth glide micrometer controls for accurate probe placement
• Best probe-to-probe separation
• Multi position RF cable clamp and offset probe mounting arm for
optimized RF cable connection
• Micrometer set planarity adjustment
• EMI grounding strap
• Industry standard RF probe mount
Specifications
• Feature resolution: <1 μm (0.04 mils)
• Travel range:
– X/Y: 25 mm (1 in),
– Z: 10 mm (0.4 in) (z-axis control: cw=down, ccw=up)
• Micrometer set planarity adjust: ±5°
• Micrometer screws: 500μm pitch (50 TPI)
• 2-port probe tip separation
– With TopHat: 40 mm (1.6 in)
– Without TopHat: 93 mm (3.7 in)
• Mount: bolt-down
• Footprint (W x D): 124 x 124 mm (4 .9 x 4.9 in)
• Use on platen right/left location as East/West positioner (4-port)
• Use on platen top/bottom location as North/South positioners
(4-port)
Compatibility
• CM300xi with Top Ha t, Elite 300
Ordering Information:
• RPP305-EW-CM-AI
• RPP305-NS-CM-AI
RPP305-EW/NS-CMC-AI — High Performance RF Probe
Positio ner 50 TPI Bolt Down East-West or North-South
Features
• Used for high-
performance RF, multi-
contact/mixed signal
probing, high-
performance wafer-
level reliability probing,
and single-ended
broadband/ mm-
Wave, THz, source/load-pull, RF noise probing
• Used with Infinity / ACP / |Z| Probe / T-Wave high performance RF
probes
• Precision 4 axis pr obe positioner for RF/microwave probes
• Optimized for CM300xi station platform
• Ultra rigid design for best probe placement
Open Platforms +
EL Arms
Open Platforms +
SU Arms
Elite 300 Summit 12000
Tesla200
Elite 300 Summit 12000
RPP305-NS-EL-AI
RPP305-EW-EL-AI
RPP305-NS-SU-AI
RPP305-EW-SU-AI
East-West
PN 141-400 www.formfactor.com Positioners and Positioner Accessories • 74
Revision 57, February, 2023 Probe Station Accessories
• New one-click positioner quick
release control allows fast
setup and effortless gross
positioning of RF probes
• Smooth glide micrometer
controls for accurate probe
placement
• Best probe-to-probe separation
• Multi position RF cable clamp
and o ffset probe mounting arm
for optimized RF cable
connection
• Micrometer set planarity ad justment
• Industry standard RF probe mount
Specifications
• Feature resolution: <1 μm (0.04 mils)
• Travel range:
– X/Y: 25 mm (1 in),
– Z: 10 mm (0.4 in) (z-axis control: cw=down, ccw=up)
• Micrometer set planarity ad just: ±5°
• Micrometer screws: 500μm pitch (50 TPI)
• 2-port probe tip separation
– With TopHat: 40 mm (1.6 in)
– Without TopHat: 93 mm (3.7 in)
• Mount: bolt-down
• Footprint (W x D): 1 24 x 124 mm (4.9 x 4.9 in)
Configurations
• Use on platen right/left location as East/West positioner (4-port)
• Use on platen top/bottom loca tion as North/South positioners
(4-port)
Compatibility
• CM300xi with top chambers
Ordering Information
• RPP305-NS-CMC-AI
• RPP305-EW-CMC-AI
RPP305-EW/NS-HT-AI
Features
• Use d for high-performance
RF, multi-contact/mixed signal
probing, high-performance
wafer-level reliability probing,
and single-ended broadband/
mm-Wave, THz, s ource/load-
pull, RF noise probing
• Used with Infinity / ACP / |Z| Probe / T-Wave high performance RF
probes
• Precision 4-axis probe positioner for RF/microwave probes
• High temperature stability
• Recommended for testing at high temperatures or multiple
temperatures
• Optimized for CM300xi station platform
• Ultra rigid design for best probe placement
• New one-click positioner quick release control enables fast s etup
and e ffortless gross positioning of RF probes
• Smooth glide micrometer controls for accurate probe placement
• Best probe-to-probe separation
• Multi position RF cable clamp and offset probe mounting arm for
optimized RF cable connection
• Micrometer set planarity adjustment
• EMI grounding strap
• Industry standard RF probe mount
Specifications
• Feature resolution: <1 μm (0.04 mils)
• Travel range:
– X/Y: 25 mm (1 in),
– Z: 10 mm (0.4 in) (z-axis control: cw=down, ccw=up)
• Micrometer set planarity adjust: ±5°
• Micrometer screws: 500μm pitch (50 TPI)
• 2-port probe tip separation
– With TopHat: 40 mm (1.6 in)
– Without TopHat: 93 mm (3.7 in)
• Mount: bolt-down
• Footprint (W x D): 124 x 124 mm (4 .9 x 4.9 in)
• Use on platen right/left location as East/West positioner (4-port)
• Use on platen top/bottom location as North/South positioners
(4-port)
Compatibility
• CM300xi with Top Ha t, Elite 300
Ordering Information
• RPP305-EW-HT-AI
• RPP305-NS-HT-AI
North-South
PN 141-400 www.formfactor.com Positioners and Positioner Accessories • 75
Revision 57, February, 2023 Probe Station Accessories

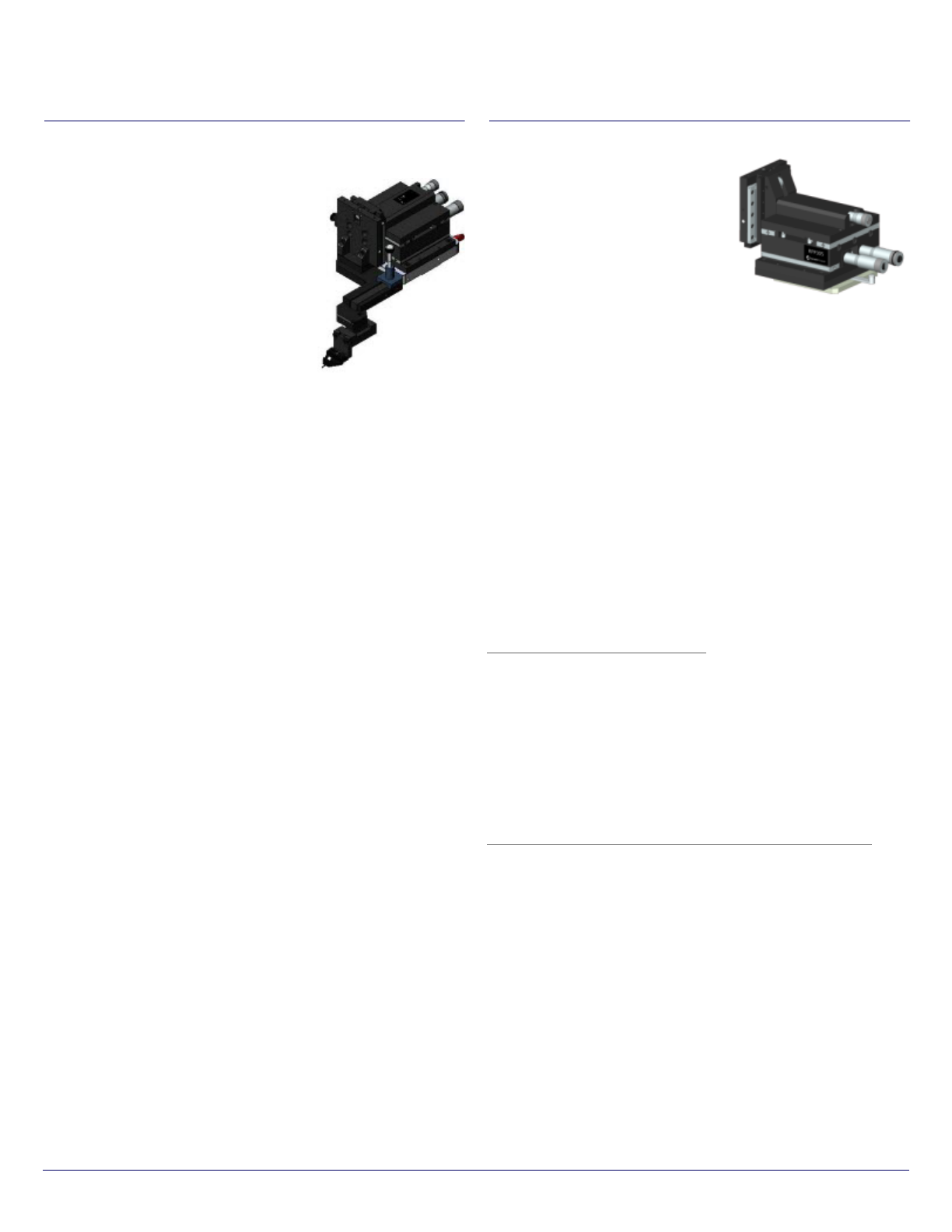

RPP305-EWM-CMC- AI — High Performance RF Probe
Positioner 50 TPI Bolt Down East-West or Mirrored
Features
• Use d for high-performance RF, multi-
contact/mixed signal probing, high-
performance wafer-level reliability
probing, and single-ended broadband/
mm-Wave, THz, s ource/load-pull, RF
noise probing
• Use d with Infinity / ACP / |Z| Probe / T-
Wave h igh performance RF probes
• Precision 4 axis probe positioner for RF/
microwave probes
• Optimized for CM300xi station platform
• Ultra rigid design for best probe placement
• New one-click positioner quick release control allows fast setup
and e ffortless gross positioning of RF probes
• Smooth glide micrometer controls for accurate probe placement
• Best probe-to-probe separation
• Multi position RF cable clamp and offset probe mounting arm for
optimized RF cable connection
• Micrometer set planarity ad justment
• Industry standard RF probe mount
Specifications
• Feature resolution: <1 μm (0.04 mils)
• Travel range:
– X/Y: 25 mm (1 in),
– Z: 10 mm (0.4 in) (z-axis control: cw=down, ccw=up)
• Micrometer screws: 500μm pitch (50 TPI)
• Micrometer set planarity ad just: ±5°
• 2-port probe tip separation
– With TopHat: 40 mm (1.6 in)
– Without TopHat: 93 mm (3.7 in)
• Mount: bolt-down
• Footprint (W x D): 1 24 x 124 mm (4.9 x 4.9 in)
Configurations
• Use on platen right/left location as East/West positioner (4-port)
Compatibility
• CM300xi with top chambers
Ordering Information
• RPP305-EWM-CMC-AI
RPP305-M/V/B-S
Features
• Used for high-performance RF,
multi-contact/mixed signal probing,
high-performance wafer-level
reliability probing, and single-ended
broadband/ mm-Wave, THz, sou rce/
load-pull, RF noise probing
• Used with Infinity / ACP / |Z| Probe /
T-Wave high performance RF probes
• Precision 4 axis pr obe positioner for RF/microwave probes
• 3 linear axes with precision ball bea rings
• For adaptation of HF probes
• Bolt down, mag netic, or vacuum fixation to HF platen
Specifications
• Feature resolution: <1 μm (0.04 mils)
• Travel range:
– X/Y: 25 mm (1 in),
– Z: 10 mm (0.4 in) (z-axis control: cw=down, ccw=up)
• Micrometer set planarity adjust: ±5°
• Mount: magnetic, vacuum, bolt-down
• Footprint (W x D): 124 x 124 mm (4 .9 x 4.9 in)
Compatibility
Ordering Information
Platforms + RF Arms
PM8
PM300
PM300PS
PA200
PA200 BlueRay
PA300
PA300-MA
EPS150
MPS150
Standard
(z-axis: cw=down, ccw=up)
Legacy
(z-axis: cw=u p, ccw=down)
RPP305-M-S 100382+131808
RPP305-V-S 100382+112953
RPP305-B-S 100382
