PN 141-400 www.formfactor.com Positioners and Positioner Accessories • 76
Revision 57, February, 2023 Probe Station Accessories

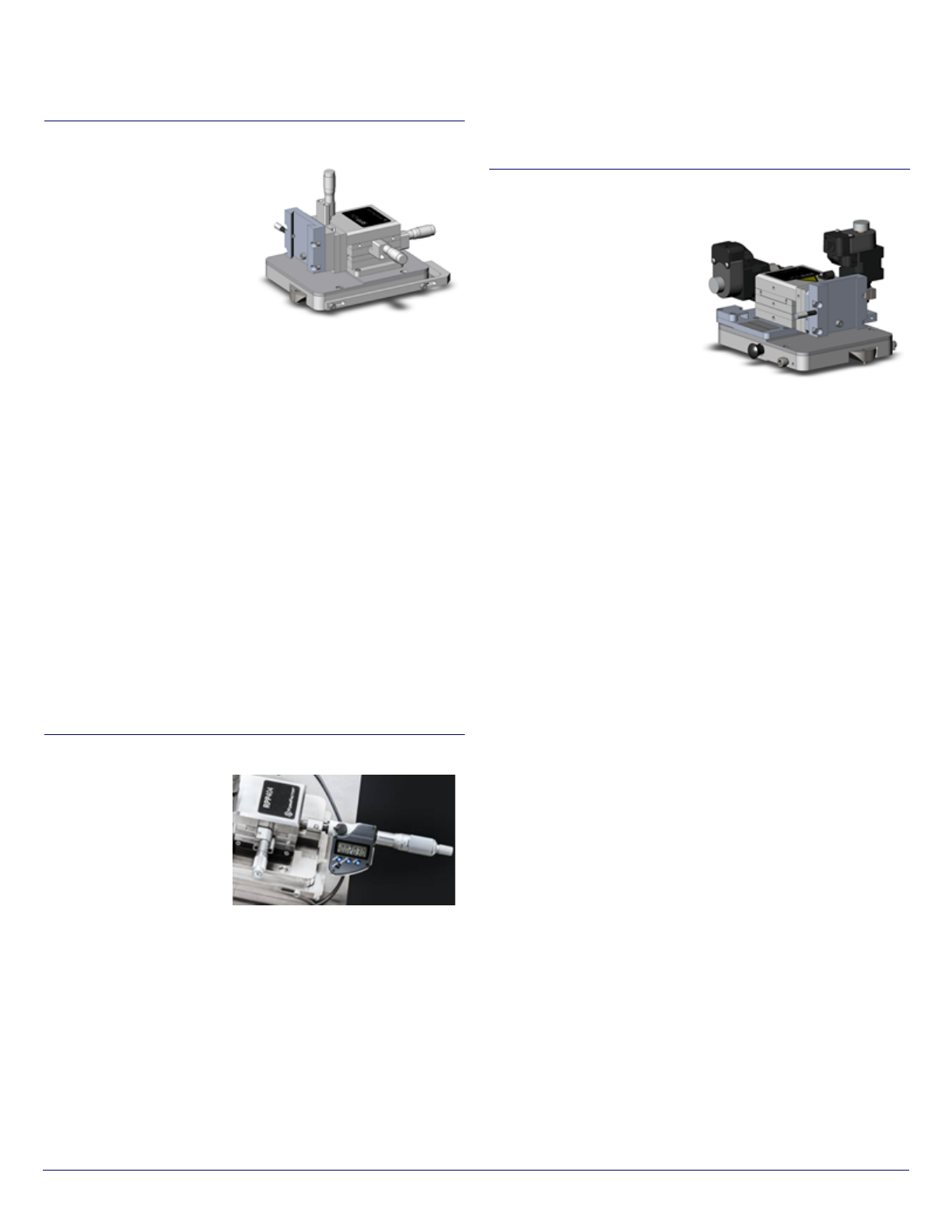

RPP404 / RPP404-W
Features
• Use d for high-performance
RF, multi-contact/mixed signal
probing, high-performance
wafer-level reliability probing,
and single-ended broadband/
mm-Wave, THz, s ource/load-
pull, RF noise probing
• Use d with Infinity / ACP / |Z|
Probe / T-Wave high performance RF probes
• Version for East and West
Specifications
• Compatible with RFA probe arms
• Feature resolution: <1 μm (0.04 mils)
• Travel range: 12 mm (0.47 in) in X, Y, and Z (z-axis control:
cw=down, ccw=up)
• Micrometer screws: 1000 μm ( 39.4 mils) pitch (25 TPI)
• Mount: bolt-down (large base)
• Footprint (WxD): 124 x 149.5 mm (4.9 x 5.9 in)
Configuration
• Use adapter (174-889) for mounting to Summit 11 000/12000
stations
• Use adapter (174-973) for mounting to EPS stations
Compatibility
• CM300xi, SUMMIT200, Elite
• EPS15 0, EPS200, Summit 11 000/12000 with d edicated ada pter
191-446 — Micrometer Screw for RPP404 X-axis
Features
• Digital micrometer screw
for RPP404 X- axis to
support precise multiline
TRL calibrations
• Replaces the manual X-
axis micrometer with a
micrometer with digital
LCD readout
• For RPP404 and RPP304 positioners
• Preset, inch/mm conversion
Specifications
• Res olution: 0.001mm (.00005 in)
• Repeatability: < +/- 0.6 µm (0.24 mils)
• Accuracy: < +/- 1 µm (0.04 mils) (within +/- 2 mm travel range)
Compatibility
• For RPP404 and RPP304 positioners
• Can be mounted on all axes
RPP504
Features
• Used for autonomous RF,
multi-contact/mixed signal
probing, high-performance
wafer-level reliability probing,
and single-ended broadband/
mm-Wave, THz, source/load-
pull, RF noise probing
• Used with Infinity / ACP / |Z|
Probe / T-Wave high
performance RF probes
• Universal version for East and West
Specifications
• Compatible with RFA probe arms
• Feature resolution: <1 μm (0.04 mils)
• Travel range: 12 mm (0.47 in) in X, Y, and Z (z-axis control:
cw=down, ccw=up)
• Minimum step size 0.3 µm / 0.1 µm resol ution
• Mount: bolt-down (large base)
• Footprint (WxD): 124 x 149.5 mm (4.9 x 5.9 in)
Configuration
• Requires MPX controller (178-511 for up to 4 positioners, 181 -170
for up to 2 positioners, 183-111 for single positioner)
• Requires station adapter kit (178-517 for CM300xi, 183-825 for
SUMMIT200, 178-920 for EPS)
• For use with ECX box on 12KB/E300, one interface 174-544 per
positioner required
• Use adapter (174-973) for mounting to EPS stations
• Use adapter (174-889) for mounting to Summit 11000/12000
stations
Compatibility
• CM300xi, SUMMIT200, El ite
• EPS150, EPS200, Summi t 11000/12000 with dedicated adapter
PN 141-400 www.formfactor.com Positioners and Positioner Accessories • 77
Revision 57, February, 2023 Probe Station Accessories

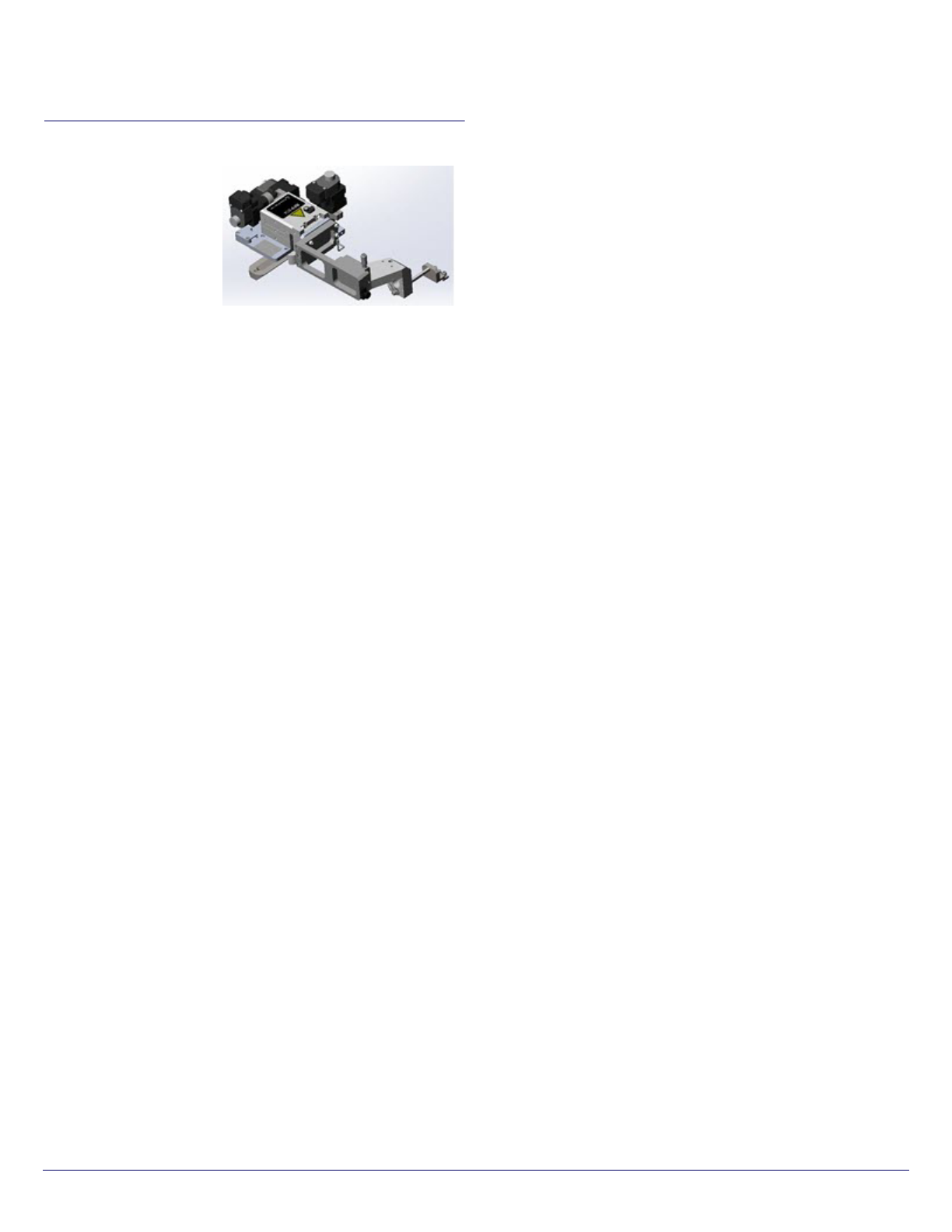

RPP504-NS-67
Features
• Use d for autonomous
RF probing up to 67
GHz
• Use d with Infinity / ACP
/ |Z| Probe / T-Wave
high performance RF
probes
• Version for North and
South
Specifications
• Feature resolution: <1 μm (0.04 mils)
• Travel range: 12 mm (0.47 in) in X, Y, and Z (z-axis control:
cw=down, ccw=up)
• Minimum step size 0.3 µm / 0.1 µm resolution
• Mount: bolt-down (large base)
• Footprint (WxD): 124 x 149.5 mm (4.9 x 5.9 in)
Configuration
• Requires MPX controller (178-511 for up to 4 positioners, 181-170
for up t o 2 positioners, 1 83-111 for single positioner)
• Requires station adapter kit (178-517 for CM300xi, 183-825 for
SUMMIT200, 178 -920 for EPS)
• For use with ECX box on 12KB/E300, one interface 174-544 per
positioner required
• Use adapter (174-973) for mounting to EPS stations
• Use adapter (174-889) for mounting to Summit 11 000/12000
stations
Compatibility
• CM300xi, SUMMIT200, Elite
• EPS15 0, EPS200, Summit 11 000/12000 with d edicated ada pter
PN 141-400 www.formfactor.com Positioners and Positioner Accessories • 78
Revision 57, February, 2023 Probe Station Accessories
RF and Microwave Cables

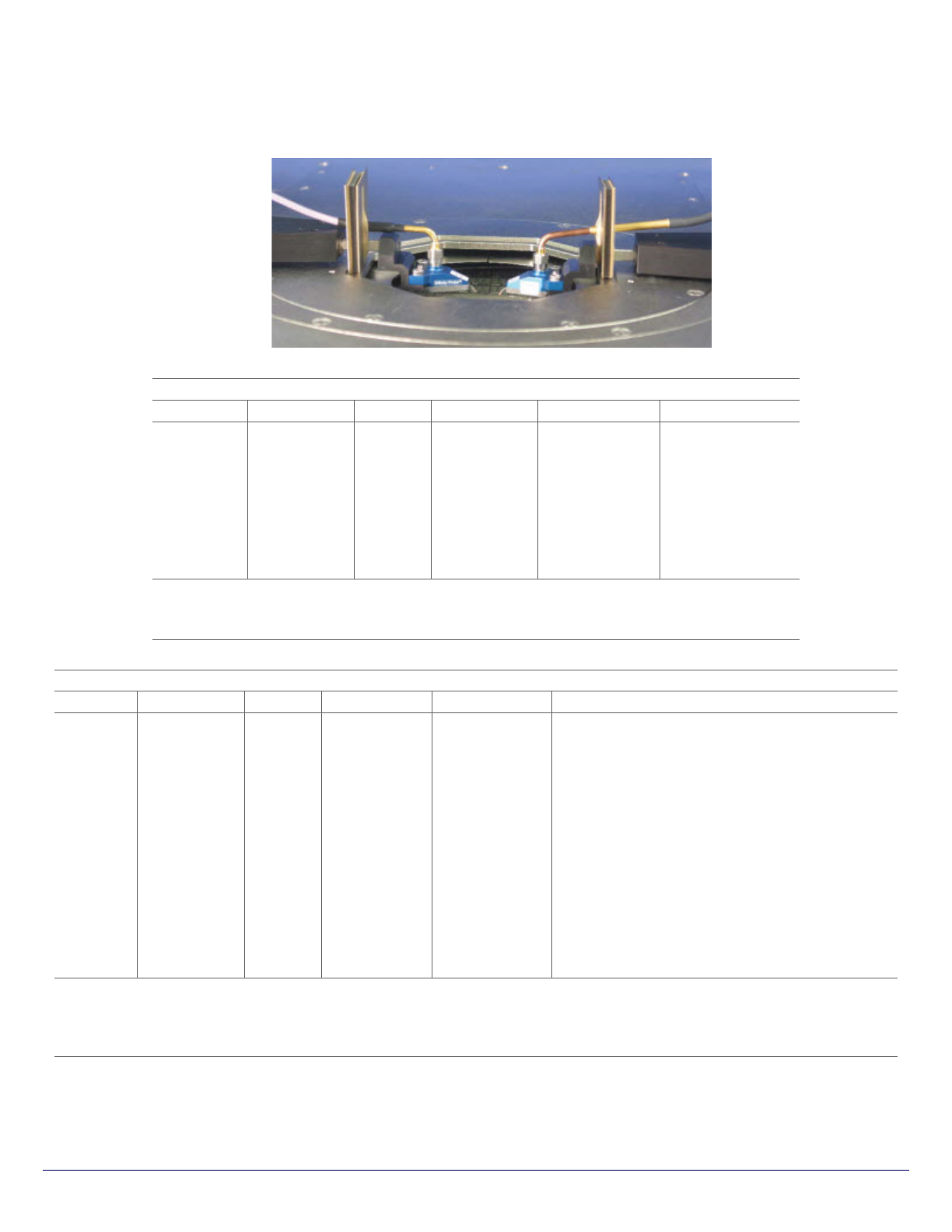

Infinity probe shown with TopHat
incompatible cable (left)
Infinity probe with Top Hat
compatible cable (right) .
An extended ferrule shorts
the coax shield to the EMI
gasketed TopHat for local
ground reference.
Cables for unshielded environments
GORE P/N Junkosha P/ N Freq Style Length Probe station
101-162-B
‡
180-801 40 GHz vertical probe ~120 cm (48 in) EPS with SlimVue
103-202-B
†
180-805 50 GHz vertical probe ~120 cm (48 in) EPS with SlimVue
124-084-B 180-800 40 GHz angled probe ~120 cm (48 in) EPS with SMZ168
124-085-B 180-804 50 GHz angled probe ~120 cm (48 in) EPS with SMZ168
124-605-B
†
180-809 67 GHz vertical probe ~90 cm (3 6 in) EPS with SlimVue*
124-606-B 180-808 67 GHz angled probe ~90 cm (36 in) EPS with SMZ168*
132-458 180-812 110 GHz angled probe 18 cm (7.1 in) EPS with SlimVue*
* Rear mounted instrument rack recommended.
†
Item on limited supply. If possible, convert to alternative from Junkosha.
‡ Item is obsolete, listed for reference only.
Cables for shielded environments with TopHat
GORE P/N Junkosha P/N Freq Style Length Probe station
132-420
‡
180-803 40 GHz vertical probe ~120 cm (48 in)
CM300, Elite, SUMMIT200, Summit 11000/12000
132-421
†
180-807 50 GHz vertical probe ~120 cm (48 in)
CM300, Elite, SUMMIT200, Summit 11000/12000
132-422
†
180-811 67 GHz vertical probe ~90 cm (36 in)
CM300, Elite, SUMMIT200, Summit 11000/12000*
132-423
†
180-802 40 GHz angled probe ~120 cm (48 in)
CM300, Elite, SUMMIT200, Summit 11000/12000
132-424
†
180-806 50 GHz angled probe ~120 cm (48 in)
CM300, Elite, SUMMIT200, Summit 11000/12000
132-425‡ 180-810 67 GHz angled probe ~90 cm (36 in)
CM300, Elite, SUMMIT200, Summit 11000/12000*
132-458 180-812 110 GHz angled probe 18 cm (7.1 in)
Summit 11000/12000 single port*
147-316 180-813 110 GHz angled probe 24 cm (9.4 in)
CM300, Elite, Summit 110 00/12000*,**
178-383 — 110 GHz angled probe 10 cm (3.9 in)
EPS150, EPS200, SUMMIT200, Elite, and CM300xi*
178-387 — 110 GHz angled probe 13 cm (5.1 in)
EPS150, EPS200, SUMMIT200, Elite, and CM300xi*
* Rear mounted instrument rack recommended.
** For Summit 11000/12000 multiport set-up.
†
Item on limited supply. If possible, convert to alternative from Junkosha.
‡ Item is o bsolete, listed for reference only.
