5 Front plate, star, Z axis and smoothed distributor disc 5.5 Replacing the Single Core Solution (SCS)[03054790Sxx] (only for heads fromFS05) 60 Service Manual SIPLACE Multistar (CPP / CPP M) 02/2018 Display Status Comm…
5 Front plate, star, Z axis and smoothed distributor disc
5.5 Replacing the Single Core Solution (SCS)[03054790Sxx] (only for heads fromFS05)
Service Manual SIPLACE Multistar (CPP / CPP M) 02/2018 59
Statuses of LED (RD) and LED (GN) [03054771-02]
Status LED RD Status LED GN Description
Flashing alternately with high frequency Download Z down sensor
Flashes OFF Application for Z down sensor missing (Bios act-
ive)
ON OFF Error in application 2, e.g. leff error
Flashes OFF Z down sensor not initialized
Flashes ON DP is referenced, but ACK error signaled from Z
down sensor
OFF OFF Z down sensor: no communication
OFF ON DP drive operation while positioning
OFF Flashes Z down sensor ready, but drive not referenced
Flashes rapidly OFF Reserved
OFF Flashes rapidly Reserve
NOTICE
No voltage
No voltage is present, when the statuses of LED RD, LED GN or the 7-segment display are
OFF.
7-segment display status H38 [03054771-02]
Display Status Comment
BIOS
0 Init
b Mapping
ERR1 IRAM HW error
ERR2 XRAM HW error
ERR3 CHKS HW error
ERR4 RAM HW error
| Baud rate recognition Waiting for telegram
b (flashes) . No application
|- (flashes) -| Waiting time prior to application access On SCS close to 0, due to
faster start-up
A Application has been started
Download
E Delete CAN download
Rotate segments Load CAN download
P Program CAN download
Application
0 Check FPGA and DSP codes
||| sequential Code errors FPGA or DSP Code missing or inconsistent
|| 2 sequential Error when initializing FPGA HW error while loading
8 Download machine data to APP2
. (flashing) Normal operation
A three-digit error num-
ber, sequential
Operating system error (OSE)
5 Front plate, star, Z axis and smoothed distributor disc
5.5 Replacing the Single Core Solution (SCS)[03054790Sxx] (only for heads fromFS05)
60 Service Manual SIPLACE Multistar (CPP / CPP M) 02/2018
Display Status Comment
081 Too may nodes User defined errors
082 Unknown GSM
083 Communication error
097 CAN ID existing
098 CAN ID already initialized
099 GSM initializing error
100 CAN ID too large
101 Wrong CAN ID
102 Wrong number of the sub-system
5.5.2 Control module for 12 DP drives [03054784‑xx]

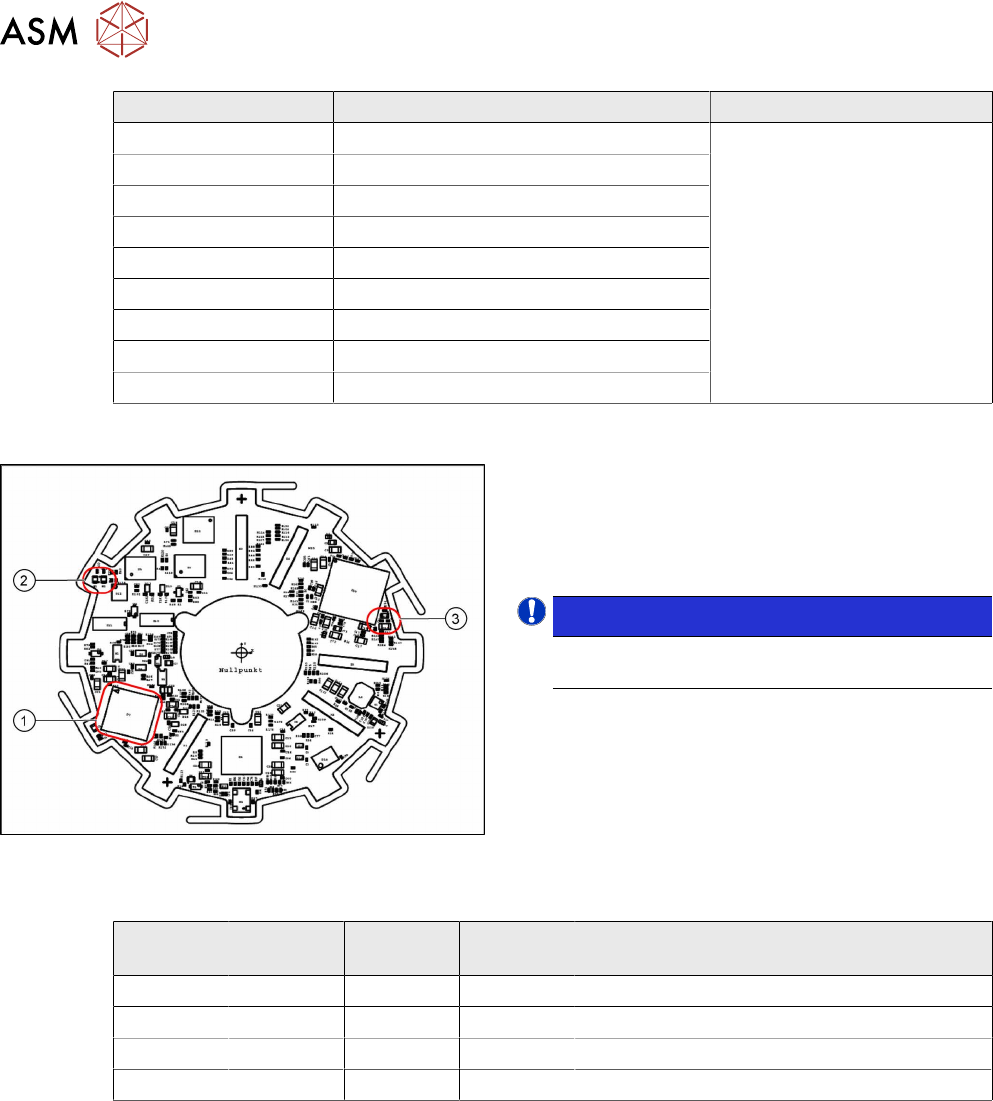

Fig.92: Board control module
Control module
1. 16-bit processor
2. H1 and H2
3. H3
NOTICE!
The status LEDs are not visible, as the control
module is located behind the power module!
.
LED [03054784-02]
LED Color Status Signal
name
Description
H1 RD - _RSTOUT Not assembled
H2 GN Flashes _RSTOUT Function display, application 1 (µController)
H3 GN Flashes N7 FPGA function display
H4 GN Flashes M14 Function display, application 2 (DSP)
5 Front plate, star, Z axis and smoothed distributor disc
5.5 Replacing the Single Core Solution (SCS)[03054790Sxx] (only for heads fromFS05)
Service Manual SIPLACE Multistar (CPP / CPP M) 02/2018 61
5.5.3 Troubleshooting
Error messages SCS
State LED
red
LED
lamp
green
7-seg. Comment Possible
troubleshooting
solutions
De-energized OFF OFF 8 LEDs and 7-segment
display off
---
Download ZDS Flashes Flashes Red-flashes; green-
flashes alternately at high
frequency
No error
Download SCS (see 7-seg. display) ---
Waiting for baud rate
detection
(baud rate has not
been detected yet)
(see 7-seg. display) ---
Error during baud
rate detection
(see 7-seg. display) ---
CAN error (error
frames)
(see 7-seg. display) ---
SCS application is
missing (BIOS active)
(see 7-seg. display) ---
ZDS application is
missing (BIOS active)
Flashes OFF Red-flashing; green-off Load ZDS
application
Visualization node
number
Not applicable – can be
read on SCS-PCB printed
---
Error in application 2
- error drive, e.g. Ieff
error
ON OFF Red-on; green-off Replace drive if
this occurs multiple
times
Z down sensor not
initialized
Flashes OFF Red-flashing; green-off Memory loss
→ replace the
drive
DP is referenced but
Ack error reported by
ZDS (1).
Flashes ON Red-flashing; green-on Encoder error
→ replace drive
Z down sensor - no
communication
OFF OFF Red-off; green-off Replace the drive
DP drive operation at
positioning
OFF ON Red-off; green-on -> the
drive is in position regula-
tion.
DP _drive OK
DP drive operation at
positioning
OFF OFF Red-off; green-off -> The
drive is currently perform-
ing a task
(no end message).
No error
ZDS is ready for op-
eration, but the drive
has not been refer-
enced
OFF Flashes Red-flashing; green-
flashing
No error
Reserve Flashes OFF Red-flashing; green-off
(rapid)
---
Reserve OFF Flashes red-off; green-flashing
(rapid)
---
