5 Front plate, star, Z axis and smoothed distributor disc 5.1 Replacing the front plate [03061102-xx] 36 Service Manual SIPLACE Multistar (CPP / CPP M) 02/2018 Fig.35: Disconnecting the hose from the PRV ► Unplug the ho…
5 Front plate, star, Z axis and smoothed distributor disc
5.1 Replacing the front plate [03061102-xx]
Service Manual SIPLACE Multistar (CPP / CPP M) 02/2018 35
5 Front plate, star, Z axis and smoothed
distributor disc
5.1 Replacing the front plate [03061102-xx]
Parts, equipment and tools
●
Front plate with Z drive assembly CPP [03061102-xx]
Overview
Fig.34: Front plate
1. Front plate
2. Return cylinder
3. Z axis with jaws and measuring system
4. Raceway
5. Fixture for pressure control valve
Preparation
► Remove the head from the machine. For details about removing and fitting the placement
head, refer to the service manual for your machine.
fit the head on the head mount [03056231‑xx].
► Make sure that the component sensor protective cap is fitted.
1.1.3 "Protecting the component sensor" [}8]
Removal
CAUTION
Do not dismantle any attachments
Do not dismantle any of the attachments from the front plate, as all attachments are co-
ordinated with one another and require special settings.
5 Front plate, star, Z axis and smoothed distributor disc
5.1 Replacing the front plate [03061102-xx]
36 Service Manual SIPLACE Multistar (CPP / CPP M) 02/2018

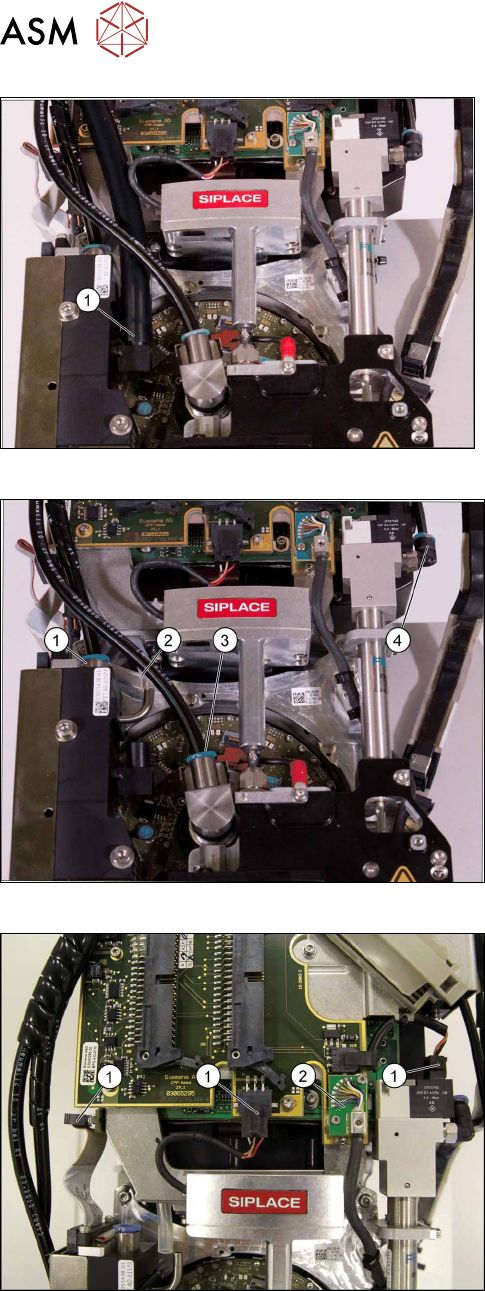

Fig.35: Disconnecting the hose from the PRV
► Unplug the hose from the pressure control valve
(1).
Fig.36: Disconnecting the air hoses
► Unplug the air hoses (1), (2), (3) and (4). You
might like to mark their positions to make clear
assignment easier later on.
Fig.37: Unplug the connector
► Unplug the connectors (1). You might like to mark
their positions to make clear assignment easier
later on.
► Remove the screws from the press-fit connec-
tion(2)and unplug the connector.
5 Front plate, star, Z axis and smoothed distributor disc
5.1 Replacing the front plate [03061102-xx]
Service Manual SIPLACE Multistar (CPP / CPP M) 02/2018 37

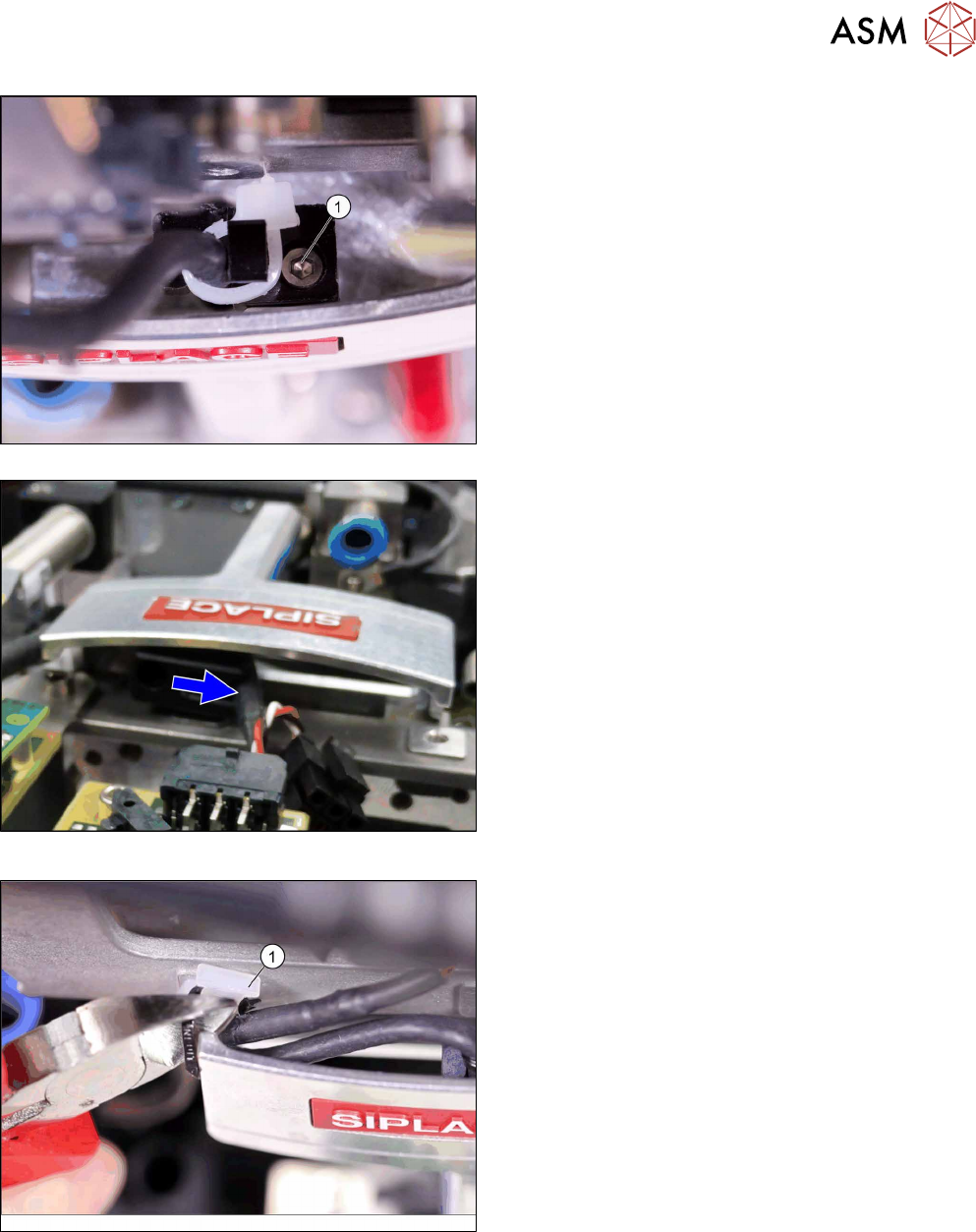

Fig.38: Version with screw
Fig.39: Version without screw
► Version with screw: Remove the screw (1)
fastening the cable.
► Version without screw: Press the cable out of
the clamp.
Fig.40: Removing the cable ties
Version with screw only:
► Cut the cable tie(1) (if present).
