5.7 Replacing the energy transmission for the stator [03068842‑xx] (only for heads fromFS05)
68 Service Manual SIPLACE Multistar (CPP / CPP M) 02/2018
Installation

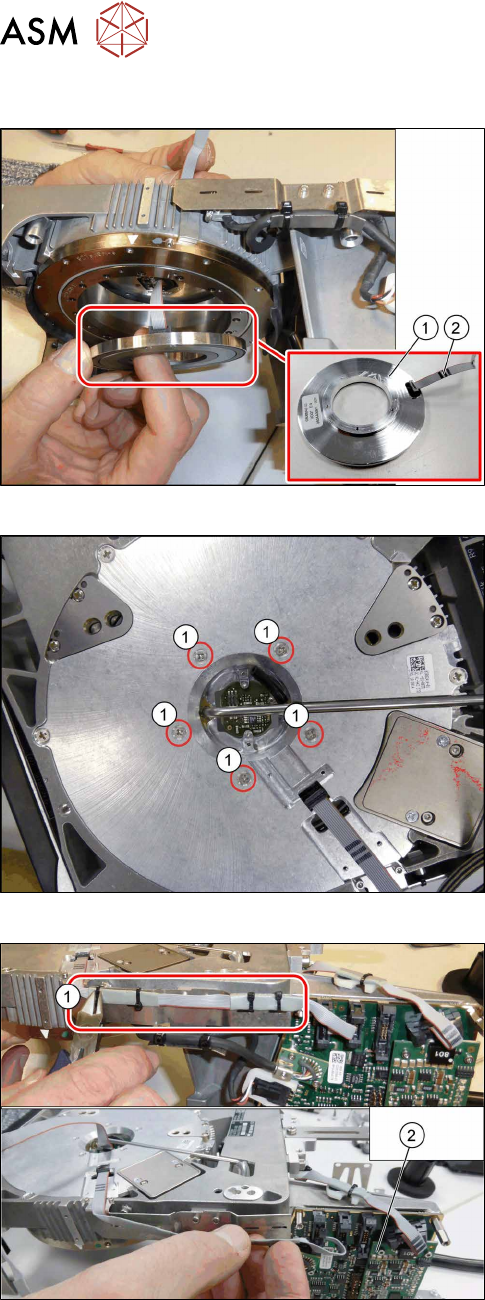

Fig.105: Inserting the energy transmission stator
► Connect the cable(2) to the "energy transmission
stator"(1).
► Carefully fit the "energy transmission for stator"
into the head, together with the cable.
Carefully pull the cable through the opening at
the back of the head.
Fig.106: Fastening screws for energy transmission stator
► Fasten the "energy transmission stator" hand-
tight with five screws(1).
Fig.107: Cables and cable ties
► Run the cables up to the intermediate distributor
2(2) and connect these.
► Fasten the cables with cable ties (1).
5 Front plate, star, Z axis and smoothed distributor disc
5.7 Replacing the energy transmission for the stator [03068842‑xx] (only for heads fromFS05)
Service Manual SIPLACE Multistar (CPP / CPP M) 02/2018 69

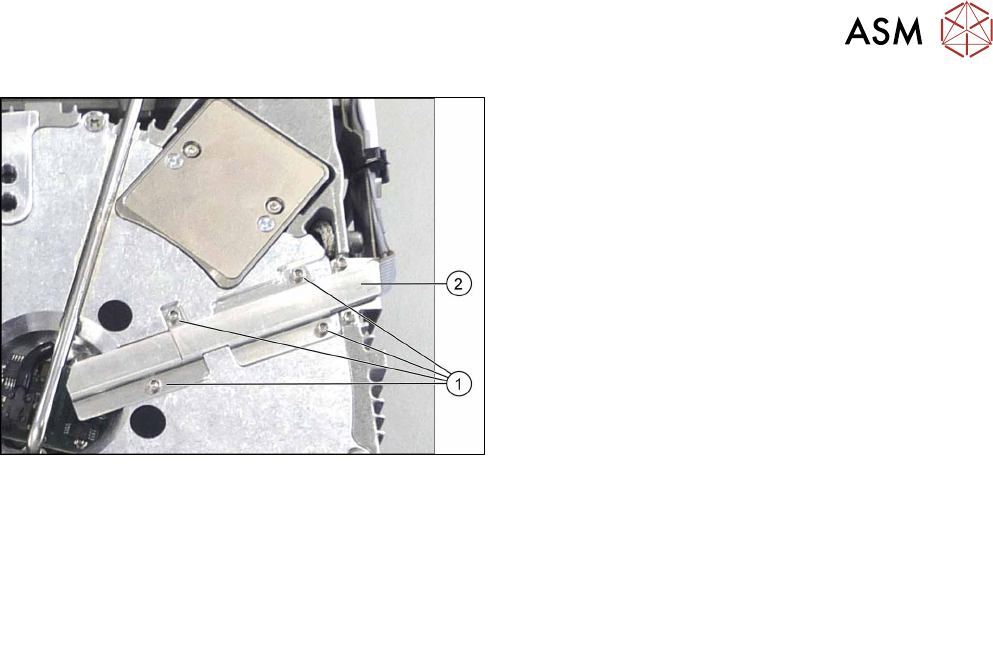

Fig.108: Cover and cable ties
► Fix the cover(2) into place with four fastening
screws(1).
► Follow the removal instructions in reverse order for further installation.
Also observe the installation instructions in the following sections:
5.3 "Replacing the smoothed distributor disc [03055431-xx]" [}47]
5.2 "Removing and fitting the star (only for heads from FS05 upwards)" [}43]
5.1 "Replacing the front plate [03061102-xx]" [}35]
► Observe in particular the torques specified!
