Page SAMSUNG TECHWIN 92 SM421 X-Y Frame Ass’y (2/5) 3 7 1 11 5 9 10 2 8 6 4
Page
SAMSUNG TECHWIN
91
SM421
X-Y Frame Ass’y (1/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A-1 J90541020A X-Y_ASSY J90541020A 1
1 J7054256A CUSHION BRACKET Y[J7054256A] 1
2 J7354024A CABLE CUSHION Y[J7354024A] 1
3 J3212022A LIMIT SENSOR [EE-SX674] 3
4 J7354023A CABLE CUSHION X[J7354023A] 3
5 J71541083B GUIDE_CABLE_CHAIN_X 1
6 FC11-000005A Y2_PLATE 1 J71541082B
7 J71541081A Y1_PLATE 1 J71541081B
8 J7154268A HEAD_BASE 1 J71541020B
9 J7054255A CUSHION BRACKET X[J7054255A] 3
10 J70541129B SENSOR_DOG_Y 1
11 J70541116A COVER_Y_CABLE_DUCT_BRK J70541116A 1
12 FC09-001021A BKT_CABLE_CHAIN_Y J70541114A 1 J70541114A
13 J70541038A SENSOR_DOG_X J70541038A 2
14 J66070076A LM_GUIDE [SSR15X2W2UUC1+940LHY-II] 2 J66070076B
15 J72540016E INNER GUIDE-MAT 3
16 J71541086A HEAD_TOP_COVER J71541086A 1
Page
SAMSUNG TECHWIN
92
SM421

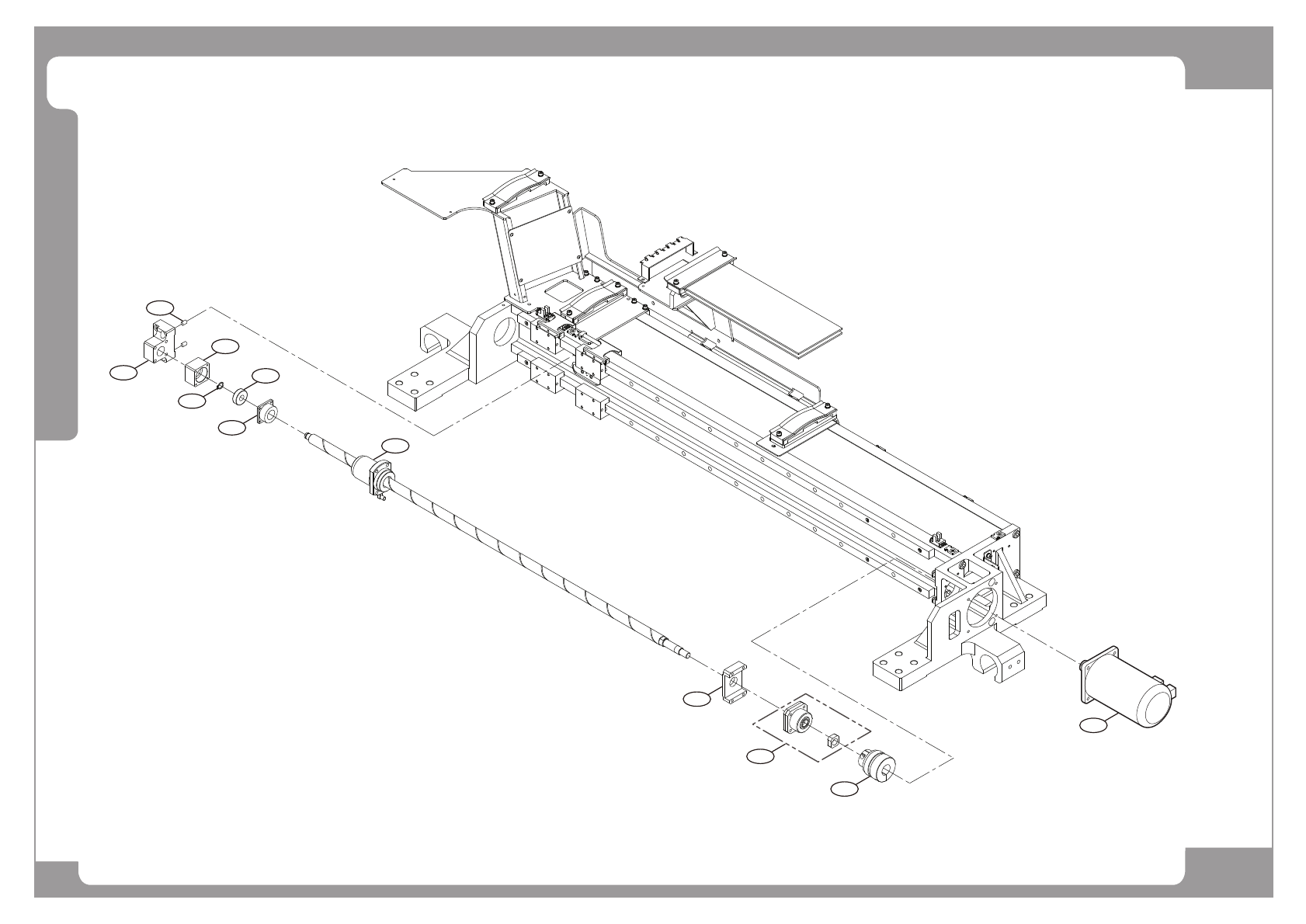

X-Y Frame Ass’y (2/5)
3
7
1
11
5
9
10
2
8
6
4
Page
SAMSUNG TECHWIN
93
SM421
X-Y Frame Ass’y (2/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J73541001A CUSHION_X_REAR J72541011A 1 J72541011A
2 J71541010A BRG_HOUSING-X J71541010A 1
3 J71541009A BRG_SUPPORT-X J71541009A 1
4 J66061014B X-BALL_SCREW HG1632QS-HEZR-0874*0801-C5F 1
5 J6601138A SUPPORT_UNIT FK12-MP5 1 J66011017A
6 J6601008A BALL BEARING 1 J1300509
7 J1300517 C-RING [10mm (SHAFT)] 1
8 J1300502 PIN DOWEL [MS5-10] 4
9 J6612035A COUPLING 1
10 J3108063A SERVO MOTOR[MSMA082P1A01] 1 J31081055A
11 J73541002A CUSHION_X_FRONT J72541003A 1 J72541003A
