Page SAMSUNG TECHWIN 97 SM421 X-Y Frame Ass’y (4/5) NO. P ART NO. P ART NAME Q'TY Old No. Stock Apply Reference 1 J7054 1 120C BS_REAR_SUPPOR T 1 2 J70541 1 19B BRG_SUPPORT_X 1 3 J70541 121B BRG_INNER_SP ACER 3 4 J7…

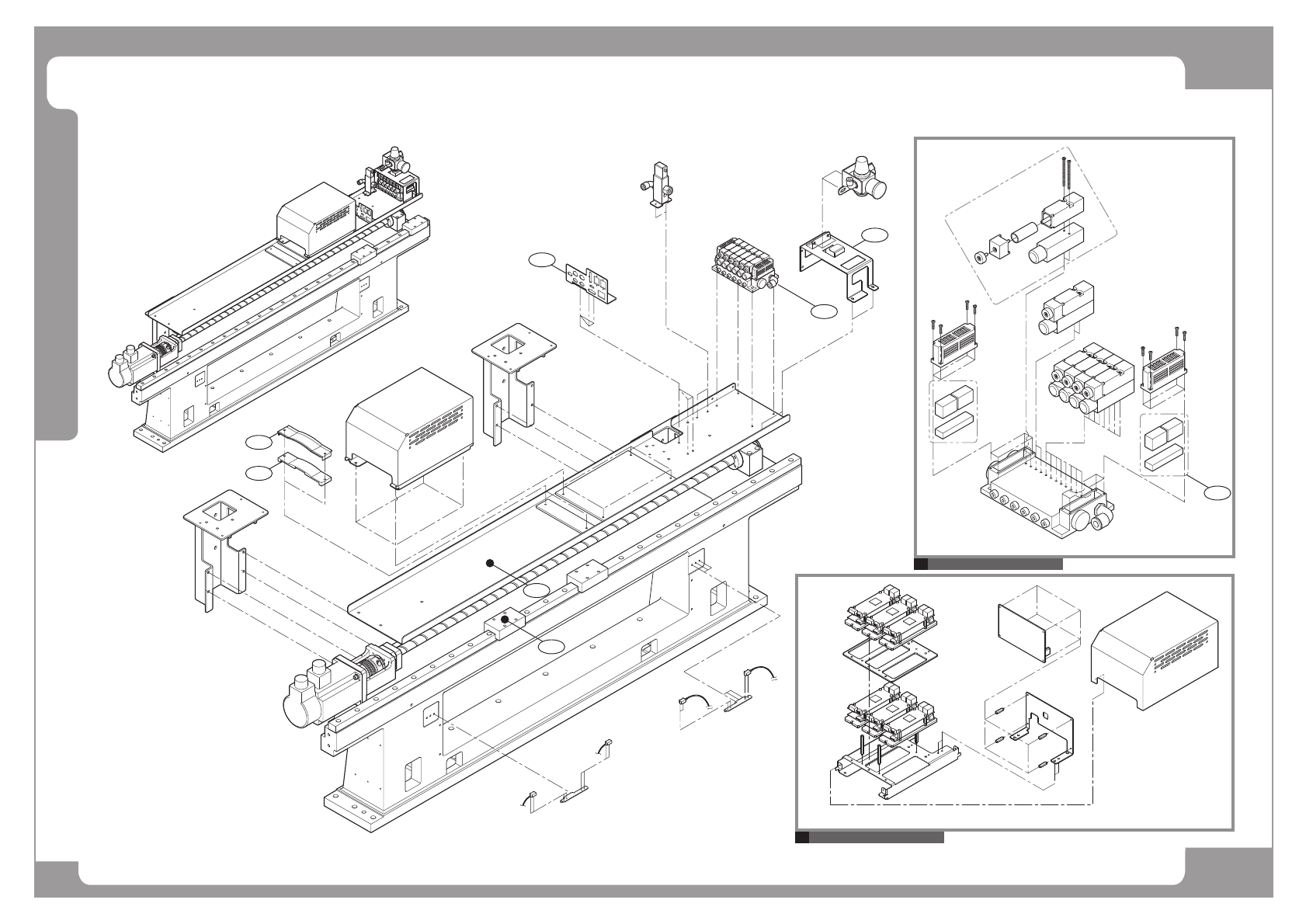

Page
SAMSUNG TECHWIN
96
SM421
X-Y Frame Ass’y (4/5)
17
16
15
14
14
13
11
10
5
7
4
1
2
6
3
7
8
9
12
Page
SAMSUNG TECHWIN
97
SM421
X-Y Frame Ass’y (4/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J70541120C BS_REAR_SUPPORT 1
2 J70541119B BRG_SUPPORT_X 1
3 J70541121B BRG_INNER_SPACER 3
4 J70541122B BRG_OUTER_SPACER 1
5 J70541123C BEARING_COVER_Y 1 J70541123B
6 J6608003A BEARING NUT[RN15] 1
7 J66011036A ANGULAR_CONTACT_BALL_BEARING 7002CTYNDBM 2
8 J72541012A STOPPER_Y_BALL_SCREW J72541012A 1
9 J72541006A STOPPER_Y_BALL_SCREW_FRONT J72541006A 1
10 J71541087B STOPPER_EXT_Y_BALL_SCREW 1
11 J70541005C Y_MOTOR_BLOCK 1
12 J66061021A BALL_SCREW SBK2030ZS-3.4GT+1230LC5 1
13 J6601124A SUPPORT UNIT[FK-15] 1
14 J70541115A COVER_BKT J70541115A 2
15 J6061601000 DOWEL PIN [MS6-10] 5
16 J6612036A COUPLING 2
17 J31081056A SERVO MOTOR[MSMA102P1C01] 2 J3108064A
Page
SAMSUNG TECHWIN
98
SM421
X-Y Frame Ass’y (5/5)
Vacuum Generator Ass'y3
Vacuum Generator Ass'y13
6
1
4
3
2
5
7
8
