Page
SAMSUNG TECHWIN
100
SM421

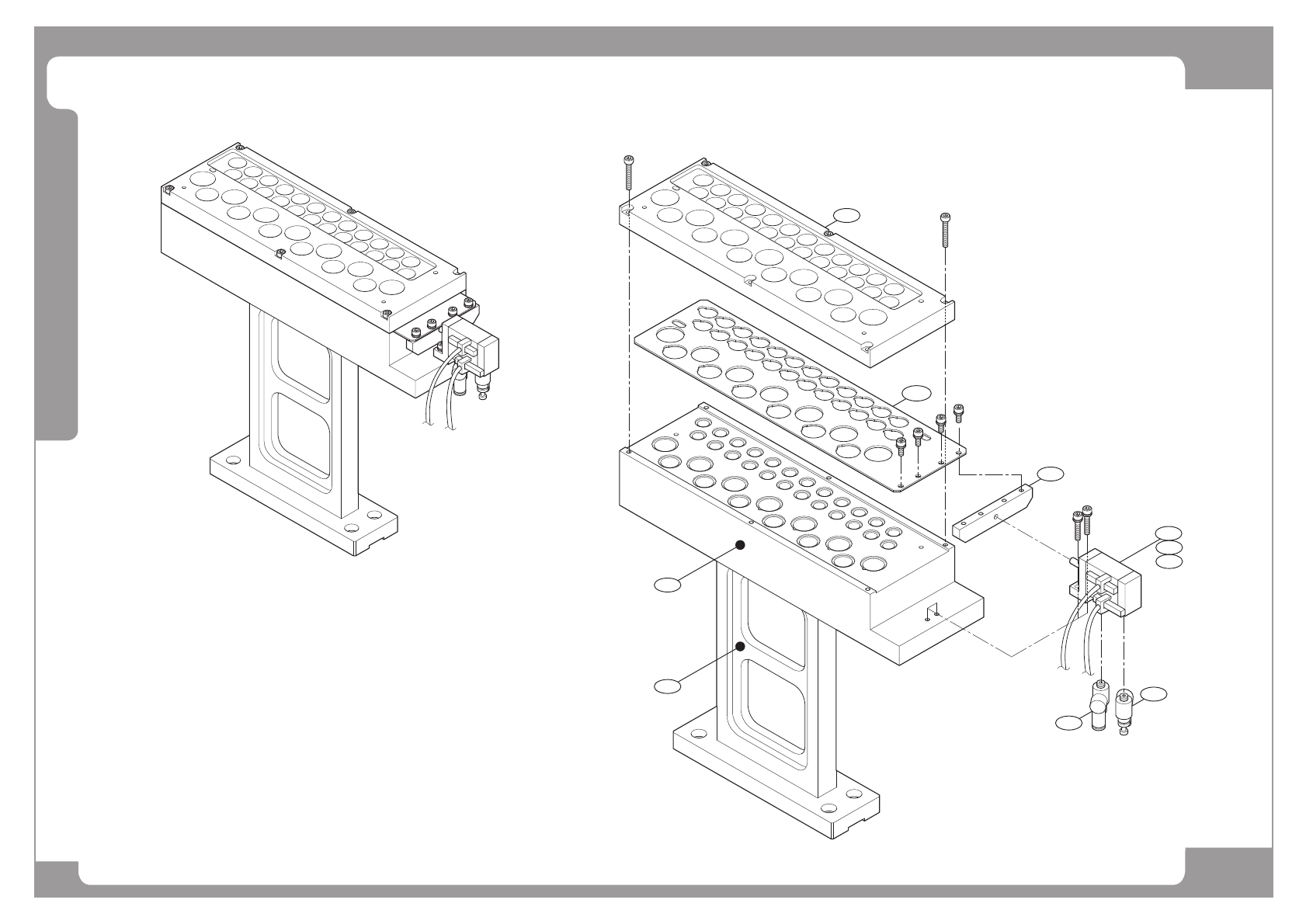

Fixed ANC Ass’y
1
4
1
5
6
2
3
7
8
9
Page
SAMSUNG TECHWIN
101
SM421
Fixed ANC Ass’y
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A-1 AM03-001536A ANC ASSY[J9056038A] 1 J9056038A
1 J6703028A SPEED CONTROLLER [SS4-M5MA] 2
2 J7156053B ANC SUPPORT [J7156053A] 1 J7156053A
3 J7156087A SHUTTER BRACKET[J7156087A] 1
4 J71561016A ANC PLATE 1 J7156093A
5 J71561036A NOZZLE_SHUTTER_SMALL_PIN J71561036A 1 J7156094A
6 J71550564F MAIN BODY[J7156095A] 1 J7156095A
7 J6701064A AIR CYLINDER[BDAS10*5-1A-ZC153A2] 1
8 J9080778B ANC SENSOR CABLE ASSY 1
Page
SAMSUNG TECHWIN
102
SM421
Window Ass’y
1
5
5
2
3
4
6
1
STOP
RESET
SELECT
FEEDER
CHANGE
START
READY
