Page SAMSUNG TECHWIN 102 SM421 W indow Ass’y 1 5 5 2 3 4 6 1 STOP RESET SELECT FEEDER CHANGE START READY
Page
SAMSUNG TECHWIN
101
SM421
Fixed ANC Ass’y
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A-1 AM03-001536A ANC ASSY[J9056038A] 1 J9056038A
1 J6703028A SPEED CONTROLLER [SS4-M5MA] 2
2 J7156053B ANC SUPPORT [J7156053A] 1 J7156053A
3 J7156087A SHUTTER BRACKET[J7156087A] 1
4 J71561016A ANC PLATE 1 J7156093A
5 J71561036A NOZZLE_SHUTTER_SMALL_PIN J71561036A 1 J7156094A
6 J71550564F MAIN BODY[J7156095A] 1 J7156095A
7 J6701064A AIR CYLINDER[BDAS10*5-1A-ZC153A2] 1
8 J9080778B ANC SENSOR CABLE ASSY 1
Page
SAMSUNG TECHWIN
102
SM421

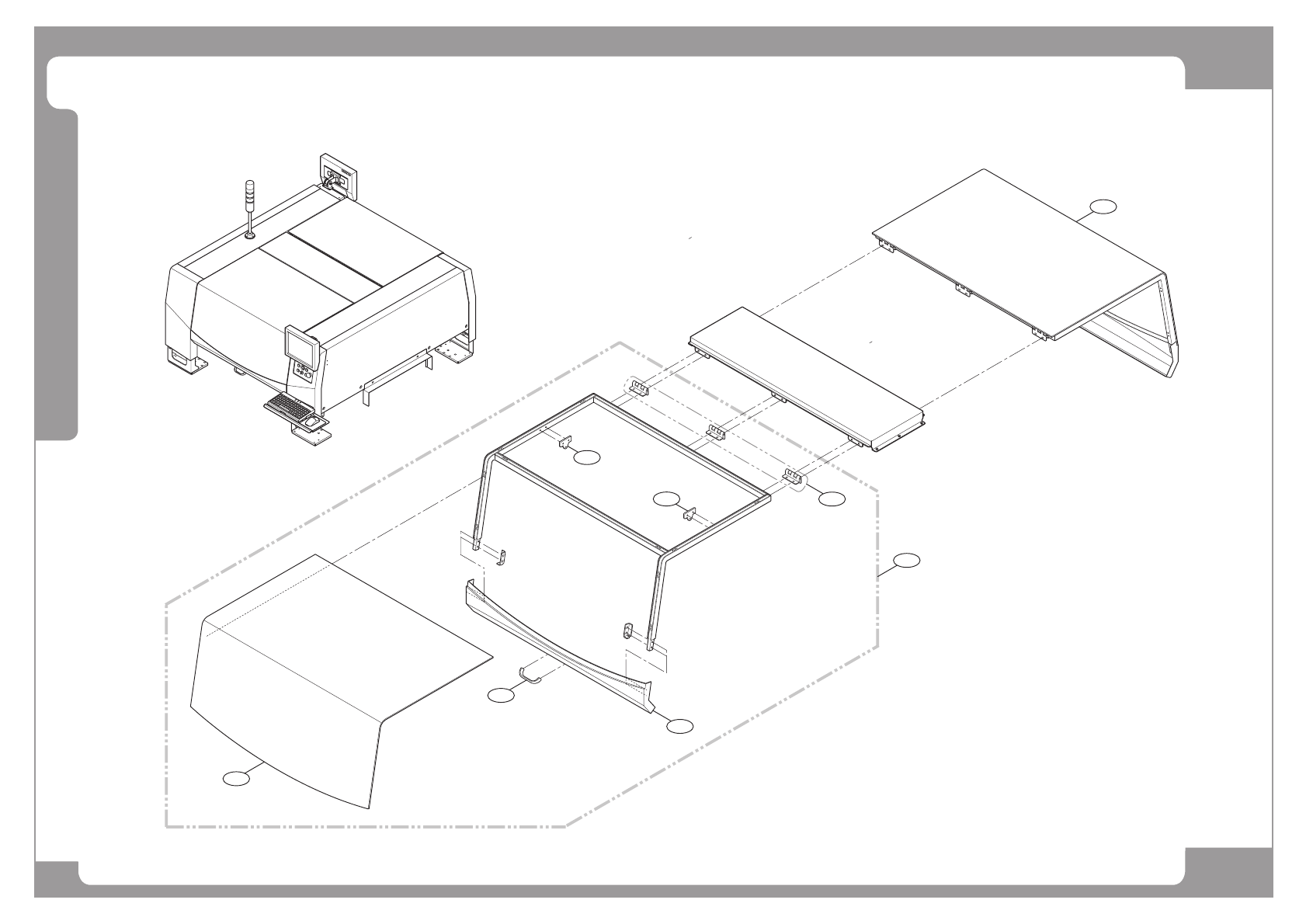

Window Ass’y
1
5
5
2
3
4
6
1
STOP
RESET
SELECT
FEEDER
CHANGE
START
READY
Page
SAMSUNG TECHWIN
103
SM421
Window Ass’y
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A-1 J90521018A ACRYL_DOOR_ASSY_STD J90521018A 1
1 J90521002B ACRYL_DOOR_ASSY 2
2 J72521005B ACRYL_COVER J72521005A 1
3 J70521087A WINDOW_HINGE J70521087A 3
4 J70521050D ACRYL_COVER_HANDLE 1 J70521050C
5 J70521081B GAS_SPRING_BRACKET2 2
6 J64021035A HANDLE A-2 1 J6119051A
A-2 J90521019A ACRYL_DOOR_ASSY_ESD J90521019A 1
