Page SAMSUNG TECHWIN 105 SM421 C over Ass’y (1/3) NO. P ART NO. P ART NAME Q'TY Old No. Stock Apply Reference A-1 J9052103 2A COVER_ASSY -SM421 J90521032A 1 1 J70521026F UPPER_COVER_FR 2 2 J91651041A COVER FRAME TOP…
Page
SAMSUNG TECHWIN
104
SM421

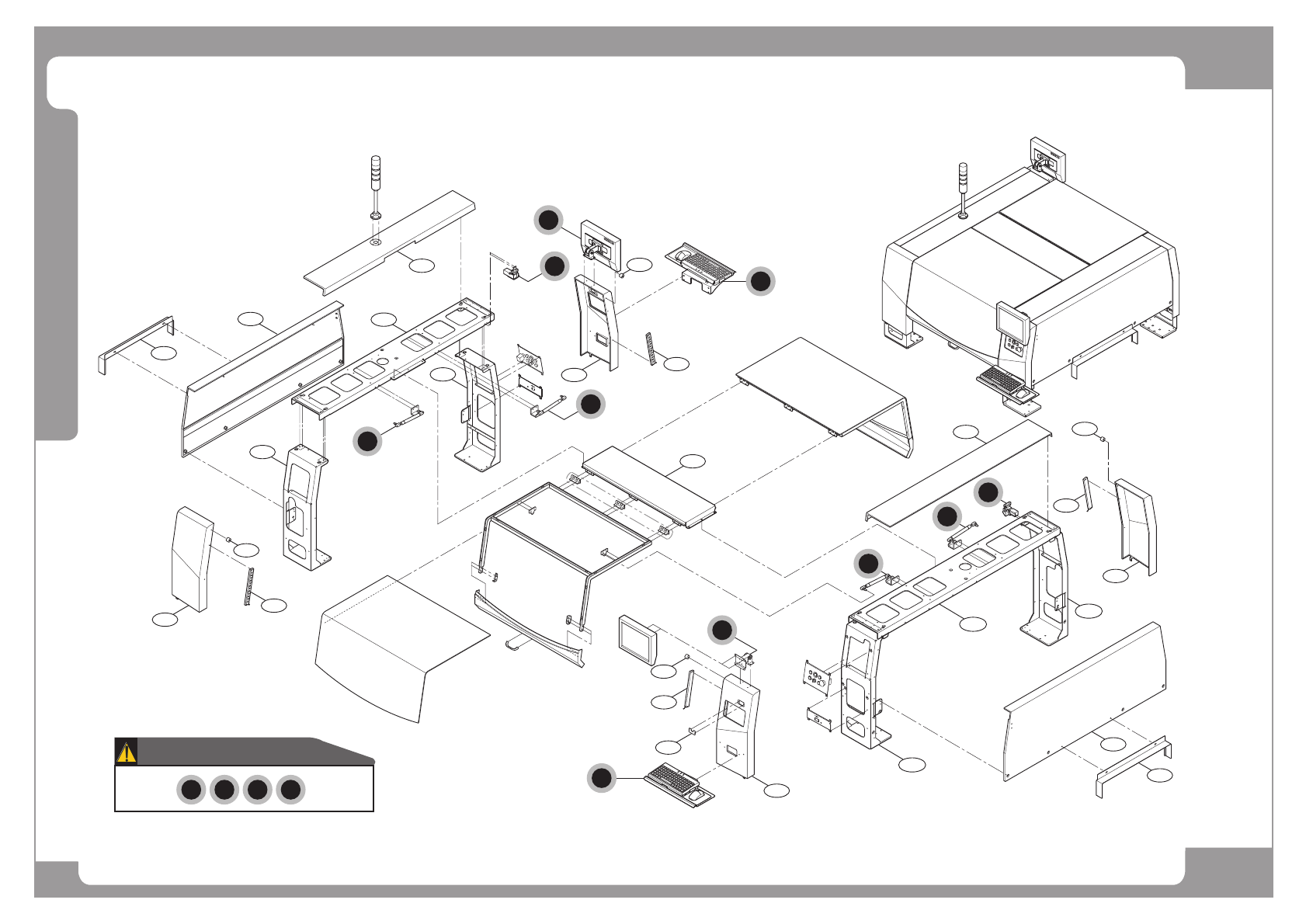

Cover Ass’y (1/3)
Refer to 'Detail View'
A B C D
A
C
D
D
C
11
5
14
15
2
3
6
13
6
4
13
1
13
12
1
13
4
4
4
8
2
7
15
14
STOP
RESET
SELECT
FEEDER
CHANGE
START
READY
A
A
B
9
10
STOP
RESET
SELECT
FEEDER
CHANGE
START
READY
A
B
Page
SAMSUNG TECHWIN
105
SM421
Cover Ass’y (1/3)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A-1 J90521032A COVER_ASSY-SM421 J90521032A 1
1 J70521026F UPPER_COVER_FR 2
2 J91651041A COVER FRAME TOP 1 ASSY 2
3 J70521039C TOP SIDE COVER R 1 J70521039B
4 J3212049A AREA SENSOR 4
5 J70521040C TOP SIDE COVER L 1 J70521040B
6 J70521027B UPPER COVER FL 2
7 J91651046A COVER FRAME SUB R ASSY 1
8 J70521376C COVER FRAME REAR R 1 J70521376B
9 J70521379C COVER FRAME FRONT L 1 J70521379B
10 J91651047A COVER FRAME SUB L ASSY 1
11 J70521378B TOP COVER-2 1
12 J7070297A MONITOR CABLE COVER 1
13 J73520001B DOOR CUSHION 4
14 J70521053B CONVEYOR COVER 2
15 J70521038B UPPER SIDE COVER 2
A-2 J90721029A NON SCANNER ASSY 1 OPTION
A-3 J91731033A AREA SENSOR ASSY 1
Page
SAMSUNG TECHWIN
106
SM421
Cover Ass’y (2/3)
A
B
C
D
OMRON
D4DS
8
9
1
2
3
4
5
7
6
10
11
12
13
