Page SAMSUNG TECHWIN 11 4 SM421 E lectric Panel Ass’y (1/2) 9 LC1D096BD LC1D096BD 11 3 12 2 3 7 8 6 10 5 10 4 6 1 Cover Ass'y 13 13
Page
SAMSUNG TECHWIN
113
SM421
Control Rack Ass’y
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
Page
SAMSUNG TECHWIN
114
SM421

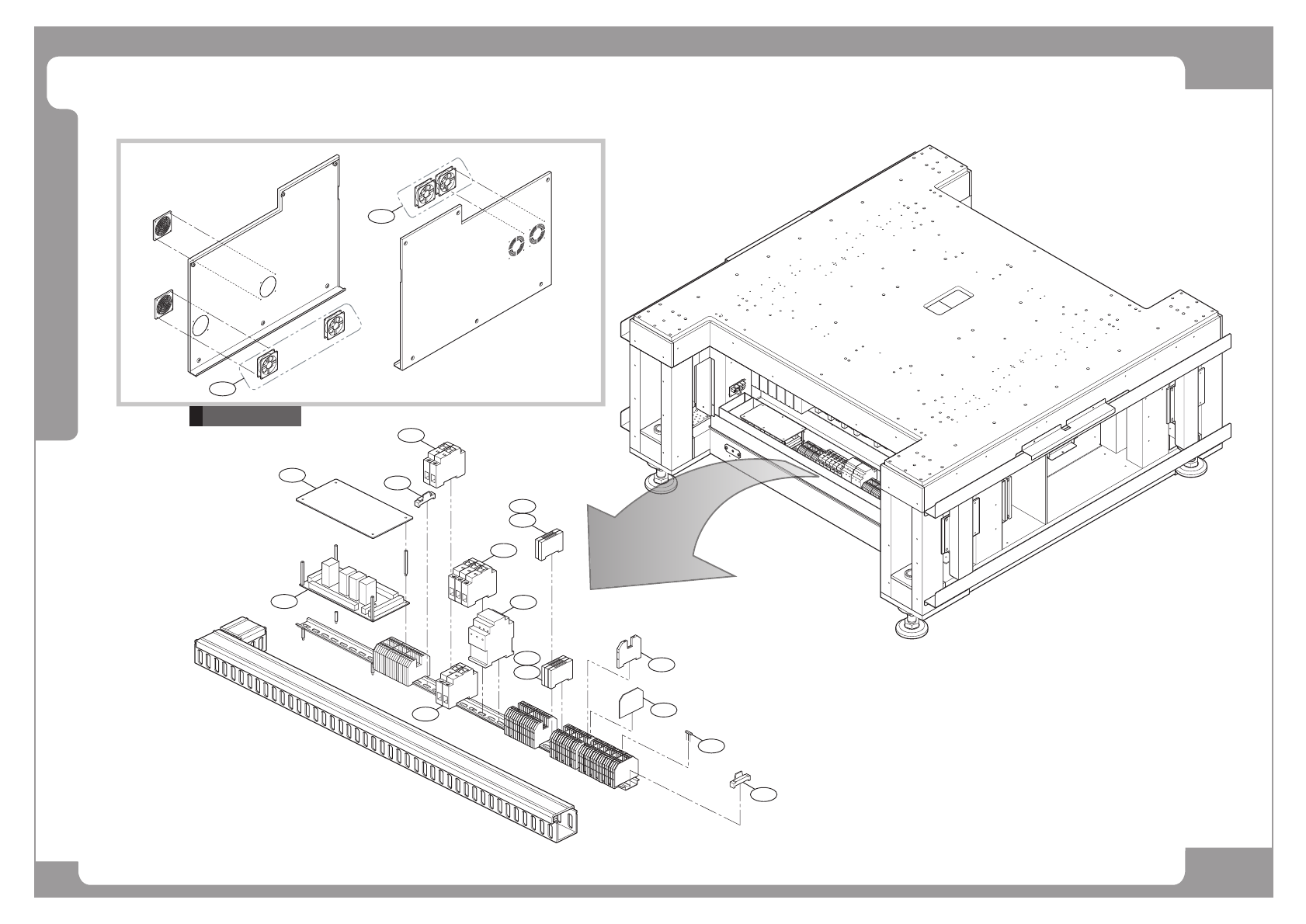

Electric Panel Ass’y (1/2)
9
LC1D096BD
LC1D096BD
11
3
12
2
3
7
8
6
10
5
10
4
6
1
Cover Ass'y
13
13
Page
SAMSUNG TECHWIN
115
SM421
Electric Panel Ass’y (1/2)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A-1 J90781005A REAR_ELECTRIC_PANEL_ASSY J90781005A 1
1 J3501040A MAGNETIC CONTACTOR[LC1D096BD, DC24V, 1A1 1
2 J3603015A CIRCUIT PROTECTOR[C60a-2P-C16(23812)] 1
3 J3603016A CIRCUIT PROTECTOR[C60a-3P-C16(23825)] 1
4 J3601018A FUSE[250V 5A] 3
5 J3601019A FUSE[250V 10A] 2
6 J3716042A STOPPER[UA-51] 2
7 J3716044A TEMINAL BLOCK[WDU 2.5] 63
8 J3716046A END PLATE[WAP2.5-10] 13
9 J3716047A CROSS CONNECTION[ZQV2.5] 5
10 J3716067A FUSE TERMINAL BLOCK[ASK 1] 5
11 J91741087A SAFETY_CONTROL_DC_POWER_BOARD 1
12 J7251007A BOARD COVER[J7251007A] 1
13 J3105010A COOLING FAN[4715MS-22T-B50] 2
