Page SAMSUNG TECHWIN 11 5 SM421 E lectric Panel Ass’y (1/2) NO. P ART NO. P ART NAME Q'TY Old No. Stock Apply Reference A-1 J9078100 5A REAR_ELECTRIC_P ANEL_ASSY J90781005A 1 1 J3501040A MAGNETIC CONT ACTOR[LC1D096B…
Page
SAMSUNG TECHWIN
114
SM421
Electric Panel Ass’y (1/2)
9
LC1D096BD
LC1D096BD
11
3
12
2
3
7
8
6
10
5
10
4
6
1
Cover Ass'y
13
13
Page
SAMSUNG TECHWIN
115
SM421
Electric Panel Ass’y (1/2)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A-1 J90781005A REAR_ELECTRIC_PANEL_ASSY J90781005A 1
1 J3501040A MAGNETIC CONTACTOR[LC1D096BD, DC24V, 1A1 1
2 J3603015A CIRCUIT PROTECTOR[C60a-2P-C16(23812)] 1
3 J3603016A CIRCUIT PROTECTOR[C60a-3P-C16(23825)] 1
4 J3601018A FUSE[250V 5A] 3
5 J3601019A FUSE[250V 10A] 2
6 J3716042A STOPPER[UA-51] 2
7 J3716044A TEMINAL BLOCK[WDU 2.5] 63
8 J3716046A END PLATE[WAP2.5-10] 13
9 J3716047A CROSS CONNECTION[ZQV2.5] 5
10 J3716067A FUSE TERMINAL BLOCK[ASK 1] 5
11 J91741087A SAFETY_CONTROL_DC_POWER_BOARD 1
12 J7251007A BOARD COVER[J7251007A] 1
13 J3105010A COOLING FAN[4715MS-22T-B50] 2
Page
SAMSUNG TECHWIN
116
SM421

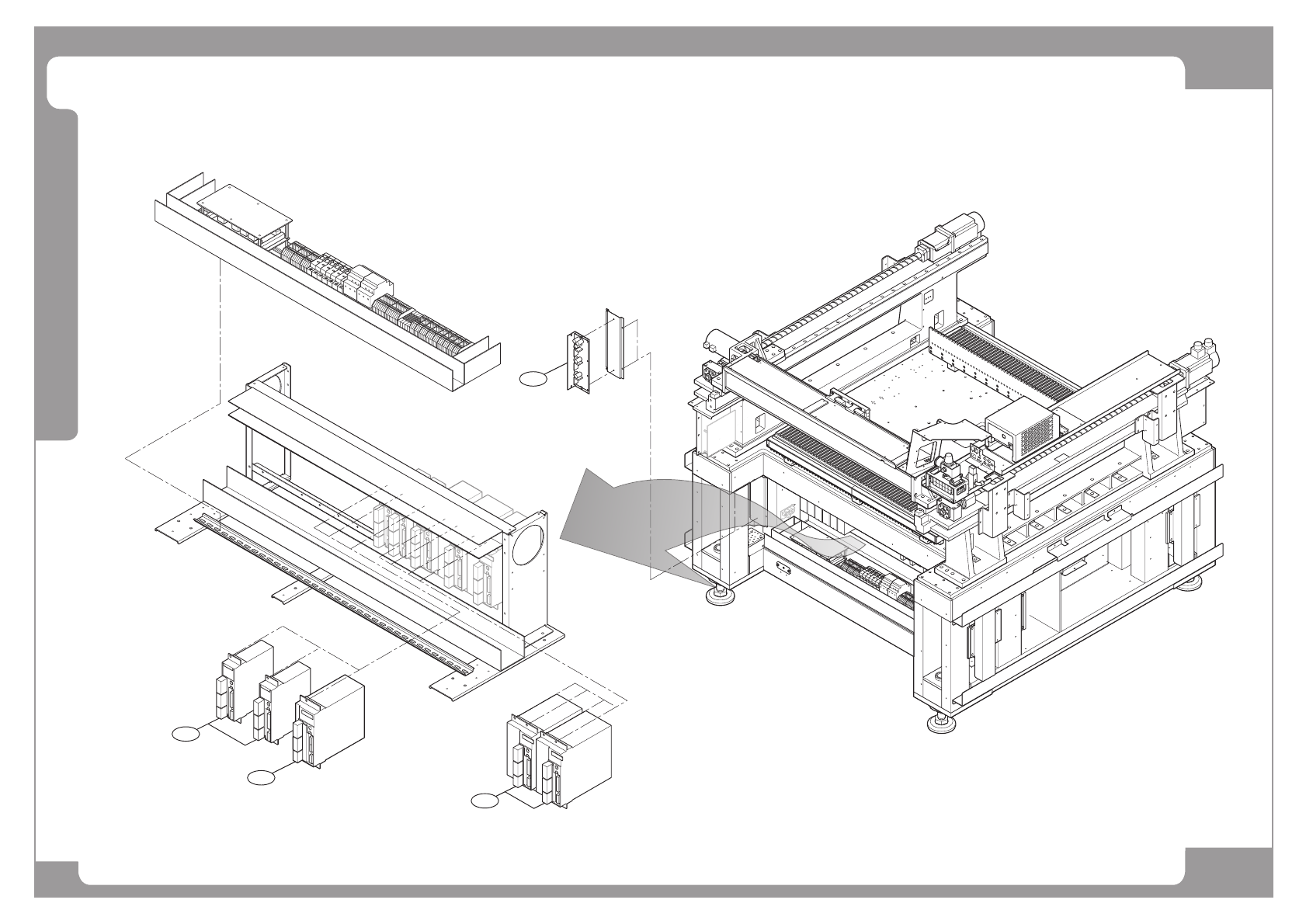

Electric Panel Ass’y (2/2)
LC1D096BD
LC1D096BD
2
3
CAN FEEDER EXTENSION BOARD
LC1D096BD
LC1D096BD
4
1
