Page
SAMSUNG TECHWIN
117
SM421
Electric Panel Ass’y (2/2)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J90511022A HEAD R MOTOR DRIVER ASSY 1
2 J31531049A SERVO MOTOR DRIVER(750W)[MCDDT3520] 1 J3153056A
3 J31531050A SERVO MOTOR DRIVER(1KW)[MDDDT5540] 2 J3153057A
4 J31531051A SERVO MOTOR DRIVER(100W)[MADDT1205] 1 J3153055A
AM10-000107A RELAY 1
Page

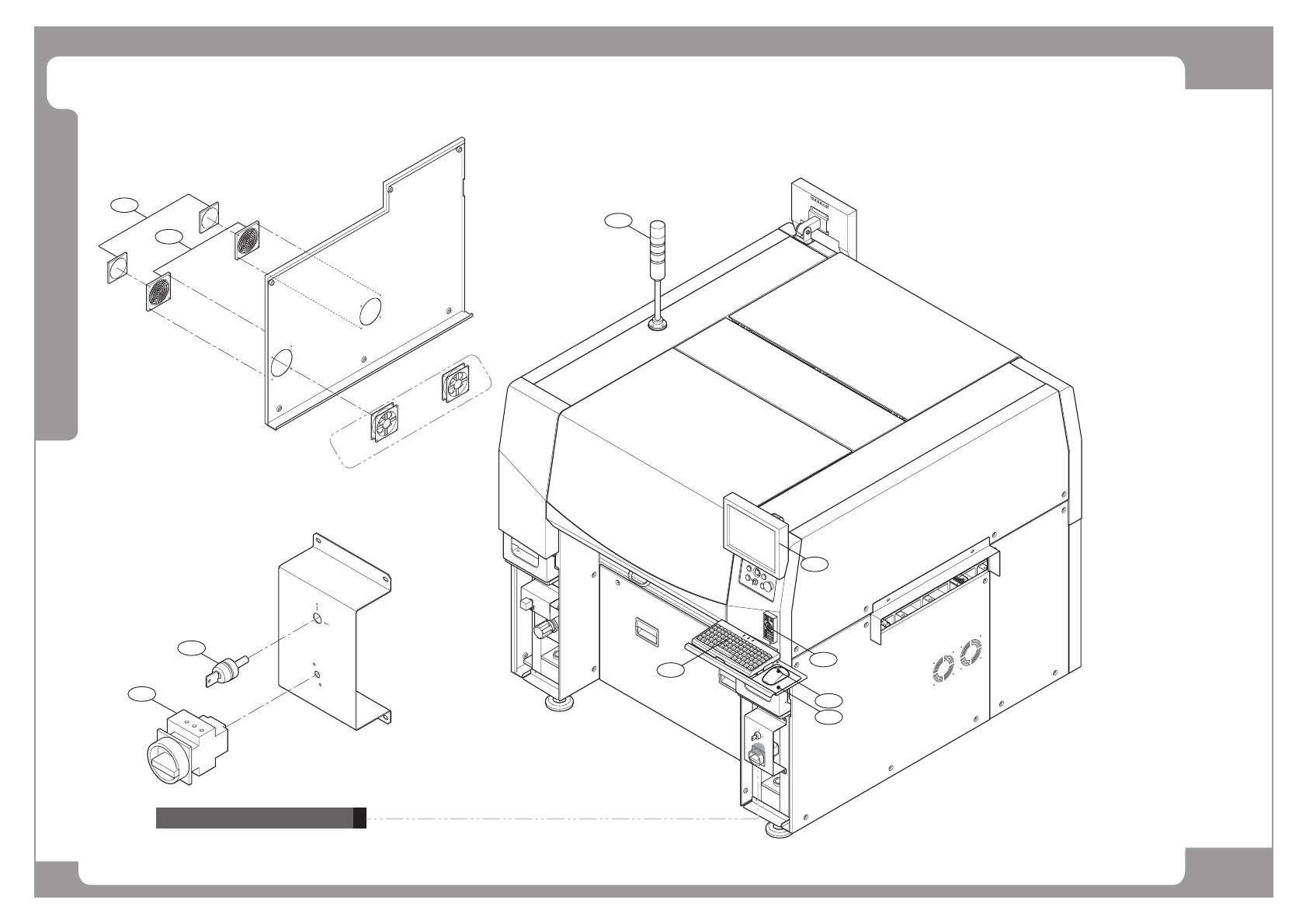

SAMSUNG TECHWIN
118
SM421
Electric Device Ass’y (1/4)
5
AIR PRESSURE
SAFEGUARD
OVERRIDE
MAIN SWITCH
6
ST
OP
RESET
SELECT
FEEDER
CHANGE
ST
AR
T
READY
2
1
4
7
10
Front Power Panel Ass'y
MAIN SWITCH
SAFEGUARD
OVERRIDE
MAIN SWITCH
9
8
3
