SAMSUNG TECHWIN
148
SM421
Rear Feeder Board Interface (2/2)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 AM03-003608A CABLE ASSY-R_FDR_BASE_PW_J4 1
Page
SAMSUNG TECHWIN
149
SM421

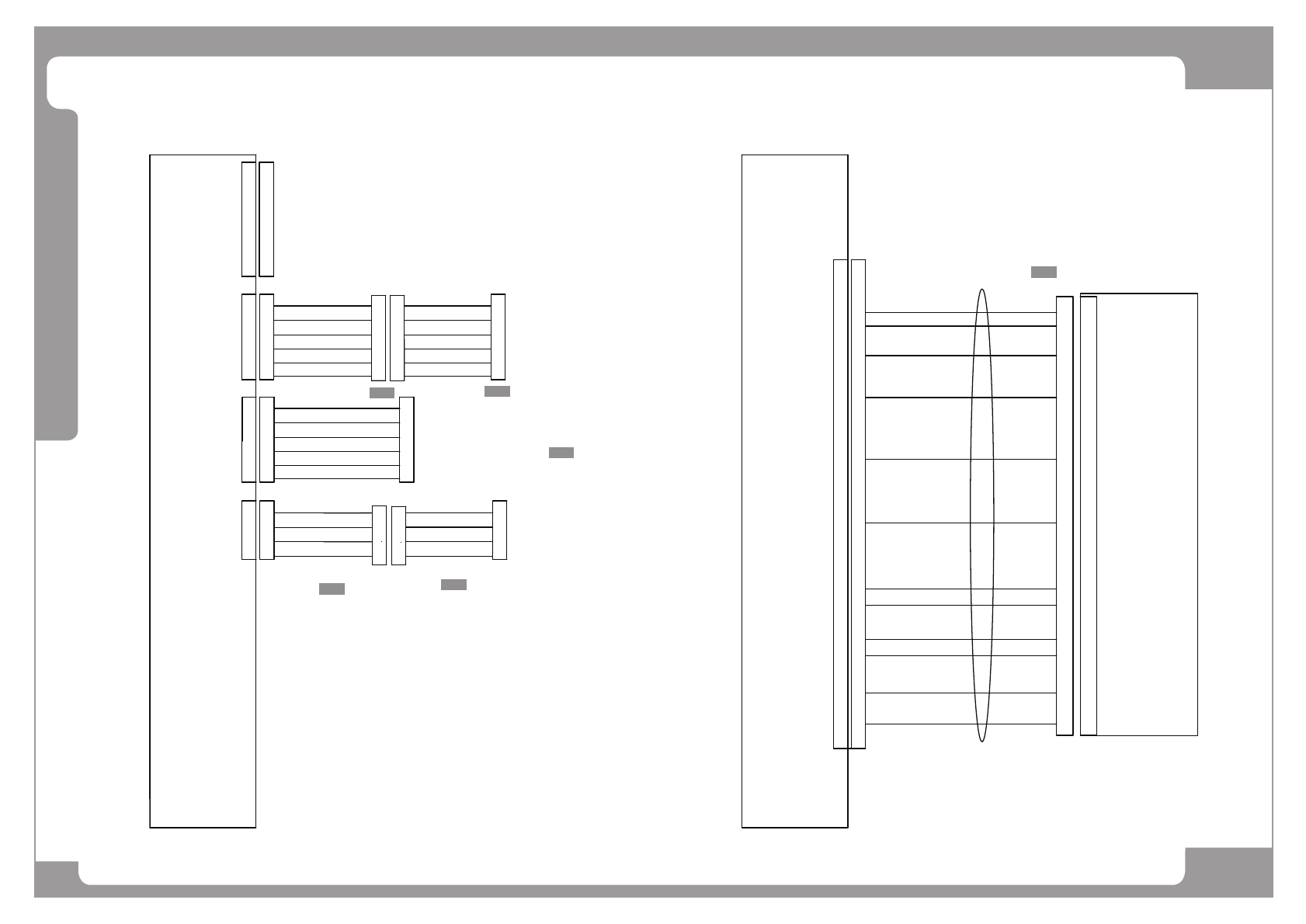

Conveyor Board Interface (1/5)
1
3
2
1
3
2
I/F BOARD
+24V
GND
GND
+24V
/IO_RESET
+24G
+12G
+12V
CAN_H
CAN_L
CAN_H
CAN_L
/IO_RESET
+24G
+12G
+12V
4
5
6
4
5
6
4P
CN4P
6P
CN3P
4
5
6
4
5
6
11
3
4
2
3
4
2
CN4S
2
2
3
3
CN3S
1
1
6P
CN2P
3
3
CN2S
1
2
1
2
8
7
6
6
8
7
4
5
4
5
4
5
6
3
4
5
6
2
1
R_FEEDER I/F B/D
CN2
3
2
1
FLAT CABLE
CAN
CONVEYOR
8P
CN1P
CN1S
CONVEYOR
I/F BOARD
CN6S
CN6P
24P
READY LP
SM421_CA201
SM41_CA003
SM421_SC201
CN20
2
4
3
1
SAFETY CONTROL B/D
READY RELAY OUT
22
4
3
5
2
1
22
4
3
5
2
1
START LP
STOP LP
9
9
10
10
21
21
RESET LP
+24V
14
14
16
16
FFD LP
13
13
+24V
RFD LP
15
15
+24V
19
19
17
17
24G
CONV SUB I/F B/D
2
12
3
4
11
7
8
5
6
10
9
1
9
10
6
5
8
7
11
4
3
12
2
1
+24V
CN1S
CN1P
12P
SM41_CV003
for Firmware Downloading
A2
B1
A1
A3
B3
B2
SM421_CA104
FL-J7-1
A2
B1
A1
B2
A6
B5
A5
B6
SC-J1-3
A2
B1
A1
A3
B3
B2
SM421_CV101
^4`
^5`
^6`
^7`
^8`
^9`
Page
SAMSUNG TECHWIN
150
SM421
Conveyor Board Interface (1/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 AM03-003620A CABLE ASSY-FL_CAN_HD_SOL_PW_J7 1
2 AM03-003601 CABLE ASSY-CVIF_FL_CAN_J7 1
3 J90831326B RFDR_CVIF_CAN_CABLE_ASSY 1
4 AM03-003489A CABLE ASSY-CV_IF_R_FD_IO_BD_PW_J1 1
5 AM03-003614A CABLE ASSY-BD_PW_SC_J1 1
6 J90831316B CONV_SW_OUTPUT_CABLE_ASSY 1
