Page SAMSUNG TECHWIN 7 SM421 F eeder Base Ass'y - ST (1/2) NO. P ART NO. P ART NAME Q'TY Old No. Stock Apply Reference A-1 AM03-001 657A FEEDER_BASE_ASS Y -F-ST -SM421 N 1 SM 421N J9057101 3B FEEDER_ BASE_ASSY_…
Page
SAMSUNG TECHWIN
6
SM421

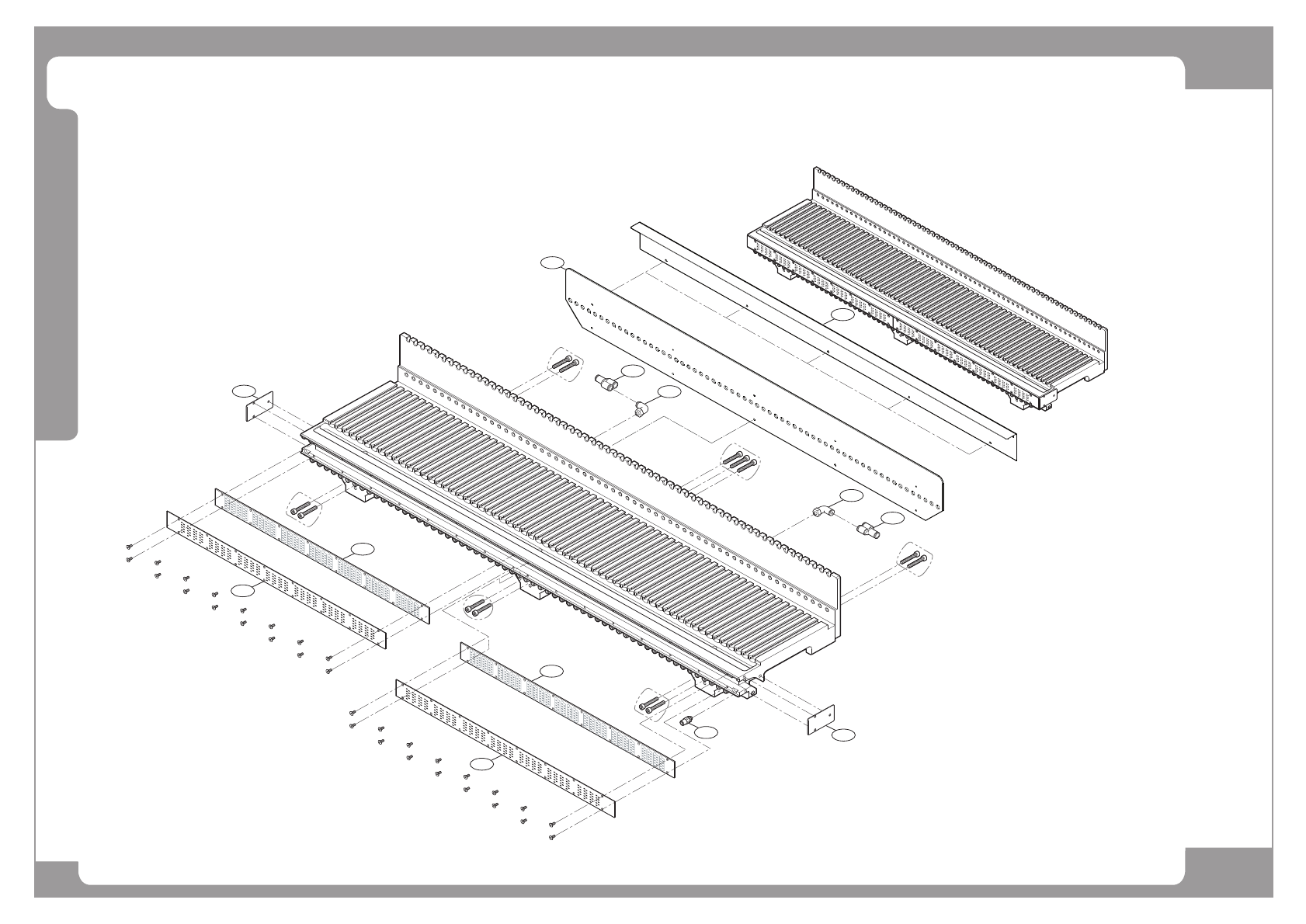

Feeder Base Ass'y - ST (1/2)
6
3
7
2
5
4
6
1
1
8
8
9
10
Page
SAMSUNG TECHWIN
7
SM421
Feeder Base Ass'y - ST (1/2)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A-1 AM03-001657A FEEDER_BASE_ASSY-F-ST-SM421N 1 SM 421N
J90571013B FEEDER_BASE_ASSY_FRONT-ST 1 J90571013A SM 421
1 J7057213A SIDE CABLE COVER-FB[J7057213A] 2
2 J90600351B FEEDERBASE_LEFT_COVER_PCB_ND 1
3 AM03-000694A ASSY,BOARD-FBLN 1 J9060347B /J90600351A
4 J67111148A COUPLER TCP1B10-15A-R8036 60 J6711245A
5 J90600352B FEEDERBASE_RIGHT_COVER_PCB_ND 1 J9060352A
6 J1301188 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 2
7 AM03-000693A ASSY,BOARD-FBRN 1 J9060348B
8 J67110119B UNION Y FITTING 2 J6711119A
9 FC09-000901A TOP-PLATE-S 1 J70570260C
10 FC09-001200A TOP-PLATE-BACK-HOLE 1
A-2 AM03-001659A FEEDER_BASE_ASSY-R-ST-SM421N 1 SM 421N
J90571014B FEEDER_BASE_ASSY_REAR-ST 1 J90571014A SM 421
Page
SAMSUNG TECHWIN
8
SM421
Feeder Base Ass'y - ST (2/2)
CAN FEEDER EXTENSION BOARD
LC1D096BD
LC1D096BD
CAN CONVEYOR BOARD
ڮڨڏڍڌٻڨڜکڤڡڪڧڟٻڜڮڮڴڮڨڏڍڌٻڨڜکڤڡڪڧڟٻڜڮڮڴ
Reference to Air Ass'y
4
3
7
8
8
2
1
5
6
