Page SAMSUNG TECHWIN 9 SM421 F eeder Base Ass'y - ST (2/2) NO. P ART NO. P ART NAME Q'TY Old No. Stock Apply Reference 1 J91741071A FEEDE R_INPUT_EXT_BOARD 1 2 J91741070A FE EDER IO BOARD 1 3 FC09-000977 A FRON…
Page
SAMSUNG TECHWIN
8
SM421

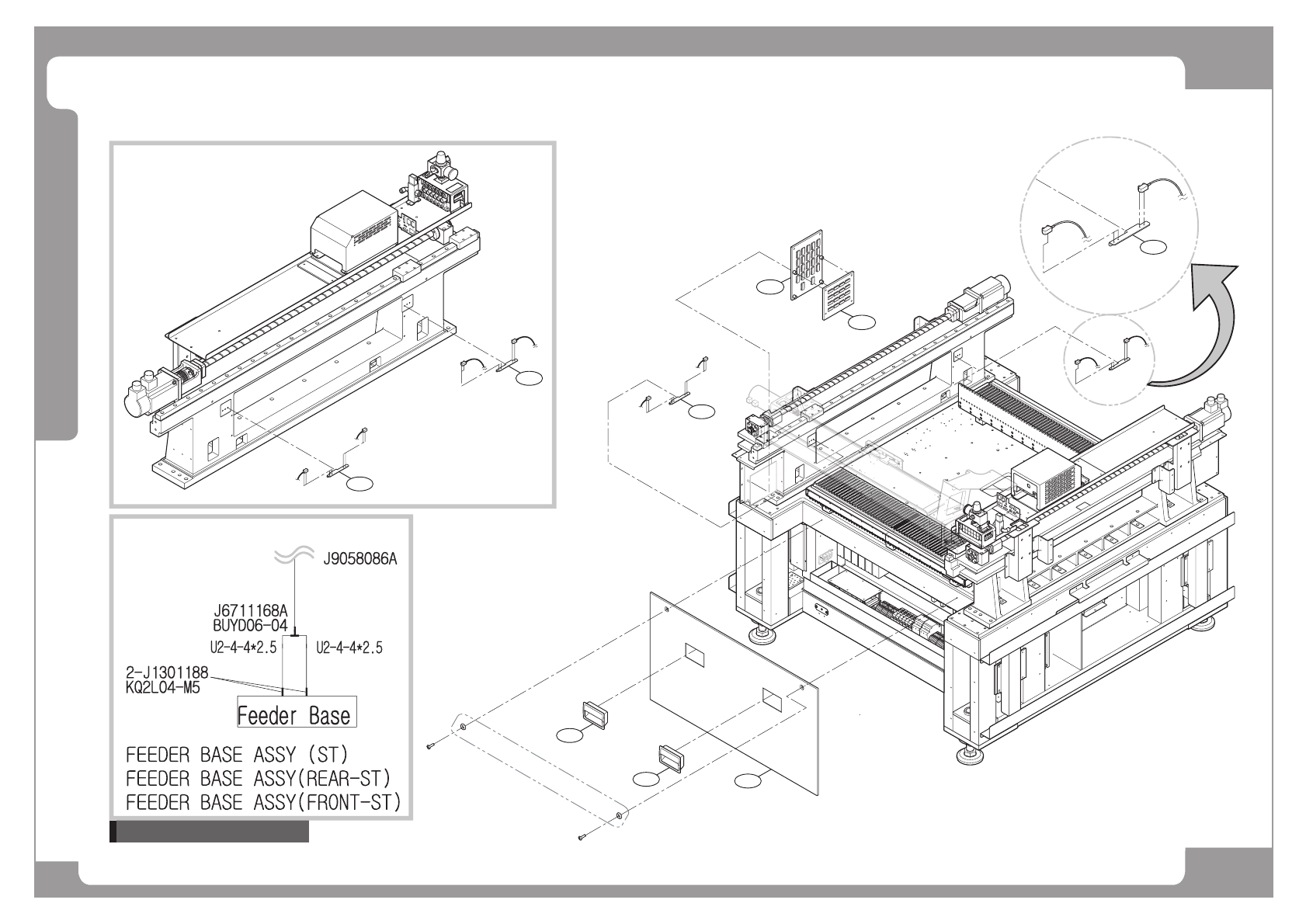

Feeder Base Ass'y - ST (2/2)
CAN FEEDER EXTENSION BOARD
LC1D096BD
LC1D096BD
CAN CONVEYOR BOARD
ڮڨڏڍڌٻڨڜکڤڡڪڧڟٻڜڮڮڴڮڨڏڍڌٻڨڜکڤڡڪڧڟٻڜڮڮڴ
Reference to Air Ass'y
4
3
7
8
8
2
1
5
6
Page
SAMSUNG TECHWIN
9
SM421
Feeder Base Ass'y - ST (2/2)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J91741071A FEEDER_INPUT_EXT_BOARD 1
2 J91741070A FEEDER IO BOARD 1
3 FC09-000977A FRONT SENSOR BKT2 1 J70540267B
4 FC09-000976A FRONT SENSOR BKT1 1 J70540266B/ J70540266C
5 J70540268C REAR SENSOR BKT1 1
6 J70540269B REAR SENSOR BKT2 1
7 J70521033B COVER_LFM 1
8 J1300101 DRAWER PULL 2 J6402005A
Page
SAMSUNG TECHWIN
10
SM421

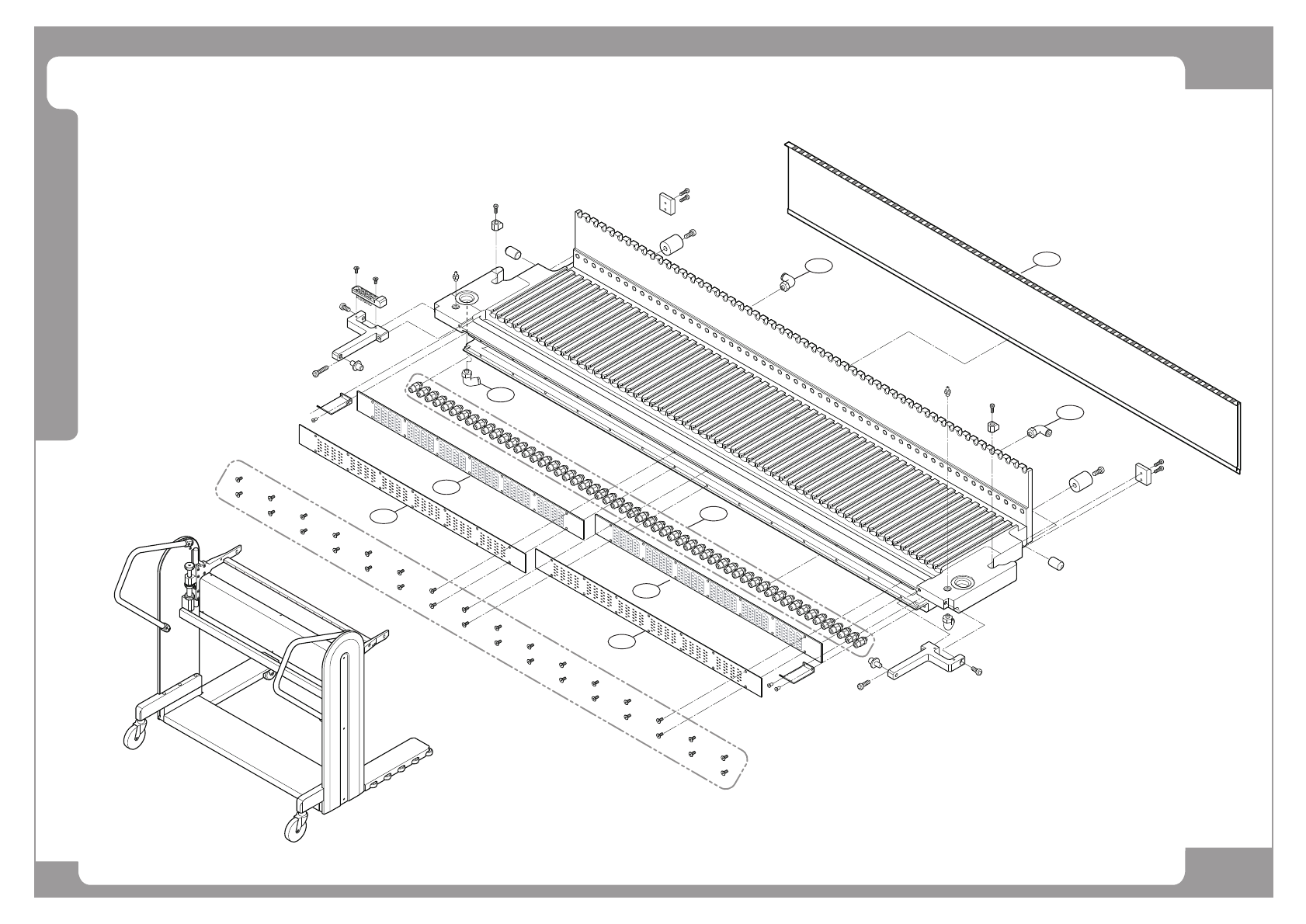

Feeder Base Ass’y - DC (1/4)
4
3
2
1
4
4
5
6
7
