SM421_Technical_Reference(Eng_Ver8[1].3) - 第25页
Page SAMSUNG TECHWIN 13 SM421 F eeder Base Ass’y - DC (2/4) NO. P ART NO. P ART NAME Q'TY Old No. Stock Apply Reference 1 J671 1 1 04A STRAIGHT FITTING[KQ2H04-00/P U4] 1 2 J671 1256A COUPLER[KD-M5- SA34697KR] 1 3 J6…

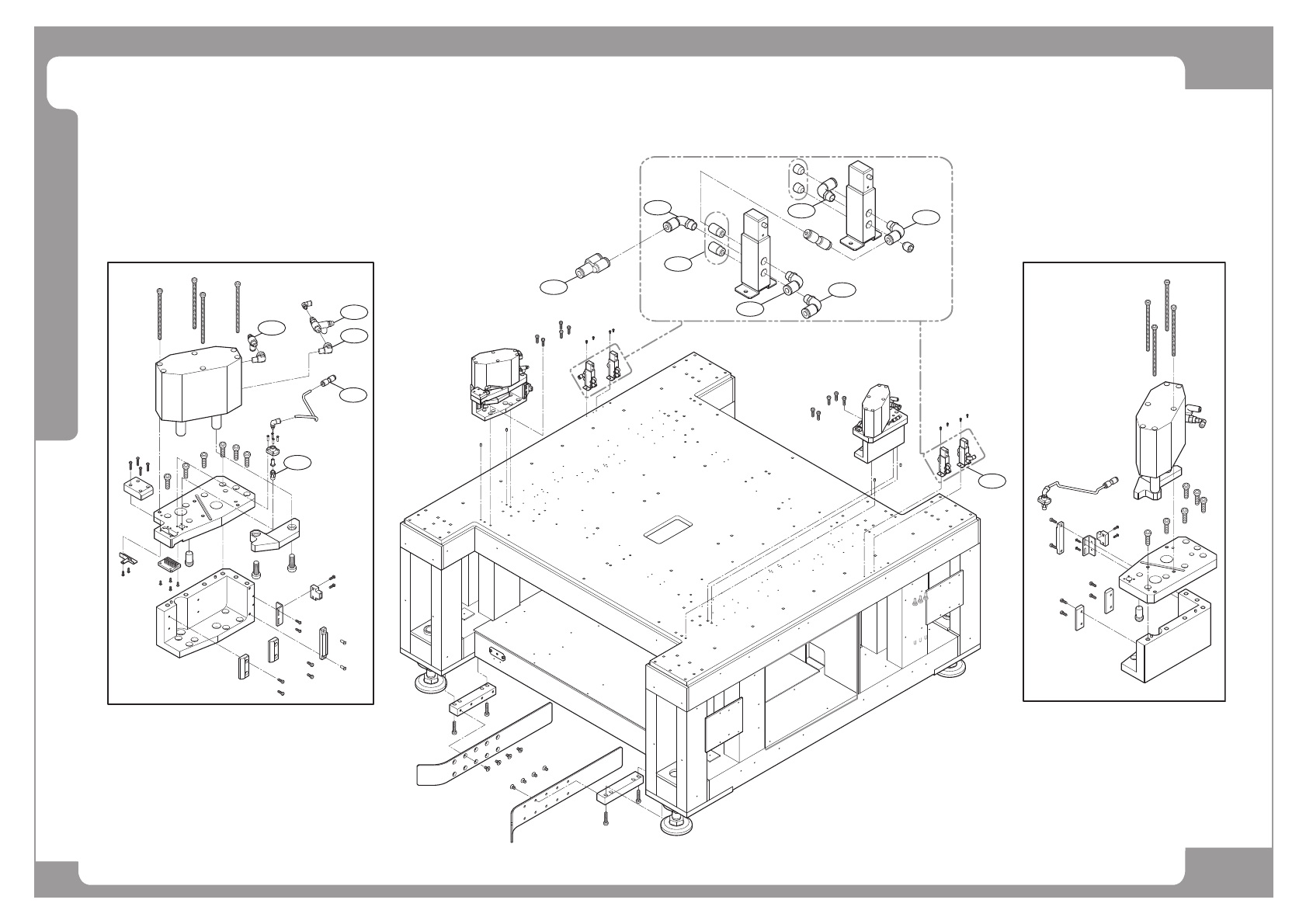

Page
SAMSUNG TECHWIN
12
SM421
Feeder Base Ass’y - DC (2/4)
4
3
8
7
6
6
6
6
1
2
5
6
9
Page
SAMSUNG TECHWIN
13
SM421
Feeder Base Ass’y - DC (2/4)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J6711104A STRAIGHT FITTING[KQ2H04-00/PU4] 1
2 J6711256A COUPLER[KD-M5-SA34697KR] 1
3 J6703033A SPEED CON[AS2201F-01-06S] 1
4 J6703034A SPEED CON[ASP330F-01-06S] 1
5 J6711247A ELBOW FITTING[PT18EF] 2
6 J6711001A ELBOW FITTING 1
7 J67110119B UNION Y FITTING [KQ2U04-06] 1
8 J67050004B SILENCER AN101-01 2
9 J6702021A SOLENOID VALVE [K180-4E1-21-DC24V] 1

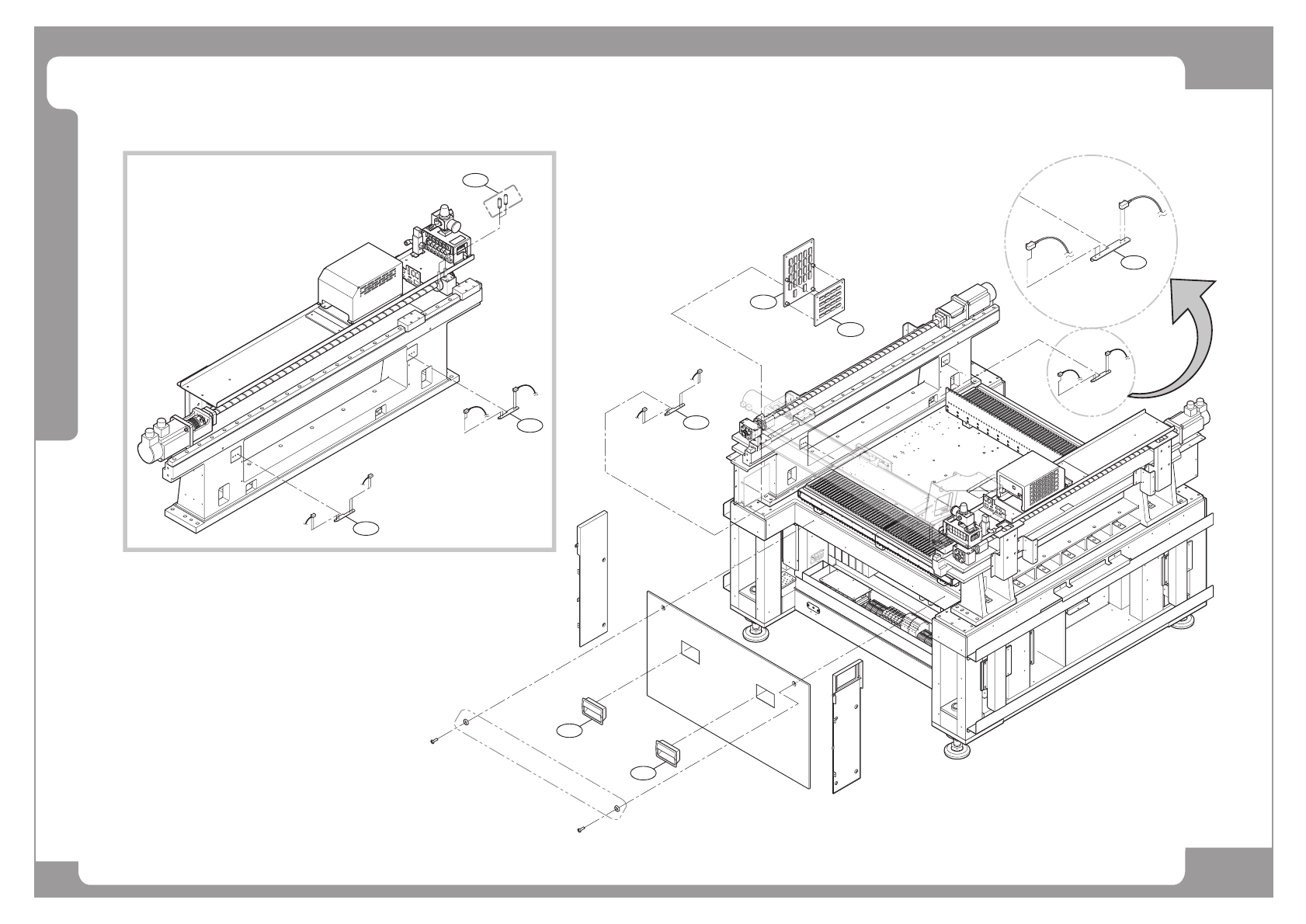

Page
SAMSUNG TECHWIN
14
SM421
Feeder Base Ass’y - DC (3/4)
3
4
CAN FEEDER EXTENSION BOARD
LC1D096BD
LC1D096BD
CAN CONVEYOR BOARD
22
5
5
2
1
7
6
