Page SAMSUNG TECHWIN 19 SM421 C onveyor Ass’y (1/5) NO. P ART NO. P ART NAME Q'TY Old No. Stock Apply Reference A-1 J9053108 3A CONV_AS SY_LR J9053108 3A 1 1 J70531 109A MANUAL_HANDLE J7 0531 109A 1 2 J3212004A PHOT…
Page
SAMSUNG TECHWIN
18
SM421

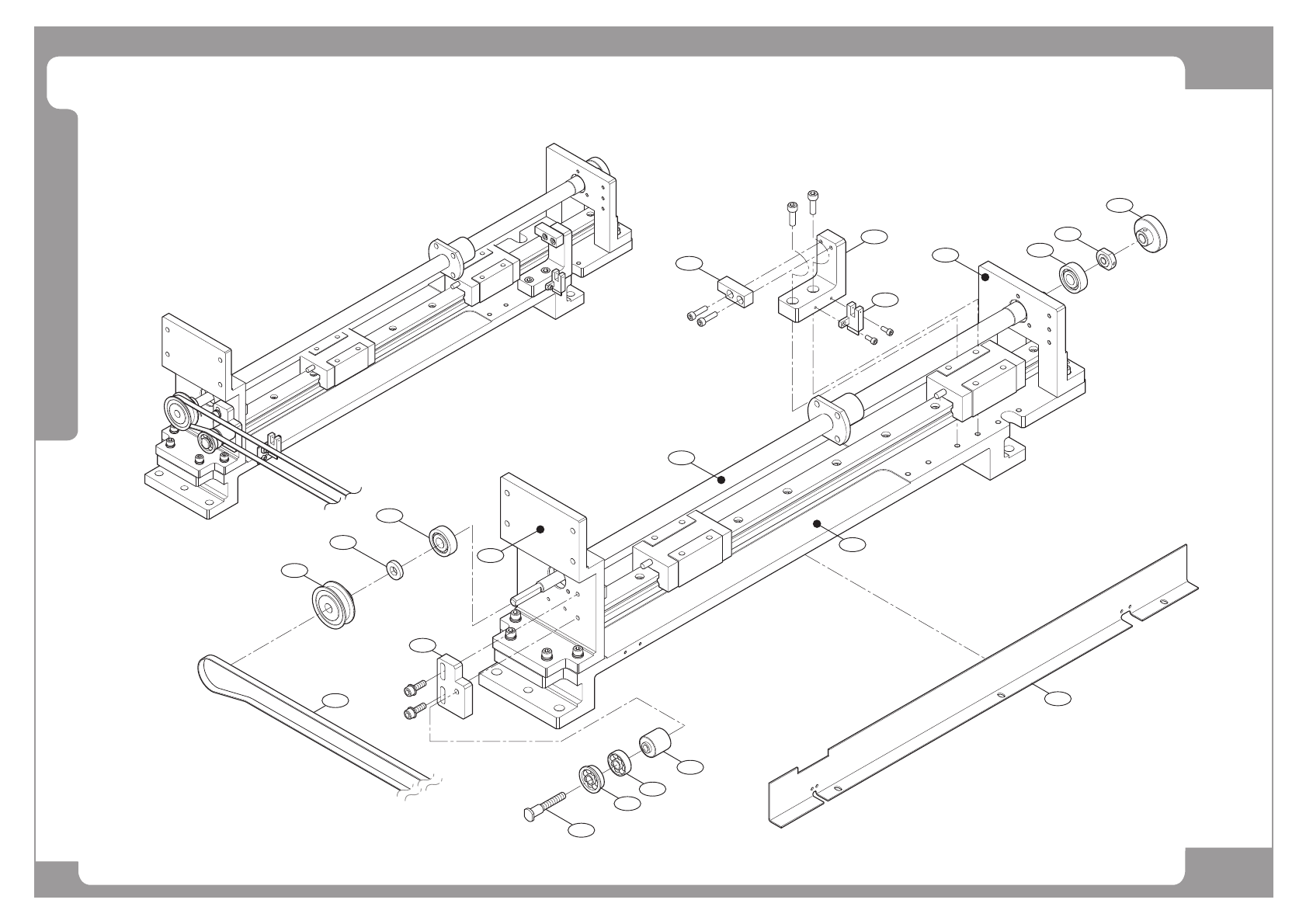

Conveyor Ass’y (1/5)
6
7
13
16
3
14
17
5
4
12
9
18
3
8
1
10
2
11
15
19
Page
SAMSUNG TECHWIN
19
SM421
Conveyor Ass’y (1/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A-1 J90531083A CONV_ASSY_LR J90531083A 1
1 J70531109A MANUAL_HANDLE J70531109A 1
2 J3212004A PHOTO SENSOR 1
3 J1300509 BALL BEARING 4 J6601008A
4 J6601109A BALL BEARING[608ZZ] 2
5 J6601126A BALL BEARING[F608ZZ] 2
6 J6602074A TIMING BELT[025-XL-396-AJ] 1
7 J6609012A PULLEY-WIDTH [20-XL-025] 2
8 J7053194A BEARING NUT [J7053194A] 2
9 J7053725A SUPPORT-WIDE ADJUST[J7053725A] 2
10 J7053726A SCREW STAND[J7053726A] 2
11 J70530749B DOG ADJUST J70530749B 1
12 J7053661B WIDTH TENSION SPACER[J7053661B] 2
13 J7053662A TENSION BEARING PIN[J7053662A] 2
14 J71530404B FIX STAND 2
15 J7053695B STOPPER[J7053695B] 1
16 J7153326A WIDTH PULLEY COLLAR[J7153326A] 2
17 J7053660A TENSION BKT[J7053660A] 2
18 J6614007A LEAD SCREW[DCM16 + 648.5L] 2
19 J7053787A CONVEYOR CHIP COVER-L[J7053787A] 1
Page
SAMSUNG TECHWIN
20
SM421
Conveyor Ass’y (2/5)
18
11
3
4
12
17
8
2
6
16
2
14
7
5
13
10
9
19
20
15
1
21
