Page SAMSUNG TECHWIN 21 SM421 C onveyor Ass’y (2/5) NO. P ART NO. P ART NAME Q'TY Old No. Stock Apply Reference 1 J31081058A SER VO MOTOR[MSMA012P1 A01] 1 J3108062A 2 J130050 9 BALL BEARING 4 J6601008A 3 J6601 109A …
Page
SAMSUNG TECHWIN
20
SM421
Conveyor Ass’y (2/5)
18
11
3
4
12
17
8
2
6
16
2
14
7
5
13
10
9
19
20
15
1
21
Page
SAMSUNG TECHWIN
21
SM421

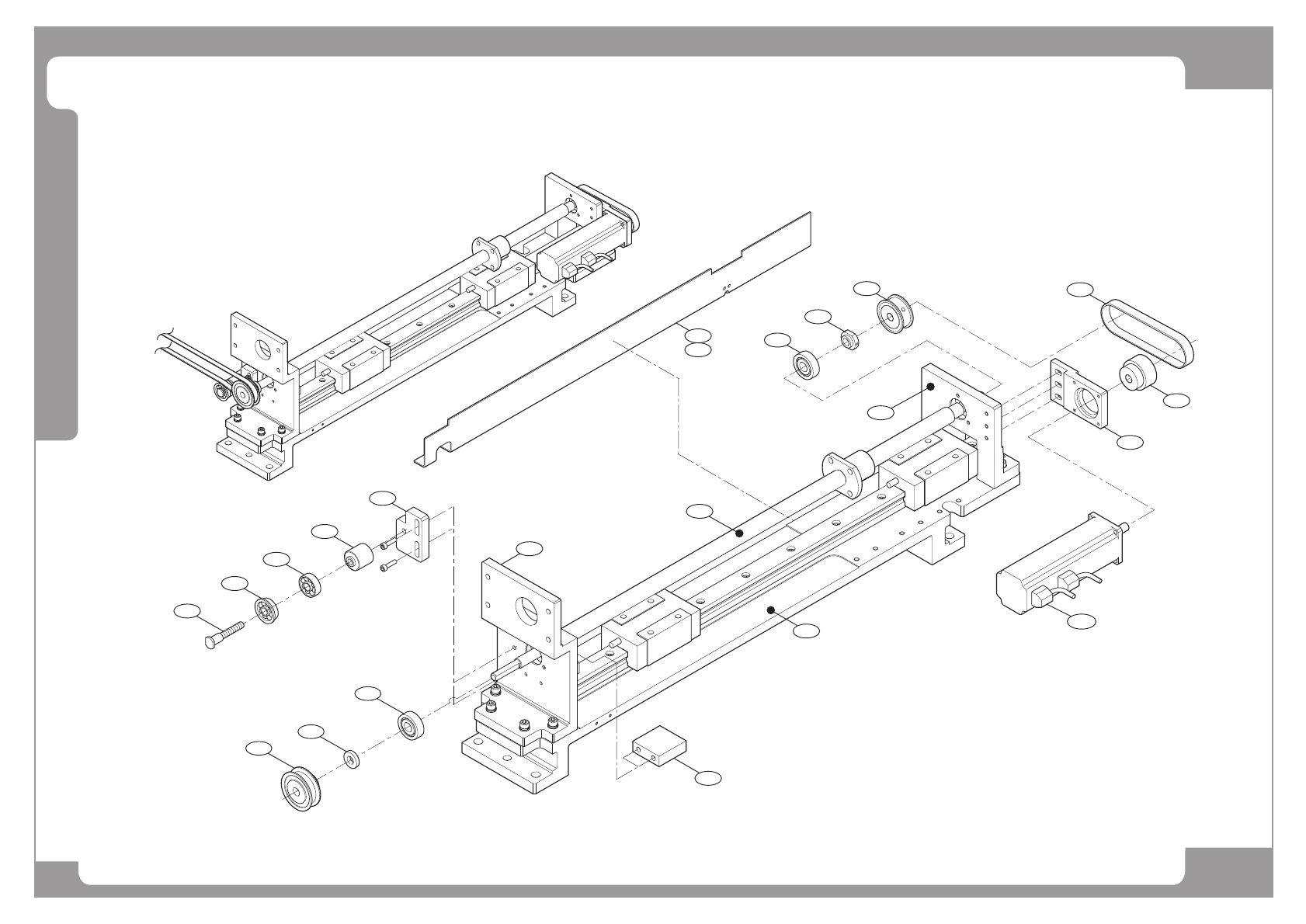

Conveyor Ass’y (2/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1
J31081058A SERVO MOTOR[MSMA012P1A01] 1 J3108062A
2 J1300509 BALL BEARING 4 J6601008A
3 J6601109A BALL BEARING[608ZZ] 2
4 J6601126A BALL BEARING[F608ZZ] 2
5 J6602030A TIMING BELT [258-3M-9] 1
6 J6609012A PULLEY-WIDTH [20-XL-025] 2
7 J6609015B PULLEY-MOTOR [P32-3M-9] 1
8 J7053194A BEARING NUT [J7053194A] 2
9 J7053725A SUPPORT-WIDE ADJUST[J7053725A] 2
10 J7053726A SCREW STAND[J7053726A] 2
11 J7053661B WIDTH TENSION SPACER[J7053661B] 2
12 J7053662A TENSION BEARING PIN[J7053662A] 2
13 J71530404B FIX STAND 2
14 J7053780A BRACKET-SERVO MOTOR[J7053780A] 1
15 J70530748B STOPPER-FRONT 2 J7053748A
16 J7153326A WIDTH PULLEY COLLAR[J7153326A] 2
17 J7153330A PULLEY SHAFT[J7153330A] 1
18 J7053660A TENSION BKT[J7053660A] 2
19 J6614007A LEAD SCREW[DCM16 + 648.5L] 2
20 J7053781A CV CHIP COVER-R[J7053781A] 1
21 J7053731A CONVEYOR CHIP COVER-R[J7053731A] 1
Page
SAMSUNG TECHWIN
22
SM421

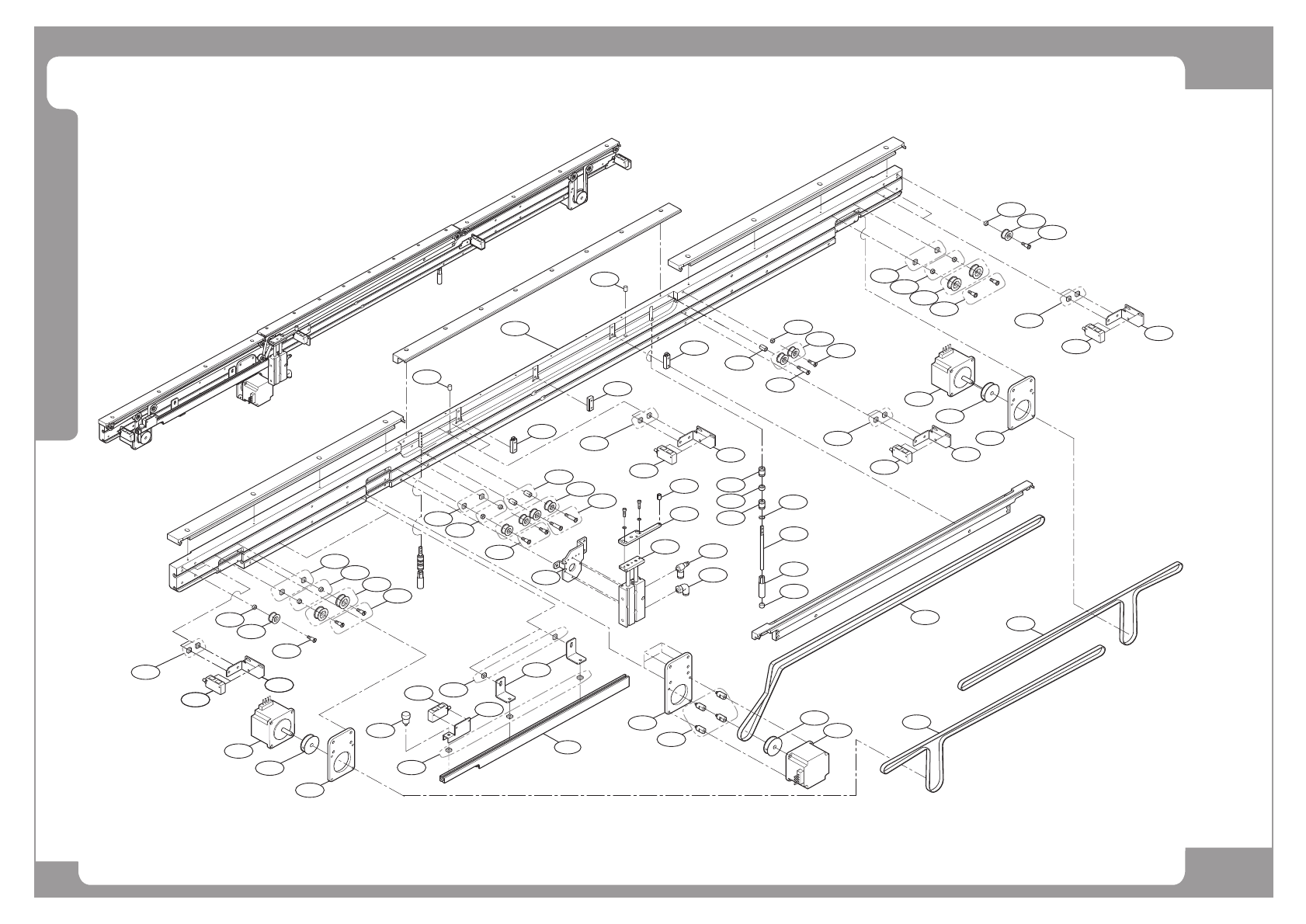

Conveyor Ass’y (3/5)
25
22
33
16
29
16
37
30
28
35
12
23
1
10
3
8
24
2
19
17
15
1
23
10
3
8
15
1
36
36
13
12
1
23
20
34
22
20
34
22
18
31
18
23
20
20
34
22
21
34
27
22
14
20
23
26
1
23
11
9
23
7
6
3
4
4
21
20
23
33
22
32
27
23
10
5
