Page SAMSUNG TECHWIN 42 SM421 O peration Ass’y AIR PRESSURE SAFEGUARD OVERRIDE MAIN SWITCH SAFEGUARD OVERRIDE MAIN SWITCH STOP RESET SELECT FEEDER CHANGE START READY Front O/P Panel Ass'y Front O/P Panel Ass'y …
Page
SAMSUNG TECHWIN
41
SM421
Fly Camera Ass’y - SM421F
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A-1 J90551154A FLY_VISION_ASSY_MEGA-F16 J90551154A 1
J91851086A FLY_VISION_ASSY_MEGA-F16_4 1 SM421F
1 J90551156A FLY_CAMERA_ASSY_MEGA-F16 J90551156A 1
J90591075A FLY_CAM_ASSY_NON-MEGA-F16 J90591075A 1
2 J90551081A FLY_CAM_ONE_KIT_ASSY_MEGA-F16 J90551081A 6 SM421F Q'TY : 4EA
AM03-001810A ASSY,OPTICS-FLY_CAM_ONE_KIT_N-MEGA-F16 1
3 J67510015B CCD CAMERA 1 J67510015B
4 J90591012A SM140165_LENS_ASSY J90591012A 1
5 FC09-000490A CAMERA_HOLDER J71551125A 1 J71551125B
6 J90551016A CAMERA_COVER_BOARD_ASSY 1
7 J7155536A CAMERA COVER[J7155536A] 1
8 J91741025A MEGA_CAMERA_IO_BOARDD VER1.0 1
9 J6103003A HEX SUPPORT 10
10 J6025300036 HEX NUT 8
11 J7159265A COVER JOINT[J7159265A] 3
12 J7155537A CAMERA REAR COVER[J7155537A] 1
13 AM03-001506A FLYING CAMERA I/F CABLE ASSY SM21-VIS011 6 J90830161B SM421F Q'TY : 4EA
14 J90551157A FLY_CAMERA_ASSY_MEGA-F25 J90551157A 1
J90591076A FLY_CAM_ASSY_NON-MEGA-F25 J90591076A 1
15 J90591009A_AS FLY_CAM_ONE_KIT_ASSY_MEGA-F25 6 J90591009A SM421F Q'TY : 4EA
AM03-001811A ASSY,OPTICS-FLY_CAM_ONE_KIT_N-MEGA-F25 1
16 J9059208A FOV25 LENS ASSY[J9059208A] 1
A-2 J90551155A FLY_VISION_ASSY_MEGA-F25 J90551155A 1
J91851084A FLY_VISION_ASSY_MEGA-F25_4 1 SM421F
Page
SAMSUNG TECHWIN
42
SM421

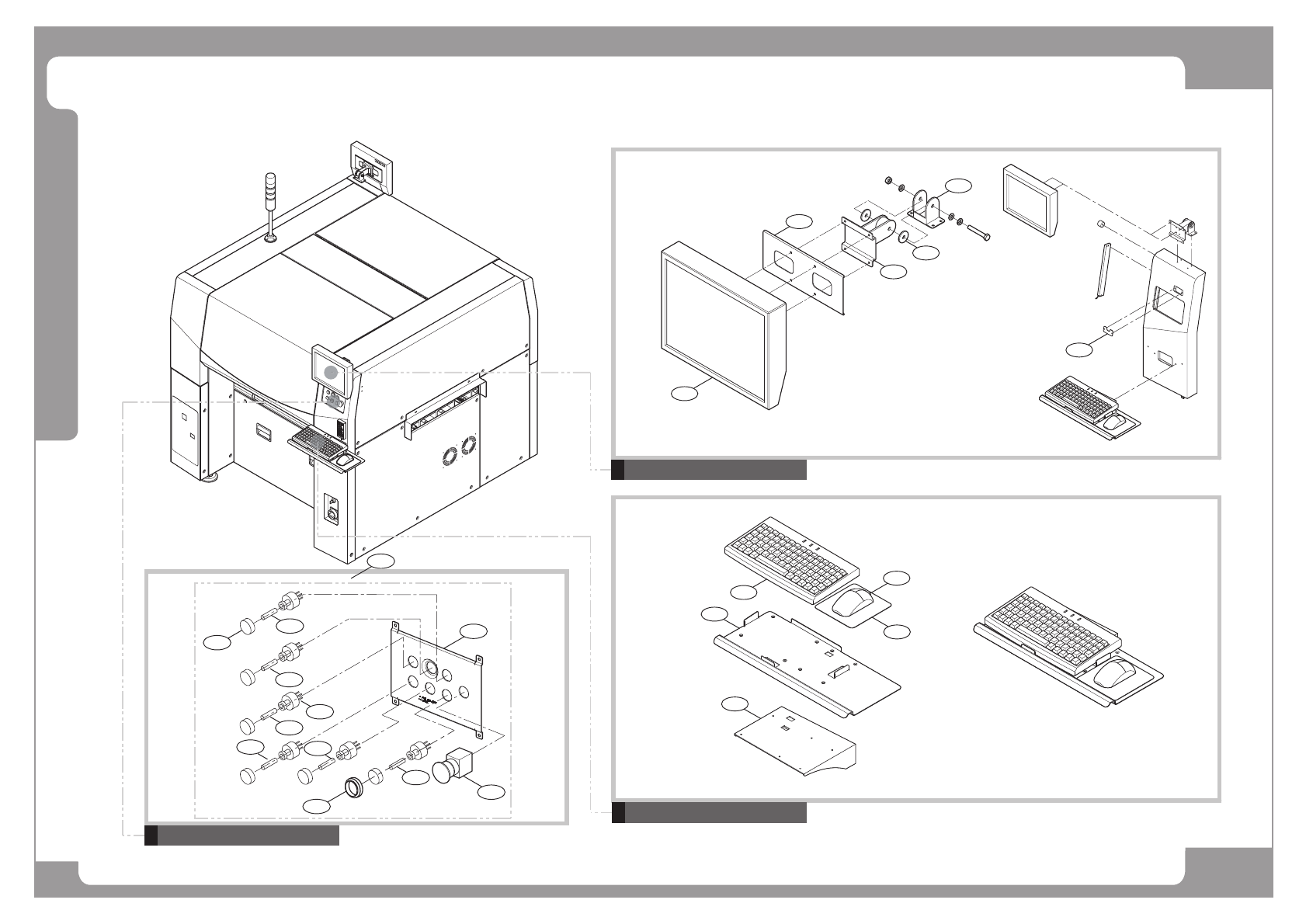

Operation Ass’y
AIR PRESSURE
SAFEGUARD
OVERRIDE
MAIN SWITCH
SAFEGUARD
OVERRIDE
MAIN SWITCH
STOP
RESET
SELECT
FEEDER
CHANGE
START
READY
Front O/P Panel Ass'y
Front O/P Panel Ass'y
ESE
SELECT
FEEDER
CHANG
Front O/P Panel Ass'y
20
21
22
18
19
16
17
15
13
14
12
STOP
RESET
FEEDER
CHANGE
START
READY
10
1
2
9
7
8
3
4
5
6
8
11
Page
SAMSUNG TECHWIN
43
SM421
Operation Ass’y
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A-1 J91731020A FRONT REAR OPERATING ASSY 1
1 J90831048G OP_PANEL_ASSY 2 J90831048E
2 J34031042A PUSHBUTTON HEAD 6
3 J34031049A ULTRA BRIGHT LED WHITE 3
4 J34031050A ULTRA BRIGHT LED GREEN 1
5 J34031051A ULTRA BRIGHT LED RED 1
6 J34031052A ULTRA BRIGHT LED YELLOW 1
7 J3403082A EMS SW(EAO) 2
8 J34031049A ULTRA BRIGHT LED WHITE 3
9 J70521024B SM411_OP_PANEL 1
10 J71521015B BUTTON_CAP 1 J71521015A
11 J34031047A CONTACT BLOCK CTL2 6
12 J70521373A MONITOR GUIDE PL 1
13 J70521059A LCD BRACKET 1
14 J7252061A PAD BRACKET 2
15 J70521158A LCD HINGE PLATE 1
16 J7070297A MONITOR CABLE COVER 1
17 J53011032A LCD_MONITOR_15 1 J53011015A
18 J52021011A OPTICAL_MOUSE 1 J52021006A
19 J7452038A MOUSE PAD-OPTICAL 1
20 J70521113C KEYBOARD BASE BRACKET 1
21 J70521112C KEYBOARD BASE 1
22 J52011002A MINI KEYBOARD 1
