Page SAMSUNG TECHWIN 43 SM421 O peration Ass’y NO. P ART NO. P ART NAME Q'TY Old No. Stock Apply Reference A-1 J9173102 0A FRONT REAR OPE RA TING AS SY 1 1 J90831048G OP_P ANEL_ASSY 2 J90831048E 2 J34031042A PUSHBUT…
Page
SAMSUNG TECHWIN
42
SM421
Operation Ass’y
AIR PRESSURE
SAFEGUARD
OVERRIDE
MAIN SWITCH
SAFEGUARD
OVERRIDE
MAIN SWITCH
STOP
RESET
SELECT
FEEDER
CHANGE
START
READY
Front O/P Panel Ass'y
Front O/P Panel Ass'y
ESE
SELECT
FEEDER
CHANG
Front O/P Panel Ass'y
20
21
22
18
19
16
17
15
13
14
12
STOP
RESET
FEEDER
CHANGE
START
READY
10
1
2
9
7
8
3
4
5
6
8
11
Page
SAMSUNG TECHWIN
43
SM421
Operation Ass’y
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A-1 J91731020A FRONT REAR OPERATING ASSY 1
1 J90831048G OP_PANEL_ASSY 2 J90831048E
2 J34031042A PUSHBUTTON HEAD 6
3 J34031049A ULTRA BRIGHT LED WHITE 3
4 J34031050A ULTRA BRIGHT LED GREEN 1
5 J34031051A ULTRA BRIGHT LED RED 1
6 J34031052A ULTRA BRIGHT LED YELLOW 1
7 J3403082A EMS SW(EAO) 2
8 J34031049A ULTRA BRIGHT LED WHITE 3
9 J70521024B SM411_OP_PANEL 1
10 J71521015B BUTTON_CAP 1 J71521015A
11 J34031047A CONTACT BLOCK CTL2 6
12 J70521373A MONITOR GUIDE PL 1
13 J70521059A LCD BRACKET 1
14 J7252061A PAD BRACKET 2
15 J70521158A LCD HINGE PLATE 1
16 J7070297A MONITOR CABLE COVER 1
17 J53011032A LCD_MONITOR_15 1 J53011015A
18 J52021011A OPTICAL_MOUSE 1 J52021006A
19 J7452038A MOUSE PAD-OPTICAL 1
20 J70521113C KEYBOARD BASE BRACKET 1
21 J70521112C KEYBOARD BASE 1
22 J52011002A MINI KEYBOARD 1
Page
SAMSUNG TECHWIN
44
SM421

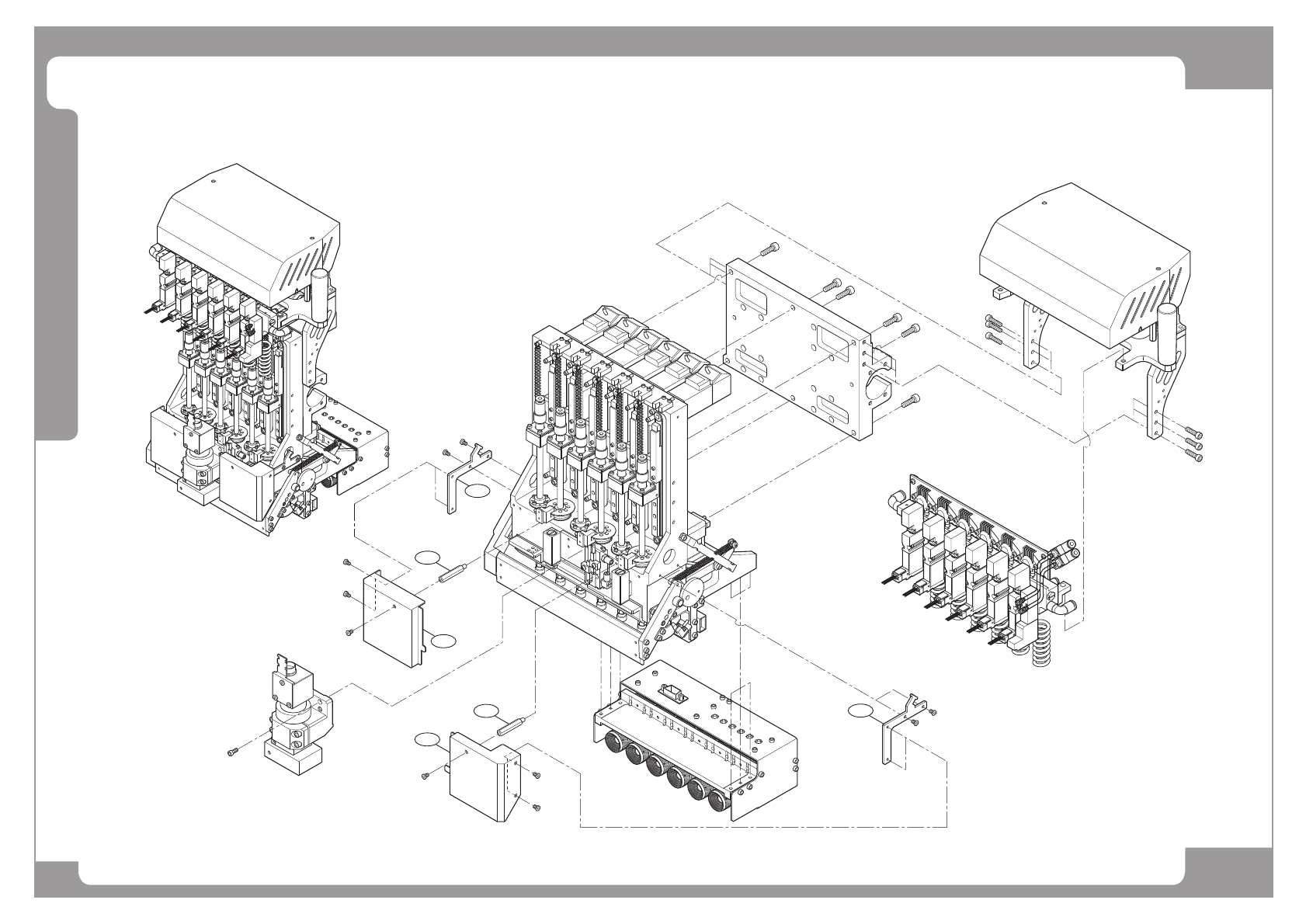

Head Ass’y (1/5)
3
1
2
3
4
4
