Page SAMSUNG TECHWIN 46 SM421 H ead Ass’y (2/5) 41 30 A B 1 2 5 6 7 8 8 14 15 20 16 13 13 29 18 19 21 23 24 25 25 25 26 27 43 43 28 29 31 44 40 34 32 33 35 37 38 41 42 45 46 9 10 11 12 25 3 4 17 22 39 36 36
Page
SAMSUNG TECHWIN
45
SM421
Head Ass’y (1/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A-1 J90551151A HEAD_ASSY_TOTAL J90551151A 1
1 J7155553A MIRROR COVER -RIGHT[J7155553A] 1
2 J7155552A MIRROR COVER -LEFT[J7155552A] 1
3 J7055657A MIRROR COVER BRACKET[J7055657A] 2
4 J7055566B PCB SUPPORT 30[J7055566B] 2
Page
SAMSUNG TECHWIN
46
SM421

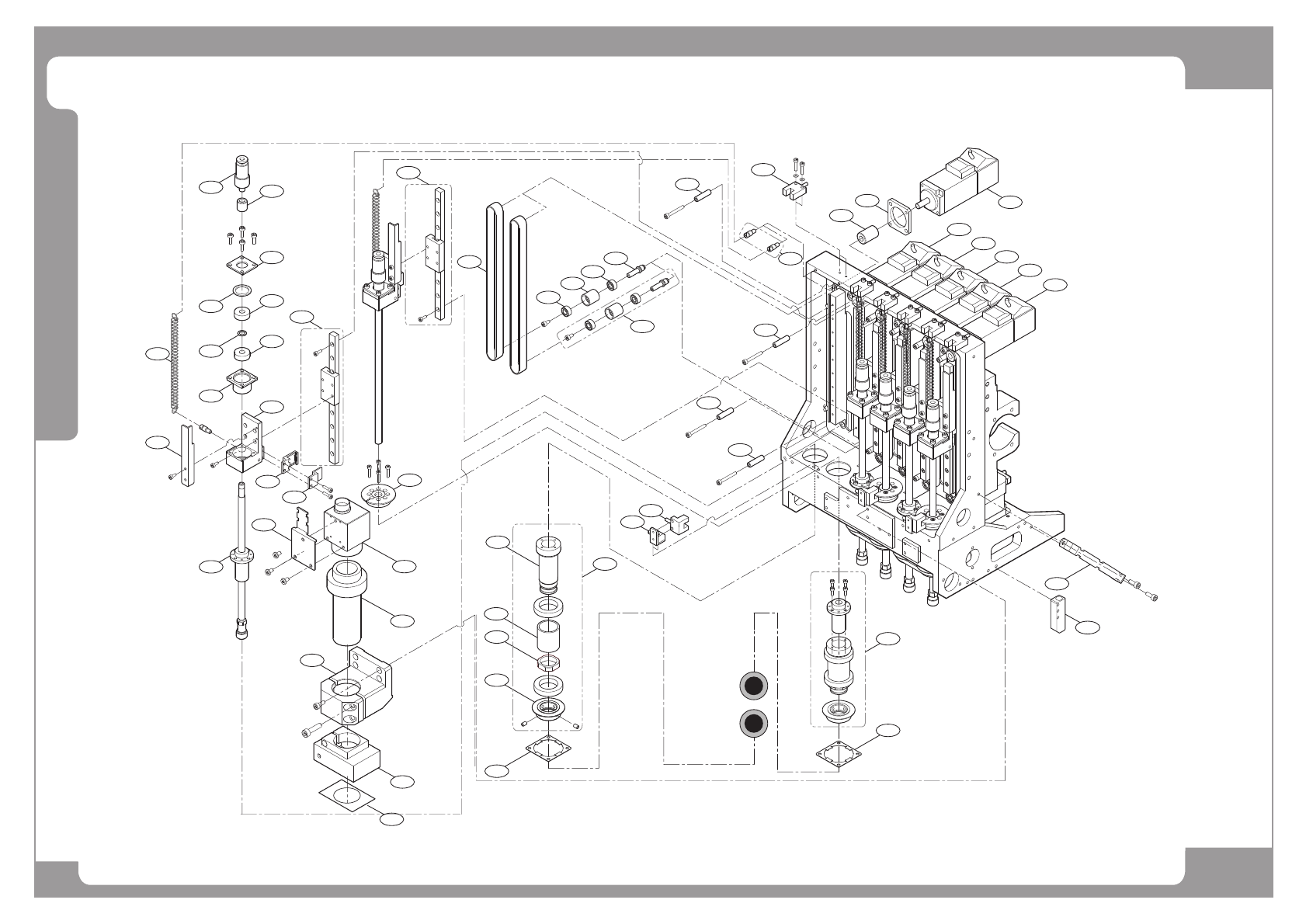

Head Ass’y (2/5)
41
30
A
B
1
2
5
6
7
8
8
14
15
20
16
13
13
29
18
19
21
23
24
25
25
25
26
27
43
43
28
29
31
44
40
34
32
33
35
37
38
41
42
45
46
9
10
11
12
25
3
4
17
22
39
36
36
Page
SAMSUNG TECHWIN
47
SM421
Head Ass’y (2/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J3212027A MICRO PHOTO SENSOR[PM-L24] 1
2 J3212048A MICRO PHOTO SENSOR[PM-U24] 6
3 J71550560C LED HOUSING-F[J7155560A] 1
4 J90591004A F-MOVING_12058_LENS_ASSY 1
5 J9055357A PULLEY ASSY (Z-AXIS 2) 6
6 J7055658A PULLEY PIN[J7055658A] 1
7 J7155565A PULLEY (Z-AXIS 2)[J7155565A] 1
8 J6601140A BALL BEARING[MR684ZZ] 2
9 J90831393B Z4_MOTOR_ASSY 1 J90831393A
10 AM03-003692A CABLE ASSY-Z3 MOTOR ASSY [SM41-MD028] 1 J90831392A /J90831392B
11 J90831391B Z2_MOTOR_ASSY 1 J90831391A
12 J90831390B Z1_MOTOR_ASSY 1 J90831390A
13 J90551007A SPLINE_HOUSING_ASSY 6
14 J7055543A SPLINE HOUSING[J7055543A] 1
15 J7055544A BEARING COLLAR[J7055544A] 1
16 J7055555A BEARING NUT[J7055555A] 1
17 J7155572A CAMERA CABLE HOLDER[J7155572A] 1
18 J7155566A SIDE TIE MOUNT[J7155566A] 1
19 J7155541A PIN[J7155541A] 12
20 J7155520A PULLEY (R-AXIS 1)[J7155520A] 6
21 J7155518A PULLEY (Z-AXIS 1)[J7155518A] 6
22 J71551263A FIDUCIAL_CAMERA_BRK-2 1
23 FC30-000215A PLATE-SENSOR DOG-R J71550513C 3 J71550513C
24 J7155512A SENSOR DOG[J7155512A] 6
25 J71550511B STOPPER J7155511A 12
26 J71550510B JONT[J7155510A] 6
27 J71550509B SPLINE ALIGNER CAP[J7155509A] 6
