Page SAMSUNG TECHWIN 57 SM421 H ead Ass’y (5/5) NO. P ART NO. P ART NAME Q'TY Old No. Stock Apply Reference 1 J6713022B COIL TUBE(POL YURETHANE) [J6713022B] 6 2 J71541085A HARNESS_PLA TE J71541085A 1 3 J71541019A HE…
Page
SAMSUNG TECHWIN
56
SM421

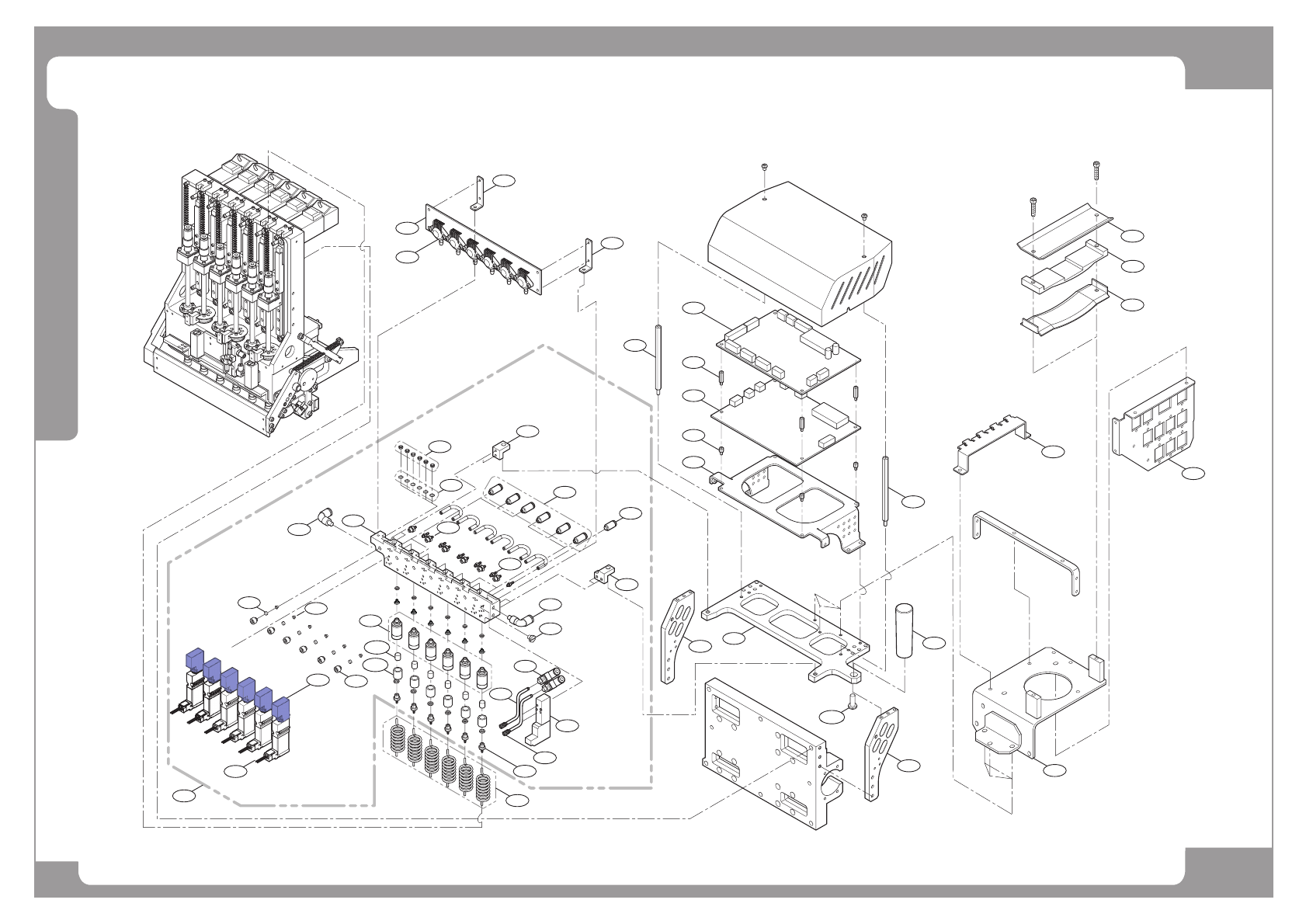

Head Ass’y (5/5)
24
33
36
2
3
13
14
15
5
6
6
12
16
17
35
35
8
9
11
10
7
4
31
1
21
5
29
18
25
28
27
32
29
26
30
20
19
22
37
23
41
40
39
42
43
38
44
45
34
Page
SAMSUNG TECHWIN
57
SM421
Head Ass’y (5/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J6713022B COIL TUBE(POLYURETHANE) [J6713022B] 6
2 J71541085A HARNESS_PLATE J71541085A 1
3 J71541019A HEAD_BOARD_BRACKET J71541019A 1
4 J71541018B CABLEVEYOR_BRACKET 1
5 J71541016B HARNESS_SUPPORT 2
6 J70541125A HEAD_COVER_SUPPORT J70541125A 2
7 J70541124A CABLE_SPACER J70541124A 1
8 J70541015B CONNECTOR_PANNEL 1 J70541015A
9 J7054255A CUSHION BRACKET X[J7054255A] 1
10 J7054260A CABLE FIXER[J7054260A] 1
11 J7354023A CABLE CUSHION X[J7354023A] 1
12 J6119056A HANDLE BG-10 1
13 J6103003A HEX SUPPORT 4
14 J91741083C SM321_HEAD_IO_BOARD 1 J91741083B
15 J91741084B SM321_HEAD_ILL_BOARD 1 J91741084A
16 J91741085A SM321_HEAD_VACUUM_SENSOR_BOARD 1
17 J3204002A AIR PRESSURE SENSOR [MPX5100AP] 6
18 J90550246F AIR MODULE 1 J90550246E
19 FC07-000185A SM421_AIR_MODULE_MANIFOLD 1 J71551001B
20 FC09-000823A MANIFOLD_BKT_L 1 J7155544A
21 FC09-000824A MANIFOLD_BKT_R 1 J7155545A
22 J63041001A O_RING 6
23 HP14-000206 SOLENOID VALVE[VA01PEP34-1U-F] 6 J6702048A / J67020048B
24 HP14-000163 SOLENOID VALVE 6 J67081010A
25 J6702049A SOLENOID VALVE 1
26 J67031006A SPEED CONTROLLER 2 J6703039A
27 J6711262A MINI FITTING[BC-03-M5] 6
Page
SAMSUNG TECHWIN
58
SM421
Head Ass’y (5/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
28 J67111068A MINIATURE FITTING 2 J6711263A
29 HP06-000104 ONE TOUCH FITTING[FSE04-M5C] 2 J6711260A
30 HP06-000074 STRAIGHT FITTING 6 J6711261A
31 J6705009A SILENCER 1
32 J6712016A PLUG[N220 1900J] 1
33 J9058090A FILTER ASSY[J9058090A] 6
34 J7458002A FILTER ELEMENT[LF-M5-60-Z-ELEMENT] 6
35 J7055662A VACUUM SENSOR BRACKET[J7055662A] 2
36 J1201033 HEX SUPPORT [M3*15 (BOLT-NUT)] 4
37 J67131004A TUBE 6
38 FC09-000664A INSERT 6
39 FC09-000665A SM411_MANIFOLD_ORIFICE_0.9 6
40 FC14-000121A BLOW_FILTER_CAP 6
41 HP04-000018A FILTER_ELEMENT 6
42 J67111151A FITTING 6
43 J6711141A FITTING 6
44 J6004002038 BUTTON_HEAD_CAP_SCREW M10*20L 1
45 J67131001A TUBE LF-M5-60-Z 1
