Page SAMSUNG TECHWIN 59 SM421 H ead Ass’y (5/5)
Page
SAMSUNG TECHWIN
58
SM421
Head Ass’y (5/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
28 J67111068A MINIATURE FITTING 2 J6711263A
29 HP06-000104 ONE TOUCH FITTING[FSE04-M5C] 2 J6711260A
30 HP06-000074 STRAIGHT FITTING 6 J6711261A
31 J6705009A SILENCER 1
32 J6712016A PLUG[N220 1900J] 1
33 J9058090A FILTER ASSY[J9058090A] 6
34 J7458002A FILTER ELEMENT[LF-M5-60-Z-ELEMENT] 6
35 J7055662A VACUUM SENSOR BRACKET[J7055662A] 2
36 J1201033 HEX SUPPORT [M3*15 (BOLT-NUT)] 4
37 J67131004A TUBE 6
38 FC09-000664A INSERT 6
39 FC09-000665A SM411_MANIFOLD_ORIFICE_0.9 6
40 FC14-000121A BLOW_FILTER_CAP 6
41 HP04-000018A FILTER_ELEMENT 6
42 J67111151A FITTING 6
43 J6711141A FITTING 6
44 J6004002038 BUTTON_HEAD_CAP_SCREW M10*20L 1
45 J67131001A TUBE LF-M5-60-Z 1
Page
SAMSUNG TECHWIN
59
SM421

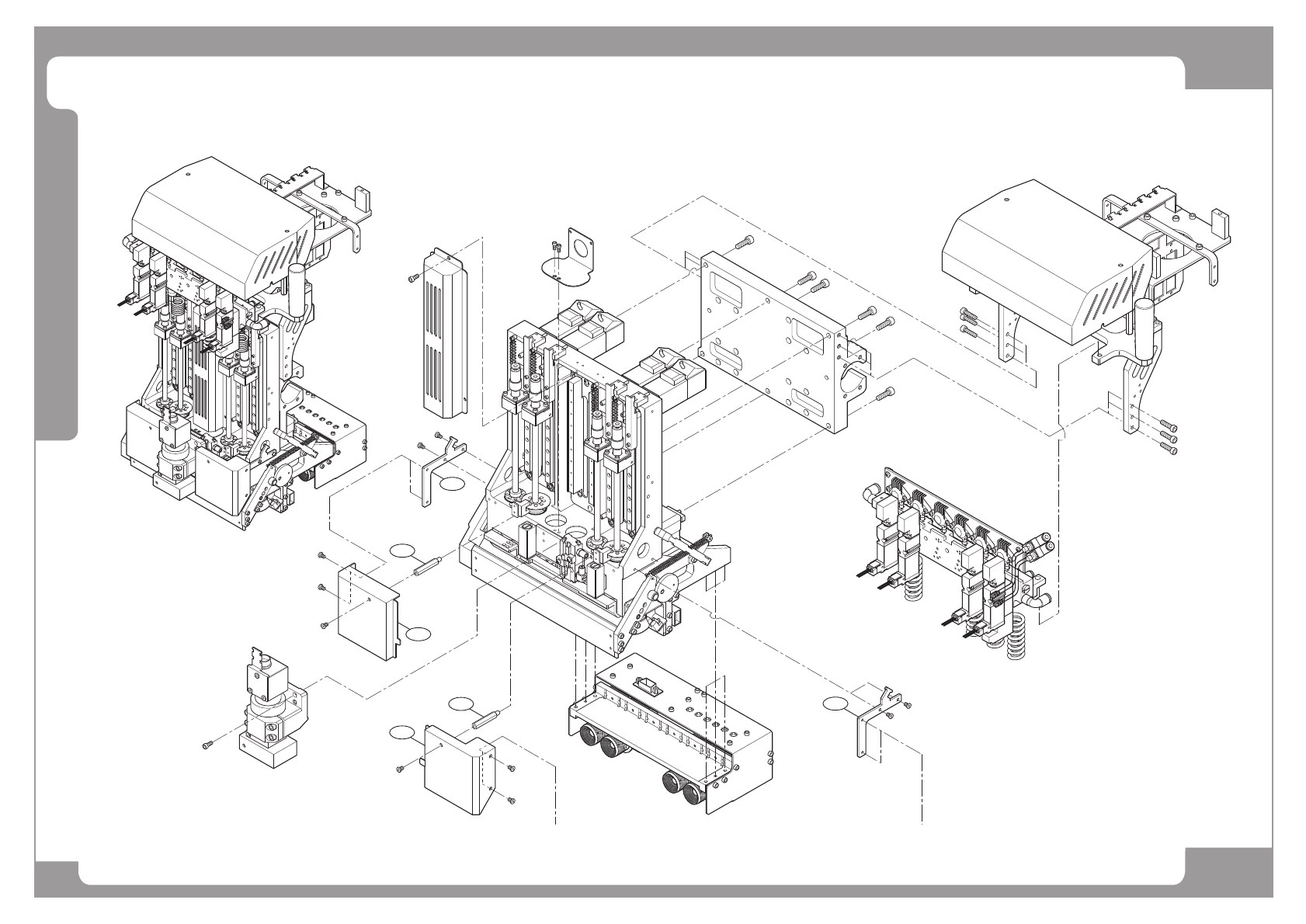

Head Ass’y (5/5)
Page
SAMSUNG TECHWIN
60
SM421
Head Ass’y - SM421F (1/5)
3
1
2
3
4
4
