Page
SAMSUNG TECHWIN
60
SM421
Head Ass’y - SM421F (1/5)
3
1
2
3
4
4
Page
SAMSUNG TECHWIN
61
SM421
Head Ass’y - SM421F (1/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J7155553A MIRROR COVER -RIGHT[J7155553A] 1
2 J7155552A MIRROR COVER -LEFT[J7155552A] 1
3 J7055657A MIRROR COVER BRACKET[J7055657A] 2
4 J7055566B PCB SUPPORT 30[J7055566B] 2
Page
SAMSUNG TECHWIN
62
SM421

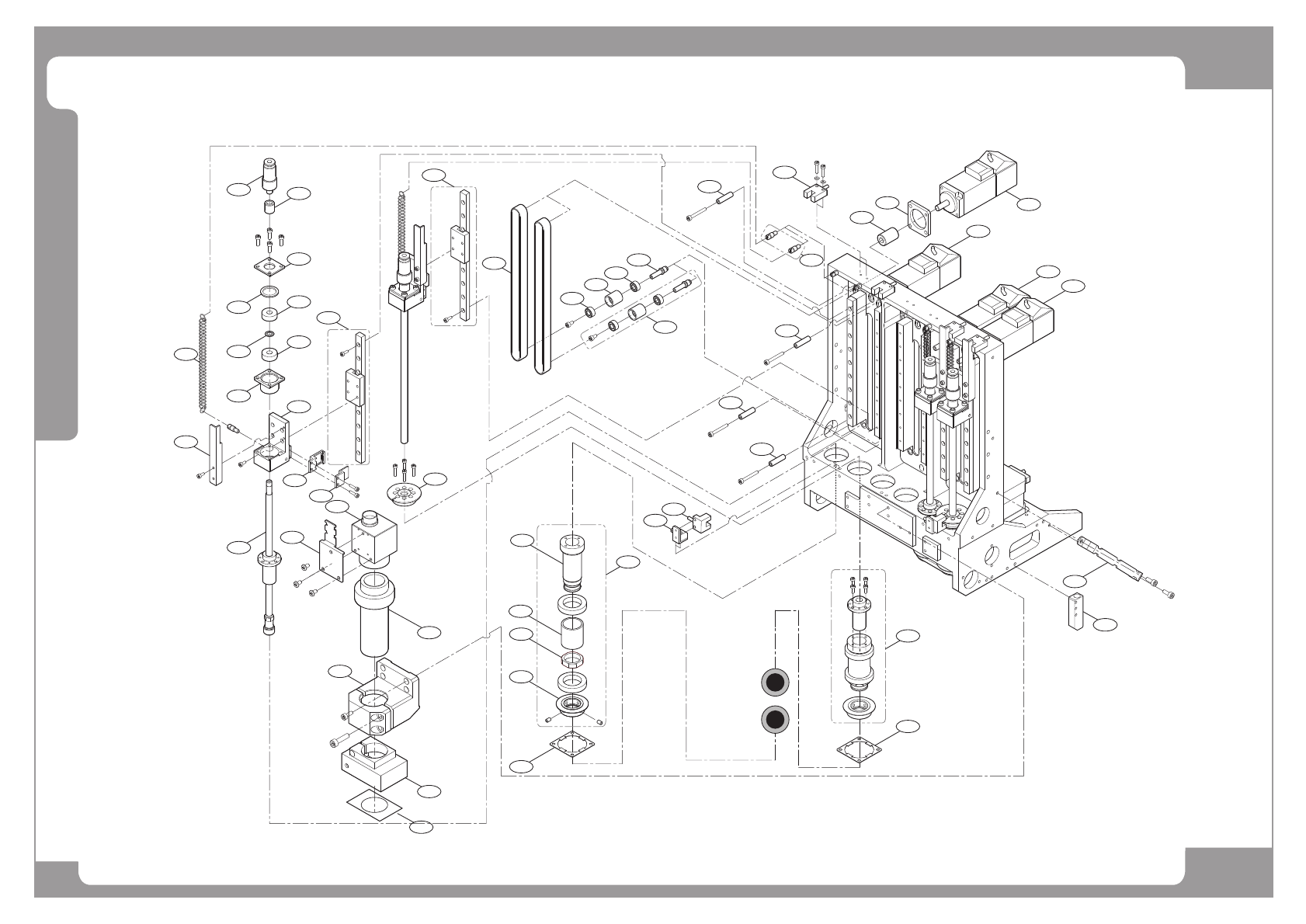

Head Ass’y - SM421F (2/5)
40
29
A
B
1
2
3
4
5
6
7
8
8
13
14
19
15
12
12
28
16
17
18
20
22
23
24
24
24
25
26
42
42
27
28
30
43
39
33
31
32
34
36
37
40
41
38
44
9
10
11
24
21
35
35
