Page SAMSUNG TECHWIN 65 SM421 H ead Ass’y - SM421F (2/5)
Page
SAMSUNG TECHWIN
64
SM421
Head Ass’y - SM421F (2/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
28 J7055659A BEARING PLATE[J7055659A] 4
29 J7055656A Z-TENSION BRACKET[J7055656A] 4
30 J7055554A SPACER[J7055554A] 4
31 J7055552A SENSOR BRACKET R-H[J7055552A] 2
32 J70550548B SPRING[J7055548A] 4
33 J7055545B SPLINE ALIGNER[J7055545B] 4
34 J90551171A BALL_SPLINE_ASSY 4
35 J9060040B FIDUCIAL OUTER LED ASSY 1
36 J70551002B BELT_CLAMP2 4
37 J70551001B BELT_CLAMP1 4
38 J67510015B CCD CAMERA 1 J6751014A
39 J67110180C ROTARY JOINT 4 J6711180B
40 J6607055A LM GUIDE [LWLG7C1R140BT1H] 4
41 J66021036A SIMING BELT[384-1.5GT-9] 4
42 J6601088A BALL BEARING [605ZZ] 8
43 J6049000250 WASHER WAVY 0.62OD*0.48ID*0.095HGT[SSR-0 4
44 J90831395B Z6_MOTOR_ASSY 1 J90831395A
Page
SAMSUNG TECHWIN
65
SM421
Head Ass’y - SM421F (2/5)
Page
SAMSUNG TECHWIN
66
SM421

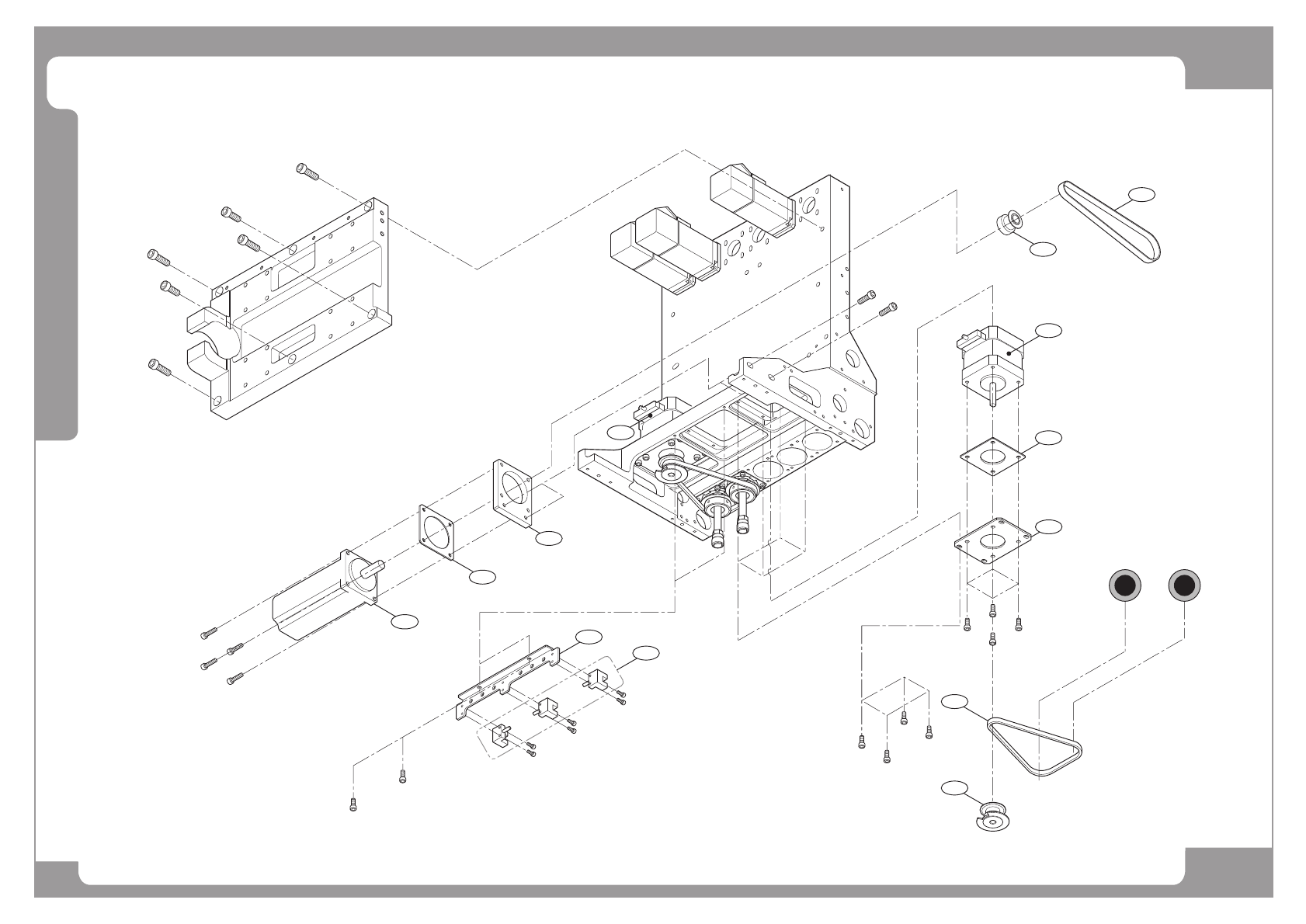

Head Ass’y - SM421F (3/5)
A
B
2
3
13
1
4
5
6
7
11
8
9
10
12
