Page
SAMSUNG TECHWIN
72
SM421

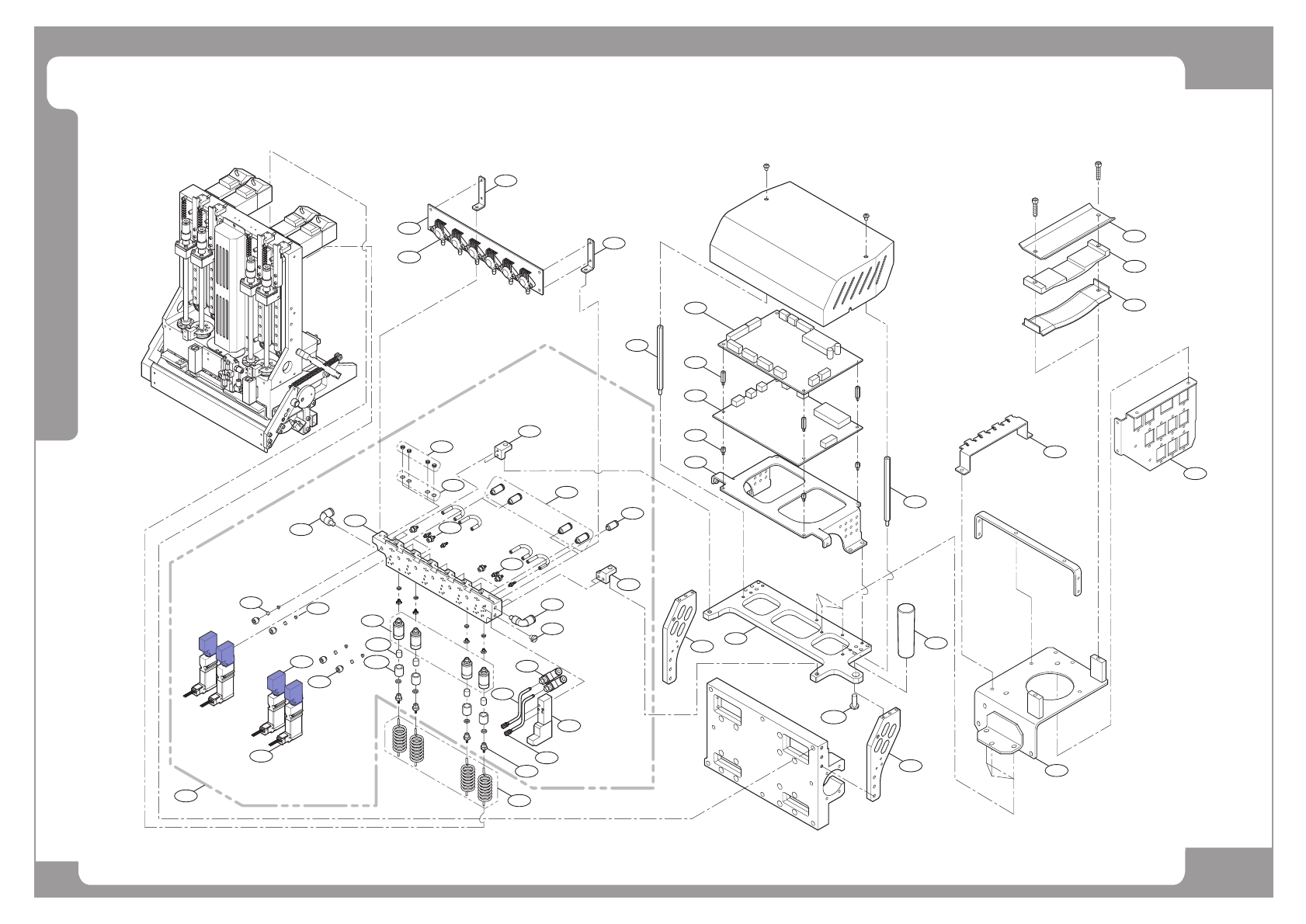

Head Ass’y - SM421F (5/5)
24
33
36
2
3
13
14
15
5
6
6
12
16
17
35
35
8
9
11
10
7
4
31
1
21
5
29
18
25
28
27
32
29
26
30
20
19
22
37
23
41
39
42
43
38
44
34
45
40
Page
SAMSUNG TECHWIN
73
SM421
Head Ass’y - SM421F (5/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J6713022B COIL TUBE(POLYURETHANE) [J6713022B] 4
2 J71541085A HARNESS_PLATE J71541085A 1
3 J71541019A HEAD_BOARD_BRACKET J71541019A 1
4 J71541018B CABLEVEYOR_BRACKET 1
5 J71541016B HARNESS_SUPPORT 2
6 J70541125A HEAD_COVER_SUPPORT J70541125A 2
7 J70541124A CABLE_SPACER J70541124A 1
8 J70541015A CONNECTOR_PANNEL 1
9 J7054255A CUSHION BRACKET X[J7054255A] 1
10 J7054260A CABLE FIXER[J7054260A] 1
11 J7354023A CABLE CUSHION X[J7354023A] 1
12 J6119056A HANDLE BG-10 1
13 J6103003A HEX SUPPORT 4
14 J91741083C SM321_HEAD_IO_BOARD 1 J91741083B
15 J91741084B SM321_HEAD_ILL_BOARD 1 J91741084A
16 J91741085A SM321_HEAD_VACUUM_SENSOR_BOARD 1
17 J3204002A AIR PRESSURE SENSOR [MPX5100AP] 4
18 J90550246F AIR MODULE 1 J90550246E
19 J71551001B MANIFOLD J71551001B 1
20 J7155544A FOOT BRACKET-L[J7155544A] 1
21 J7155545A FOOT BRACKET-R[J7155545A] 1
22 J63041001A O_RING 4
23 HP14-000206 SOLENOID VALVE[VA01PEP34-1U-F] 6 J6702048A / J67020048B Consumables (Replacement: 2 years)
24 J67081010A ATMOSPHERIC_FILTER LF-M3-Z07-021 4
25 J6702049A SOLENOID VALVE[RCS242-M3-D24NP] 1 Consumables (Replacement: 2 years)
26 J6703039A SPEED CONTROLLER[SPR-Z-M3N] 2
27 J6711262A MINI FITTING[BC-03-M5] 4
Page
SAMSUNG TECHWIN
74
SM421
Head Ass’y - SM421F (5/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
28 J6711263A MINI FITTING[BE-04-M3] 2
29 J6711260A ONE TOUCH FITTING[FSE04-M5C] 2
30 HP06-000074 STRAIGHT FITTING 4 J6711261A
31 J6705009A SILENCER[AS-5] 1
32 J1300213 PLUG[N220 1900J] 1 J6712016A
33 J9058090A FILTER ASSY[J9058090A] 4
34 J7458002A FILTER ELEMENT[LF-M5-60-Z-ELEMENT] 6 Consumables (Replacement: 6 months)
35 J7055662A VACUUM SENSOR BRACKET[J7055662A] 2
36 J1201033 HEX SUPPORT [M3*15 (BOLT-NUT)] 4
37 J67131004A TUBE 6
38 FC09-000664A INSERT 6
39 FC09-000665A SM411_MANIFOLD_ORIFICE_0.9 6
40 FC14-000121A BLOW_FILTER_CAP 6
41 HP04-000018A FILTER_ELEMENT 6
42 J67111151A FITTING 6
43 J6711141A FITTING 6
44 J6004002038 BUTTON_HEAD_CAP_SCREW M10*20L 1
45 J67131001A TUBE LF-M5-60-Z 1
