Page SAMSUNG TECHWIN 79 SM421 A ir Ass’y (2/5) NO. P ART NO. P ART NAME Q'TY Old No. Stock Apply Reference A-1 J9058100 9A AIR_ASSY J9058100 9A 1 J905810 45A SM421F_AIR_AS SY J9058104 5A 1 J90581052A SM421F 1 J671 1…
Page
SAMSUNG TECHWIN
78
SM421

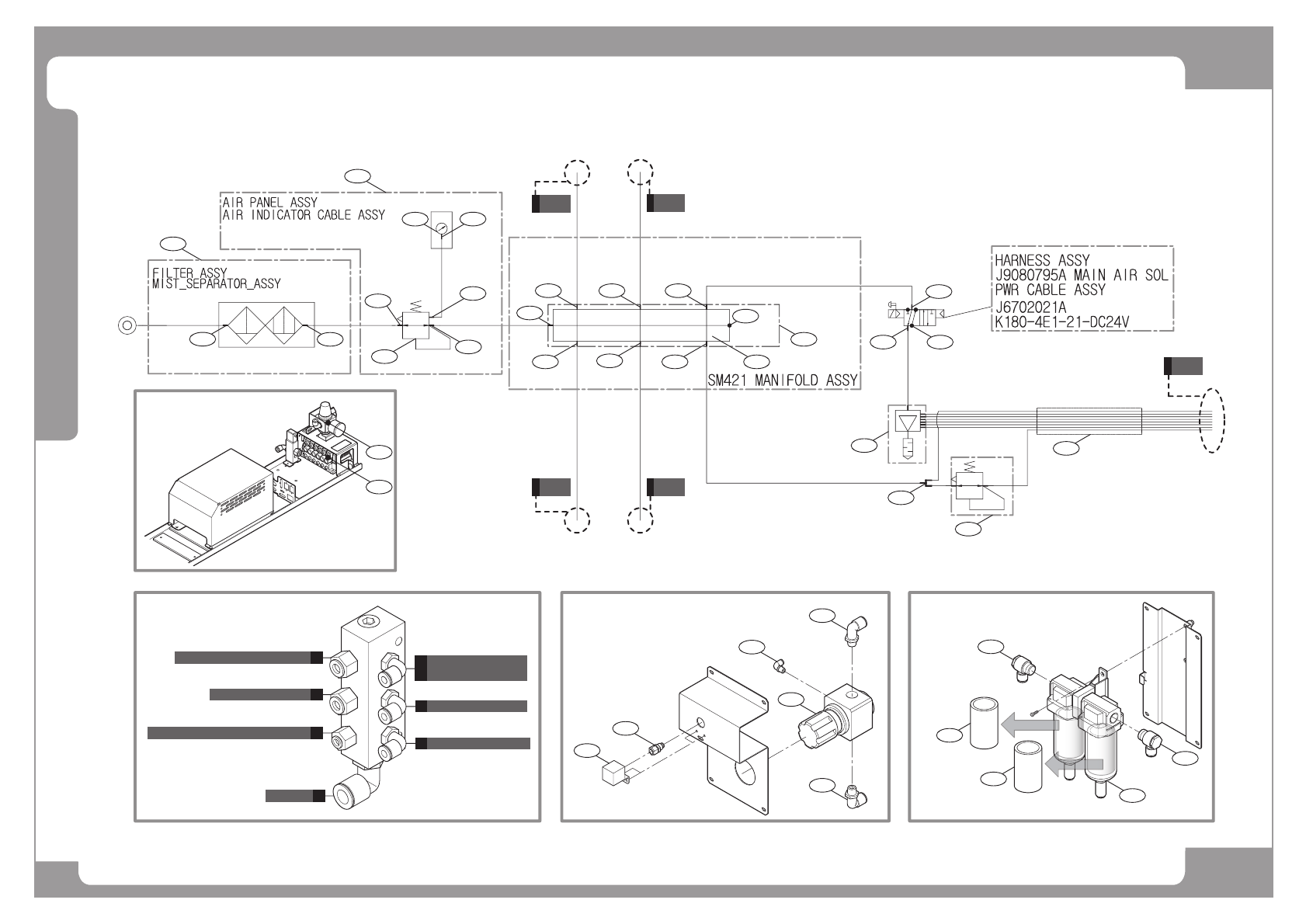

Air Ass’y (2/5)
8
Multi Tube 1, 8
Connection Fitting
Rear Feeder Base
Front Feeder Base
Head Vaccum Sol. Volve
Sol. Volve Module
Conveyor Edge Fixer Regultor
Regultor
ڰڍڈڏڈڑڅڏ
ڰڍڈڏڈڑڅڏ
ڡۍۊۉۏ
ڭۀڼۍ
ڰڍڈڏڈڌڍڅړ
ڰڍڈڏڈڏڅڍډڐ
ڰڍڈڏڈڑڅڏ
ړ
ڰڍڈڏڈړڅڐ
ڰڍڈڏڈړڅڐ
ڌ
ڰڍڈڏڈڌڍڅړ
ڰڍڈڏڈڌڍڅړ
1
4
2
24
3
4
1
AIR PRESSURE
2
3
4
4
5
5
6
7
8
8
8
6
9
10
11
11
11
12
13 15 15
14
16
17
18
19
20
21
22
23
11
11
11
15
15
13
16
6
23
C1
C2
B1 B2
D
Page
SAMSUNG TECHWIN
79
SM421
Air Ass’y (2/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A-1 J90581009A AIR_ASSY J90581009A 1
J90581045A SM421F_AIR_ASSY J90581045A 1 J90581052A SM421F
1 J6711147A STRAIGHT FITTING KQ2H04-M5 1
2 J67090012B REGULATOR 1
3 J32041001A PRESS URE SENSOR PSA-1(RC1/8) 1
4 J1301187 ELBOW FITTING [KQ2L12/PL12-04] 2 J6711170A
5 J6711028A ELBOW FITTING [KQ2L04-01] 1
6 J67081006A MIST_SEPARATOR_ASSY TAC4020-04D-R3643 1
7 J67081003A ELEMENT_AIR TAF4000-05-6000 1
8 J67111032A MIST_FITTING SQV12-04S 2
9 J67081002A ELEMENT_SEPARATOR PFH4000-0005A-6083 1
10 J67081002A SM1 MANIFOLD ASSY[J9058086A] 1
11 J1301189 ELBOW FITTING [KQ2L06-02/PL6-02] 3
12 J1301213 PLUG [PT 3/8] 1
13 J1301339 STRAIGHT FITTING [KQ2H06-02/PC6-02] 1
14 J2100009 MANIFOLD [0131-611008] 1
15 J6711135A STRAIGHT FITTING [PC8-02] 2
16 J6711244A MALE ELBOW[KQ2L12-03] 1
17 J67091007A REGULATOR J67091007A 1 J6709019A
18 J67110119B UNION Y FITTING 1
19 J6711140A STRAIGHT FITTING [SS8-1/8] 1
20 J67110157B ELBOW FITTING 1
21 J6712008A PLUG [PT 1/8] 3
22 J6713048A MULTI TUBE[UML-408 (BL-BK6-BL)] 3.5
23 J67070018B VACUUM GENERATOR[VKME10A-0418S-3] 1
24 J90831313C AIR_INDICATOR_CABLE_ASSY 1
25 J6713016A AIR TUBE (POLYURETHANE) 7 Only Indication
Page
SAMSUNG TECHWIN
80
SM421
Air Ass’y (2/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
26 J6713017A AIR TUBE (POLYURETHANE) 5 Only Indication
27 J6713018A AIR TUBE (POLYURETHANE) 5 Only Indication
